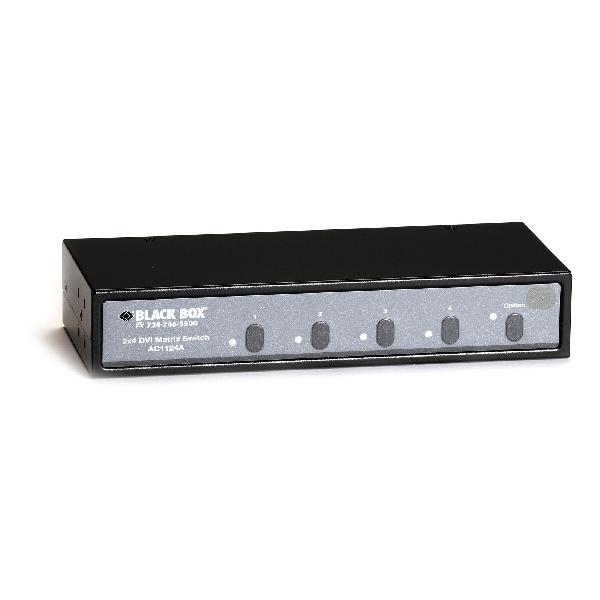

DVI Matrix Switch with Audio - 2x4

Home  >   Black Box  >   VIDEO SWITCHES  >
DVI

Output high-def video and audio from separate sources to four displays.

Product Feature

  • Routes 2 different DVI and audio signals to 4 different DVI monitors and speakers.
  • Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.
  • Switch using buttons on the front panel or by using the wireless remote control from up to 16.4 ft. (5 m) away.
  • Switches both the video and audio directly.
  • Turn the video and audio on or off at each individual port.
  • Each output provides one video signal and one audio signal.
  • Features Auto Scan and selectable scan time interval.
  • 1U height saves rack space. Rackmount kit is available.
  • System settings are automatically retained. Recover your previous settings after power blackouts.
Compliance
FCC
General
Autoscan Intervals8, 15, 30, 45 seconds
CE ApprovalYes
DVI Cable Length (Maximum)16.4 ft. (5 m)
Operating Temperature41 to 104° F (5 to 40° C)
Power100-240 VAC, 50-60 Hz, autosensing
Resolution1600 x 1200 at 60 Hz
Item Specifications

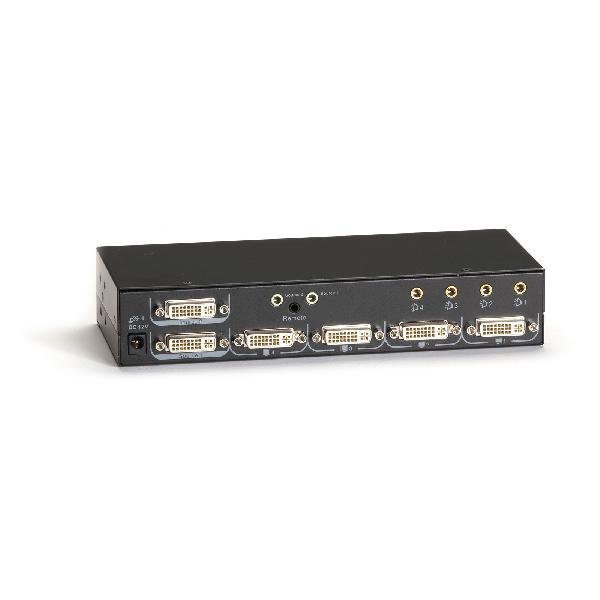

ConnectorsVideo: Input: (2) DVI-D; Output: (4) DVI-D; Audio: Input: (2) 3.5-mm stereo jacks; Output: (4) 3.5-mm stereo jacks
Dimensions1.6"H (1U) x 8.7"W x 3.8"D (4.1 x 22 x 9.7 cm)
Weight1.6 lb. (0.7 kg)

Product Includes:

  • Switch
  • Remote control
  • Power adapter
  • AC cord
  • User manual
  • IR Extension kit
  • (1) set of rubber footpads
Name Type Version Release Date
4x2 DVI Matrix Switch QIG 14 May 2021
