4K HDMI Matrix Switch - 2x2

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Fixed Matrix Switches

Easy 4K matrix switching for two HDMI sources and two HDMI display devices.

Product Feature

  • Supports 4K.
  • Switch high-resolution video plus audio from two sources to two displays in any combination.
  • Control from the front panel, with the included IR remote controller or RS-232.
  • Send digital signals to any or all outputs simultaneously.

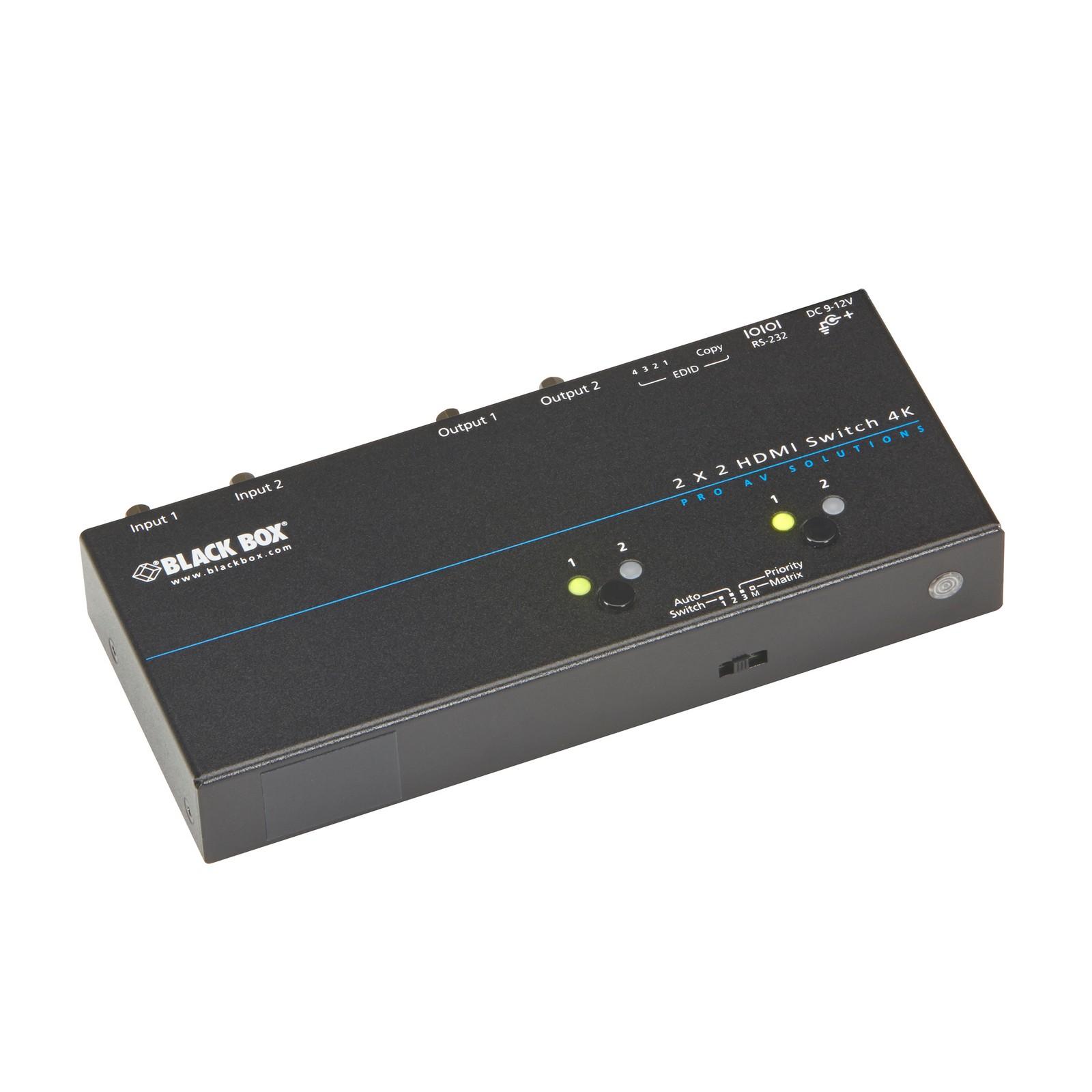

The 4K 2 x 2 HDMI Matrix Switch provides unrivaled versatility when controlling video and audio output on high-resolution HDMI displays. Each input can be routed to any output, or the same input can be routed to all outputs or any combination, eliminating the need to manually move cables to display HDMI video from different sources on different screens.


  • 4K support and pixel-perfect resolutions
    The switch supports sharp, UHD 4K video and works with wide range of resolutions from PC XGA to WUXGA 1920 x 1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i, and 1080p. It also carries the high-speed digital video signaling of TMDS formats for 10-, 12-, 16-, or 32-bit Deep Color. Plus, it provides support for 19:10 aspect ratio, data rates up to 6.75 Gbps, and 3D formats.
  • Ideal for any venue where multiple high-definition displays must be managed
    It's ideal for corporate theaters, meeting rooms, classrooms, and broadcasting studios. When used with digital signage, the switch enables you to quickly switch a display from one digital signage source to another.
  • Easy switching
    Switch using front-panel buttons, the included IR remote controller, or an RS-232 connection.
  • Works with all HDMI source devices
    Compatible with all HDMI source devices, PC monitors, plasma HD displays, HDTV, and audio receivers/amplifiers.
  • Easy installation

  • And more
    Remembers the last state during a power cycle.
    HDCP 2.0 compliant and Blu-ray ready.
    Supports auto EDID function, as well as manual copy for compatibility with every monitor.

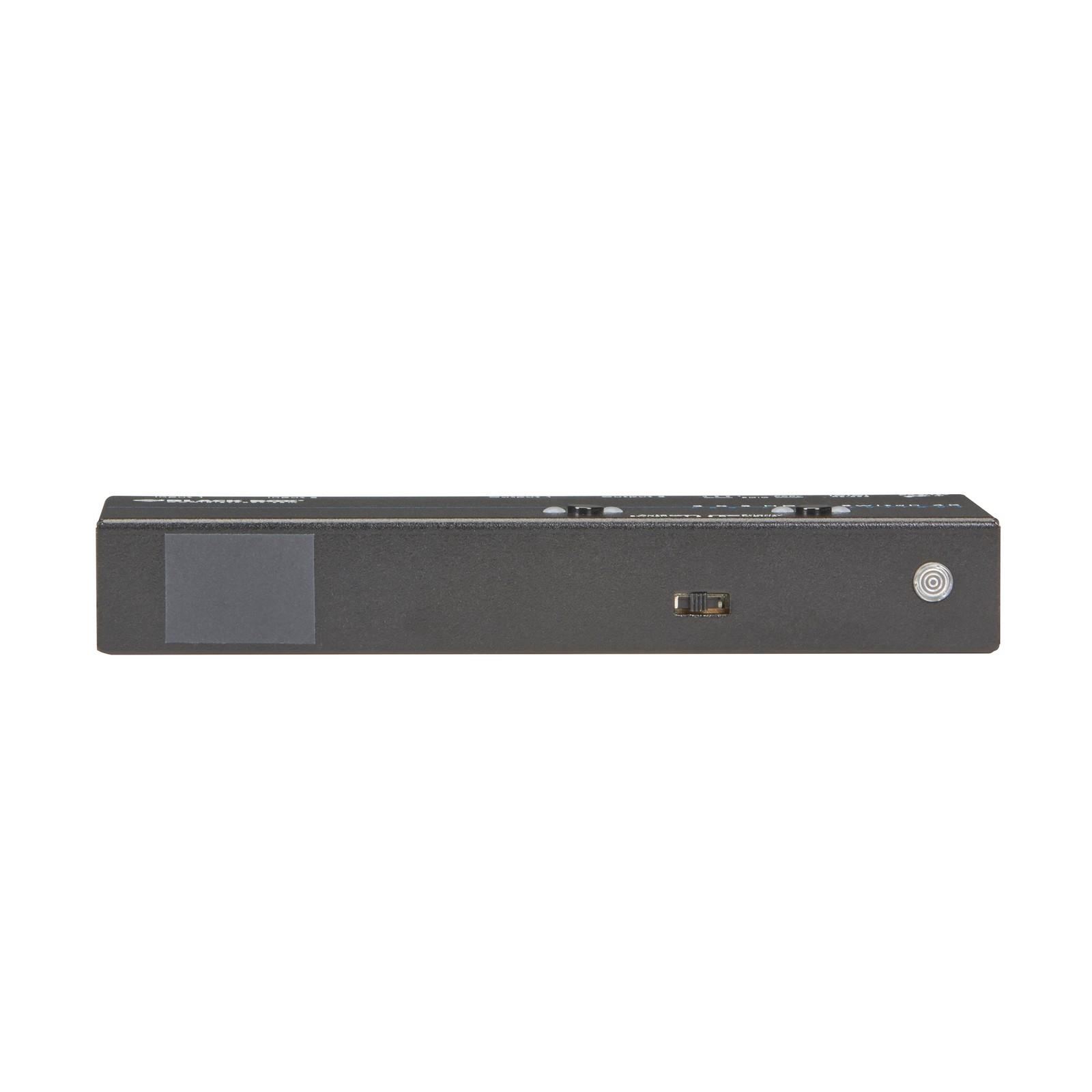

    Front-panel LEDs show automatic scanning input and output status.
Compliance
FCC
General
Altitude10,000 ft.
ApprovalsFCC, CE, RoHS2, UL
Humidity80%
Operating Temperature0 to 40°F (34 to 104°C)
Power9V 1.5A
Resolution4K, 1080p, 720p
Storage Temperature-20 to 60°F (-4 to 140°C)
User ControlsPush button, Serial, IR Remote
Item Specifications

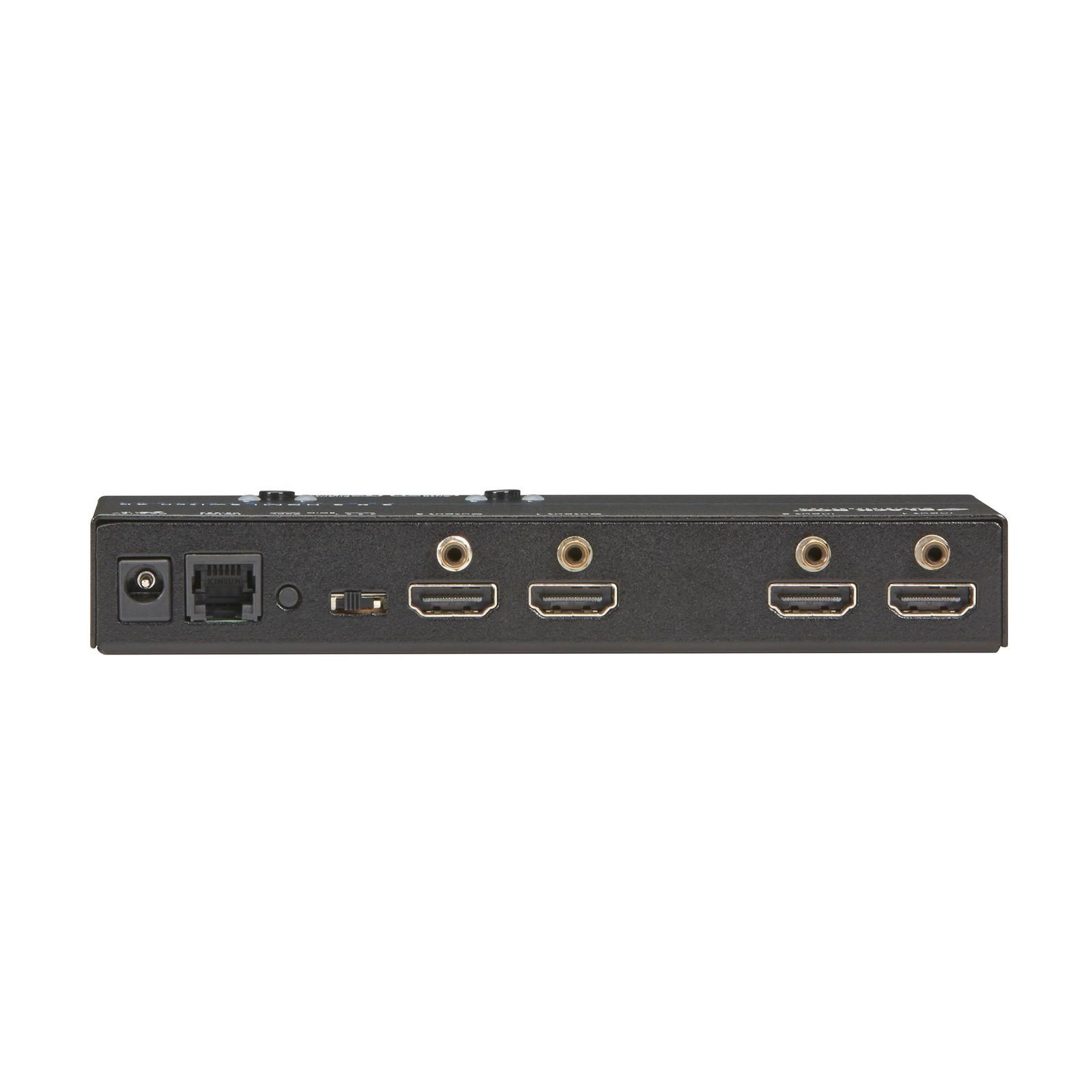

ConnectorsInput: (2) HDMI Ouput: (2) HDMI Control Port: (1) DB9
Dimensions.79" x 6.14" x 2.56" (20 x 156 x 65 mm)
Indicators(2) LEDs for input status
WeightUnit: 1.55 lb. (.7 kg) Shipping: 2 lb. (.9 kg)

Product Includes:

  • (1) 2 x 2 HDMI Matrix Switch
  • (1) IR remote control
  • (1) RS-232 cable
  • (1) 12V, 1.5A power supply with cord
  • 19" rackmount brackets
  • User manual
Name Type Version Release Date
4K HDMI Matrix Switch User Manual Manual 17 May 2021
