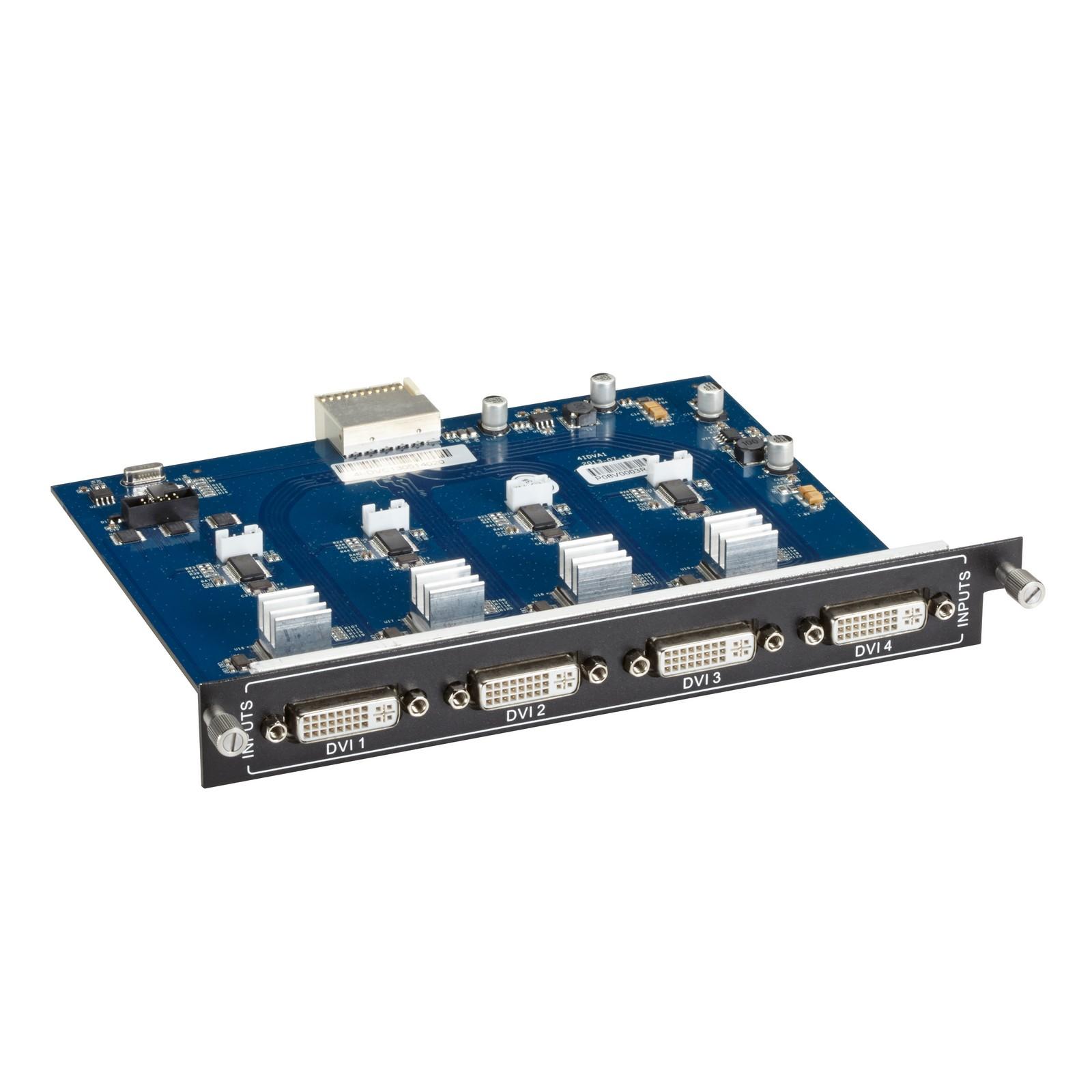

Modular Video Matrix Switcher Input Card - DVI-D

Home  >   Black Box  >   VIDEO SWITCHES  >
Matrix  >   Modular Matrix Switches

Hot-swappable input card for Modular Video Matrix Switcher.

Product Feature

  • Supports up to 1920 x 1200 resolution on (4) DVI outputs.

The Modular Video Matrix Switcher Input Card - DVI-D is designed for use with the AVS800 or AVS1600 Modular Video Matrix Switcher and allows you to customize the matrix based on your application needs.


  • Smart EDID management.
  • HDCP compatible.
  • Hot-swappable, user-friendly.
Compliance
FCC
General
ApprovalsCE
EnvironmentalOperating Humidity: 90% non-condensing
Operating Temperature32°F to 122°F (0°C to 50°C);
PowerPowered from Modular Video Matrix Switcher
Item Specifications
Connectors(4) DVI-D F for input
Dimensions1"H x 7.7"W x 6.6"D (2.5 x 19.5 x 16.7 cm)
Weight0.4 lb. (0.2 kg)
Name Type Version Release Date
Modular Video Matrix Switchers and Signal Cards Datasheet 19 May 2021
