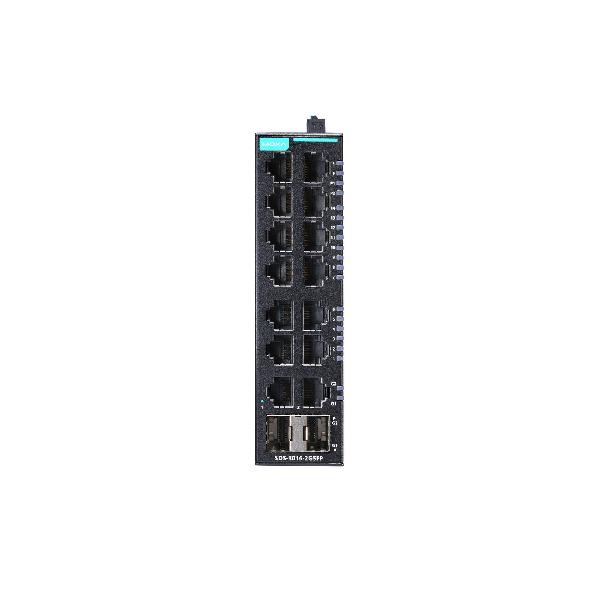

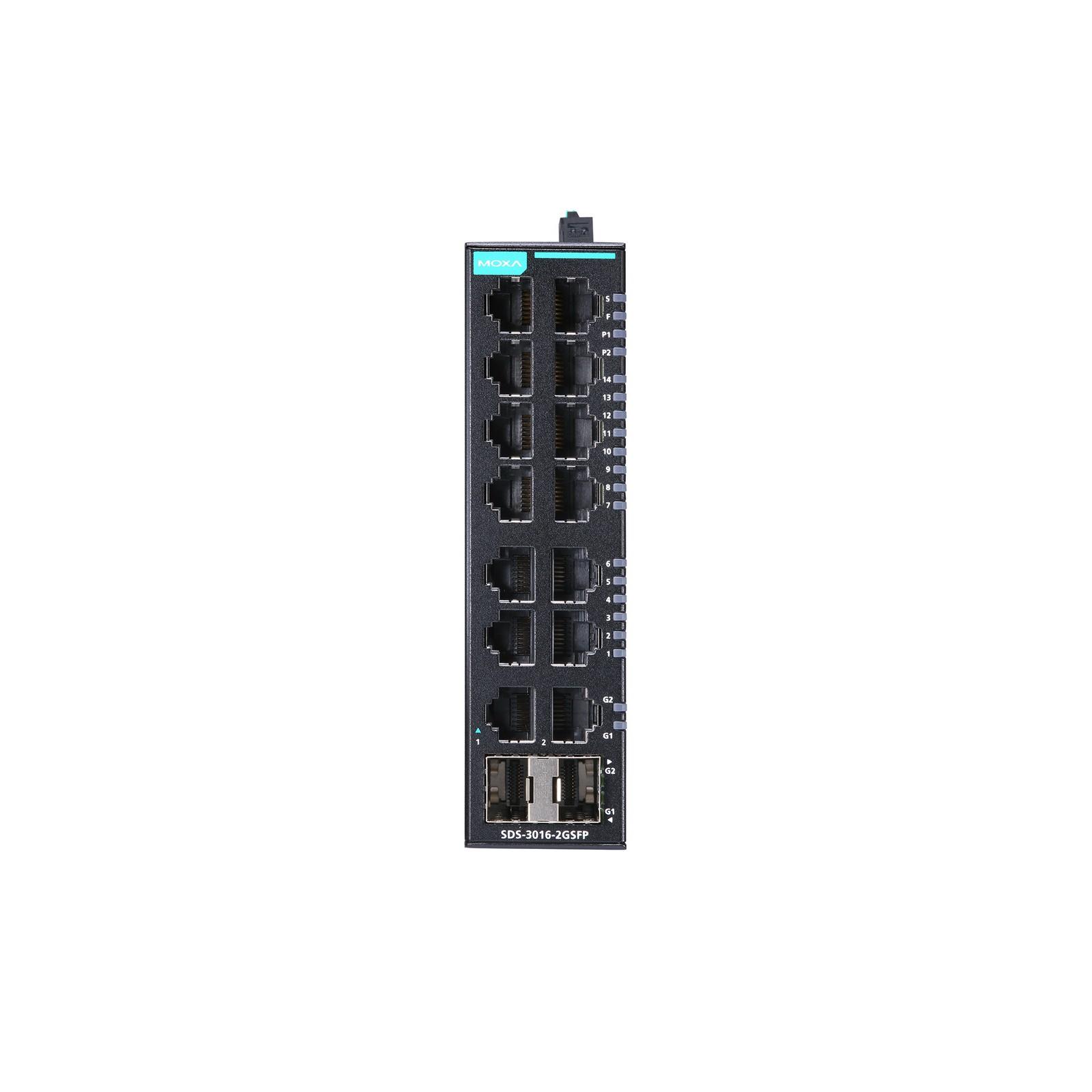

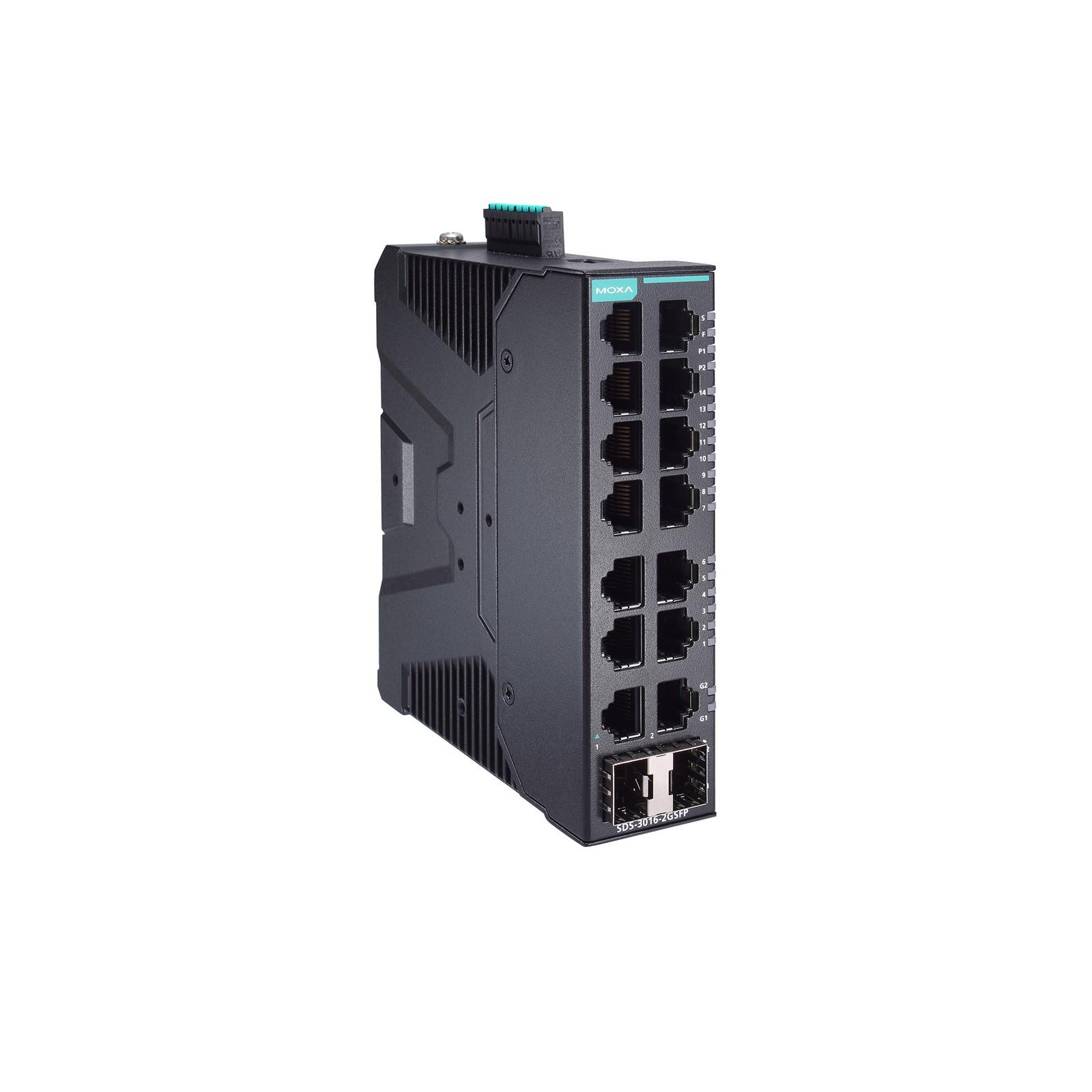

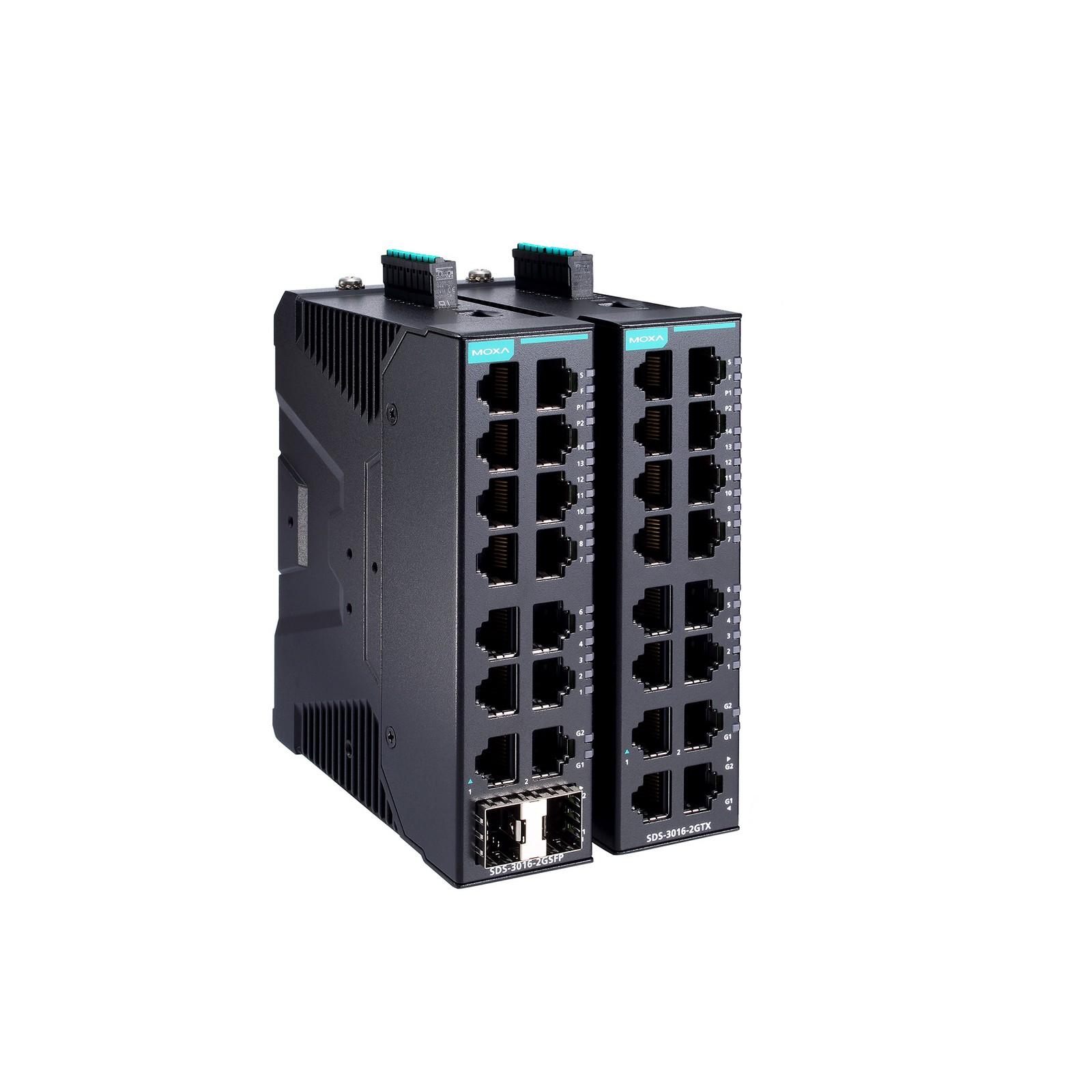

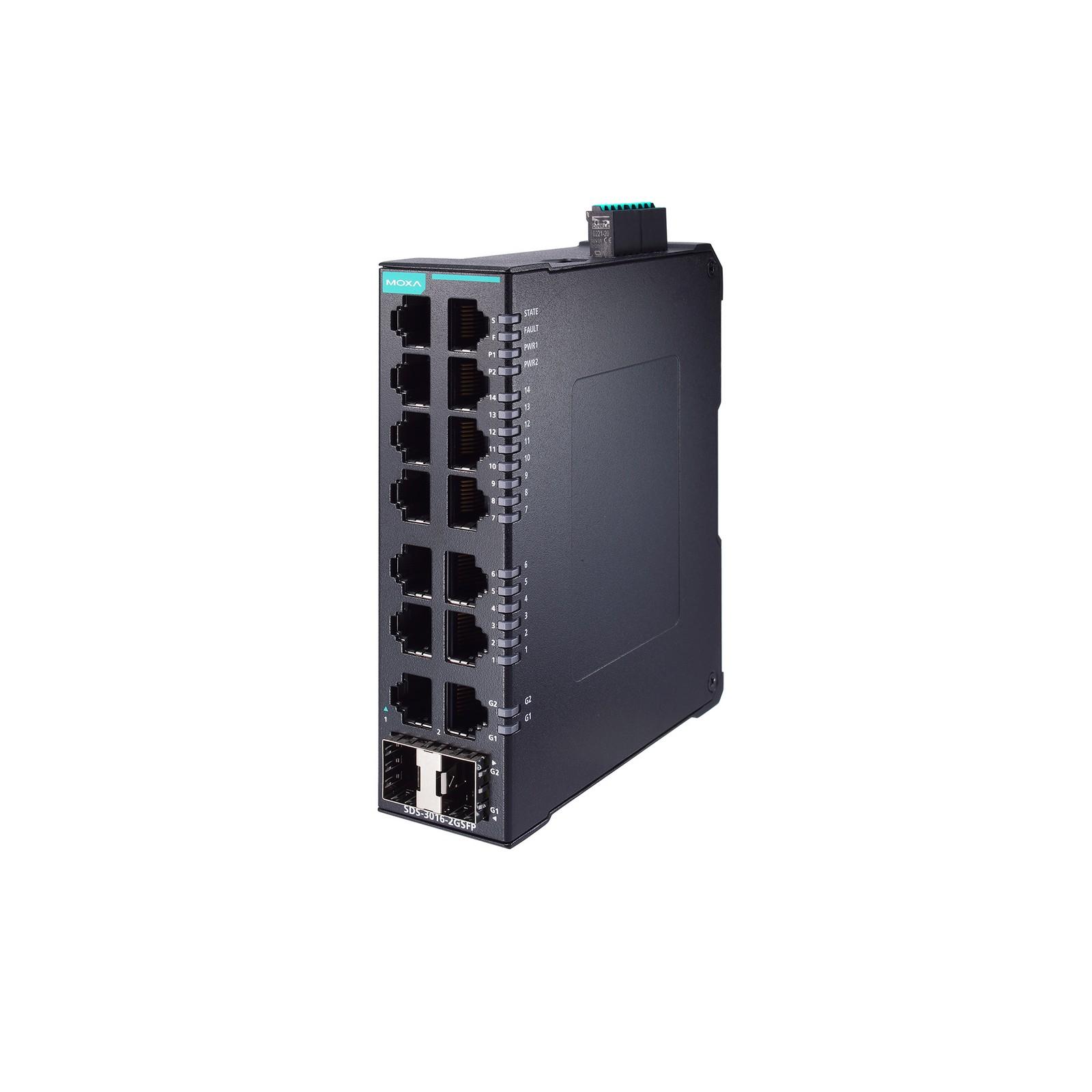

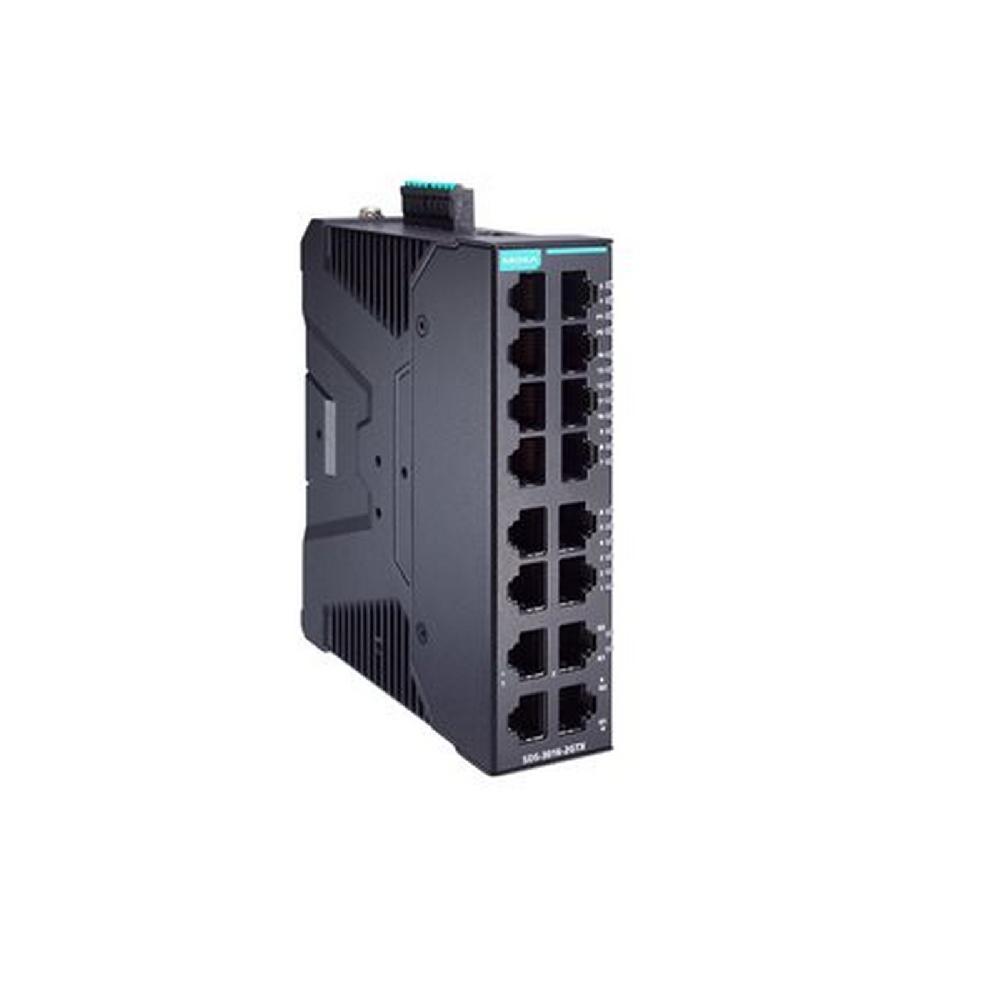

SDS-3016 Series

Introduction

The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.

Additional Features and Benefits

• Supports IEEE 802.1D-2004 and IEEE 802.1w STP/RSTP for rapid network redundancy
• IEEE 802.1Q VLAN to ease network planning
• Supports the ABC-02-USB automatic backup configurator for quick event log and configuration backup. Can also enable quick device switch over and firmware upgrade
• Automatic warning by exception through relay output
• Unused port lock, SNMPv3, and HTTPS to enhance network security
• Role-based account management for self-defined administration and/or user accounts
• Local log and the ability to export inventory files ease inventory management
