VGA Switch with Serial & Audio - 4 x 1

Home  >   Black Box  >   VIDEO SWITCHES  >
RGB/VGA

Switch between four VGA sources for output on a single HD display or projector.

Product Feature

  • Route video plus audio from multiple sources to a single display.
  • Provides high-resolution output, up to 1920 x 1200 and 1920 x 1440 VGA resolutions, as well as Full HD 1080p (1920 x 1080).

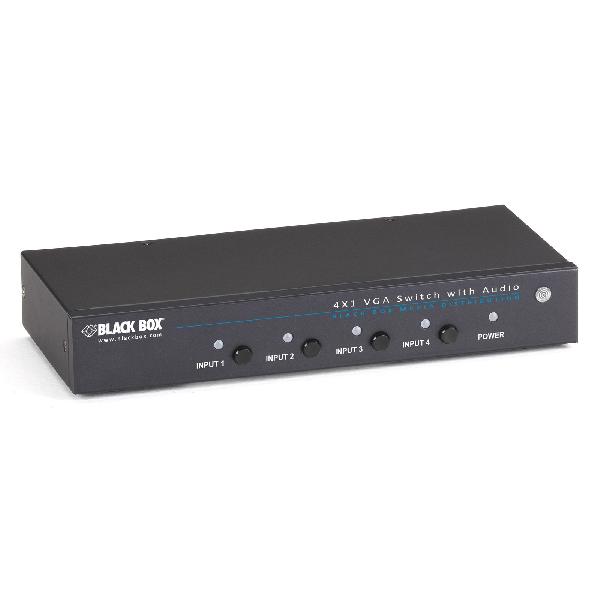

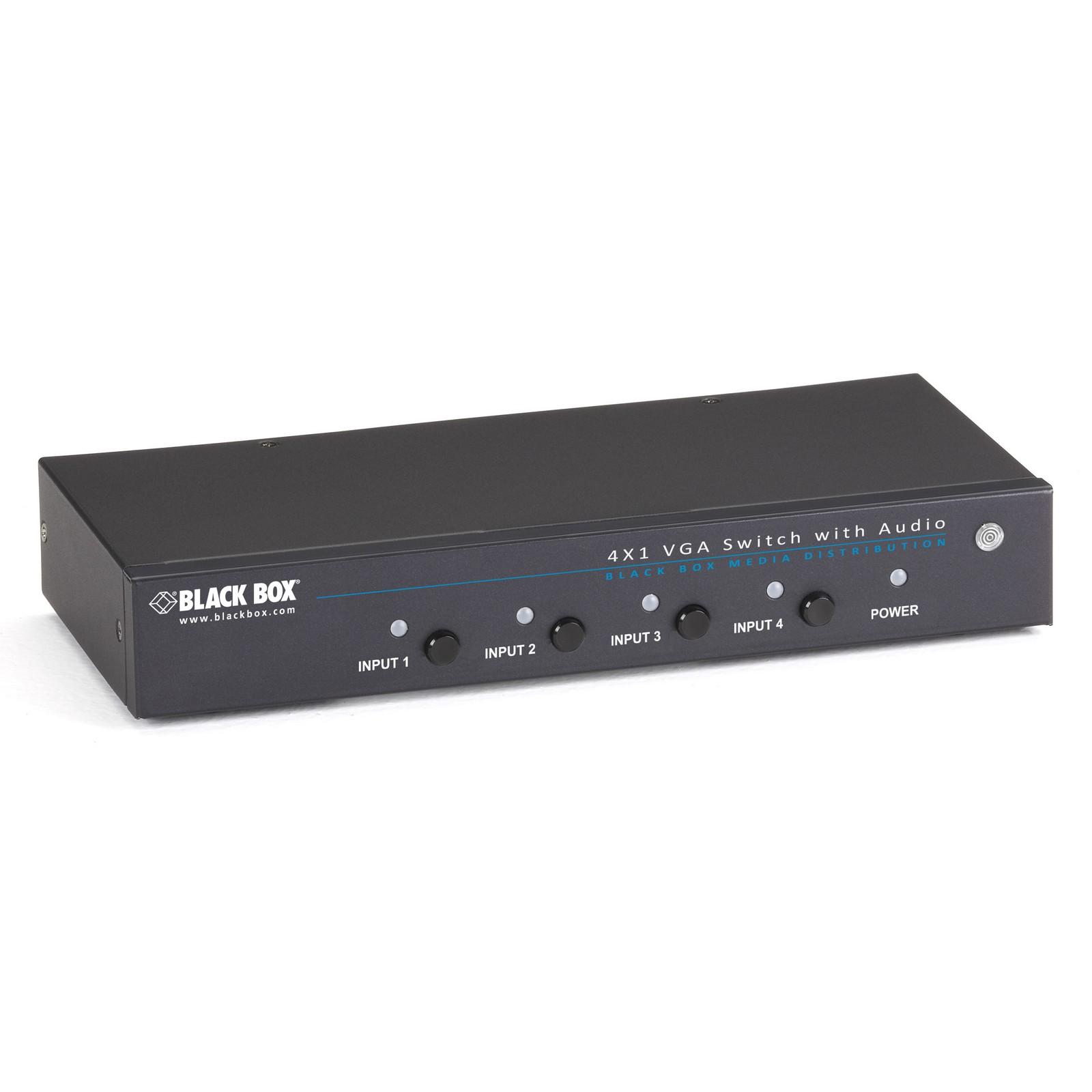

  • Easy to set up and use with front-panel push button switching control.
  • Also supports serial switching control plus IR control with the included remote control.
  • Works with an array of VGA, SVGA, and multisync monitors.
  • LEDs show your selected VGA input source.
  • Rackmountable. Hardware included.

Use this low-priced, highly reliable 4 x 1 VGA Switch with Serial and Audio anywhere you need to route both video and audio from four PC sources to a common display.

It's ideal for classrooms, control centers, and digital signage applications as well as for use at meetings and seminars where you need to switch between multiple sources for output on a VGA monitor or through a VGA projector.

Compliance
FCC
General
CE ApprovalYes
PowerInput: 100-240 VAC, 50-60 Hz; Output: 9-12 VDC; Consumption: 4.5 W
ResolutionFull HD 1080p (1920 x 1080), WUXGA (1920 x 1200), 1920 x 1440
RoHSYes
Item Specifications

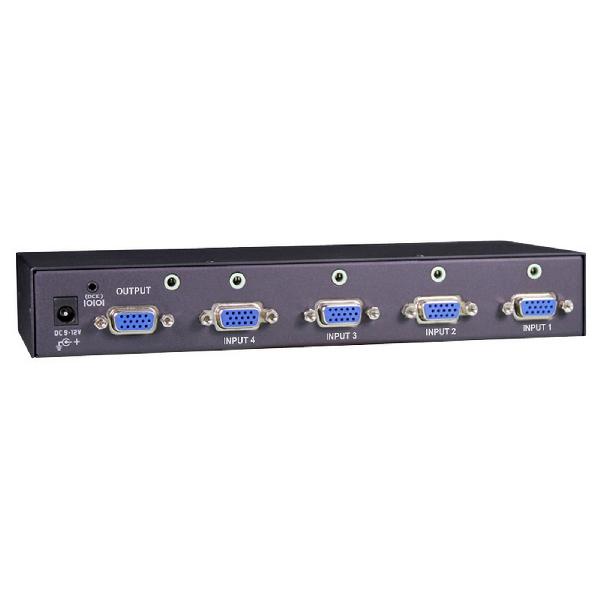

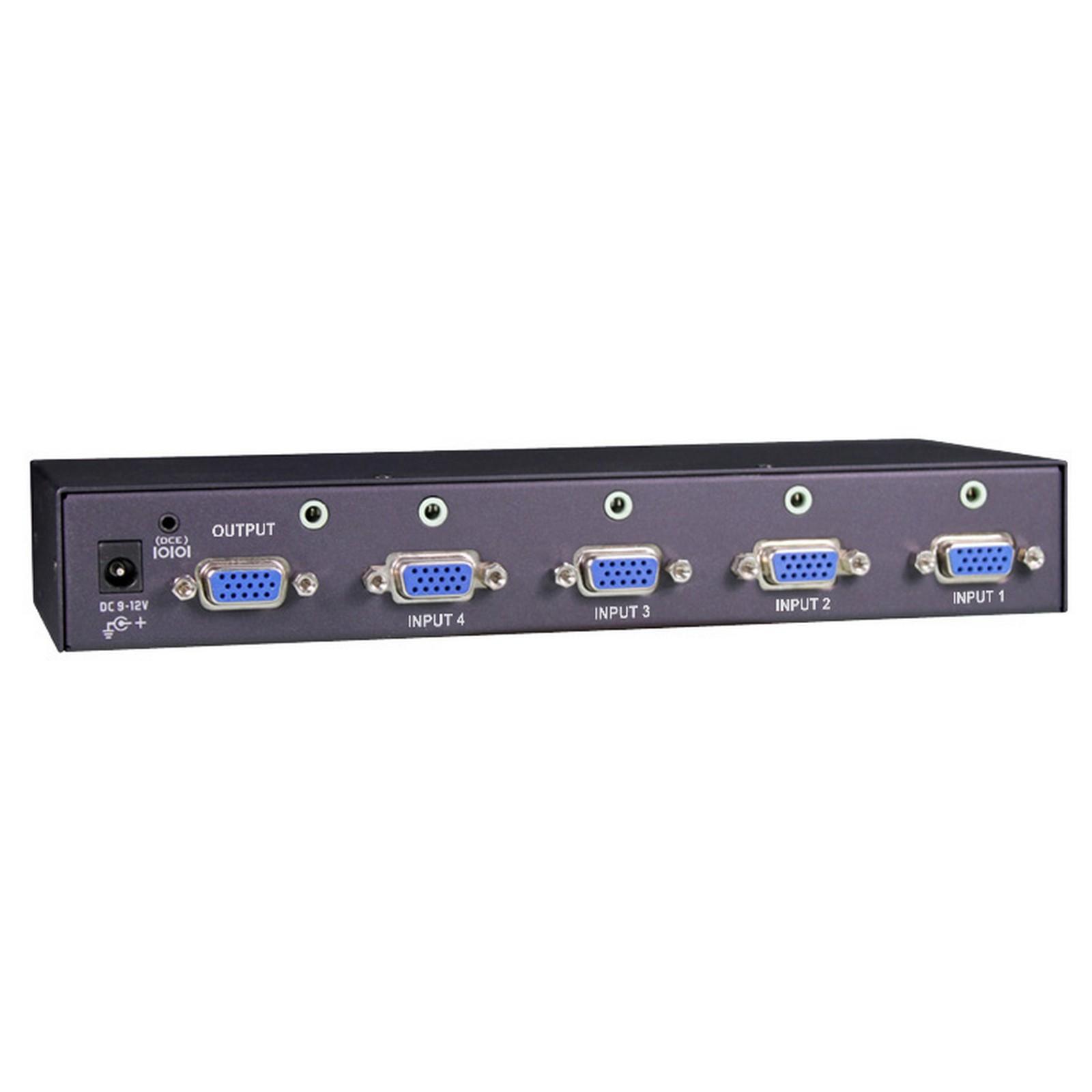

ConnectorsInput: (4) HD15 M (VGA), (4) 3.5-mm jack (audio), (1) 1.7-mm DCE jack (serial, for use with included adapter); Output: (1) HD15 F (VGA), (1) 3.5-mm jack (audio)
Dimensions1.3"H x 8.6"W x 3.9"D (3.4 x 22 x 10 cm)
Indicators(4) LEDs: (1) per each port (for active status of VGA input source)
Weight1.5 lb. (0.7 kg)

Product Includes:

  • (1) 4 x 1 VGA Switch with Serial and Audio
  • (1) IR remote control
  • (1) power supply
  • (4) rubber feet
  • (1) serial DB9 to 1.7-mm barrel adapter
  • (2) rackmount ears with screws
  • User manual
Name Type Version Release Date
VGA Switches (with Serial and Audio) User Manual Manual 21 May 2021
