The 2 x 1 Compact VGA Switch from Black Box goes much farther than ordinary video switches in both the distance and resolution it supports. This solid-state, electronic switch not only uses boosters to drive VGA video signals up to 150 feet (45.7 m), it also offers a crisp resolution of up to 1600 x 1200. Use the switch, for instance, in a conference room where two laptop users can take turns projecting their screen images onto a single big-screen VGA monitor seen by all. It's also useful anywhere you need to use fewer monitors for displaying video sources. Control switching via an attached RS-232 device (serial control cable is included), or set it up to scan between VGA inputs at certain time intervals or display VGA inputs based on their priority. You can also blank output from one source or switch manually.
| Compliance | |
| FCC | |
| General | |
| CE Approval | Yes |
| Distance (Maximum) | 150 ft. (45.7 m) at XGA |
| Power | Input: 110 VAC, 60 Hz; Output: 6 VDC at 300 mA center positive |
| Resolution | 1600 x 1200 |
| RoHS | Yes |
| Video Bandwidth | 250 MHz |
| Video Level | 0 to 0.7 V p-p |
| Item Specifications | |

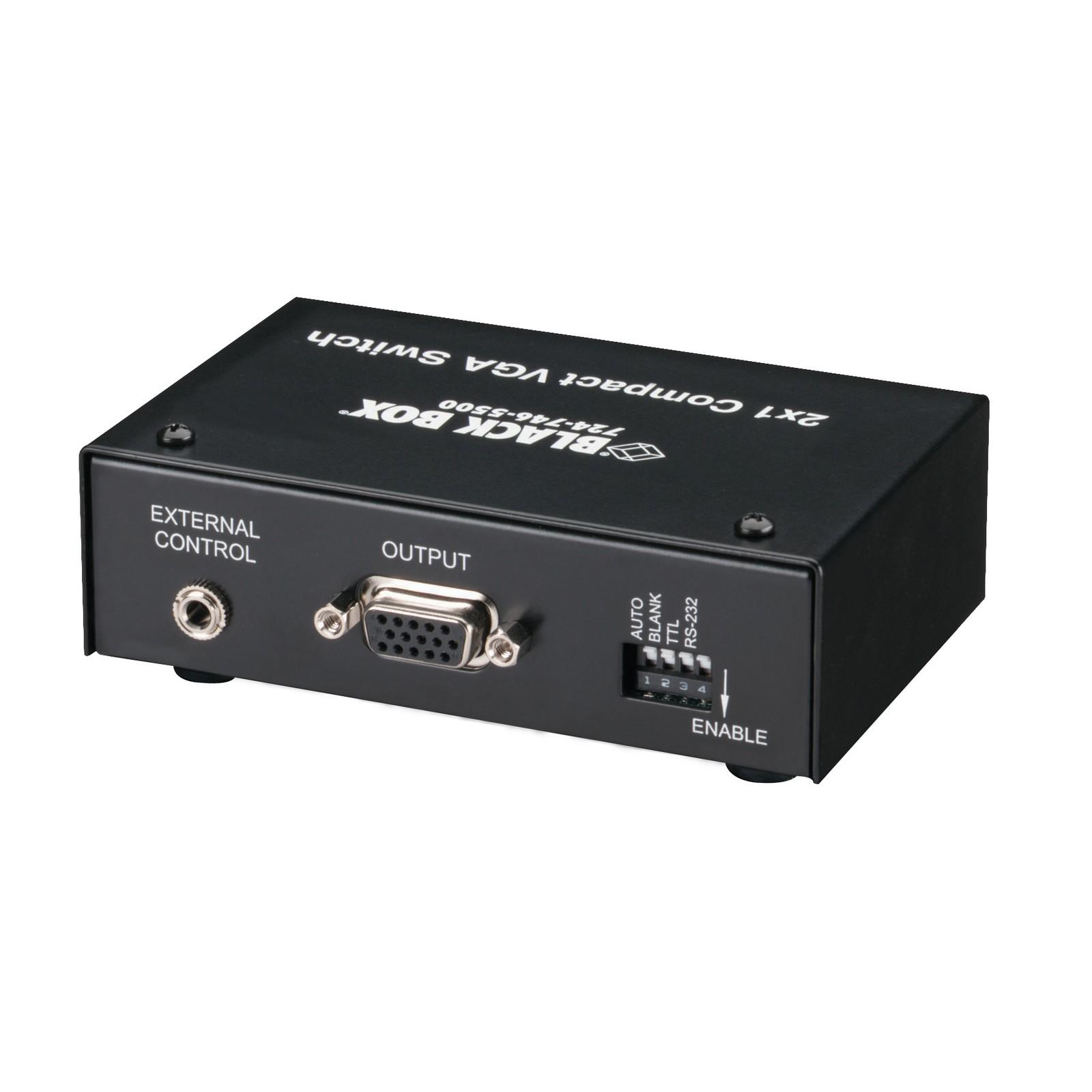

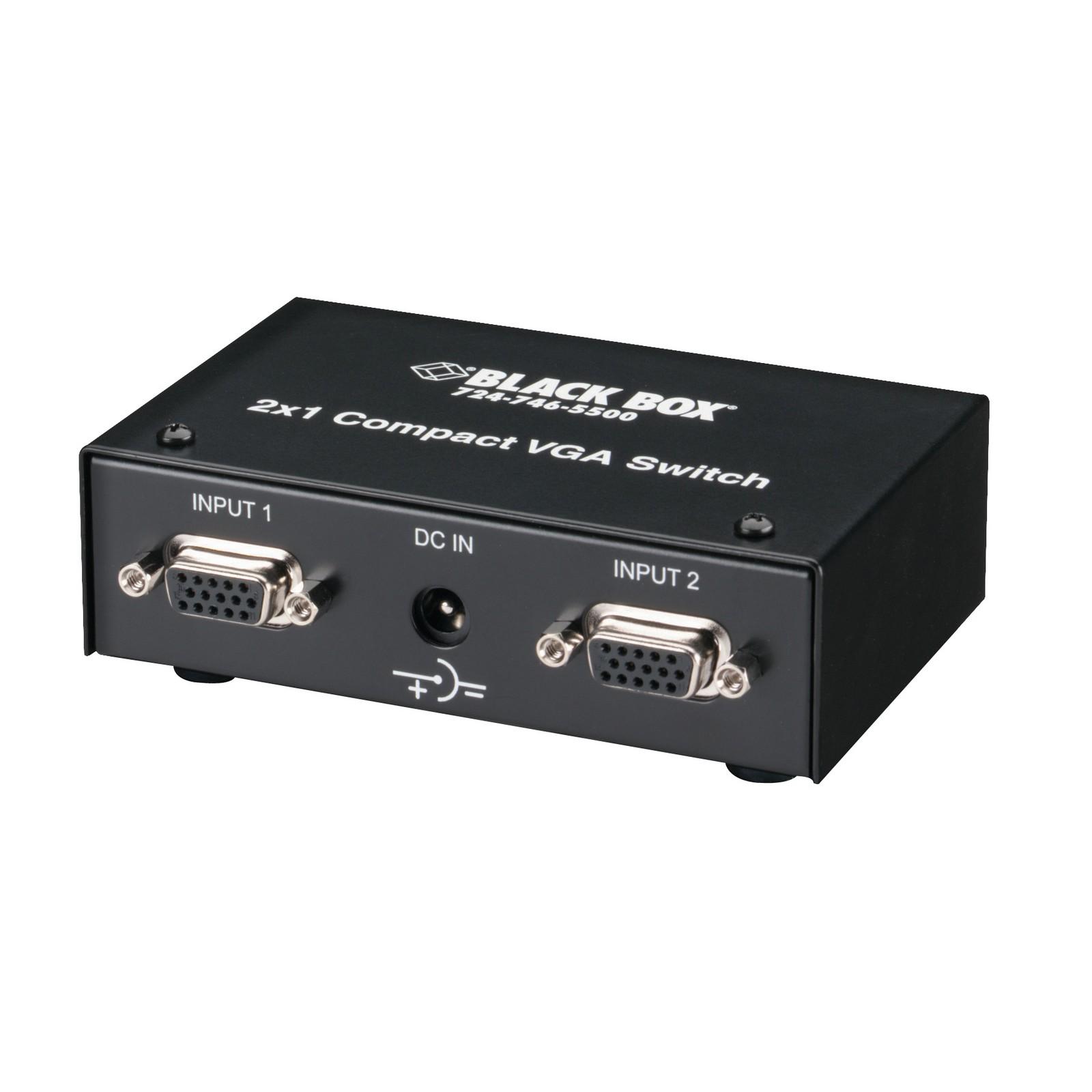

| Connectors | Video input: (2) HD15 F; Video output: (1) HD15 F; Serial: (1) 3.5-mm F (RS-232) |
| Dimensions | 1.25"H x 4.25"W x 2.5"D (3.2 x 10.8 x 6.4 cm) |
Product Includes:
NOTE(s):
Product works with:
| Name | Type | Version | Release Date | |
| Compact VGA Switches | Datasheet | 24 May 2021 | ||
| 2 x 1 Compact VGA Switch | Manual | 24 May 2021 |
