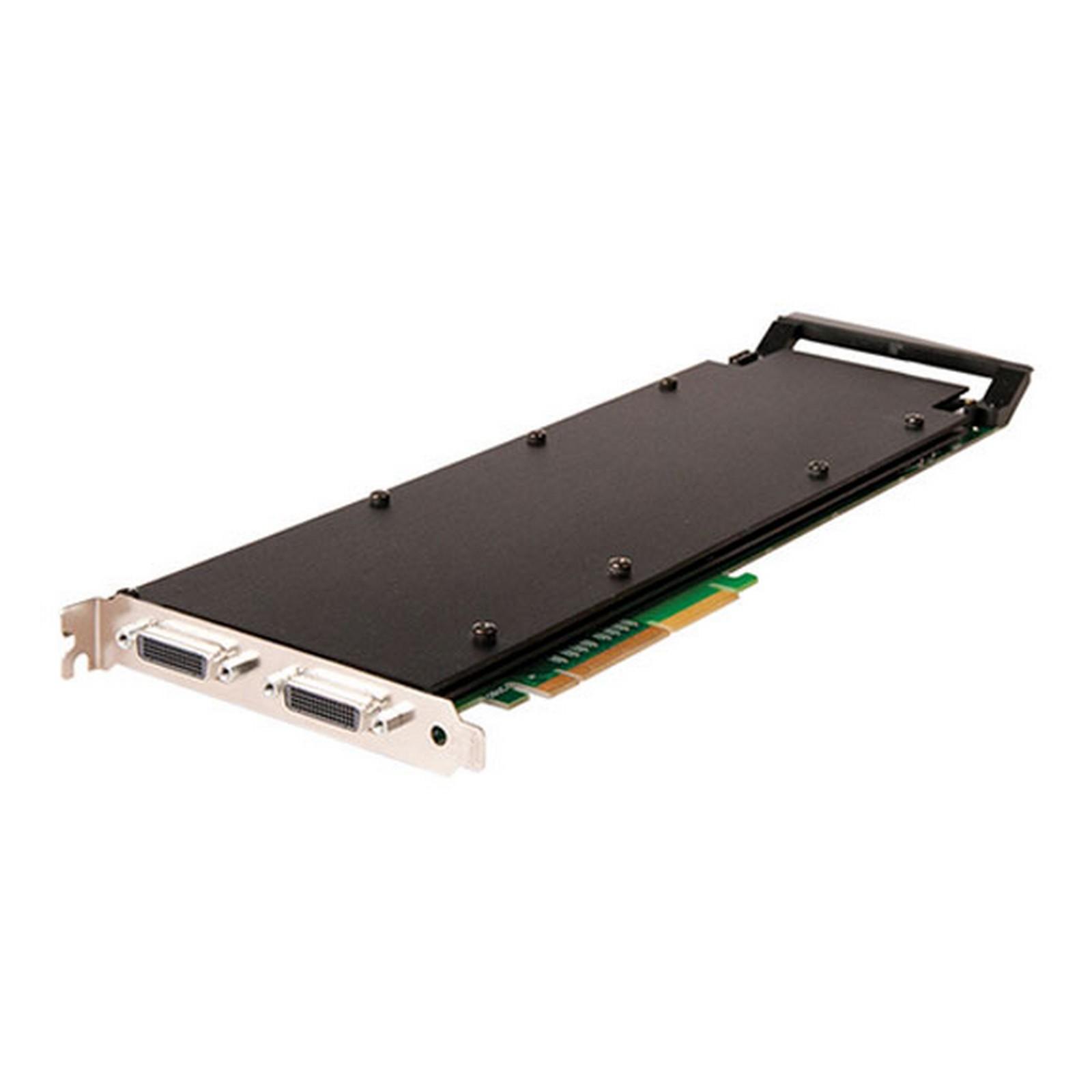

This card captures four HD video channels simultaneously and triple buffers them into onboard storage for tear-free video with embedded HDMI audio streams that can also be capture from each channel.
This card provides a high performance, high-density video capture solution for control rooms, medical environments, and other applications requiring high capture bandwidth. The quad HD capture capability in combination with Radian's multi-stream and synchronization features enables resolutions up to 4096 x 2048 and quad HD solutions. This full-length video capture card has four capture processors, each providing 800 MB/s bandwidth.
| Compliance | |
| FCC | |
| General | |
| Analog RGB Mode Support | 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1920x1080, 1920x1200, custom modes |
| Audio | HDMI audio capture with streaming from each DVI channel |
| Board | PCIe, 8-lane, full-size, 3.0 interface, 4.3” x 12.3” (11.1 x 31.2 cm) |
| Capture Bandwidth | 8 Lane PCI Express Gen.3 bus; 3.2 GB/s total capture bandwidth in 4 PCIe lanes |
| Clock | Digital modes or 170 Msps in analog modes |
| Data Rate | 800 Mbps bandwidth per capture processor; 3.2 Gbps card |
| DVI Single-Link Mode Support | 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1920x1080, 1920x1200, and custom modes |
| Frame Buffer Memory | (4) x 256 MB |
| HD Modes | 1080p,1080i, 720p, 576p, 576i, 480p and 480i using Component-DVI connector For HDCP support, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com |
| Input Mode Detection | Automatically detects input modes in hardware, enabling the tracking of mode changes in the source signal; DirectShow streams are maintained at a fixed resolution across mode changes |
| Operating System Support | Windows® XP, Windows Server 2003/2008/2012, Windows Vista, Windows 7/8, and Linux (not audio) |
| Operating Temperature | 32 to 96° F (0 to 35° C); |
| Pixel Transfer Format | RGB: 5-5-5, 5-6-5 or 8-8-8 (24bit/32bit) pixels; YUV: 4:2:2; Mono: 8-bit |
| Power | Current: 1.9 A @ 12 V maximum; 1.5 A @ 3.3 V maximum; Thermal dissipation: 31 W (typical) |
| Resolution | Up to 4096 x 2048, at 165 MHz pixels (maximum) |
| Storage Temperature | -4 to +158° F (-20 to +70° C) |
| Video Capture Memory | 256 MB per capture channel, triple buffered |
| Video Format Options | Analog RGB plus HSync and VSync (5 wire); Analog RGB with Composite Sync (4 wire); Analog RGB with Sync on Green/YPbPr (3 wire); DVI Single Link. HDMI 1.3 |
| Video Sampling | 24 bits per pixel / 8-8-8 format |
| Item Specifications | |
| Connectors | (2) DMS59 high-density video |
| Dimensions | 4.3" x 12.3" (11.1 x 31.2 cm) |
| Name | Type | Version | Release Date | |
| Radian Video Wall Processor User Datasheet | Datasheet | 25 May 2021 | ||
| Radian Video Wall Processor | Manual | 25 May 2021 |
