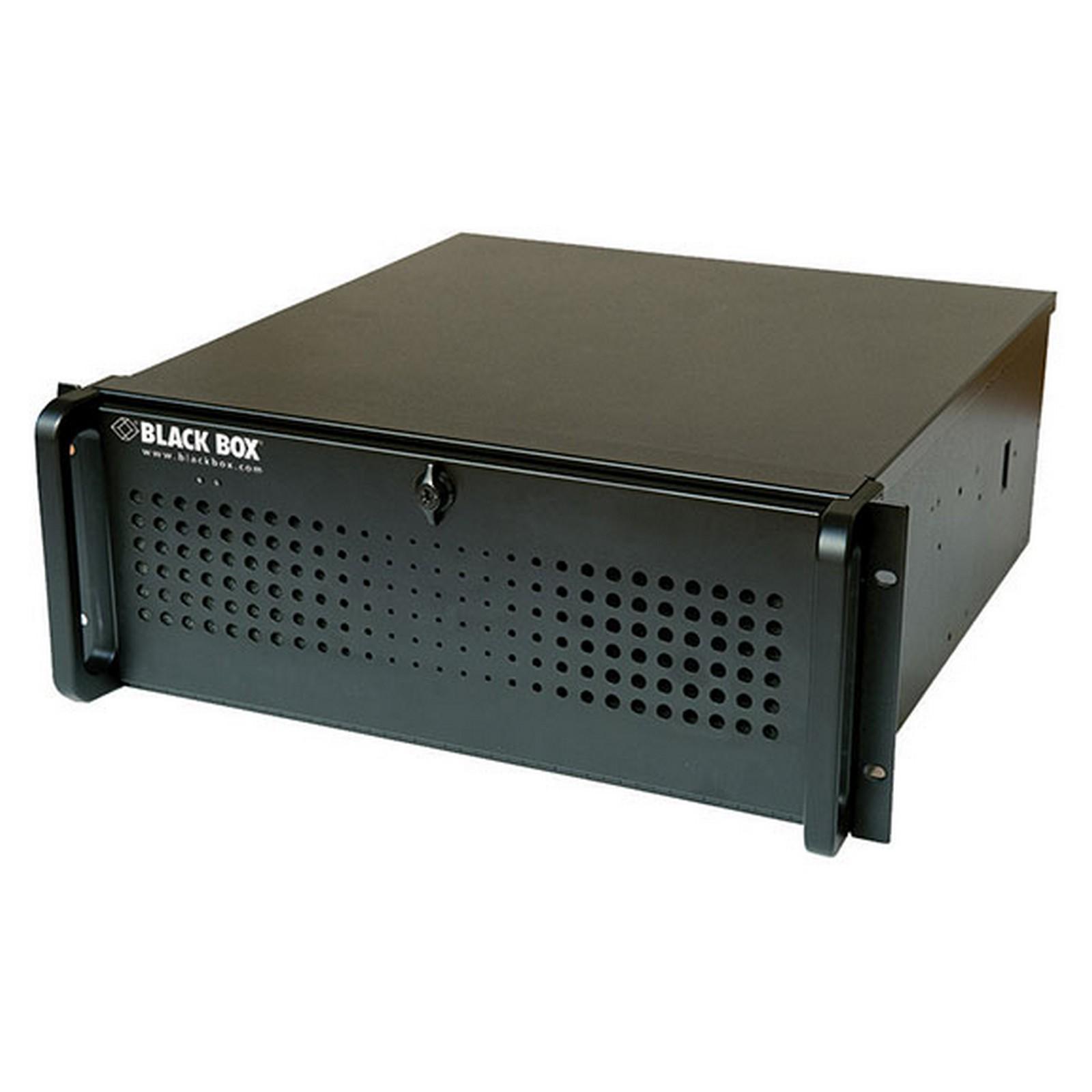

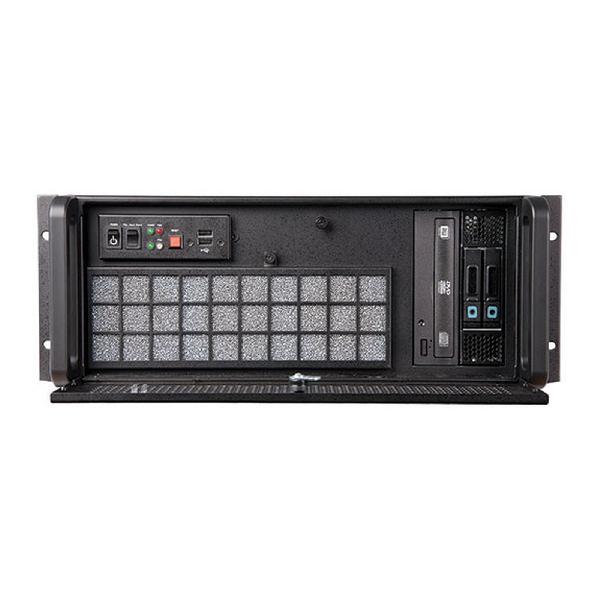

The heart of the Radian Flex system is the 4-, 9- or 11-slot controller chassis. They use a high-performance enterprise-grade motherboard that connects to a Radian PCIe backplane. The backplane contains 4. 9 or 11 half-length PCIe slots for use with compatible Radian cards, including video capture, graphics and IP decoding cards.
| General | |
| Storage (SSD) | (2) 240 GB; Upgrade option: (2) 480 GB SSD |
| Relative Humidity | 5 to 90% noncondensing |
| Noise | 48.6 dB (A) up to 67.9 dB (A), dependent on system config and ambient temp |
| Operating System | Windows 10 LTSB |
| Clock Speed | Dual 3.6 GHz, 8 MB L3 Cache |
| Compliance | FCC, CE, RoHS, UL, CCC |
| Ethernet | Dual 10/100/1000BASE-T |
| Memory | 64 GB (128 GB optional upgrade) |
| Motherboard | Advantech PCE-9228G2 |
| On-board Graphics | HDMI and DisplayPor t for control screen |
| Operating Temperature | 32 to 95° F (0 to 35° C) |
| Power | 800 watt RPSU dual redundant |
| Processor | Dual E5 XEonn (ES-2618L v3) |
| RS-232 | For control |
| Storage Temperature | -4 to +158° F (-20 to +70° C) |
| Item Specifications | |
| Connectors (USB) | (2) USB 3.0 (back panel); (6) USB 2.0 (2 front, 2 back, 2 internal) |
| Dimensions | 6.9" H x 19" W x 19.6" D (17.5 x 48.2 x 50 cm) |
| Weight | Product weight: 41.8 to 55 lb. (19 to 25 kg); Shipping weight: 66 to 72.6 lb. (30 to 33 kg) |
| Name | Type | Version | Release Date | |
| Radian Chassis and Modules | Datasheet | 27 May 2021 | ||
| Radian Chassis and Modules | Manual | 27 May 2021 |
