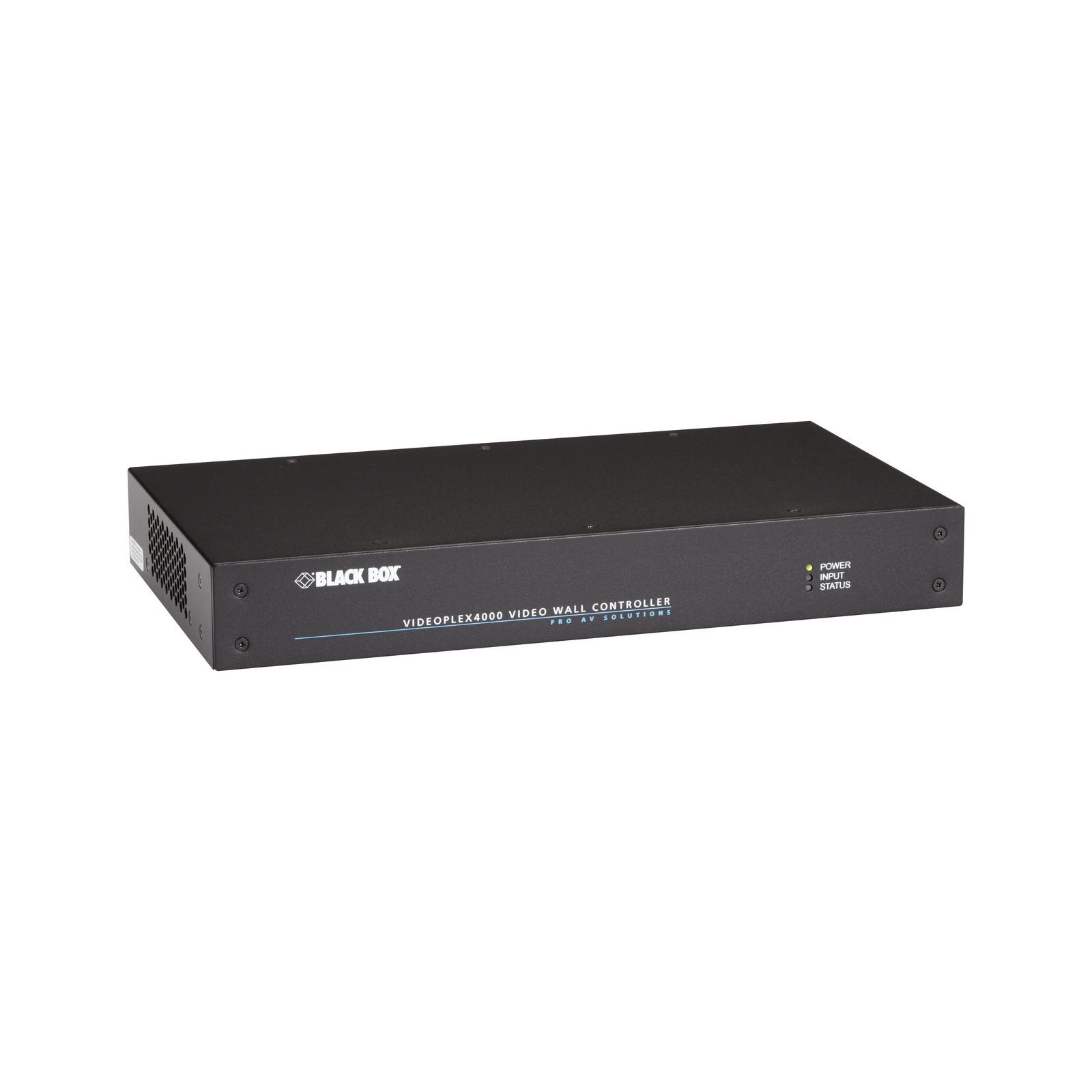

VideoPlex4000 Architectural 4K Video Wall Controller

Home  >   Black Box  >   VIDEO WALLS  >
Signage Video Walls

Create eye-catching video walls with an infinite number of monitors.

Product Feature

  • Standalone video wall controller/scaler outputs high-resolution HDMI video, up to 4K, to four monitors per device.
  • Dual HDMI 1.4 4K @ 30 Hz inputs and one DisplayPort 1.2 for 4K @ 60 Hz inputs.
  • Supports four 1080p outputs to four independent HDMI displays.
  • Supports non-rectangular screen arrangements.
  • Stack multiple units to create larger video walls.
  • Easy control of cropping, scaling, rotation, and gaps.
  • Drag and drop configuration.
  • HDCP support on all inputs and outputs.
  • Dual Ethernet ports.
  • Supports non-rectangular screen arrangements and any mix of monitor orientations so users can create an almost unlimited multi-monitor canvas.
  • Stack multiple units to create larger video walls.
  • Enables you to rotate, crop, and scale video.
  • Automatically corrects for bezels.
  • Enables easy control of cropping, scaling, rotation, and gaps.
  • Comes with user friendly software with drag and drop configuration.
  • Supports HDMI.
  • HDCP support on all inputs and outputs.
  • Dual Ethernet ports enable network connectivity and cascading.

VideoPlex4000 gives users the flexibility to create individually shaped video walls with four—or more—HDMI displays and no restrictions on how the screens are arranged or screen sizes. Users can freely scale and position images, including rotations of up to 270°. One image can be reproduced on each screen or cropped regions of the image can be shown on each screen. This video wall controller upscales input and outputs distortion-free images making it ideal for live camera feeds or animated content.

General
ApprovalsFCC, TUV, CE, UL®, RoHS, WEEE
Control InterfacesDual 100BASE-T Ethernet ports with built-in managed switch; USB 2.0 Type B connector (full-speed operation)
Firmware SupportUpdates supported via USB and Ethernet
Genlock InputAnalog black-burst on dedicated BNC connector. Any video input (HDMI1, HDMI2, DisplayPort)
HumidityOperating: 90%, noncondensing
Input Surface8K x 8K maximum
Interface(2) HDMI input, (1) DisplayPort; (4) HDMI output, (1) DisplayPort loop-through
Leads SupportedHDMI and DisplayPort input, HDMI output
Operating System SupportAll known operating systems; All known hardware that supports/follows the HDMI spec
Operating temperature32 to 95° F (0 to 35° C)
PowerInput Voltage/Volts: 100–240 VAC, 50/60 Hz internal power supply;
Input Current/Watts: 30 W;
Power Consumption/Watts: 30 W
ResolutionInput: HDMI 1.4: 3840 x 2160 @ 30 Hz or equivalent up to 297 Mps; DisplayPort 1.2: 3840 x 2160 @ 60 Hz or equivalent up to 616 Mps;
Output: HDMI: 1080p/60 or equivalent up to 165 Mps; Loop-through: DisplayPort 1.2 (locked to selected video input resolution)
Storage temperature-4 to +158° F (-20 to +70° C)
USB SupportUSB 2.0, full-speed (12 Mbps) operation; Firmware support: Updates supported via USB
User Controls(1) Power switch
Item Specifications

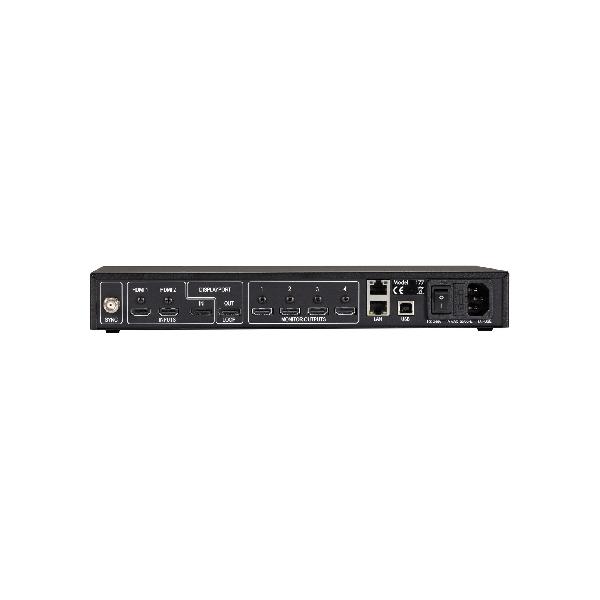

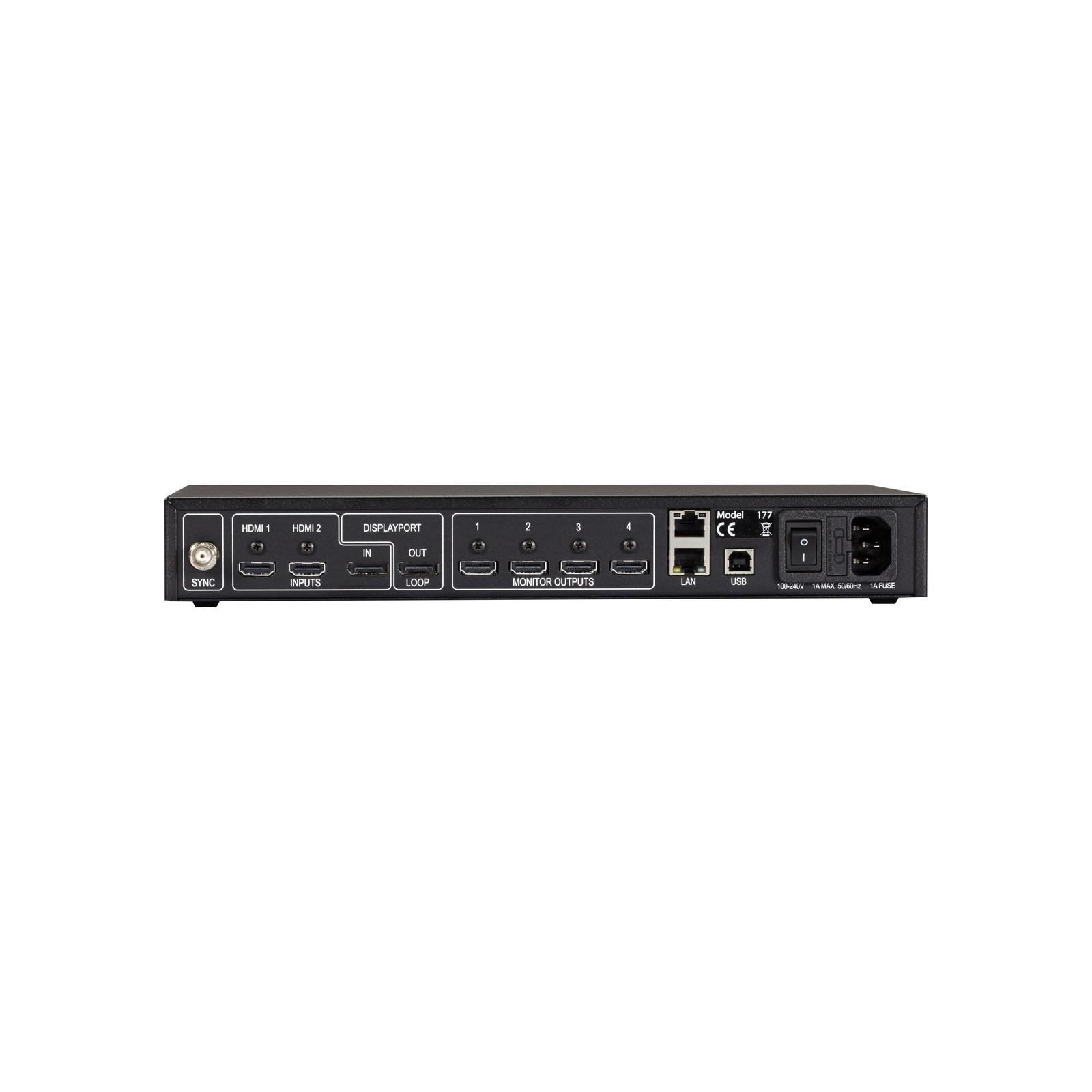

ConnectorsInput: (2) HDMI female, (1) DisplayPort female;
Output: (1) DisplayPort female, (4) HDMI female;
Power: (1) IEC-C14; (1) USB Type B female; (1) Sync port; (2) RJ-45 Ethernet
Dimensions1.75"H x 12.4"W x 6.7"D (4.4 x 31.6 x 17.2 cm)

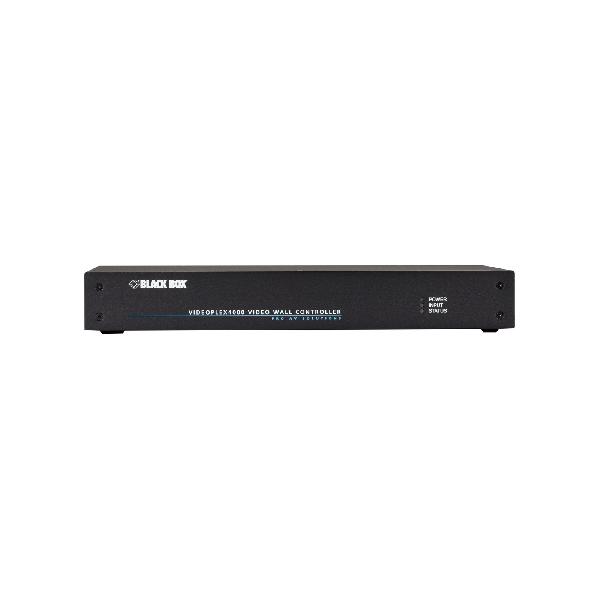

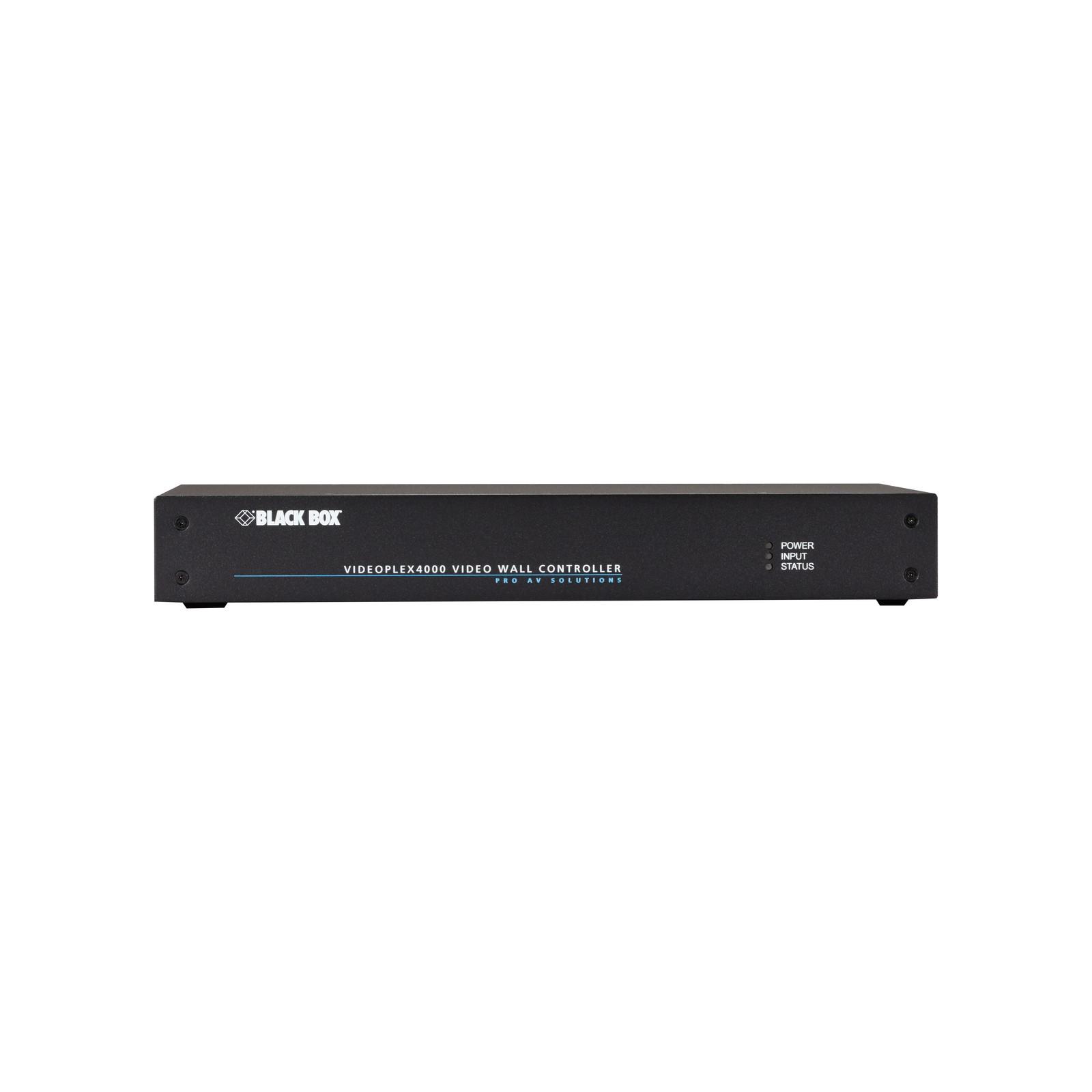

Indicators(3) LEDs: (1) Power,(1) Input, (1) Status
Weight4.1 lb. (1.86 kg)

Product Includes:

  • VideoPlex4000
  • (1) USB 2.0 cable, Type A to Type B
  • (1) IEC-320 C13 to NEMA 5-15 Power Cable
  • (6) Rackmount Screws
  • (6) HDMI Cable Locks
  • (6) Cable Tie Wraps
  • (1) DVD
  • (1) Quick Start Guide
Name Type Version Release Date
VideoPlex4000 Video Wall Controller (4K, HDMI) Datasheet Datasheet 01 June 2021
VideoPlex4000 Video Wall Controller (4K, HDMI) User Manual Manual 01 June 2021
