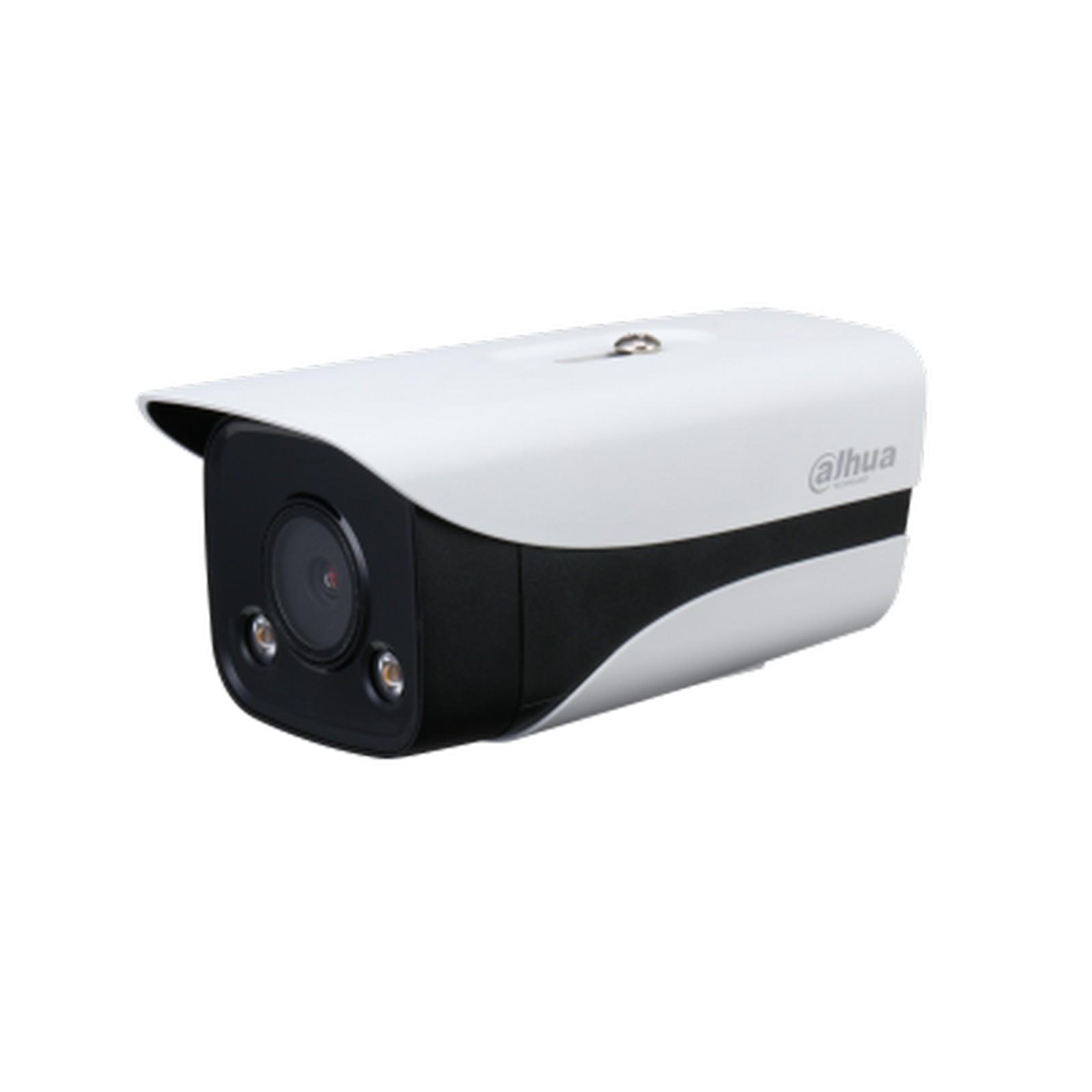

IPC-HFW2230M-AS-LED

With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying to the standards of IP67.

Camera

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Effective Pixels

1920 (H) × 1080 (V)

ROM

16 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.002 Lux@F1.6

LED Distance

25 m (82.0 ft)

LED On/Off Control

Auto/Manual

LEDs Number

2

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm

6 mm

8 mm

Max. Aperture

3.6 mm: F1.6

6 mm: F1.6

8 mm: F1.6

Field of View

3.6 mm: Pan 87° × Tilt 46° × Diagonal 104°

6 mm: Pan 53° × Tilt 30° × Diagonal 60°

8 mm: Pan 41° × Tilt 23° × Diagonal 47°

Iris Type

Fixed

Close Focus Distance

3.6mm: 1.2 m (3.9 ft)

6mm: 2.5 m (8.2 ft)

8mm: 4 m (13.1 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

6 mm

82.8 m

(271.7 ft)

33.1 m

(108.6 ft)

16.6 m

(54.4 ft)

8.3 m

(27.2 ft)

8 mm

110.3 m

(361.9 ft)

44.1 m

(144.7 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G);CGI; P2P; Genetec

User/Host

20

Edge Storage

FTP; SFTP; Micro SD Card (support max. 128 GB); NAS

Browser

IE: IE11 and earlier

Chrome: 42 and earlier

Firefox: 52 and earlier

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RAC port)

Audio Output

1 channel (RAC port)

Alarm Input

2 channels In: 5mA 5V DC

Alarm Output

2 channels Out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 10W

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal + plastic

Dimensions

194.1 mm × 96.4 mm × 89.5 mm (7.6" × 3.8" × 3.5") (L × W × H)

Net Weight

0.72 kg (1.6 lb)

Gross Weight

0.85 kg (1.9 lb)

Name	Type	Version	Release Date
Datasheet	Datasheet		10 June 2021
QSG	QIG		10 June 2021
