EPIC-BDU7

Home  >   AAEON  >   Embedded Boards  >
Embedded Single Board Computers  >   EPIC Boards

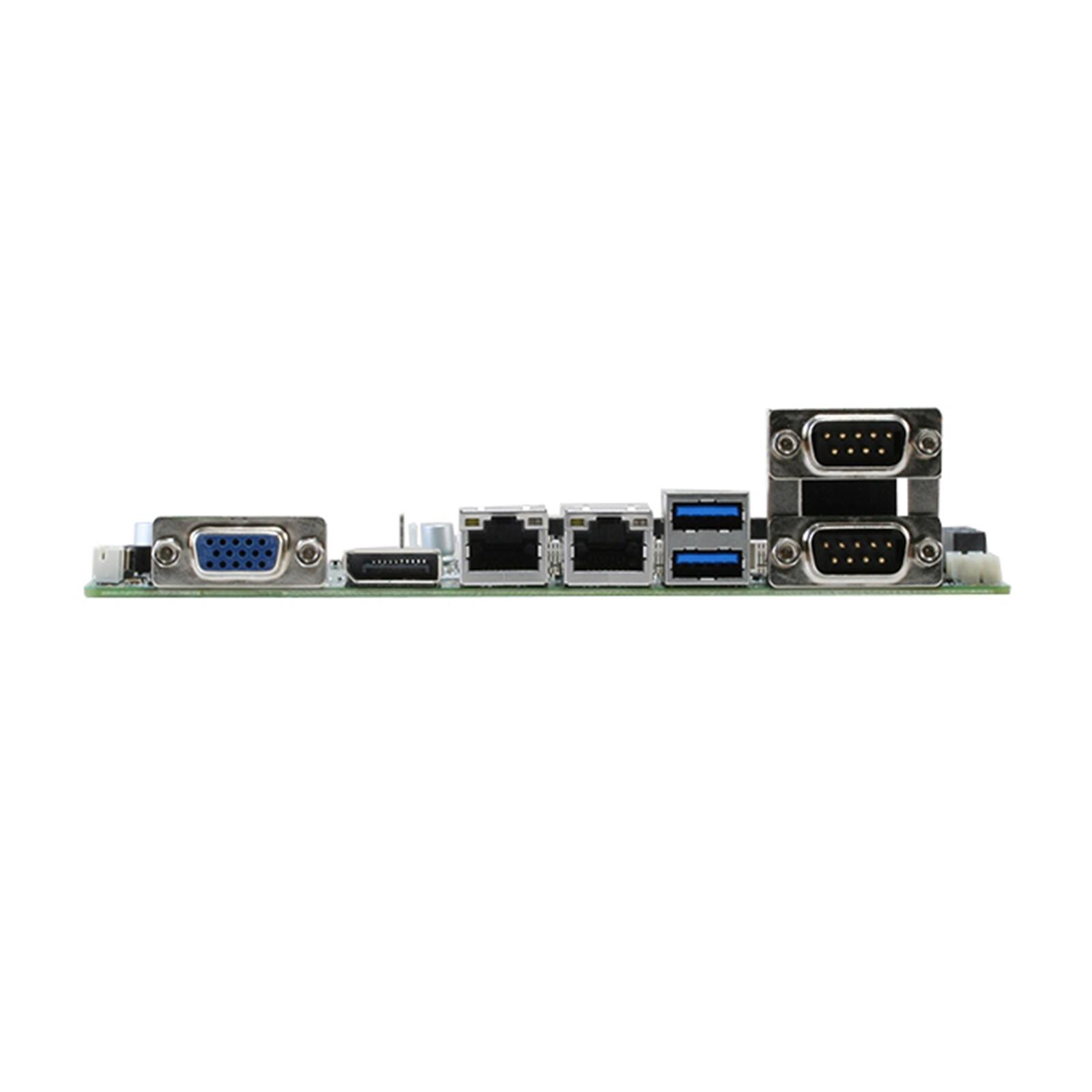

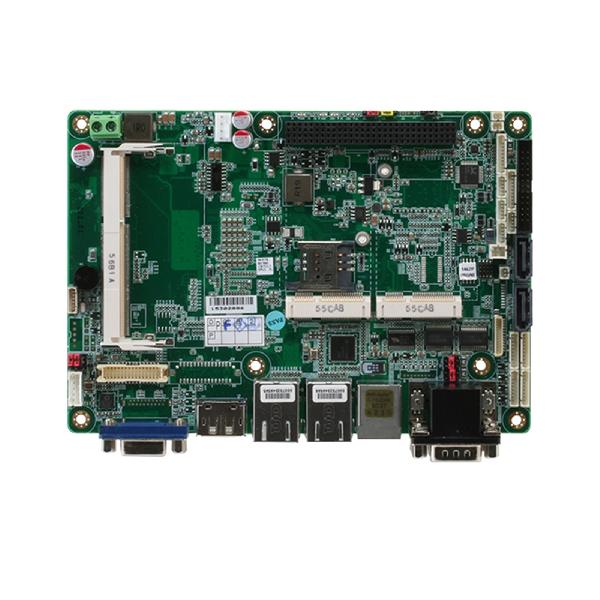

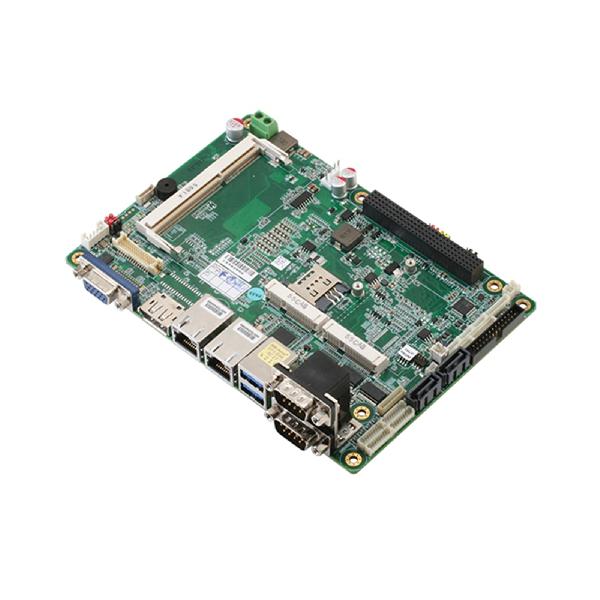

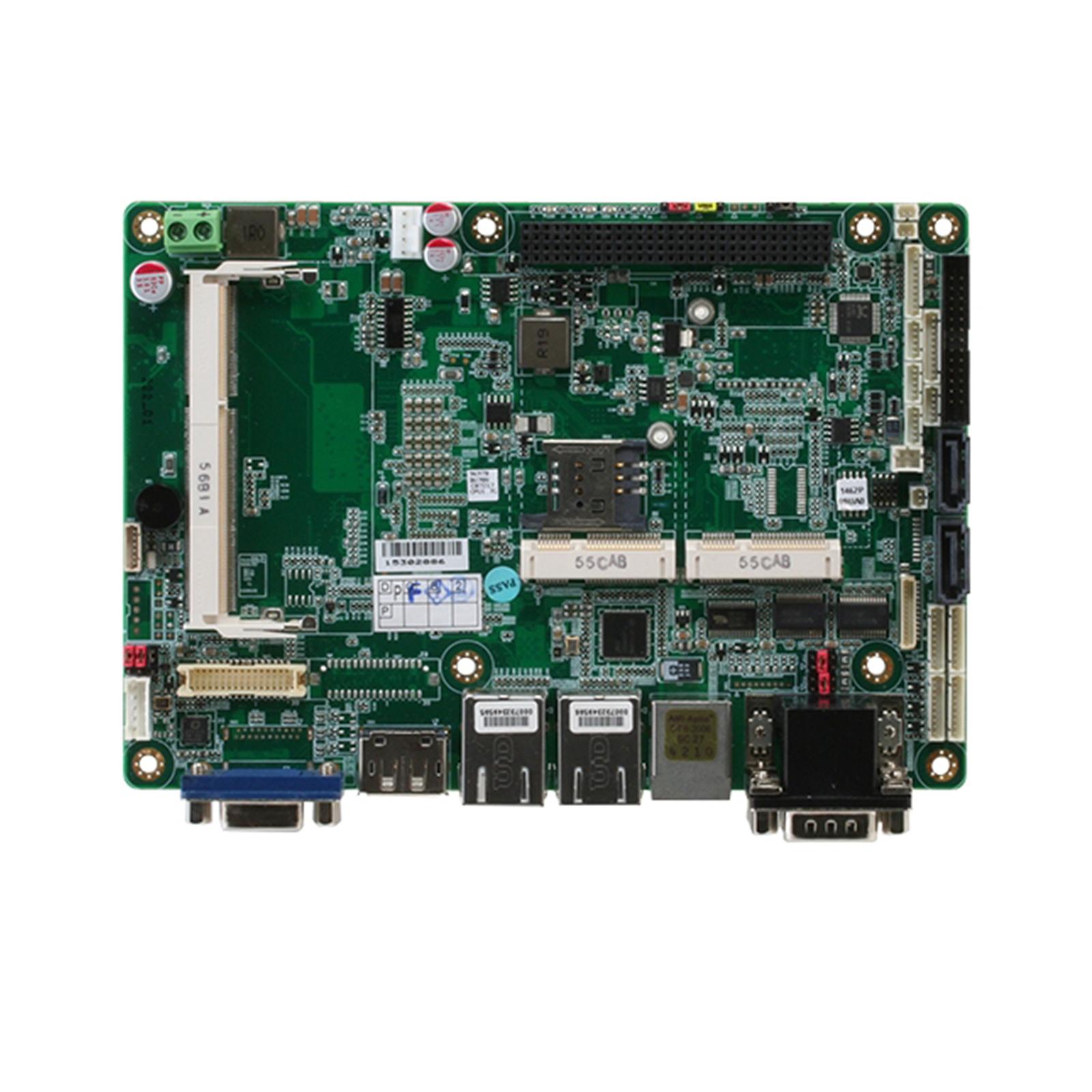

EPIC Board with 5th Generation Intel® Core™ i Series ULT Processor SoC

Product Feature

  • Onboard 5th Generation Intel® Core™ i Series ULT Processor SoC
  • DDR3L 1600 MHz SODIMM x 1, Up to 8 GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • VGA, LVDS, DP, LVDS (Optional), eDP (Optional)
  • SATA 6.0 Gb/s x 2, mSATA/Mini-Card x 1 (Full Size)
  • USB 3.2 Gen 1 x 2 , USB 2.0 x 4
  • RS-232 x 4, RS-232/422/485 x 2
  • Optional Touch Screen, TPM and PCI-104
  • Mini-Card x 1, SIM x 1
  • 9-24V Operation
  • 15W TDP
  • SoC Solder Up Design

The EPIC-BDU7, harnesses the full potential of the processors’ Ultra Low Power (ULP) technology to bring its required wattage down to a mere 15W, allowing a fanless configuration. Graphics capabilities are enhanced with the support for the latest Ultra HD (4k resolution) videos and triple simultaneous display.

The EPIC-BDU7 comes equipped with Intel®’s 5th Generation Core™ Processors, delivering high performance at a very low power consumption of 15W. Intel®’s latest processors bring enhanced graphics processing capabilities with support for 4K resolution video and media content while offering 3-independent displays from the board’s LVDS, VGA, DisplayPort, and eDP options. Support for the latest operating systems and today’s high speed I/O devices are available in this new generation of product.

AAEON’s innovative board layout for the EPIC form factor places the CPU on the solder side of the board, simplifying system mechanical design for optimized thermal solutions. Adding to the already extensive I/O features such as USB, COM, SATA, and PCIe sockets, the EPIC-BDU7 also offers a PCI-104 slot, allowing multiple peripheral cards to be stacked on top of the main board.

With the powerful graphics performance of this generation of CPU, the EPIC-BDU7 meets the demands of graphics intensive applications such as virtual mirrors, which are becoming a common feature at fashion retailers for virtual fittings before customers make their purchases. The board is also an ideal solution for graphics rendering applications in the medical industry.

Applications

  • Industrial Control Box
  • Industrial Automation
  • Test & Measurement
  • Security
  • Transportation
  • Defense & Government

SYSTEM

FORM FACTOREPIC
CPU5th Generation Intel® Core™ i3/i5/i7 ULT Processor SoC
CPU FREQUENCYUp to 2.2 GHz
CHIPSET5th Generation Intel® Core™ i series ULT Processor SoC
MEMORY TYPEDDR3L 1333/1600, SODIMM x 1
MAX. MEMORY CAPACITYUp to 8GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
POWER REQUIREMENT+12V or 9-24V AT/ATX (default)
POWER SUPPLY TYPEAT/ ATX
POWER CONSUMPTION (TYPICAL)38.8W
DIMENSION (L X W)4.53" x 6.50" (115mm x 165mm)
OPERATING TEMPERATURE32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)63,000
CERTIFICATIONCE/FCC

DISPLAY

VGA/LCD CONTROLLER5th Generation Intel® Core™ i series ULT Processor SoC
VIDEO OUTPUTTriple independent Displays
VGA, LVDS, DP, LVDS (Optional), eDP (Optional)
BACKLIGHT INVERTER SUPPLYMax. 12V

I/O

ETHERNETIntel® WGI211AT x 1/ WGI218LM x 1, RJ-45 x 2
AUDIOHigh Definition Audio Interface
USB PORTUSB2.0 x 4
USB 3.2 Gen 1 x 2
SERIAL PORTCOM: RS-232 x 4
COM2, COM3: RS-232/422/485 x 2 (Ring/+5V/+12V)
PARALLEL PORTSPP/EPP/ECP x 1
HDD INTERFACESATA 3.0 x 2
FDD INTERFACE
SSDmSATA (Share with full-size Mini-Card by BIOS)
EXPANSION SLOTMini Card x 1, SIM x 1 PCI-104 (Optional)
16-bit DIO or LPT PS/2 x 1
PWM LCD SUPPORT
DIO16-bit
TPMOptional
TOUCHOptional
