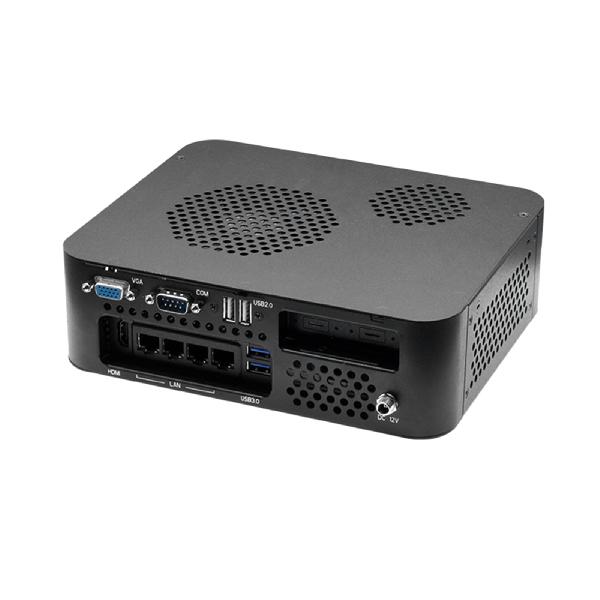

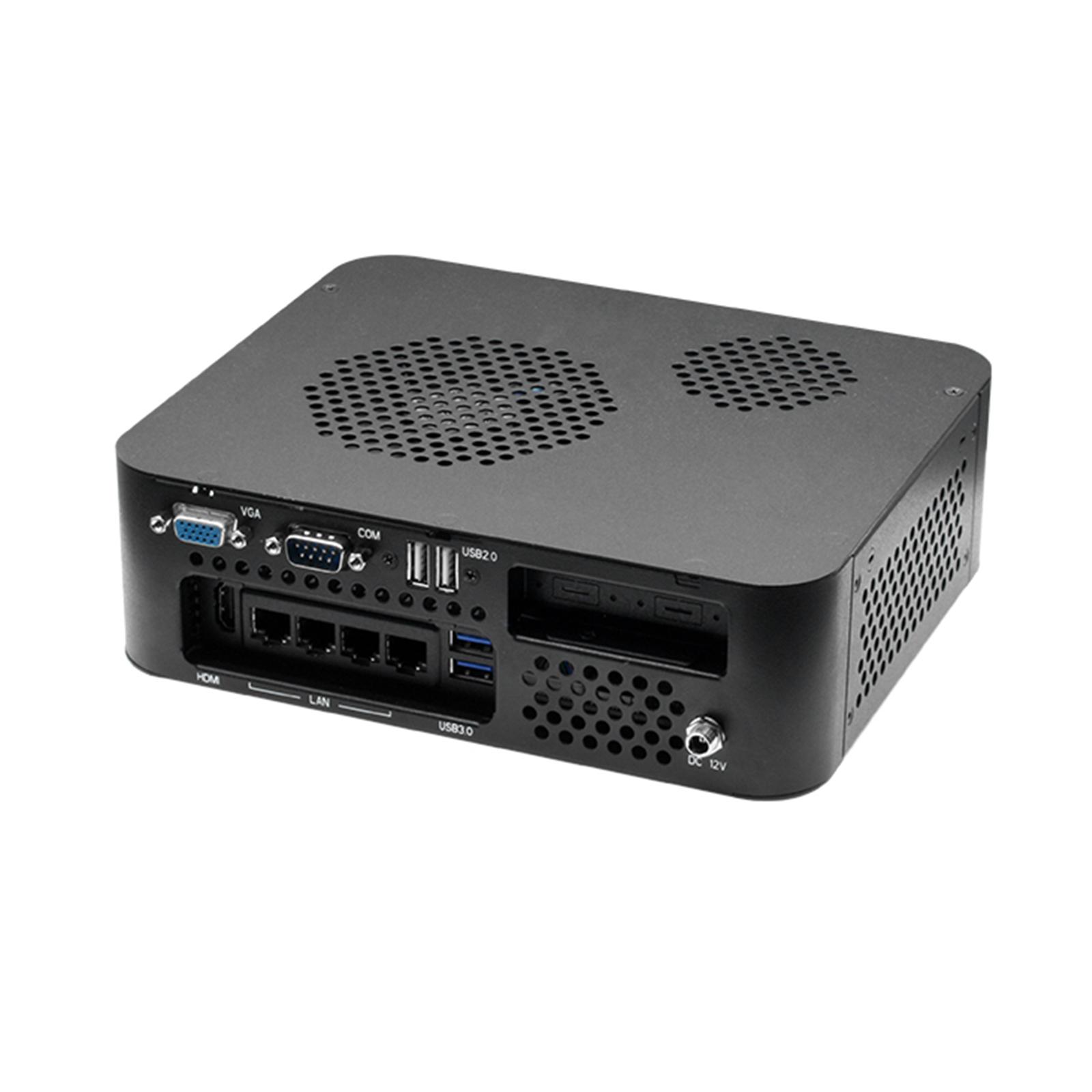

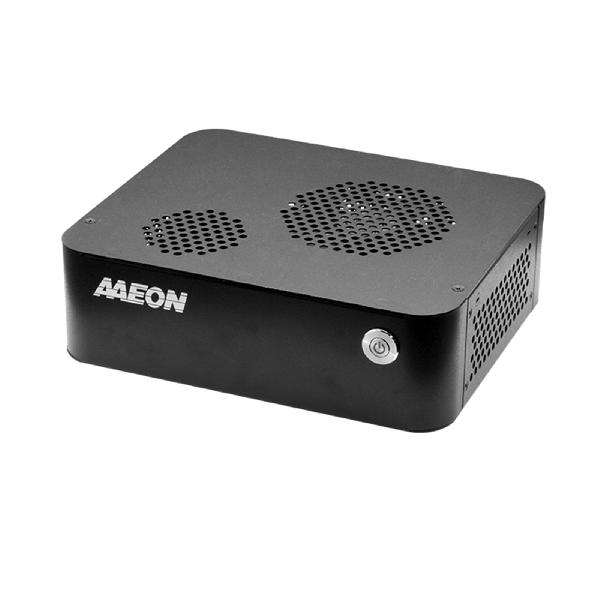

EPIC-KBS9-PUC

Home  >   AAEON  >   Embedded Boards  >
Embedded Single Board Computers  >   EPIC Boards

EPIC-KBS9 with 6th/7th Generation Intel® Core™ i7/i5/i3/Celeron® S-Series Processor

Product Feature

  • DDR4 Non-ECC SODIMM Slot x 2, up to 32GB
  • GbE LAN x 4 (4 ports as default, 2 ports as option), HDMI 1.4 x 1
  • mSATA/Mini-PCIe Full Size x 1 (Default: mSATA, Optional for Mini-PCIe by BOM Change)
  • USB 3.2 Gen 1 x 2 (Rear IO), USB 2.0 x 2 (Internal)
  • RS-232/422/485 x 1 + VGA x1
  • PCIe[x4] expansion slot or 2.5” HDD space
  • Lockable DC 12V

The EPIC-KBS9-PUC is a barebones system based on our successful EPIC-KBS9 compact board. Customers have been using this compact EPIC board in a wide range of industrial applications including controlling automated warehouse robots, retail POS systems, and even a 3D printer for cakes. The EPIC-KBS9-PUC offers the power, flexibility and versatility of the EPIC-KBS9 board in a barebones system that is easy to integrate into a wide range of industrial application.

The EPIC-KBS9-PUC features a socket type supporting 6th and 7th Generation Intel Core desktop processors up to 65W. This means the EPIC-KBS9-PUC is one of the most powerful systems in its size. The board features dual channel 2133MHz DDR4 RAM supporting up to 32GB, providing the back-up needed to get the most out of your processor.

The EPIC-KBS9-PUC is built to easily integrate into any embedded application. It features four Gigabit Ethernet ports designed for use with IP and PoE cameras, perfect for machine vision applications. It also offers two USB 3.0 and USB 2.0 ports in addition to a COM port. The EPIC-KBS9-PUC provides expandability with a full mSATA/mini-PCIe slot and a PCI express x4 slot, allowing almost endless options, including graphics and frame grabber cards. The system can also be ordered with VESA or wall mount kits, allowing it to be easily installed anywhere.

As with all of our products, AAEON Manufacturer Services provides the ability to customize and configure the EPIC-KBS9-PUC to our customer’s needs. Configurations range from adding additional USB ports to offering HDMI 2.0 with 4K High Definition video output for customers needing an embedded system for digital signage or kiosks.

The EPIC-KBS9-PUC offers proven performance and features in a barebones chassis that is easy to setup for your embedded application. With the flexibility and support of AAEON Manufacturer Services, the EPIC-KBS9-PUC is the embedded barebones system with proven performance and flexibility.

SYSTEM

CPU7th Generation Intel® Core™ Processor family:
Intel® Core™ i7-7700, 3.6 GHz(65W)
Intel® Core™ i7-7700T, 2.9 GHz(35W)
Intel® Core™ i5-7500, 3.4 GHz(65W)
Intel® Core™ i5-7500T, 2.8 GHz(35W)
Intel® Core™ i3-7101E, 3.9 GHz(54W)
Intel® Core™ i3-7101TE, 3.4 GHz
CHIPSETH110/H170/Q170 (TDP: 6W)
SYSTEM MEMORYDDR4 (Non-ECC) Memory slot x 2, up to 32GB
DISPLAY INTERFACEHDMI x 1, VGA x 1
STORAGE DEVICEFull size mSATA x1 (Default) or 2.5” HDD x1 (Optional)
ETHERNETIntel® I211, 10/100/1000Base-TX x 4 (4 ports as default, 2 ports as option)
I/ORS-232/422/485 x 1 + VGA x 1 as default
(2 ports RS-232/422/485 as option)
USB 3.2 Gen 1 x 2 (Real IO)
USB 2.0 x 2 (From internal header)
HDMI1.4 x 1 (Native)
GbE LAN x 4 (4 ports as default, 2 ports as option)
Power button x 1
Power DC input x 1
EXPANSIONMini-PCIe slot (Share with mSATA as above)
PCIe[x4] Slot x 1 (Q170 and H170 SKU)
INDICATORPower LED on power button
OS SUPPORTWindows 10 Enterprise English Version 64Bit (1803)

POWER SUPPLY

POWER REQUIREMENT12V with lockable DC jack

MECHANICAL

MOUNTINGVESA Mount (100x100mm, 94x94mm,optional)
DIMENSIONS (W X H X D)216x180x65mm (Unit size)
32x29x13.5cm (With Packing)
GROSS WEIGHT6.6 lb (3 kg)
NET WEIGHT4.4 lb (2 kg)

ENVIRONMENTAL

OPERATING TEMPERATURE32°F~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE-40˚F ~ 176˚F (-40˚C ~ 80˚C)
STORAGE HUMIDITY0 ~ 90% @ 40°C, non-condensing
ANTI-VIBRATIONGrms/ 5 ~ 500Hz/ operation – with mSATA
CERTIFICATIONCE/FCC class A
