USB to RS-232 Converter - DB9, 1-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Adapters & Converters

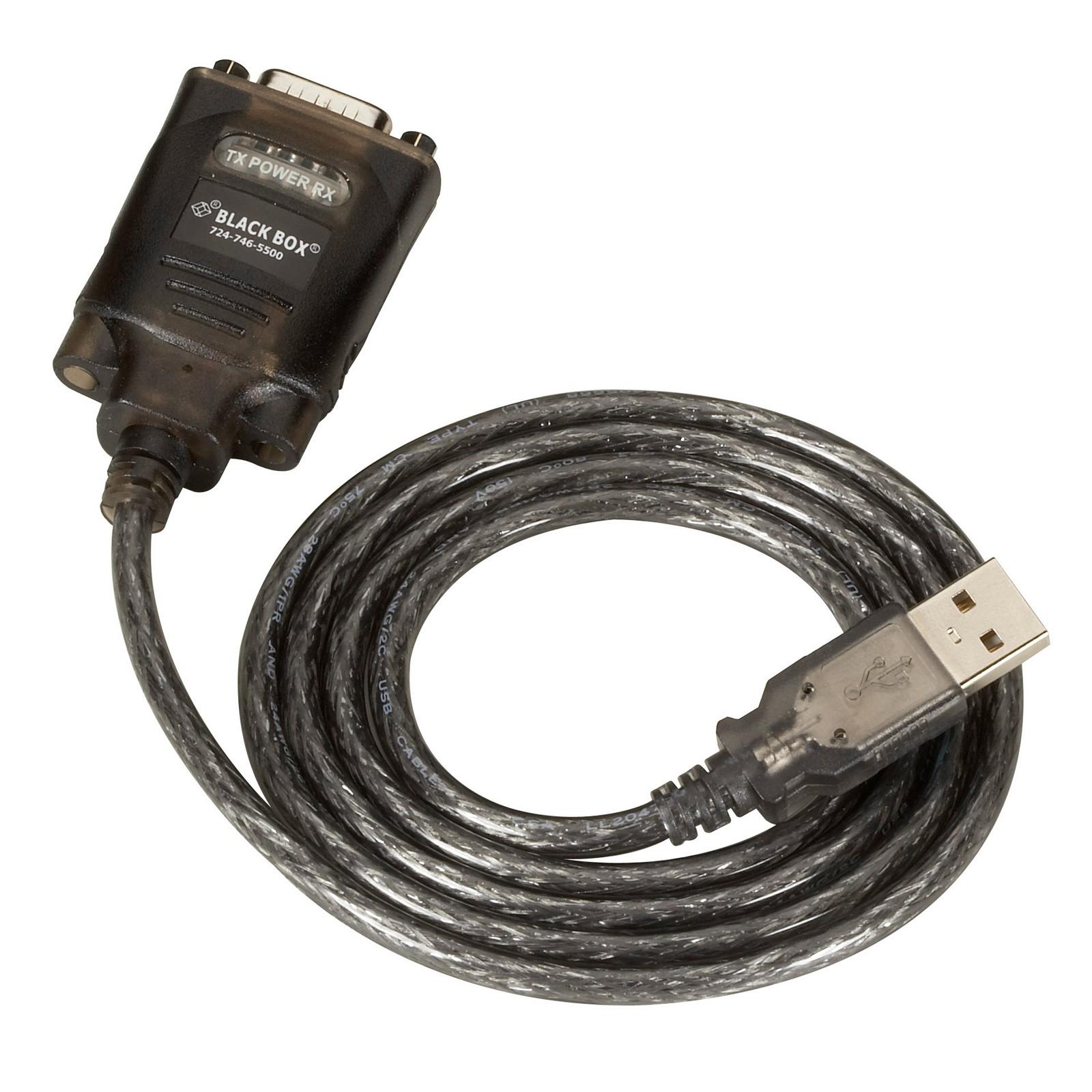

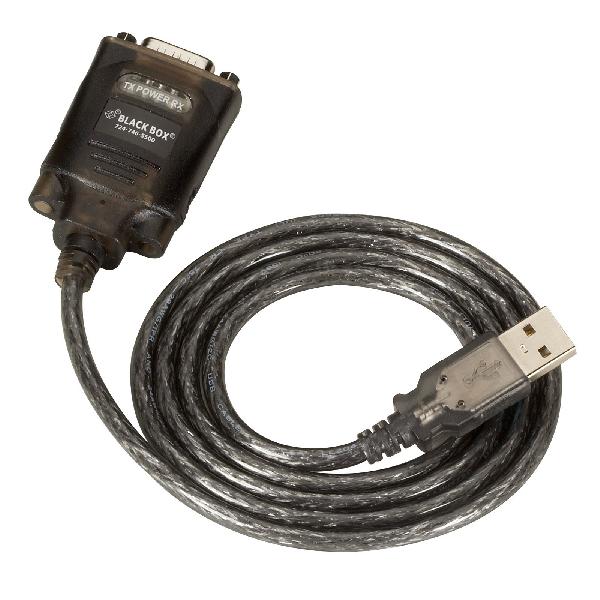

The USB to RS232 converter allows you to connect a non-USB RS232 DB9 device to your USB bus.

Product Feature

  • Enables you to add a serial port to your PC, laptop, Thin client, or server via a single USB port.
  • An easy, economical alternative to installing a serial board in your PC.
  • Port speeds up to 921 kbps.
  • Configurable COM port assignment.
  • Wide range of operating system support for Windows® users
  • No external power required.

The USB to RS232 converter allows you to connect a non-USB RS232 DB9 device to your USB bus. You can use this Intelligent USB-to-serial converter in point-of-sale settings, for mobile computing in the field, or any place you require flexible I/O expansion. Hook it up to your bar-code scanners, touch screens, security cameras, PDAs, and other peripherals.

General
ApprovalsCE
PowerFrom the interface
StandardsUSB 1.1
Item Specifications
Connectors(1) USB Type A, (1) DB9 M
Dimensions0.7"H x 1.3"W x 2.3"D (1.8 x 3.3 x 5.8 cm)
Cable Length: 43-in. (109 cm)
Weight0.1 lb. (<0.1 kg)

NOTE(s):

Product works with:

 USB Version 1.1 Cables (USB01).

Name Type Version Release Date
USB Director and USB Solo Datasheet 25 June 2021
USB to RS-232 Converter User Manual Manual 25 June 2021
