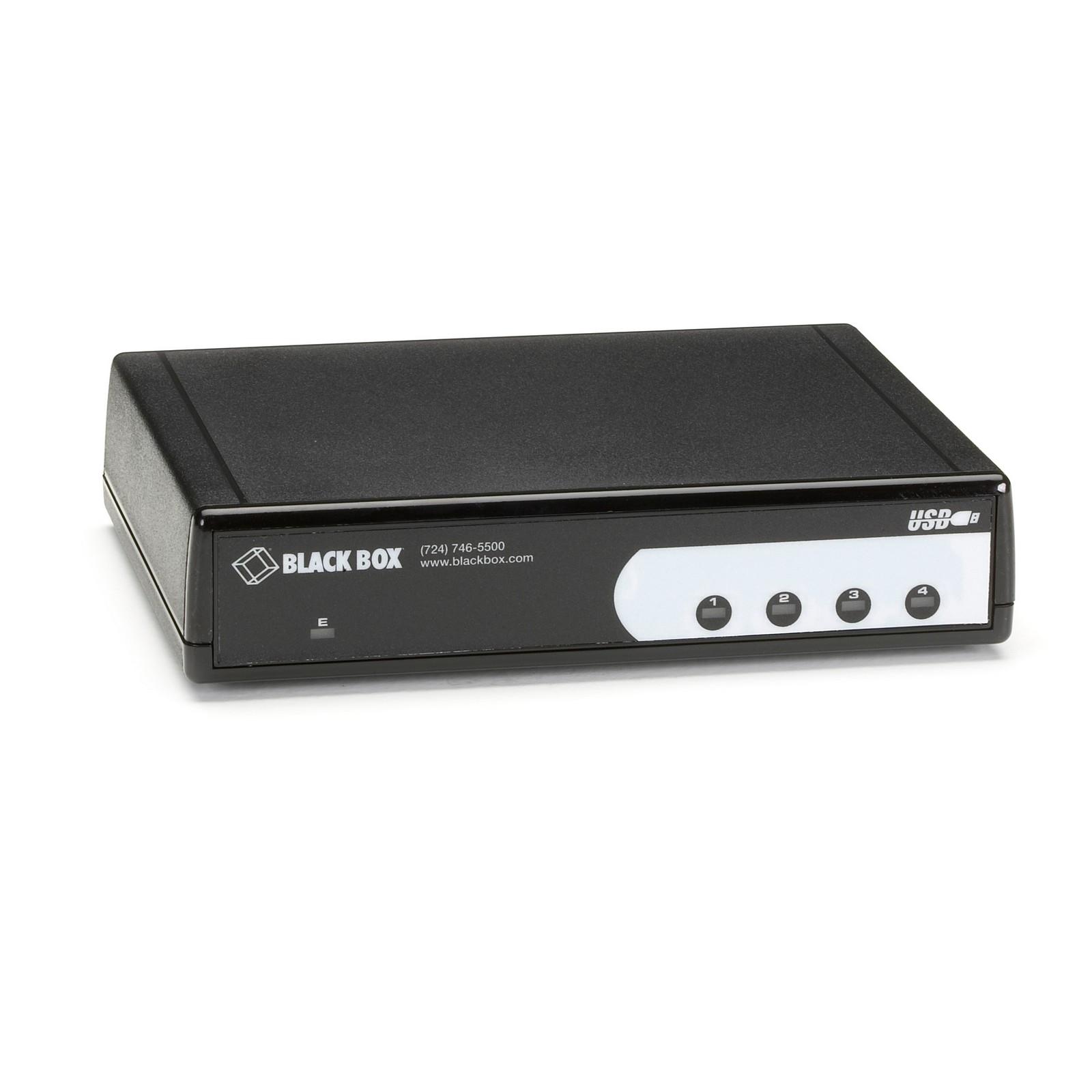

USB to RS232 Converter - DB9, 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Adapters & Converters

The USB to RS232 converter allows you to connect four non-USB RS232 DB9 device to your USB bus.

Product Feature

  • Enables you to add a serial port to your PC, laptop, Thin client, or server via a single USB port.
  • An easy, economical alternative to installing a serial board in your PC.
  • Port speeds up to 230 kbps.
  • Configurable COM port assignment.
  • Wide range of operating system support for Windows® users
  • No external power required.
  • Supports USB version 1.1.
  • Powered by the USB bus.
  • RS-232 data rates up to 460.8 kbps.
  • No I/O ports or IRQs required.

Windows® 98/Me/XP and Windows 2000 compatible.

Use an external USB connection to get the extra COM ports you need.

Why install an internal serial adapter to get extra COM ports when using an external USB connection makes more sense? This USB Hub converts your serial RS-232 devices to USB-adaptable peripherals without sacrificing serial connection speeds.

The hub features high-speed UARTs with 128-byte FIFO transmit buffers and 384-byte FIFO receive buffers. It connects easily to peripheral serial devices in an external plug-and-play fashion. Because it's hot-swappable, you can install it without having to power down your PC.

The hub comes with all necessary drivers, utilities, and help files for quick setup in Windows 98, Windows Me, Windows 2000, and Windows XP operating systems. Simply load the included software drivers, then connect the hub to your USB port and an RS-232 serial device.

General
ApprovalsCE, RoHS
Communication ChipHigh-speed, USB-to-serial interface (128-byte FIFO transmit, 384-byte FIFO receive)
Distance50 ft. (15.2 m) maximum
Operating EnvironmentTemperature: 32 to 158° F (0 to 70° C); Humidity: 10 to 90% noncondensing
PowerFrom the USB bus (as long as the device is connected directly to a powered PC or hub)
Speed460.8 kbps maximum
Item Specifications

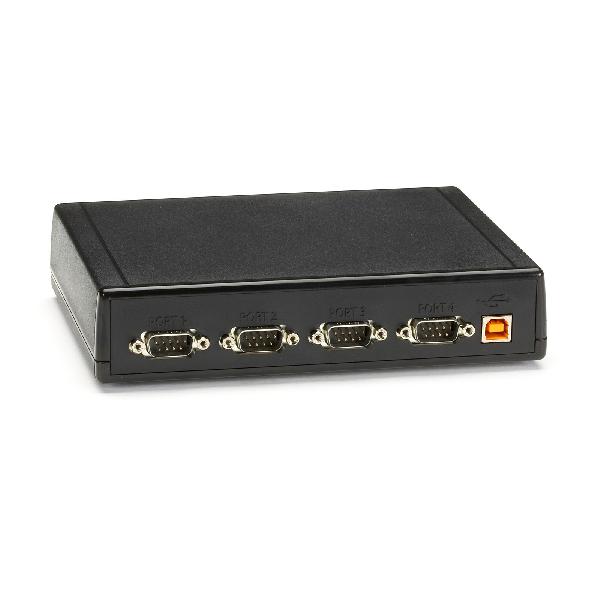

ConnectorsSerial: (4) DB9 M; USB: (1) Type B F
Dimensions1.5"H x 7"W x 5.3"D (3.8 x 17.8 x 13.5 cm)

Product Includes:

  • USB Hub
  • (1) 6-ft. (1.8-m) USB cable
  • CD with user's manual plus software for setup in Windows 98, Windows Me, Windows 2000, and Windows XP
Name Type Version Release Date
USB Hub Data Sheet Datasheet 07 July 2021
