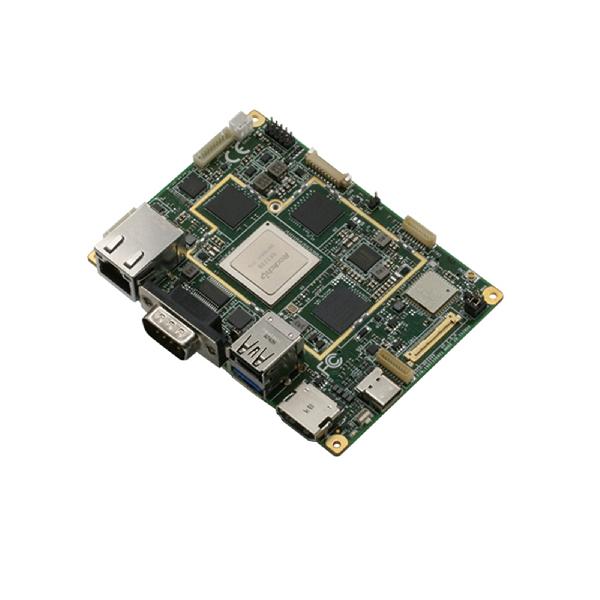

The RICO-3399 single board computer is a RISC platform that is designed to meet the requirements of a wide range of applications, from digital signage and KIOSK to intelligent cameras and machine learning applications. Armed with the powerful Rockchip RK3399 ARM hexa-core processor, capable of 4K Ultra HD, built on the PICO-ITX form factor, and featuring a fanless design; the RICO-3399 SBC is designed to deliver out-of-the-box brains and brawn to tackle any application.
Powered by the Rockchip RK3399 ARM hexa-core processor, the RICO-3399 SBC has the brains and brawn to tackle your application requirements. Utilizing the latest in ARM and RISC technology, the Rockchip RK3399 ARM hexa-core processor is a SoC that combines two processors into one, splitting computing and graphics tasks between the two processors. The RICO-3399 teams up the processor with a built-in Mali-T860MP4 GPU, a GPU that is 50% faster than its previous generation, to provide the strength for 4K video decode applications and 4K Ultra HD graphics at 60Hz through HDMI 2.0. The RICO-3399 also features onboard 16GM eMMC storage, and 2GB LPDDR3 memory, giving it the intelligence to power machine learning and computer vision applications.
The RICO-3399 SBC combines a fanless design, RISC architecture, and the PICO-ITX form factor to be a platform that is powerful and energy conscious. In addition, these features allow it to squeeze into almost any application that requires a tight fit. Being small doesn’t mean sacrificing flexibility and expandability. The RICO-3399 features a wide array of I/O interfaces, including USB 2.0, USB 3.0, USB C, microSD slot, and MIPI camera support. The RICO-3399 also features both a nanoSIM and a mini-PCIe slot to provide 3G and 4G capabilities, making the RICO-3399 a mobile platform.
AAEON’s manufacturer services offer both hardware and software customization options that ensure the RICO-3399 SBC will be ready to go the moment you open the box. The RICO-3399 comes standard with Android 7.1, which can be tailored at the factory to suit your needs. Further customization options are available to help reduce turnaround, speed up development and ensure rapid APP deployment. AAEON will work directly with you to ensure your requirements are met.
The RICO-3399 SBC powered by Rockchip RK3399 ARM hexa-core utilizes RISC architecture to deliver the brawn of 4K Ultra HD graphics, the brains of intelligent camera systems, and the compact package of the PICO-ITX form factor.
Cortex™-A72 Dual-core and Cortex™-A53 Quad-core(up to 1.8 GHz)
|GRAPHICS||Video Decode: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC|
Video Encode: H.264 UP to HP@level4.1, MVC and VP8
|MEMORY CAPACITY||LPDDR3 2 GB|
|STORAGE/SSD||16GB eMMC and Micro SD card|
|OPERATING SYSTEM||Android 7.1|
|POWER REQUIREMENT||+12V DC input|
|POWER CONSUMPTION (TYPICAL)||0.6A@12V, full load, Hexa core|
|DIMENSION||3.94" x 2.84" (100mm x 72mm)|
|GROSS WEIGHT||0.88 lb (0.4 kg)|
|OPERATING TEMPERATURE||32°F ~ 140°F (0°C ~ 60°C)|
|STORAGE TEMPERATURE||-40°F ~ 176°F (-40°C ~ 80°C)|
|OPERATING HUMIDITY||0% ~ 90% relative humidity, non-condensing|
|HDMI||HDMI(2.0) up to 4k x 2k @60Hz|
|EDP||Up to 4k x 2k @60Hz|
|ETHERNET||GbE x 1|
|USB PORT||USB 3.2 Gen 1 Type C x 1,|
USB 2.0 Type A x 1,
USB 3.2 Gen 1 Type A x 1
USB 2.0 Pin Header x 1
|SERIAL PORT||RS-232/422/485 x 1,|
RS-232 Pin header x 1, Debug port pin header x 1
|AUDIO||2.5W (by 4Ω) Speaker/ Microphone/ Earphone|
|GPIO||8-bit (4-in, 4-out)|
|EXPANSION SLOT||Full-size mini-PCIe slot x 1 (For 3G/4G card)|
|SD SOCKET||Supports Micro SD card|
