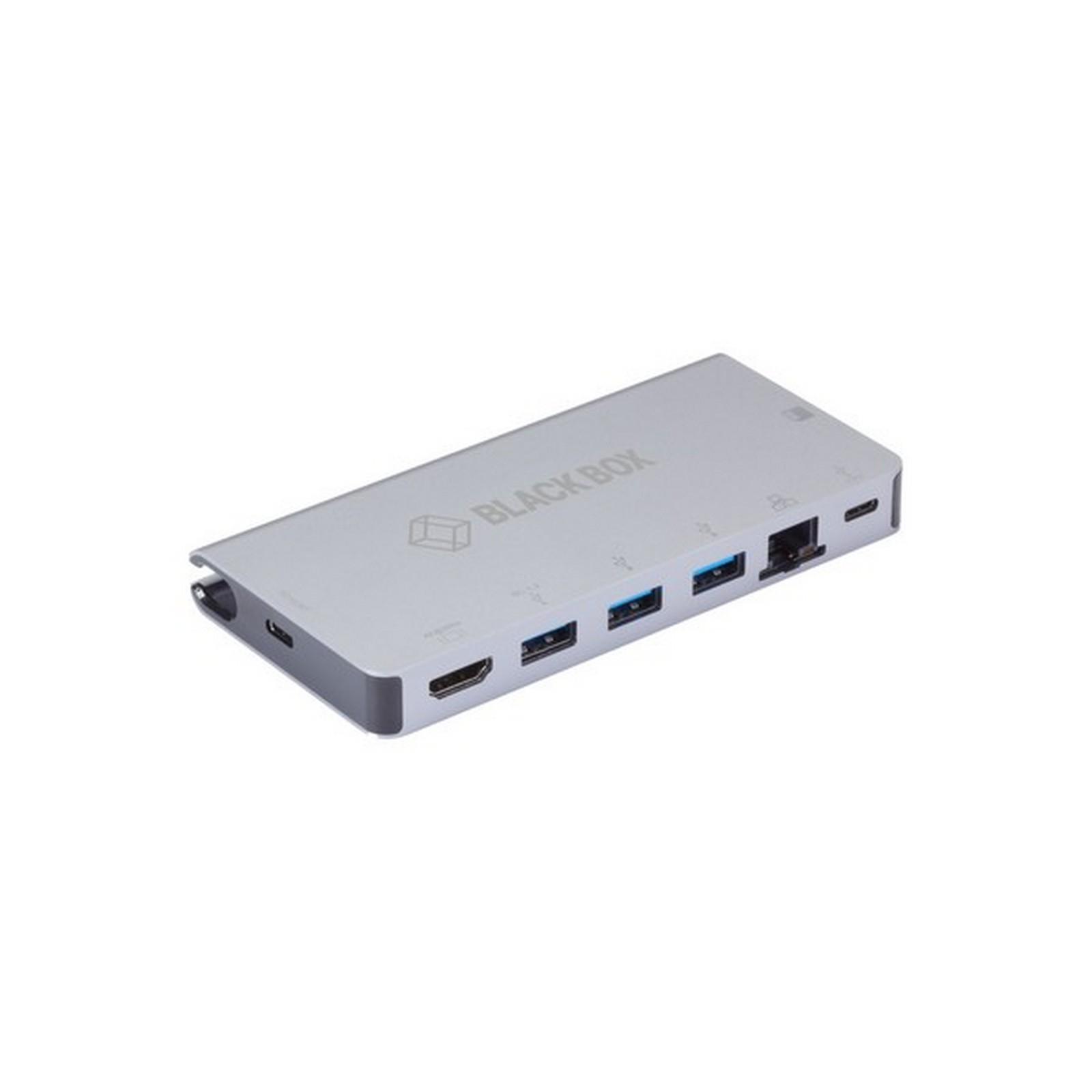

USB C Docking Station

Portable, mini USB-C docking station

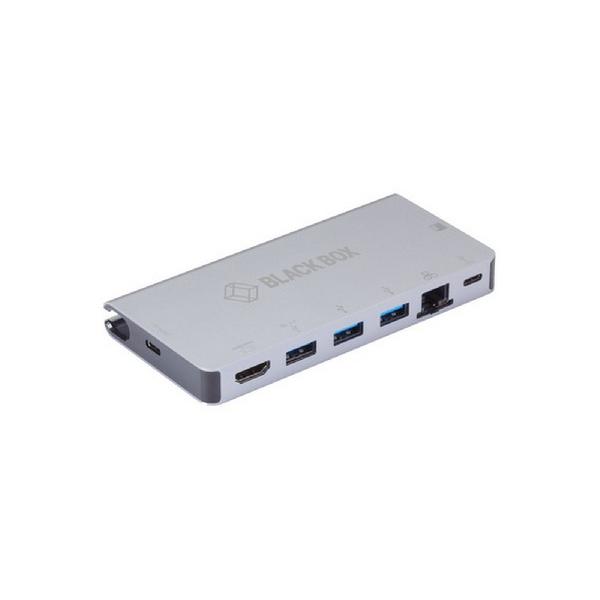

Connect a 4K HDMI monitor, keyboard, and mouse to your MacBook Pro or Windows laptop with this multi-port adapter. The dock includes a USB C host port and cable, a USB C charging port, an HDMI HD video port, a LAN port, three high-speed USB 3.0 Type-A ports, and an SD/USD memory card reader.

Super-Fast and Backward-Compatible
The USB C docking station supports USB 3.0 super-speed (5 Gbps) transmission. Even better, it's backward-compatible with USB 2.0, so you aren't limited by legacy hardware.

Supports USB power delivery
Power both the multiport adapter and your laptop, using your laptop's USB-C power adapter (supports USB Power Delivery 3.0, up to 100W)

Works on a Range of Platforms
This docking station can work on all PCs and mobile phones that support DP Alt Mode.

Bundled Solutions Available for use with DisplayPort, DVI, HDMI or VGA Monitors
In addition to the standalone USBC2000, choose between pre-bundled kits that include the necessary cabling and/or adapter for your video of choice, as well as additional Ethernet and USB-C cabling.

General

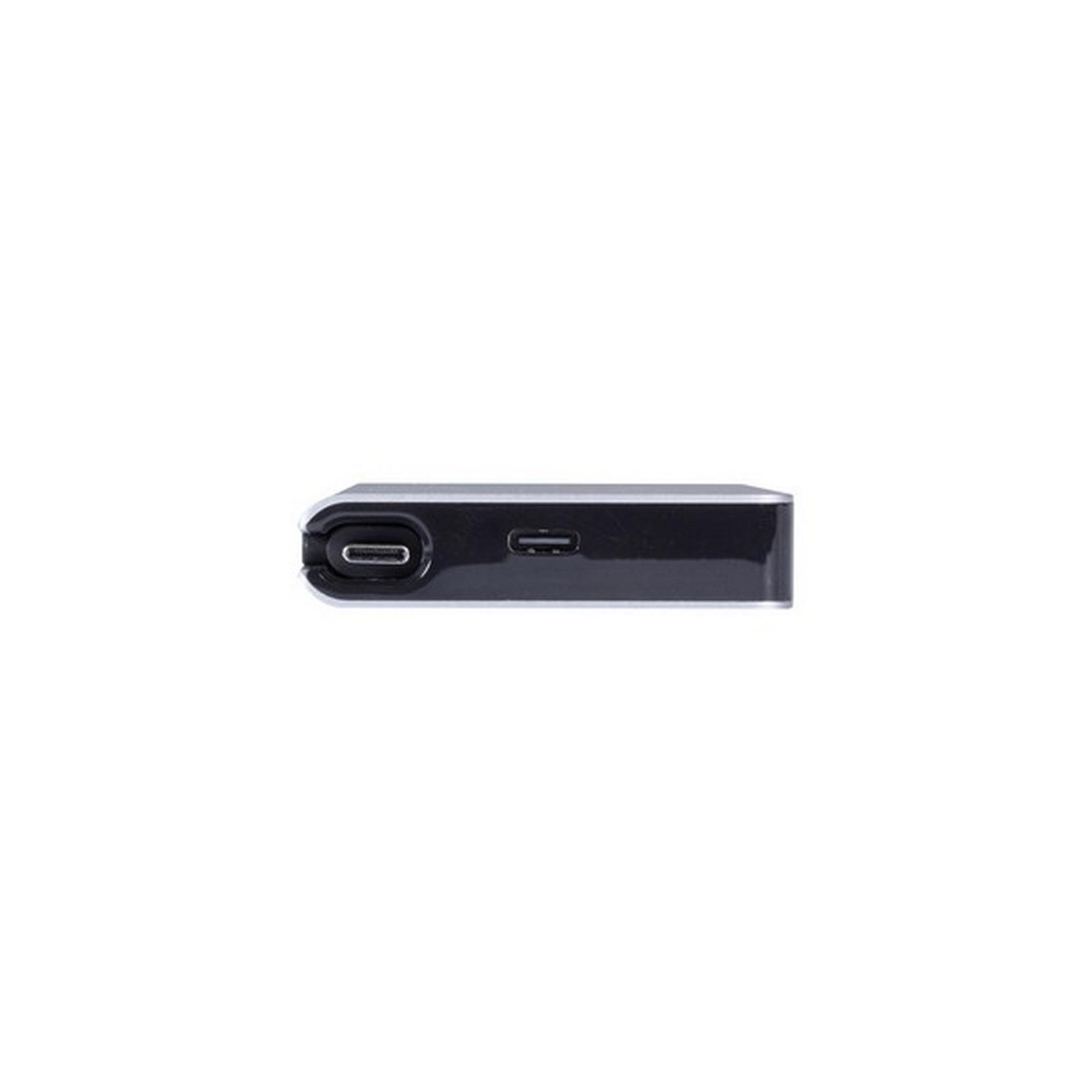

USB Charging	(2) Type-C female ports support both data (5 Gbps) and PD Charging 100W (20 V / 5 A), plug and play; Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected when plugging in and out PD Adapter.

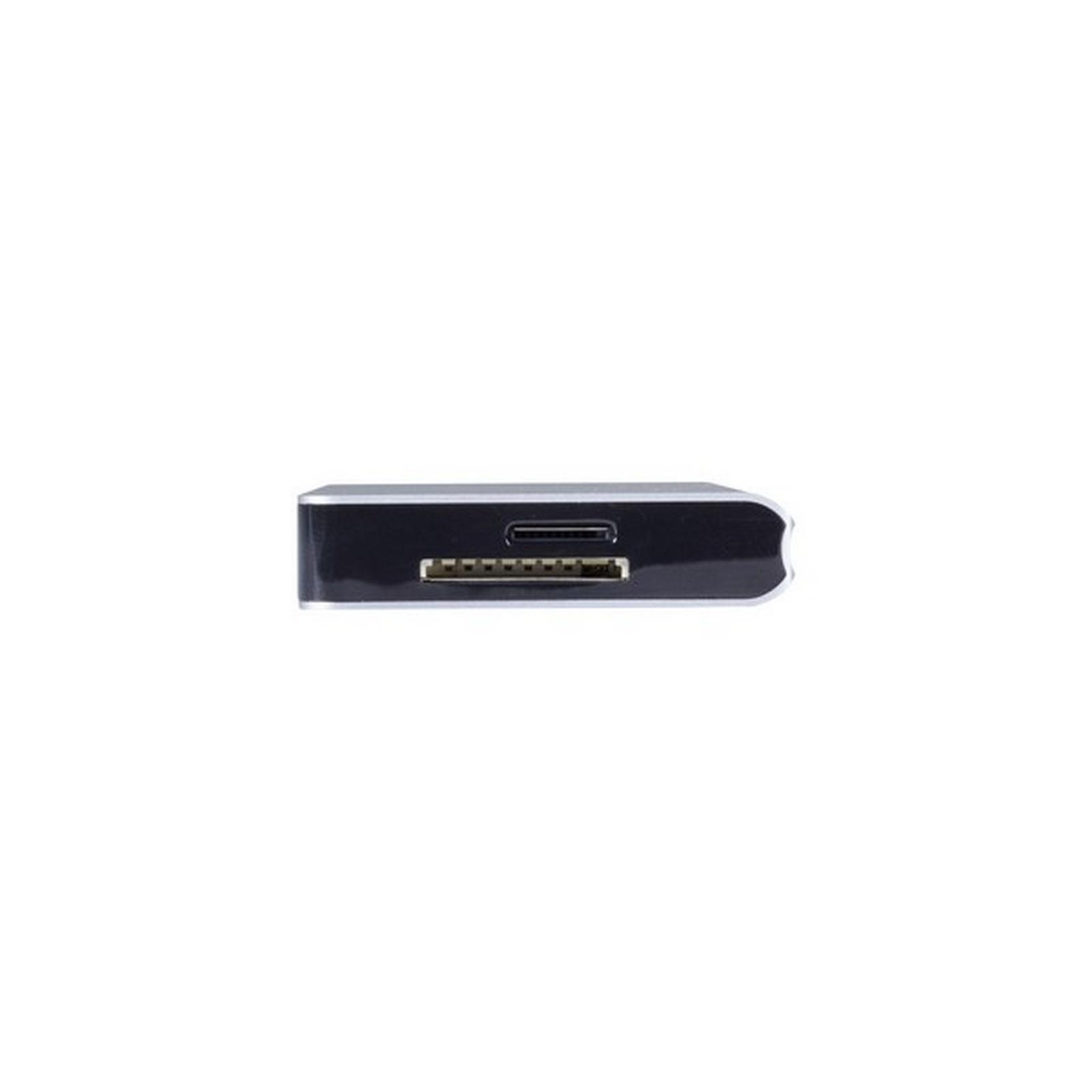

Connector Speed	(3) USB 3.0 type A ports support super speed (5 Gbps) transmission, backwards-compatible with USB 2.0. One of the three USB-A ports supports BC 1.2, the power of this port can be up to 7.5W (5V/1.5A); Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5 Mbyte/s)/SDR25 (25 Mbyte/s)/SDR50 (50 Mbyte/s)/DDR50 (50 Mbyte/s)/ SDR104 (104 Mbyte/s) Allows SD and Micro SD card to work at the same time
Approvals	FCC, CE, CAN ICES-3(B)/NMB-3(B)
Power	A power supply is not required to operate the USBC2000. A power supply is not included with the USBC2000. If you plug your laptop's USB-C power adapter into the USBC2000's USB C charging port, it will send power to your PC over the USB-C host port (supports USB Power Delivery 3.0, up to 100W, 20V/5A) and will also send power to the USB type A charging port (supports BC 1.2, up to 7.5W, 5V/1.5A).
Item Specifications

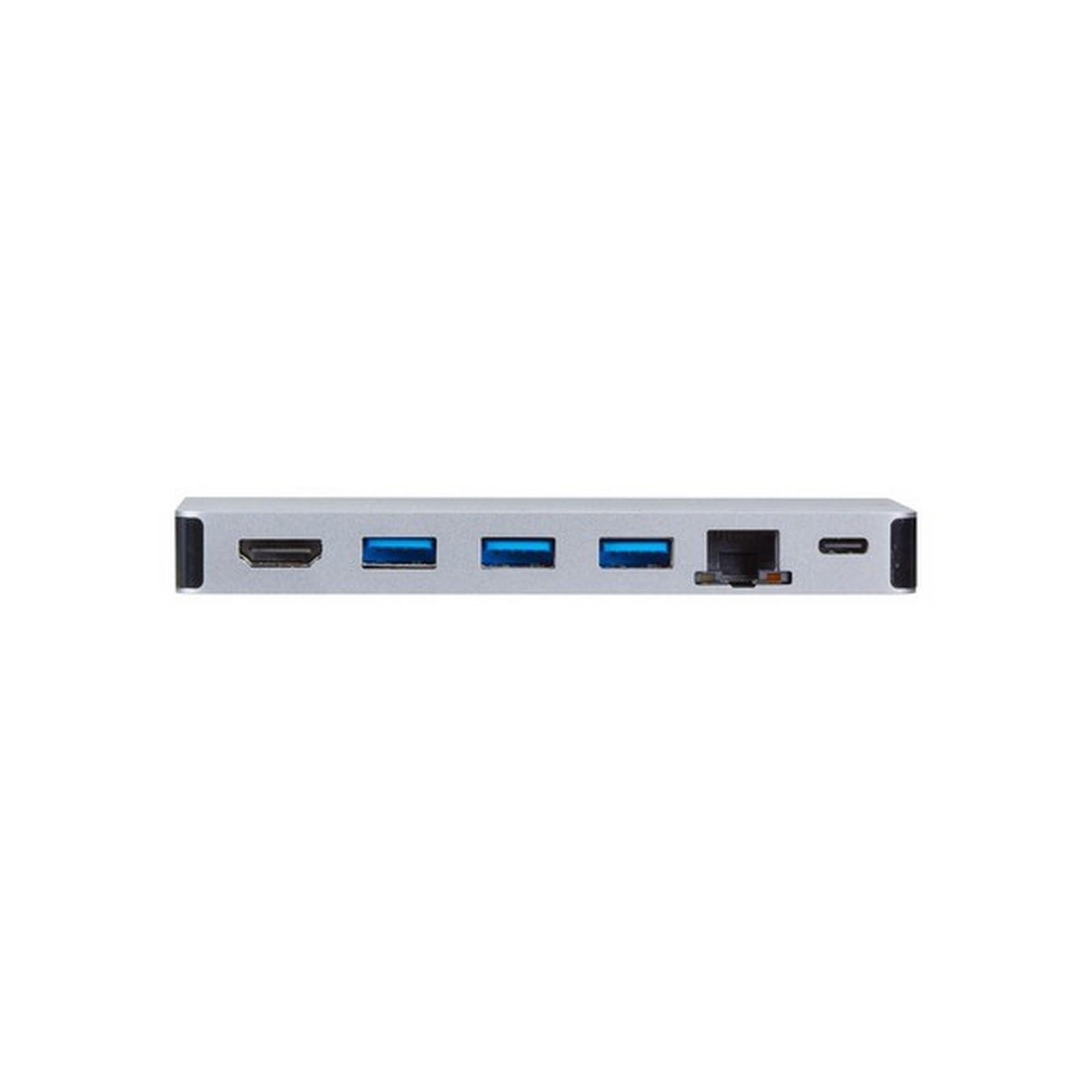

Connectors	Input: (1) USB-C Female (with Type-C M to M cable); Output: (3) USB 3.0 Female; (1) USB-C Female (for data & charging); (1) RJ45; (1) HDMI Female; (1) Micro SDX; (1) SD/MMCX; (1) HDMI port: Supports HDMI resolution up to 4K @ 30 Hz
Dimensions	.05"H x 5"W x 2.4"D (14.2 x 60.96 x 127mm)

Product Includes:

(1) Main unit

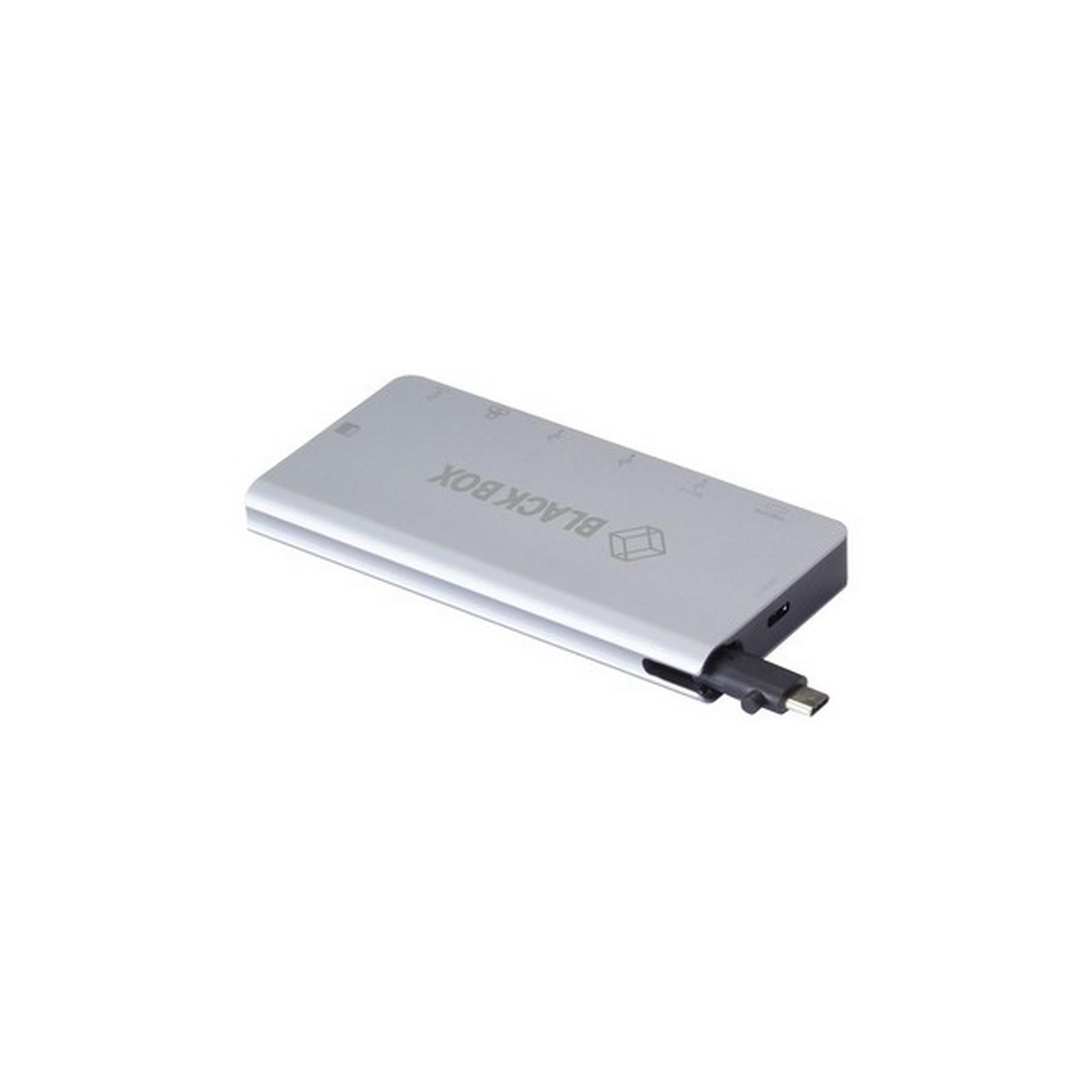

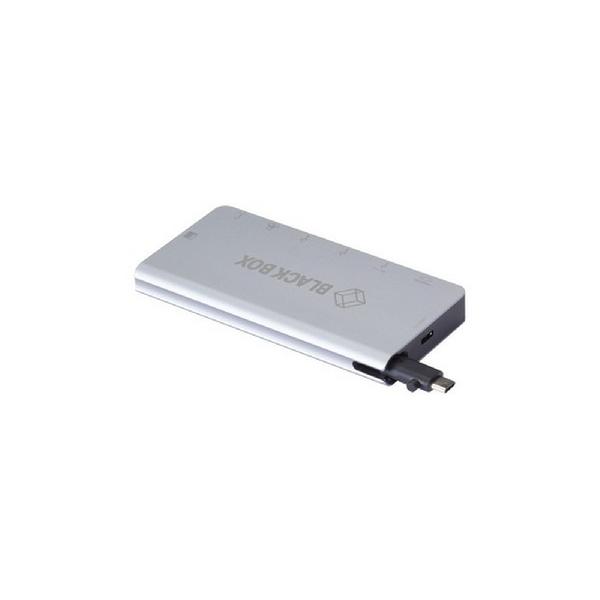

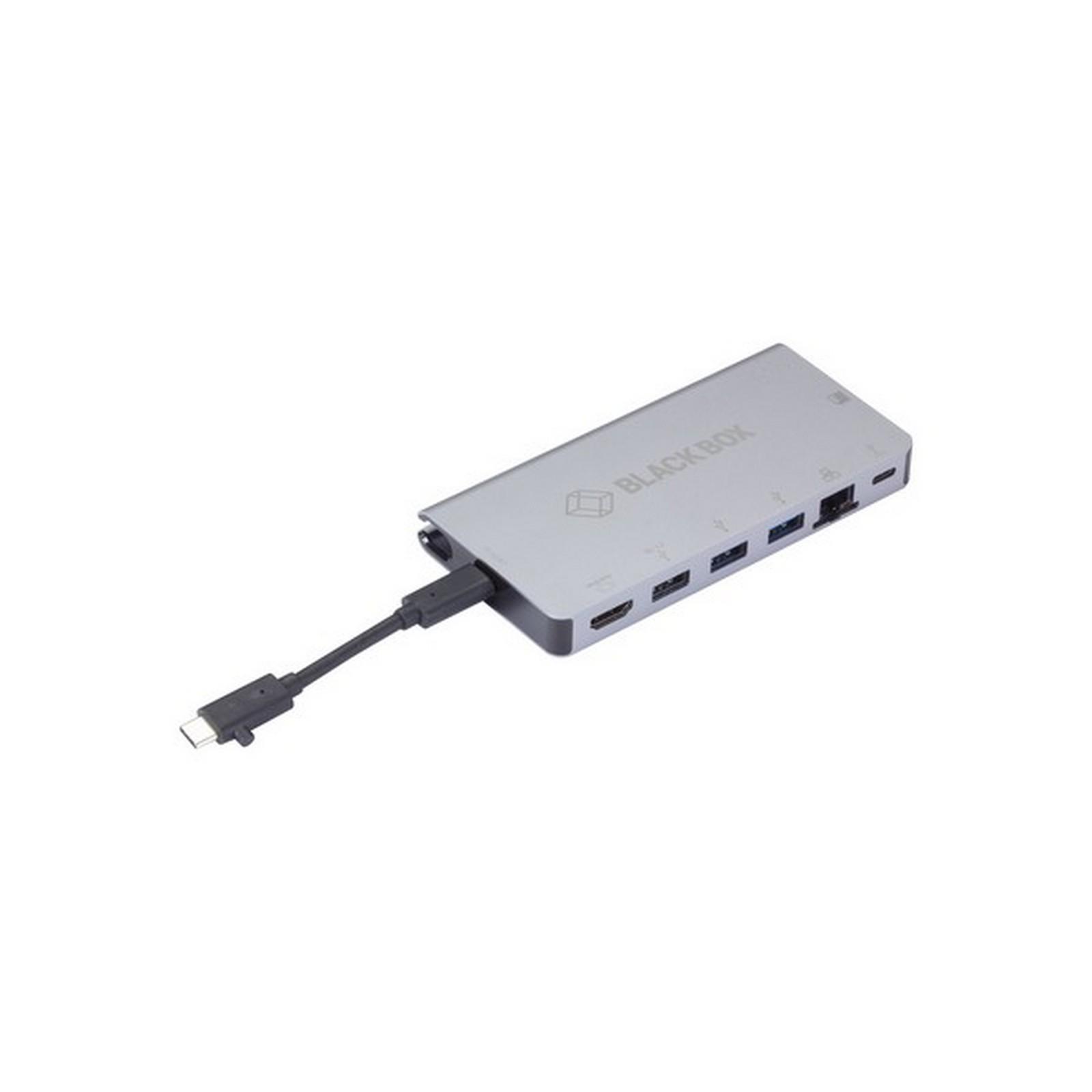

Type-C M to M cable (stores inside main unit)

Name	Type	Version	Release Date
USB C Docking Station	Datasheet		14 July 2021
Manual	Manual		14 July 2021

USB C Docking Station

Product Feature
