Portable, mini USB-C docking station

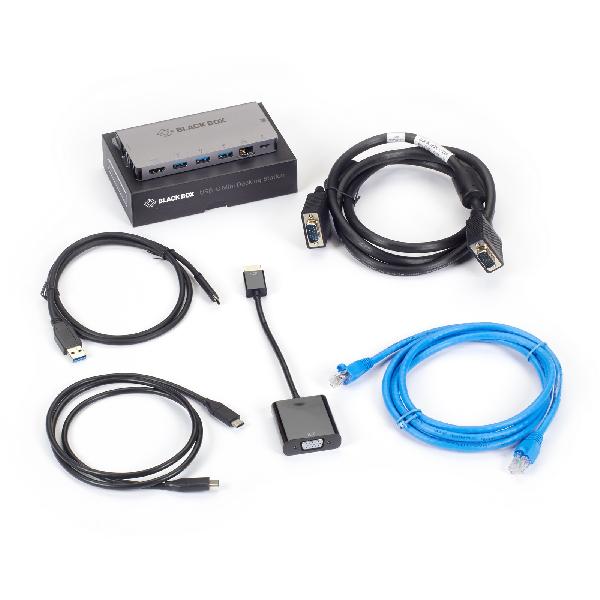

Connect a 4K HDMI monitor, keyboard, and mouse to your MacBook Pro or Windows laptop with this multi-port adapter. The dock includes a USB C host port and cable, a USB C charging port, an HDMI HD video port, a LAN port, three high-speed USB 3.0 Type-A ports, and an SD/USD memory card reader. Bundle includes an HDMI to VGA adapter, VGA cable, USB-C 3.1 G2 cable, USB-C to USB-A Cable, and Cat6 Ethernet Cable.
Super-Fast and Backward-Compatible
The USB C docking station supports USB 3.0 super-speed (5 Gbps) transmission. Even better, it's backward-compatible with USB 2.0, so you aren't limited by legacy hardware.
Supports USB power delivery
Power both the multiport adapter and your laptop, using your laptop's USB-C power adapter (supports USB Power Delivery 3.0, up to 100W)
Works on a Range of Platforms
This docking station can work on all PCs and mobile phones that support DP Alt Mode.
| General | |
| USB Charging | (2) Type-C female ports support both data (5 Gbps) and PD Charging 100W (20 V / 5 A), plug and play; Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected when plugging in and out PD Adapter. |
| Connector Speed | (3) USB 3.0 type A ports support super speed (5 Gbps) transmission, backwards-compatible with USB 2.0. One of the three USB-A ports supports BC 1.2, the power of this port can be up to 7.5W (5V/1.5A); Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5 Mbyte/s)/SDR25 (25 Mbyte/s)/SDR50 (50 Mbyte/s)/DDR50 (50 Mbyte/s)/ SDR104 (104 Mbyte/s) Allows SD and Micro SD card to work at the same time |
| Approvals | FCC, CE, CAN ICES-3(B)/NMB-3(B) |
| Power | A power supply is not required to operate the USBC2000. A power supply is not included with the USBC2000. If you plug your laptop's USB-C power adapter into the USBC2000's USB C charging port, it will send power to your PC over the USB-C host port (supports USB Power Delivery 3.0, up to 100W, 20V/5A) and will also send power to the USB type A charging port (supports BC 1.2, up to 7.5W, 5V/1.5A). |
| Item Specifications | |
| Connectors | Input: (1) USB-C Female (with Type-C M to M cable); Output: (3) USB 3.0 Female; (1) USB-C Female (for data & charging); (1) RJ45; (1) HDMI Female; (1) Micro SDX; (1) SD/MMCX; (1) HDMI port: Supports HDMI resolution up to 4K @ 30 Hz |
| Dimensions | .05"H x 5"W x 2.4"D (14.2 x 60.96 x 127mm) |
Product Includes:
| Name | Type | Version | Release Date | |
| USB C Docking Station | Datasheet | 14 July 2021 | ||
| Manual | Manual | 14 July 2021 |
