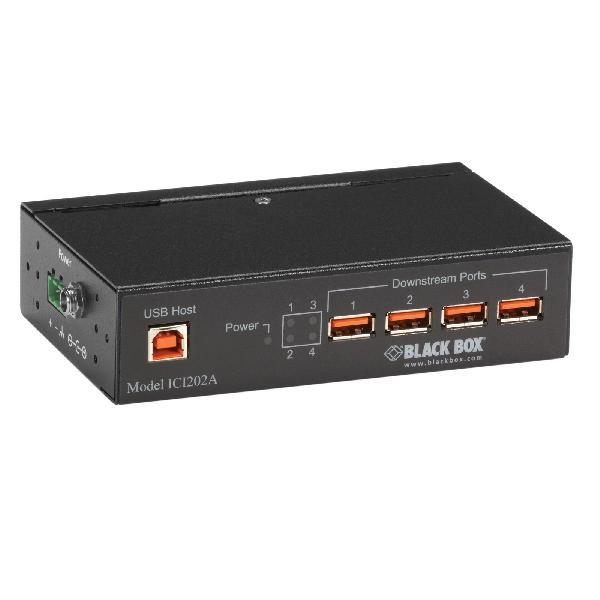

Industrial USB 2.0 Hub with Isolation - 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Hubs

Now you can connect four USB 2.0 devices in industrial settings without worrying about accidental disconnects or ESD damage to your connected USB devices. This Industrial USB 2.0 Hub features high-retention ports that ensure a tight connection—even in high-vibration environments.

Product Feature

  • UL® listed for use in Class 1 Division 2 hazardous areas.
  • Tested for 50G shock and 4g vibration.
  • USB 1.1 and USB 2.0 compatible speed up to 12 Mbps.
  • Offers 4-kV isolation between upstream and downstream ports.
  • Features high electrostatic discharge protection (Level 4, 15 kV).
  • Included high-retention ports to help keep USB cables tightly connected.
  • Withstands a wide temperature range: -40 to +176° F (-40 to +80° C).
  • Housed in a durable, IP30-rated metal enclosure.
  • UL® listed for use in Class 1 Division 2 hazardous areas.
  • Tested for 50G shock and 4g vibration.
  • USB 1.1 and USB 2.0 compatible.
  • Supports USB speeds of 12 Mbps.
  • Includes panel- and DIN rail mounting hardware.
  • Use either a locking barrel plug and terminal block for power input.

A great choice for factory, utility, engineering, and even healthcare applications, the Black Box® Industrial-Grade USB Hub, 4-Port with Isolation enables more reliable USB device connectivity in harsh environments.

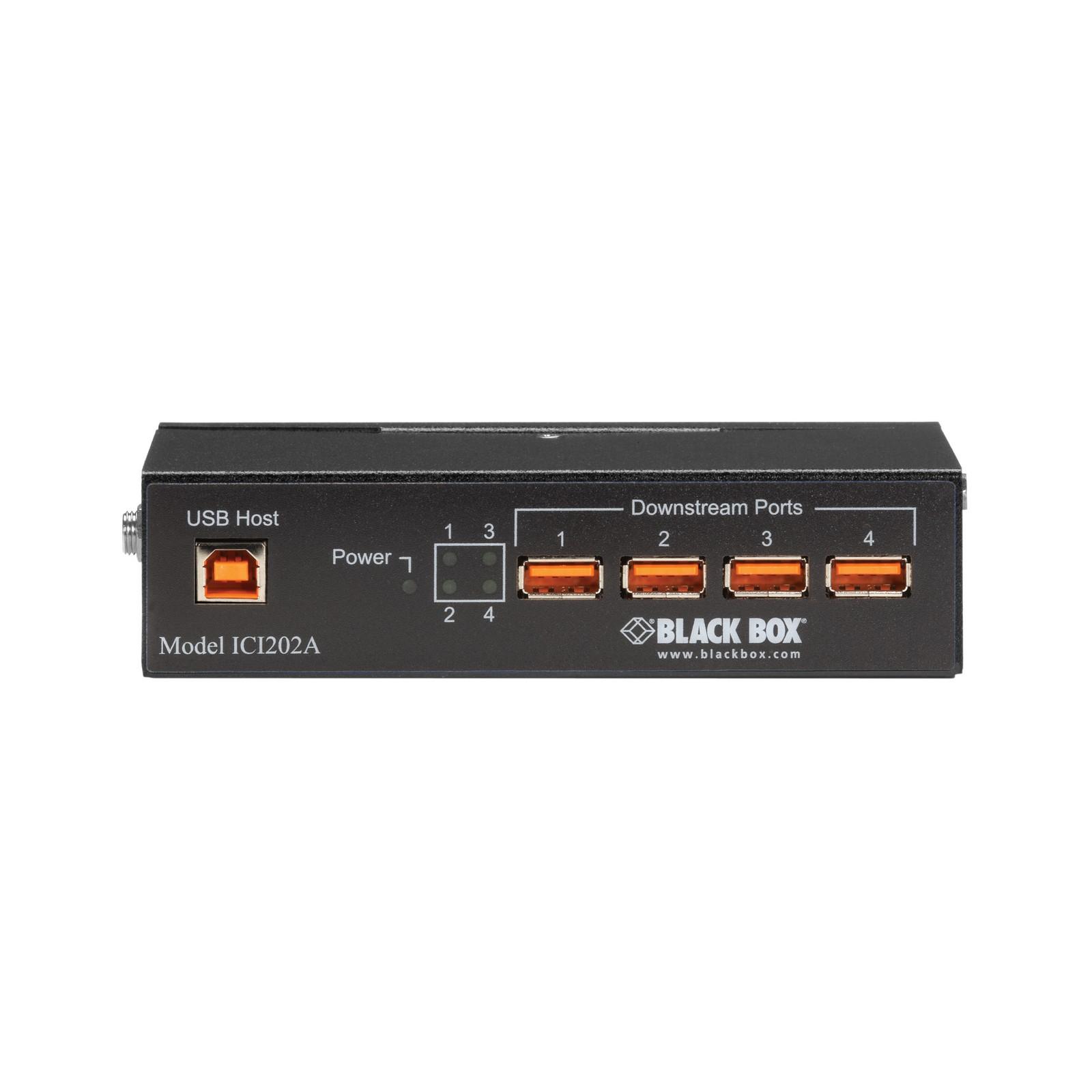

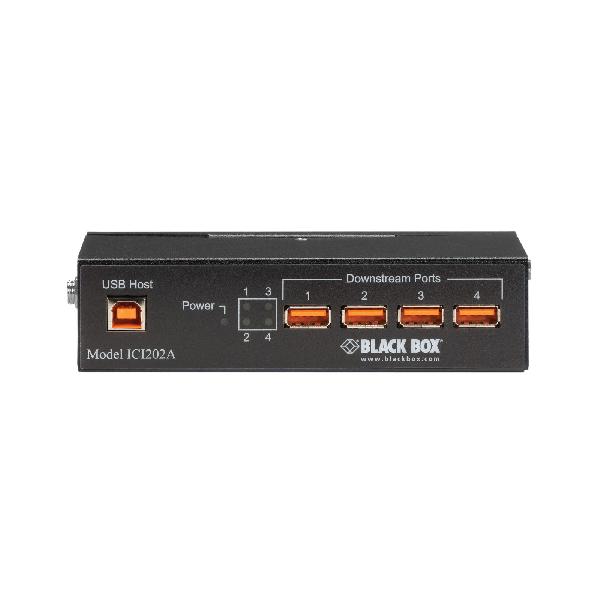

The hub expands one USB port into four, so you can connect additional USB peripherals to your host system via its upstream port. Considerably more rugged than ordinary, office-grade USB hubs, it's designed to allow you to operate USB peripherals in areas with lots of electromagnetic interference (EMI) and prevent data errors caused by such interference.

Tested to meet heavy industrial EMC standards, the hub is also designed to prevent ESD (electrostatic discharge) from damaging your connected USB devices - which makes it ideal for use near electronically noisy motor controls, variable frequency drives, and equipment with large electrical loads.

The hub supports full-speed (12 Mbps) USB 2.0 connections and offers isolation from ground loops. Use it, for instance, in areas where you are connecting a PLC in one cabinet to a drive-in another cabinet, or in a tightly packed medical cart. It enables data to pass unaffected while 4-kV isolation between the upstream and downstream USB ports helps prevent harm to important USB devices.

Because the hub has high-retention ports for device connections, standard USB cables are a lot less likely to shake loose - even in environments with lots of equipment vibration. (Disconnecting them requires up to 3.2 pounds of force.) Cables click into the ports securely to help eliminate data loss.

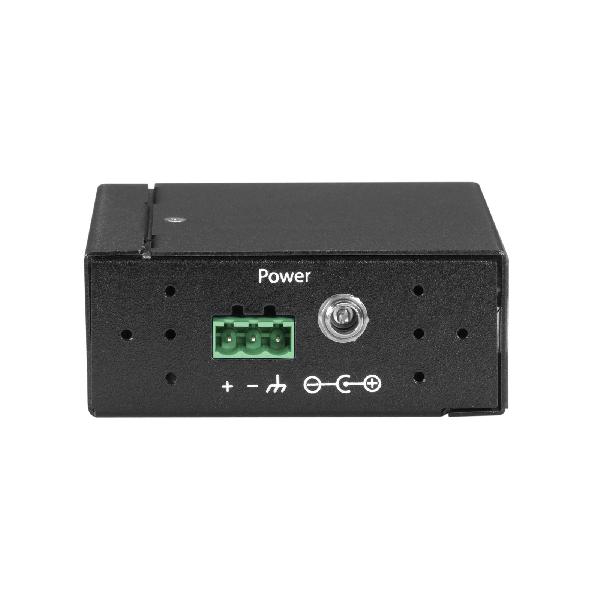

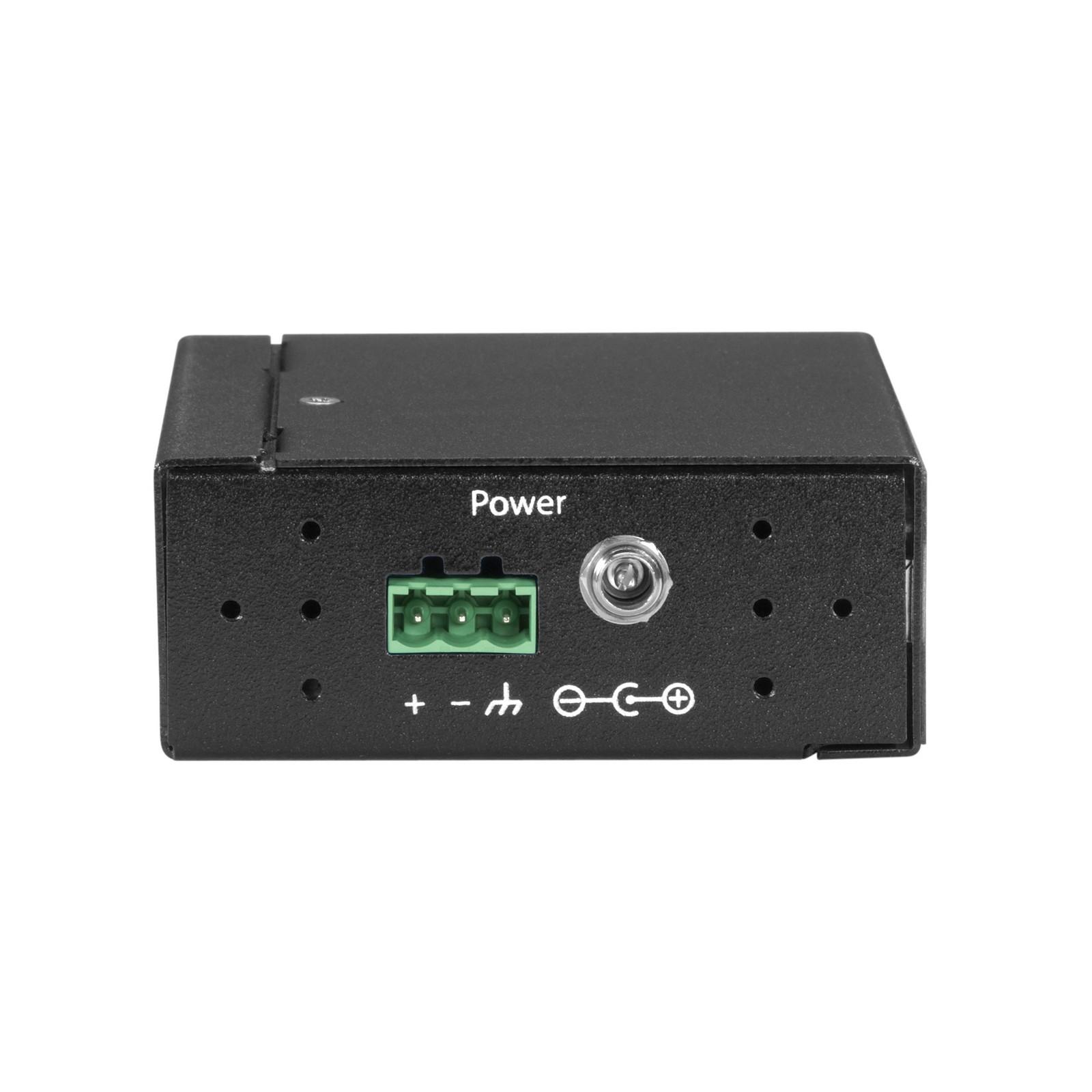

Through its terminal block input or locking barrel plug, it receives power externally from a 10 - 30-VDC source and provides 500 mA to each downstream port.

The hub includes hardware for mounting, including a DIN rail mounting bracket and panel-mount brackets.

General
CE ApprovalYes
MTBF190,999 hours (MIL 217F parts count reliability calculated)
Operating EnvironmentTemperature: -40 to 176° F (-40 to 80° C); Humidity: 0 to 95%, noncondensing
PowerInput: From external 10-30-VDC power supply* (via a terminal block or locking barrel plug input); Output: 5 VDC
StandardsUSB 1.1, USB 2.0
USB Interface ESD15 kV (air), 8 kV (contact)
USB Interface Isolation4 kV, upstream port isolated from downstream ports
USB Interface Surge Protection+/- 0.5 kV (DC ports), +/- 1 kV (signal ports)
USB Speed (Maximum)12 Mbps
Item Specifications
ConnectorsUpstream port: (1) USB Type B F (high retention with withdrawal of >15 N); Downstream ports: (4) USB Type A F (high retention with withdrawal of >15 N)
Dimensions1.4"H x 5.5"W x 3.5"D (3.6 x 14 x 8.8 cm)
Indicators(6) LEDs: (1) USB Bus Power, (1) External Power, (4) USB Port Ready
Weight1.4 lb. (0.6 kg) * NOTE: A power supply is not included. To order, contact Black Box Tech Support for our PS290 power supply.

Product Includes:

  • Industrial-Grade USB Hub with Isolation
  • (1) 1.8m USB Type A/Type B cable
  • (2) panel-mount adapters with (4) mounting screws
  • DIN rail adapter with (3) mounting screws
  • Quick-start guide
Name Type Version Release Date
4-Port Industrial-Grade USB Hubs User Manual Manual 16 July 2021
