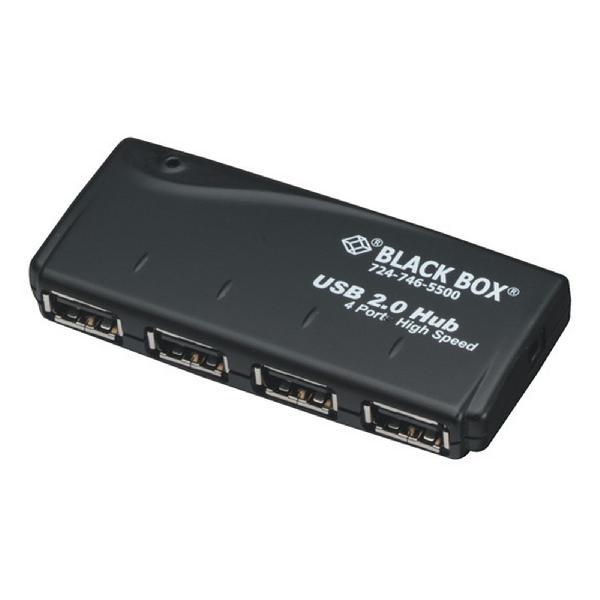

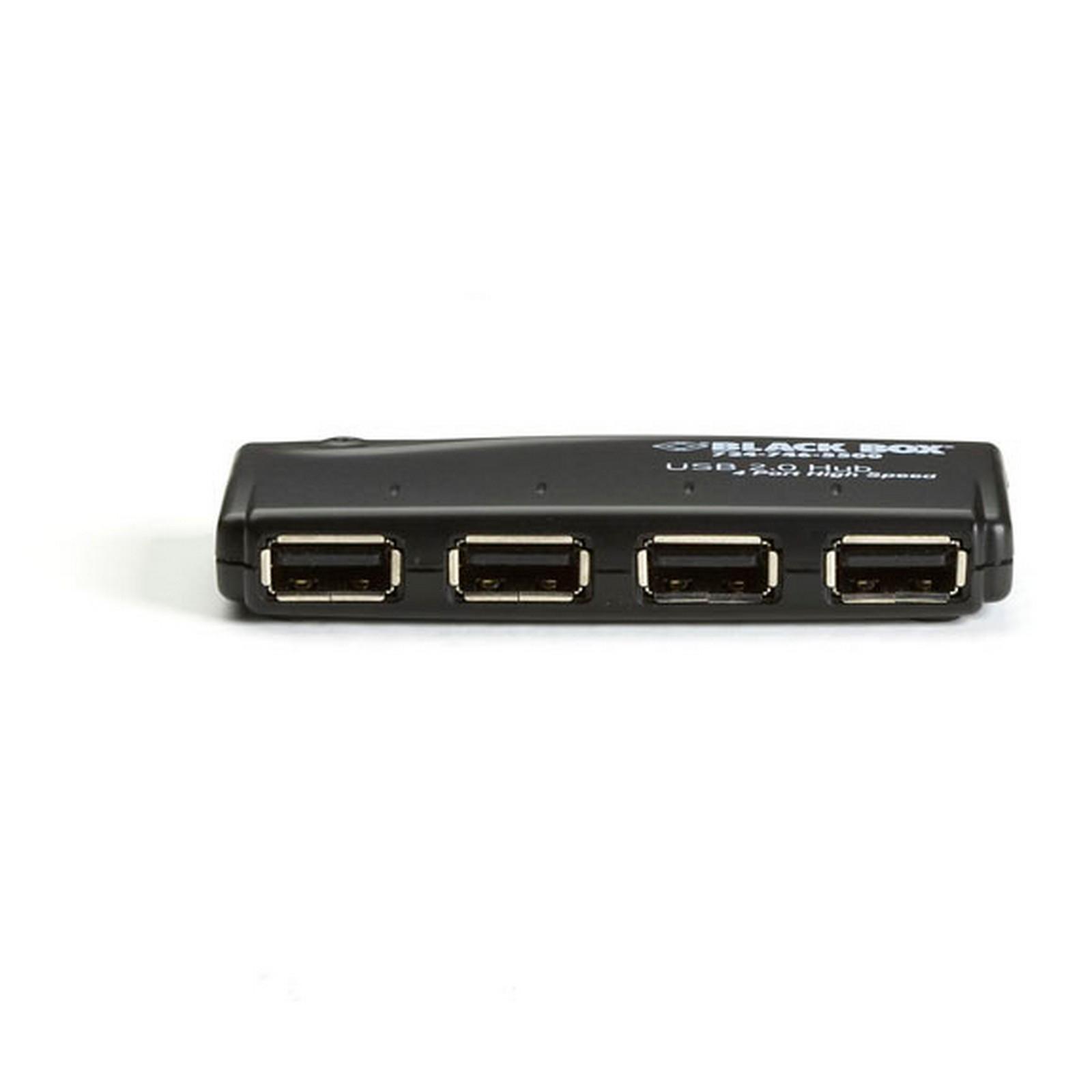

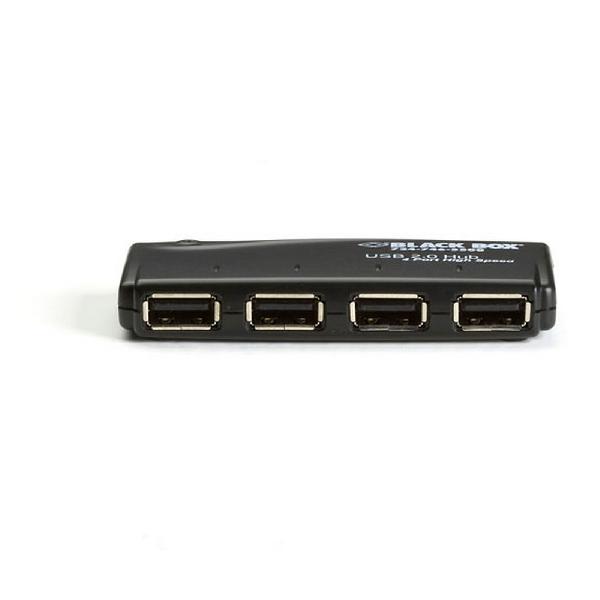

USB 2.0 Hub - 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Hubs

The USB 2.0 Hub, 4-Port complies with the USB 2.0 standard and provides data transfer rates of up to 480 Mbps.

Product Feature

  • Fully compliant with USB 2.0.
  • Ideal for connecting scanners, digital cameras, removable drives, and more.
  • Independent downstream ports support data transfer rates of 1.5, 12, and 480 Mbps.
  • Backward-compatible with USB 1.1 devices.
  • Works with Windows®, Mac®OS, and Linux® operating systems. No new driver installation is required.
  • Backward-compatible with USB 1.1 devices.
  • Compatible with Windows® 98/Me/XP and Windows 2000. Also compatible with Mac® OS 8.6 or higher.
  • Independent downstream ports support data transfer rates of 1.5, 12, and 480 Mbps.
  • Includes (1) USB mini Type-B Male to USB Type-A Male cable.
  • Also available in a 7-port model.

Connect up to four peripheral devices, such as scanners, digital cameras, and removable drives, to one host computer with this 4-port USB 2.0 hub.

Universal Serial Bus (USB) technology doesn't require any IRQs, so you can attach more peripheral devices to the system, thus eliminating IRQ conflicts. Because many older computers do not have USB connectors onboard and most newer computers come with only one or two USB ports, USB hubs are used to connect additional USB peripherals.

The USB 2.0 Hub, 4-Port complies with the USB 2.0 standard and provides data transfer rates of up to 480 Mbps. It's faster, more efficient, and more capable than its predecessor, USB 1.1. Also, it's backward-compatible, so you don't lose your prior investment in USB 1.1 peripherals.

General
Distance (Maximum)15 ft. (4.5 m)
PowerUSB interface and external power supply: Input: 120 VAC, 0.4 amps, 47–63 Hz; Output: 6 VDC, 3.5 amps
Item Specifications
Connectors(4) USB Type A F, (1) USB mini Type B F
Dimensions0.5"H x 1.4"W x 3.3"D (1.3 x 3.6 x 8.4 cm);
Indicators(5) LEDs: (4) green for self-power for each port, (1) red for power supply

Product Includes:

  • (1) USB 2.0 Hub
  • (1) 3-ft. (0.9-m) USB 2.0 cable
  • (1) Power Supply
  • (1) Manual
Name Type Version Release Date
USB 2.0 Hubs Datasheet 16 July 2021
