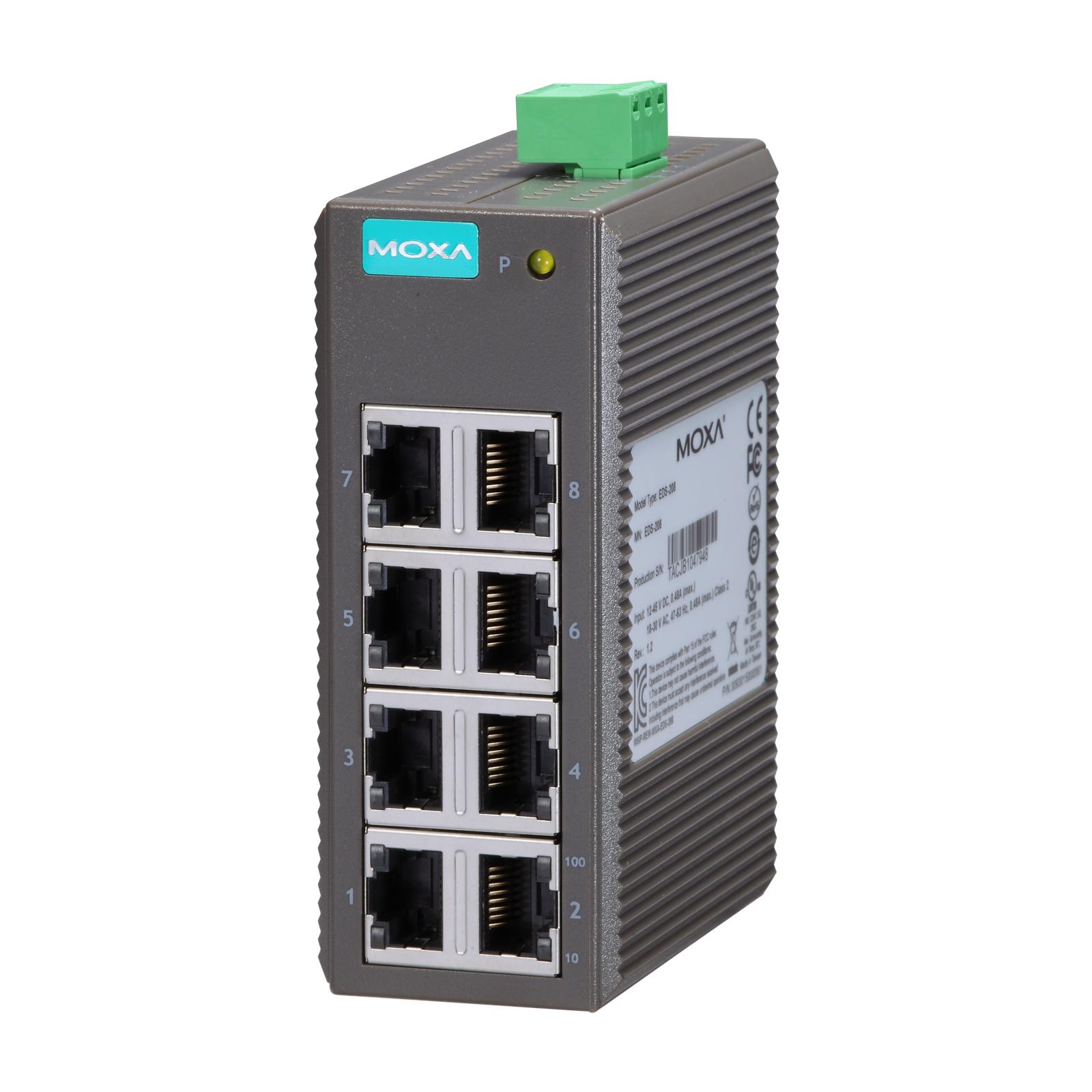

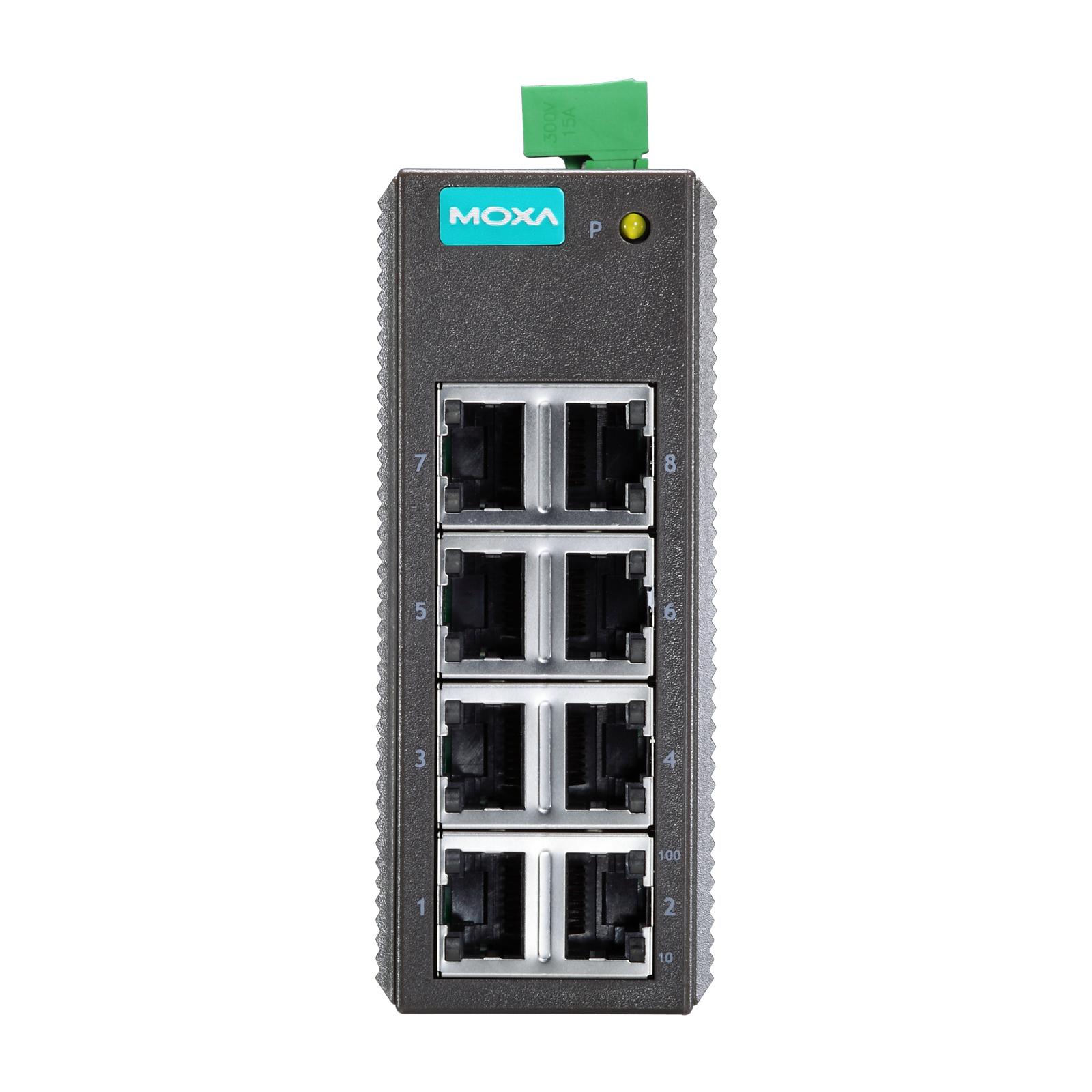

EDS-208 Series

Introduction

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.

Ethernet Interface
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
10/100BaseT(X) Ports (RJ45 connector)	Auto MDI/MDI-X connection Full/Half duplex mode
100BaseFX Ports (multi-mode SC connector)	EDS-208-M-SC: Supported

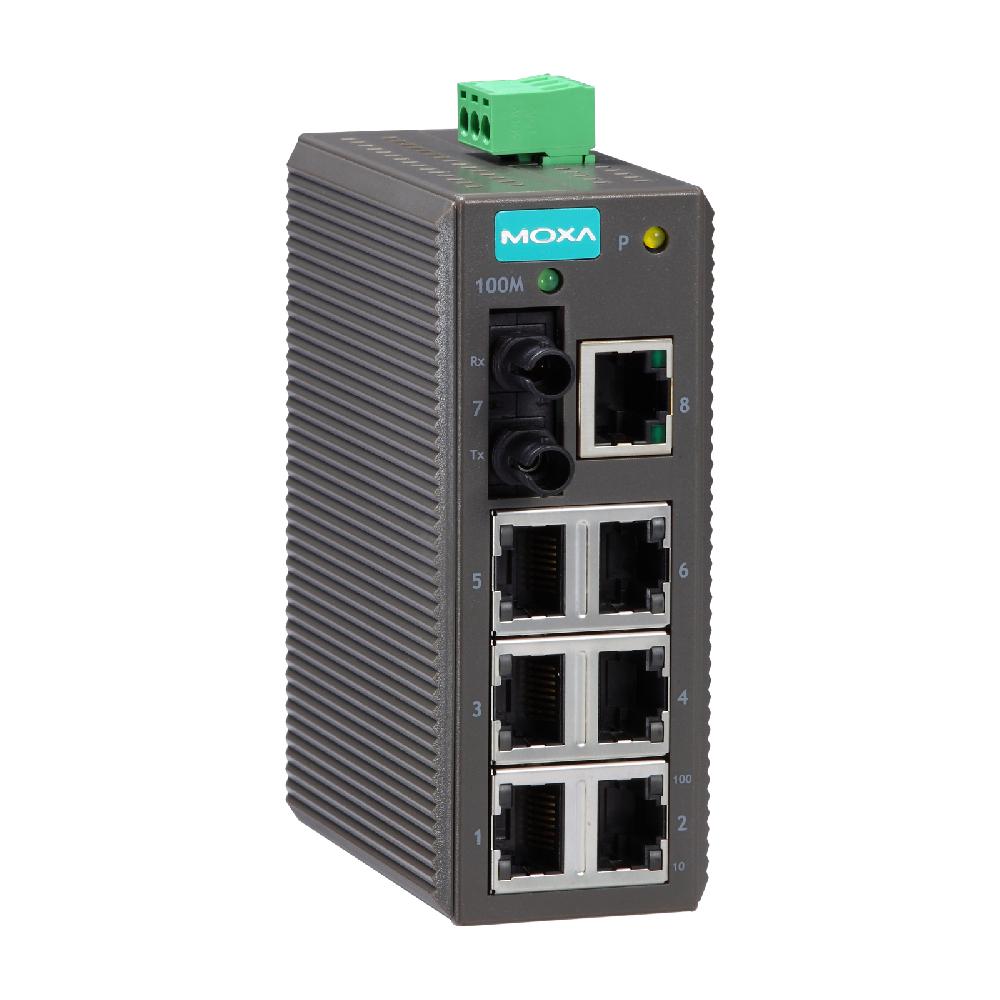

100BaseFX Ports (multi-mode ST connector)	EDS-208-M-ST: Supported
Optical Fiber	Read more
Switch Properties
Processing Type	Store and Forward
MAC Table Size	2 K
Packet Buffer Size	768 kbits
Power Parameters
Input Voltage	24 VDC
Input Current	EDS-208: 0.07 A @ 24 VDC EDS-208-M Series: 0.1 A @ 24 VDC
Operating Voltage	12/24/48 VDC, Redundant dual inputs
Connection	1 removable 3-contact terminal block(s)
Overload Current Protection	2.5 A @ 24 VDC
Reverse Polarity Protection	Supported
Physical Characteristics
Housing	Plastic
IP Rating	IP30
Dimensions	40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in)
Weight	170 g (0.38 lb)
Installation	DIN-rail mounting
Environmental Limits
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	UL 508
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
Freefall	IEC 60068-2-31
MTBF
Time	EDS-208: 401,624 hrs EDS-208-M Series: 368,353 hrs
Standard	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 Years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for EDS-208 Series		Datasheet	V1.1	19 Febuary 2020

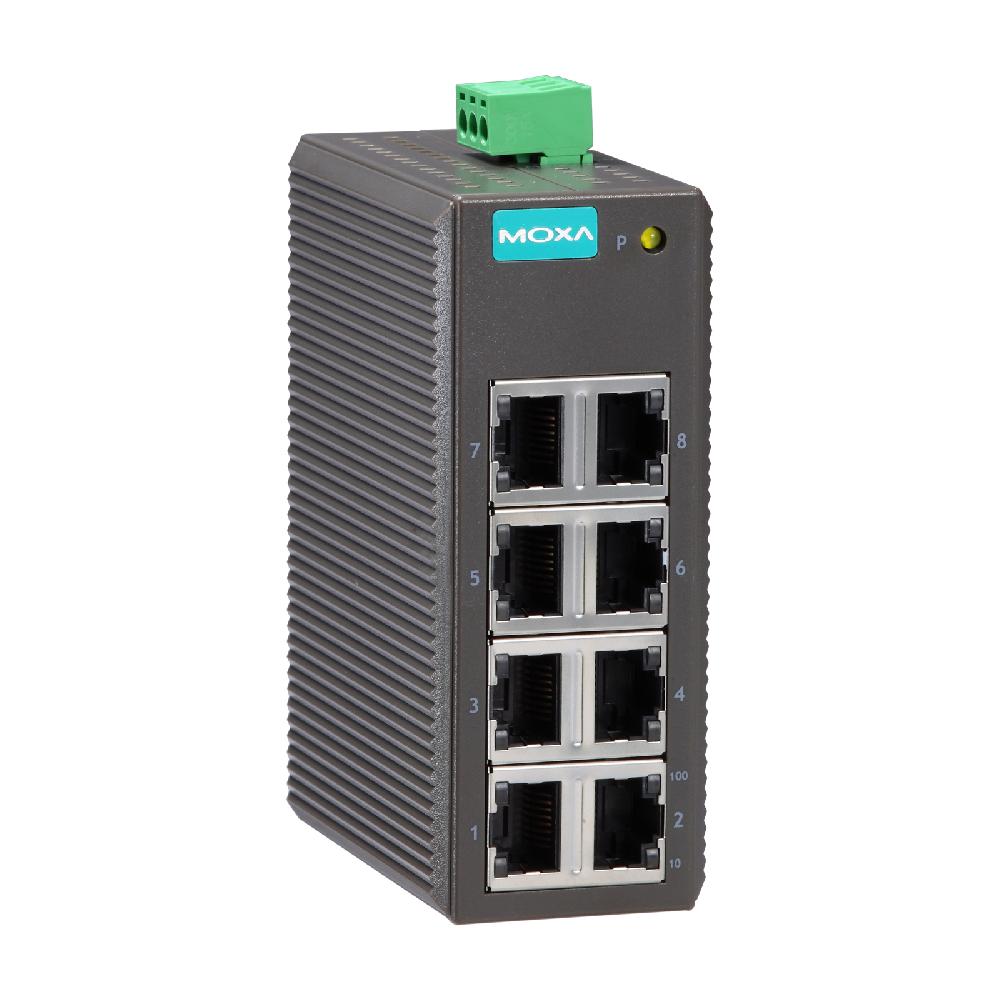

EDS-208

10/100BaseT(X) Ports RJ45 Connector	8
100BaseFX Ports Multi-Mode ST Connector	-
100BaseFX Ports Multi-Mode SC Connector	-
Housing Material	Plastic
Operating Voltage	12-48 VDC
Operating Temp.	-10 to 60°C

EDS-208-M-SC

10/100BaseT(X) Ports RJ45 Connector	7
100BaseFX Ports Multi-Mode ST Connector	-
100BaseFX Ports Multi-Mode SC Connector	1
Housing Material	Plastic
Operating Voltage	12-48 VDC
Operating Temp.	-10 to 60°C

EDS-208-M-ST

10/100BaseT(X) Ports RJ45 Connector	7
100BaseFX Ports Multi-Mode ST Connector	1
100BaseFX Ports Multi-Mode SC Connector	-
Housing Material	Plastic
Operating Voltage	12-48 VDC
Operating Temp.	-10 to 60°C

EDS-208 Series

Product Feature

Introduction

Ethernet Interface

100BaseFX Ports (multi-mode ST connector)

Switch Properties

Power Parameters

Physical Characteristics

Environmental Limits

Standards and Certifications

MTBF

Warranty

EDS-208

EDS-208-M-SC

EDS-208-M-ST
