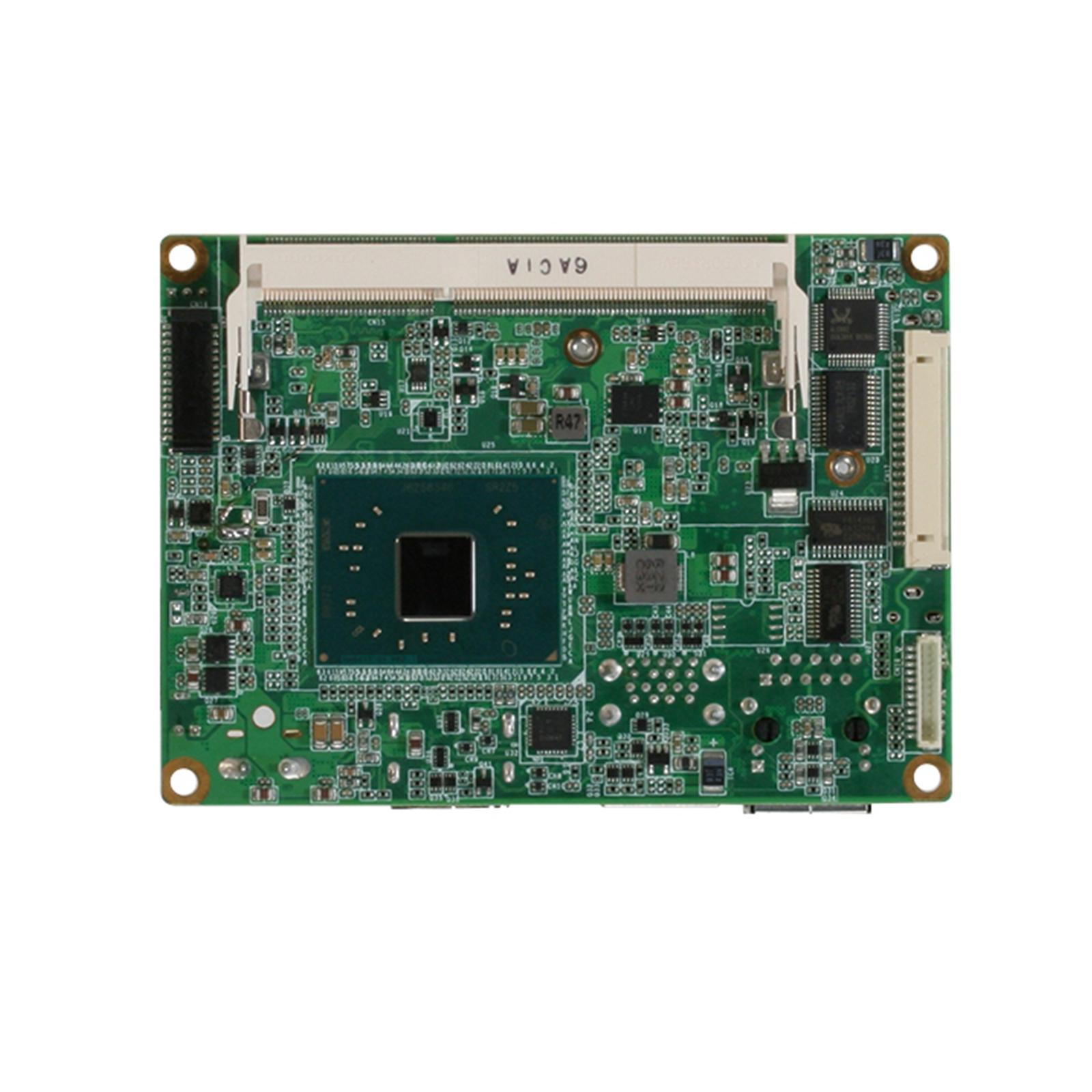

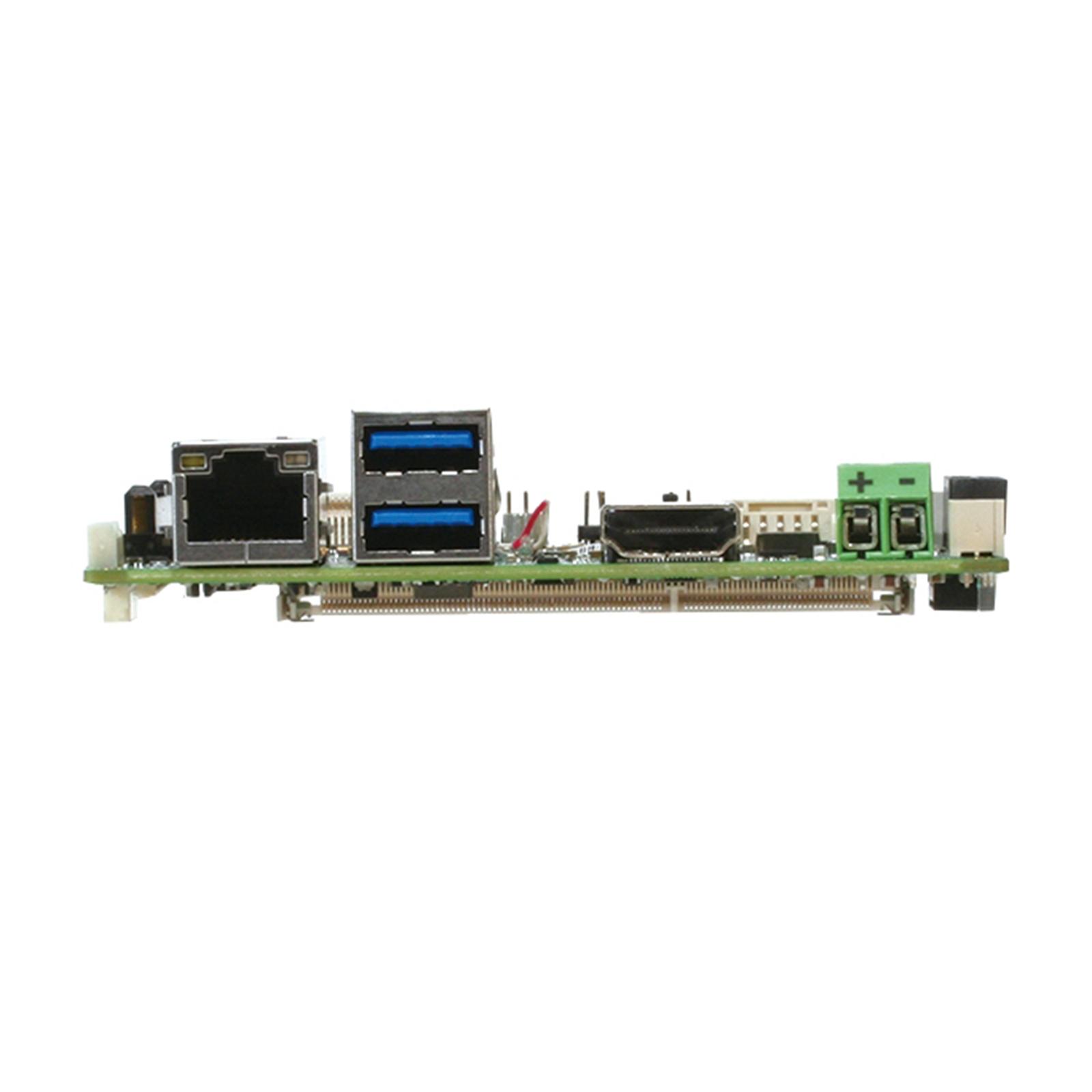

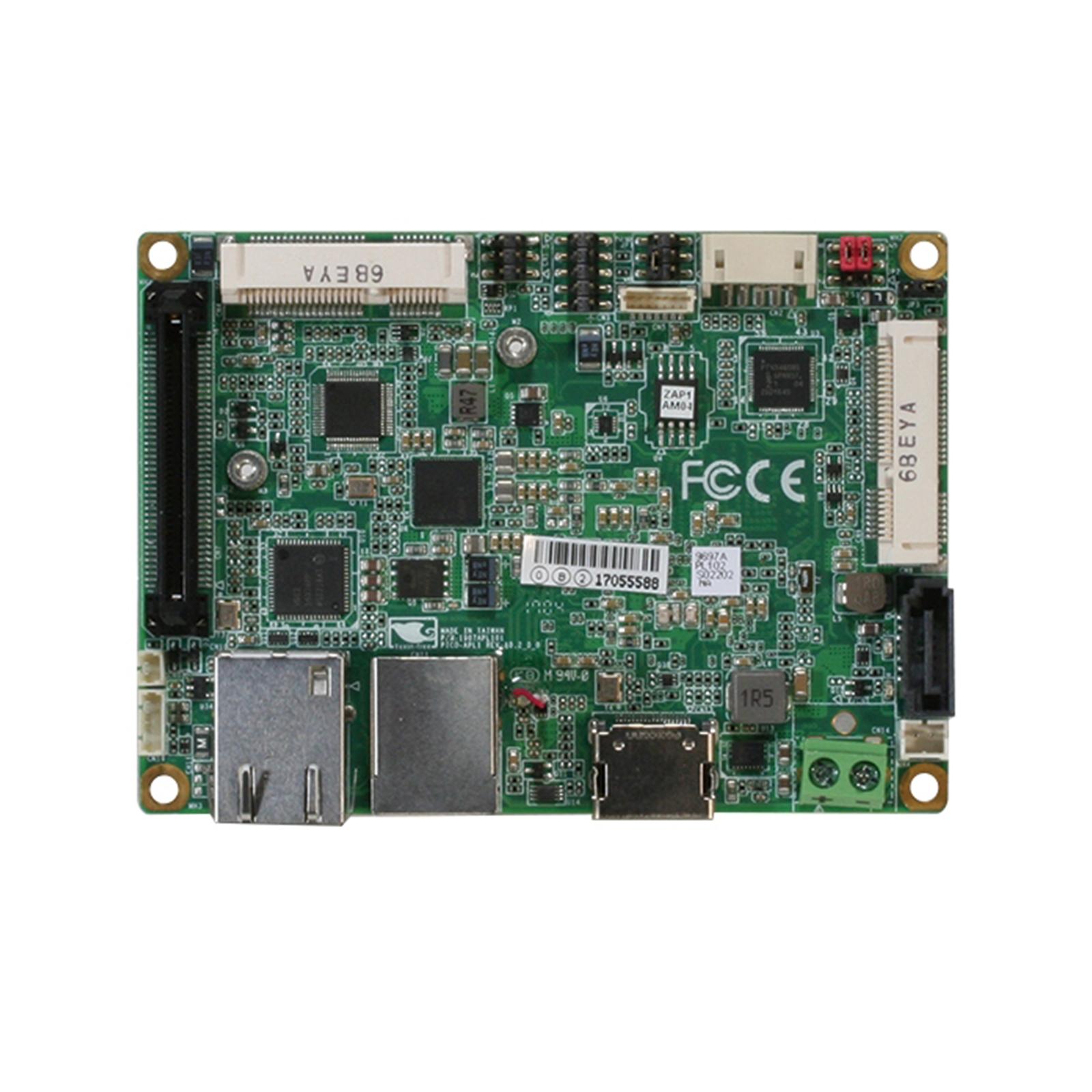

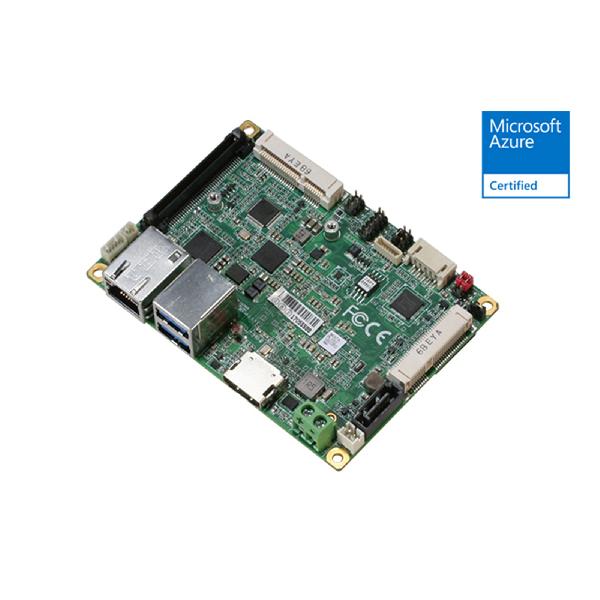

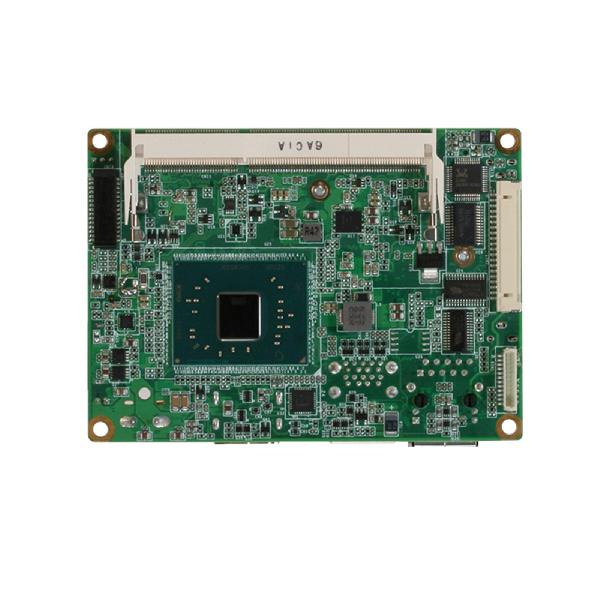

PICO-APL1

Home > AAEON > Embedded Boards >
Embedded Single Board Computers > Pico-ITX Boards

Pico-ITX Board with Intel® Atom™ E3900/ Pentium® N4200/ Celeron® N3350 Processor SoC

Product Feature

Intel® Atom™ E3900/ Pentium® N4200/ Celeron® N3350 Processor SoC
DDR3L 1867 MHz SODIMM x 1, Up to 8 GB
18/24-bit Dual Channel LVDS LCD (Optional)
Supports Triple Display (Optional)
HDMI 1.4b Supports 3840 x 2160 (4K x 2K)
SATA 6.0Gb/s x 1, mSATA (Full Size) x 1
Intel® Gigabit Ethernet x 1, RJ-45 x1
USB 3.2 Gen 1 x 2, USB 2.0 x 1
RS-232 x 1, RS-232/422/485 x 1 (Optional by Cable)
Mini-Card x 1 (Half-Size)
Digital I/O 4-bit
BIO Connector for Daughter Board (Optional)

PICO-APL1 Introduction Video

AAEON present the PICO-APL1 single board computer (SBC) featuring a compact and slim design, fan-less operation, a wide thermal operating envelope, in addition to impressive I/O. Based on the Intel® ATOM™/Pentium®/Celeron® processors, the PICO-APL1 are incredibly energy efficient with outstanding low power consumption, while delivering reliably impressive performance. SATA 3.0, mSATA, and MiniCard expansion slots, in conjunction with a BIO connection for daughter boards, enable a huge range of expansion opportunities. Full support for triple displays, and 4K x 2K HDMI make the PICO-APL1 ideal for a broad range of deployment scenarios.

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/productview.php on line 633

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/productview.php on line 633

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/productview.php on line 638

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/productview.php on line 639

บริษัท พีที ออโตเมชั่น (ไทยแลนด์) จำกัด

เลขที่ 9 อาคารภคินท์ ชั้น 9 ห้องเลขที่ 901 ถนนรัชดาภิเษก แขวงดินแดง เขตดินแดง กรุงเทพฯ 10400
โทรและแฟกซ์ : +66(0)-2020-3000
อีเมล์ : product@pt-automations.com
Facebook : facebook.com/ptautomations

จันทร์ ถึง ศุกร์ เวลา 9.00 น. – 18.00 น.

SYSTEM
FORM FACTOR	Pico-ITX
CPU	Intel® Atom™ E3900 series/ Pentium® N4200/ Celeron® N3350 Processor SoC
CPU FREQUENCY	up to 2.0GHz
CHIPSET	Intel® Atom™ E3900 series/ Pentium® N4200/ Celeron® N3350 Processor SoC
MEMORY TYPE	204-pin DDR3L SODIMM x 1, DDR3L 1867MHz, Max. 8GB
MAX. MEMORY CAPACITY	Up to 8GB
BIOS	AMI/SPI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
POWER REQUIREMENT	+12V AT/ATX (default)
POWER SUPPLY TYPE	AT/ATX (default)
POWER CONSUMPTION (TYPICAL)	Intel® N3350 Processor, DDR3L 8GB 0.91A@+12V
SYSTEM COOLING	Heat-spreader/ heatsink optional
DIMENSION	3.94" x 2.84" (100mm x 72mm)
GROSS WEIGHT	0.55 lb (0.25 kg)
OPERATING TEMPERATURE	32 °F~ 140 °F (0°C ~ 60°C),
STORAGE TEMPERATURE	-40 °F ~ 176 °F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	170000
CERTIFICATION	CE,FCC
DISPLAY
CHIPSET	Intel® Atom™ E3900 series/ Pentium® N4200/ Celeron® N3350 Processor SoC
RESOLUTION	LVDS (18/24bit 2CH) 1920 x 1200 (optional) HDMI 1.4b up to 3840 x 2160 DDI (BIO)
LCD INTERFACE	18/24bit 2CH LVDS
I/O
STORAGE/SSD	SATA 6.0Gb/s x 1, mSATA or Mini-PCIe by BOM (Full size) x 1
ETHERNET	Intel® Gigabit Ethernet i210AT, 10/100/1000Base-TX, RJ-45 x 1
USB PORT	USB 3.2 Gen 1 x 2, Rear IO, USB 2.0 x 1
SERIAL PORT	COM1: RS-232 x 1, COM2: RS-232/422/485 x 1 (Ring/ +5V/ +12V)
AUDIO	Line-out x1
DIO	4-bit (2-in, 2-out)
EXPANSION SLOT	Mini Card (Half-size) x 1, BIO (optional) x 1, I2C or SMBus x 1
SIM	—
