USB 2.0 Extender - CATx, FCC Class A, 1-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Transmit USB 2.0 device signals up to 328 feet over CATx, and power it locally or remotely.

Product Feature

  • Extend USB 2.0 signaling over CATx cable to a remote USB peripheral
  • Transmits power over the UTP cable
  • Compatible with USB devices operating at speeds up to 480 Mbps
  • Works with Windows®, Mac®OS, and Linux® operating systems
  • Simply Plug and play wihtout drivers to load on a host computer
  • Transmitter and receiver units featuring mounting slots on their sides
  • Includes 6-foot (18-m) USB cable for transmitter-to-host connection

Extend USB 2.0 peripherals beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx, and power it locally or remotely. Extend a USB peripheral connection beyond the desktop to USB keyboards, mice, printers, webcams, interactive whiteboards, and other devices. The extender receives power locally or remotely, so you have the flexibility to power the extender where it is most convenient for you. Use it, for instance, in industrial control, factory floor, classroom, or meeting room applications where you're short on power outlets. The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.

General
Connectivity30 USB devices
Operating Humidity20 to 80%, noncondensing
Operating Temperature32 to 122° F (0 to 50° C)
PowerExternal power adapter, 100-240 VAC input, 24VDC 1A output, can be used at either local or remote unit
Range330 feet (100 meters)
RoHSYes
StandardsFFCC class A, CE
Storage Humidity10 to 90%, noncondensing
Item Specifications

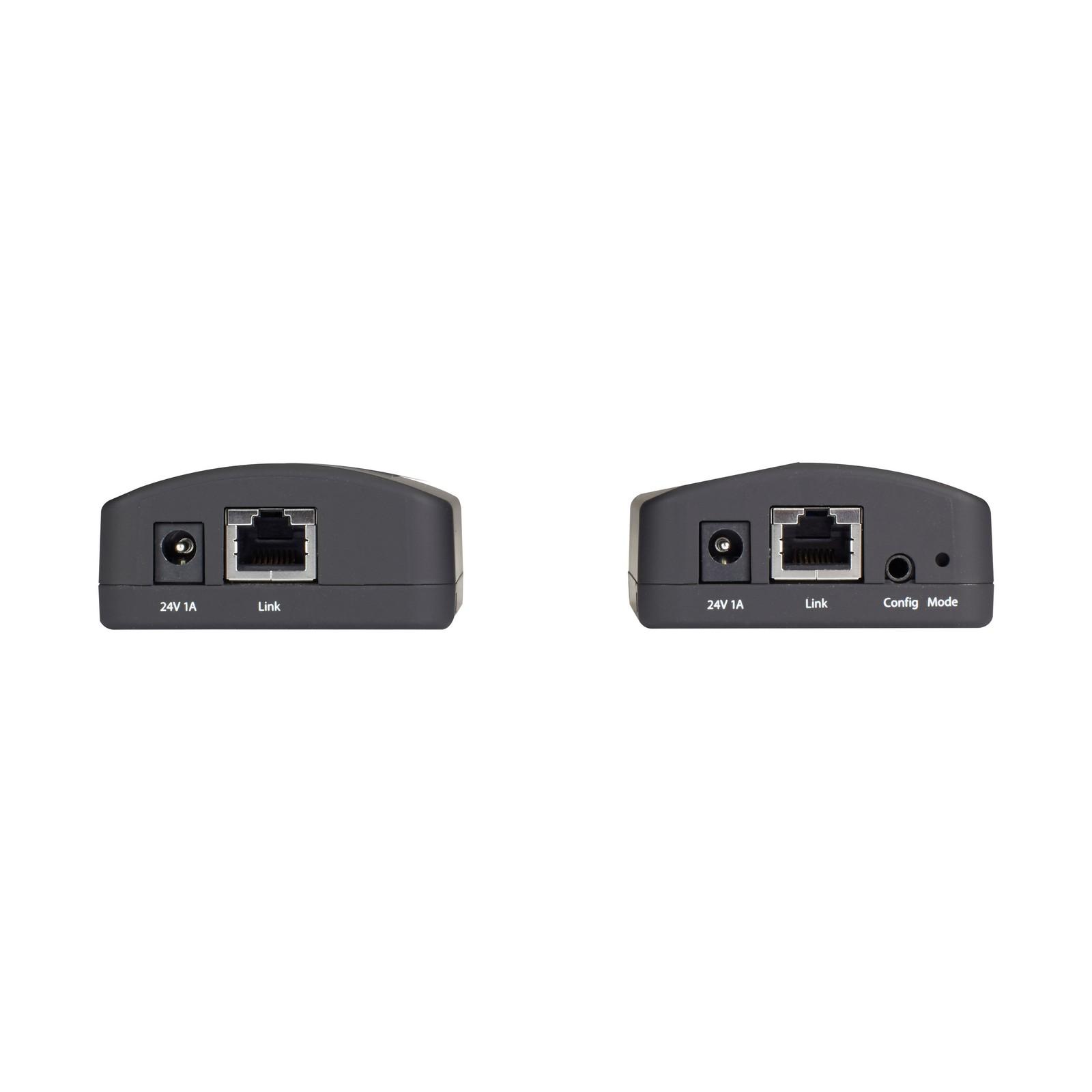

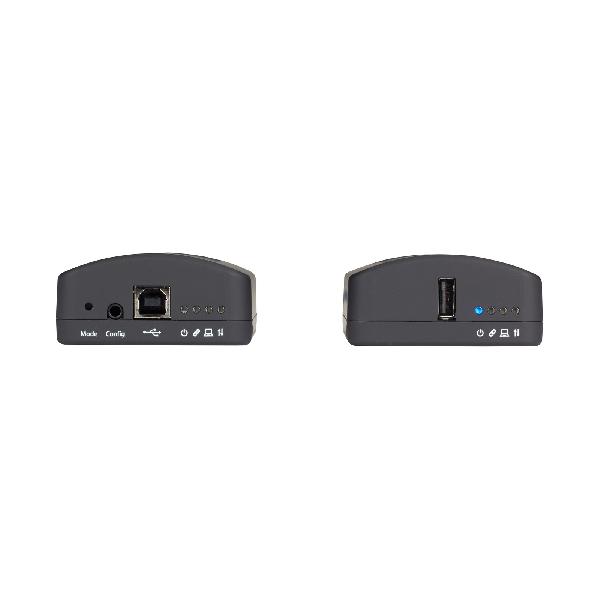

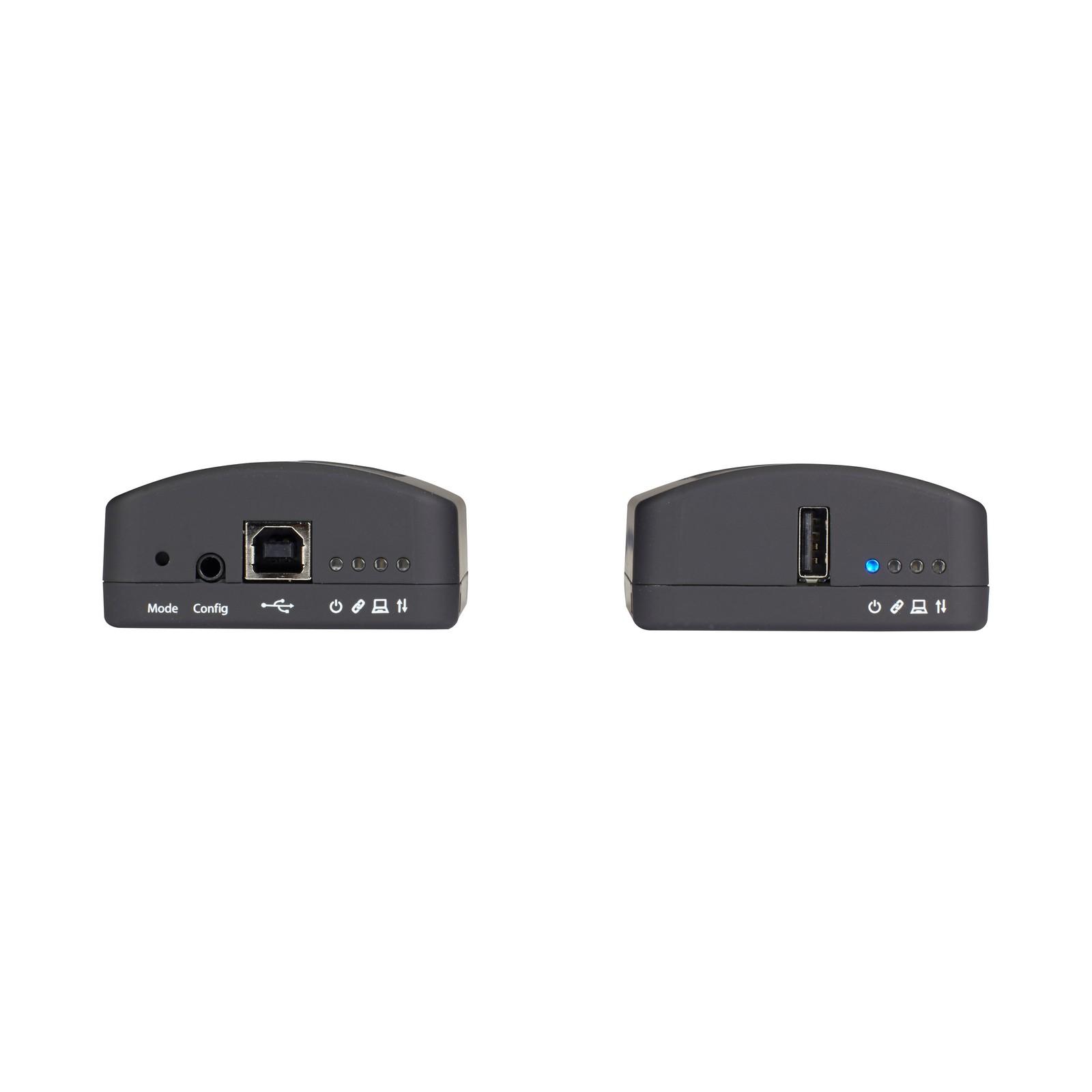

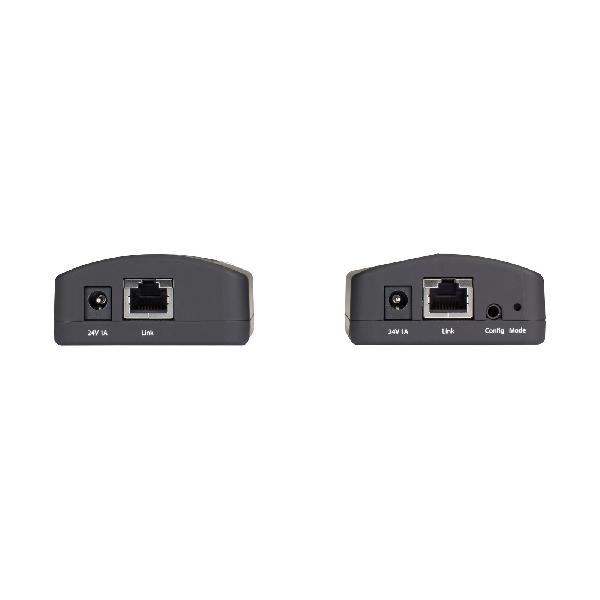

ConnectorsLocal Extender Unit: (1) USB Type B, (1) RJ-45;
Remote Extender Unit: (1) USB Type A, (1) RJ-45
Dimensions (Per Unit)2.6"H x 3.4"W x 1.2"D (65 x 87.5 x 30mm)
Weight0.1 lb each for local and remote units

Product Includes:

  • (1) Transmitter (LEX)
  • (1) Receiver (REX)
  • (1) AC power adapter
  • (1) Power Cord (North America)
  • (1) USB 2.0 Cable, 6ft
  • (1) Quick Start Guide
Name Type Version Release Date
DataSheet Datasheet 09 August 2021
