USB 1.1 Extender - CATx, 1-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extends USB 1.1 peripherals beyond the 16 ft (5 m) lImitation reaching distances of up to 131 ft (40 m) over CATx cables.

Product Feature

  • Extend USB peripherals including keyboards, mice, interactive white boards, and game controllers up to 131 feet (40 meters).
  • Some low-speed HID devices can be extended out to 279 feet (85 meters).
  • Extender supplies up to 400mA to USB devices.
  • Will support USB 2.0 at a maximum of 12 Mbps, or 1.5 Mbps for low-speed USB 1.1 devices.
  • Plug and play. No software drivers needed.
  • Supports all major operating systems, including Windows®, Mac OS X®, and Linux®.

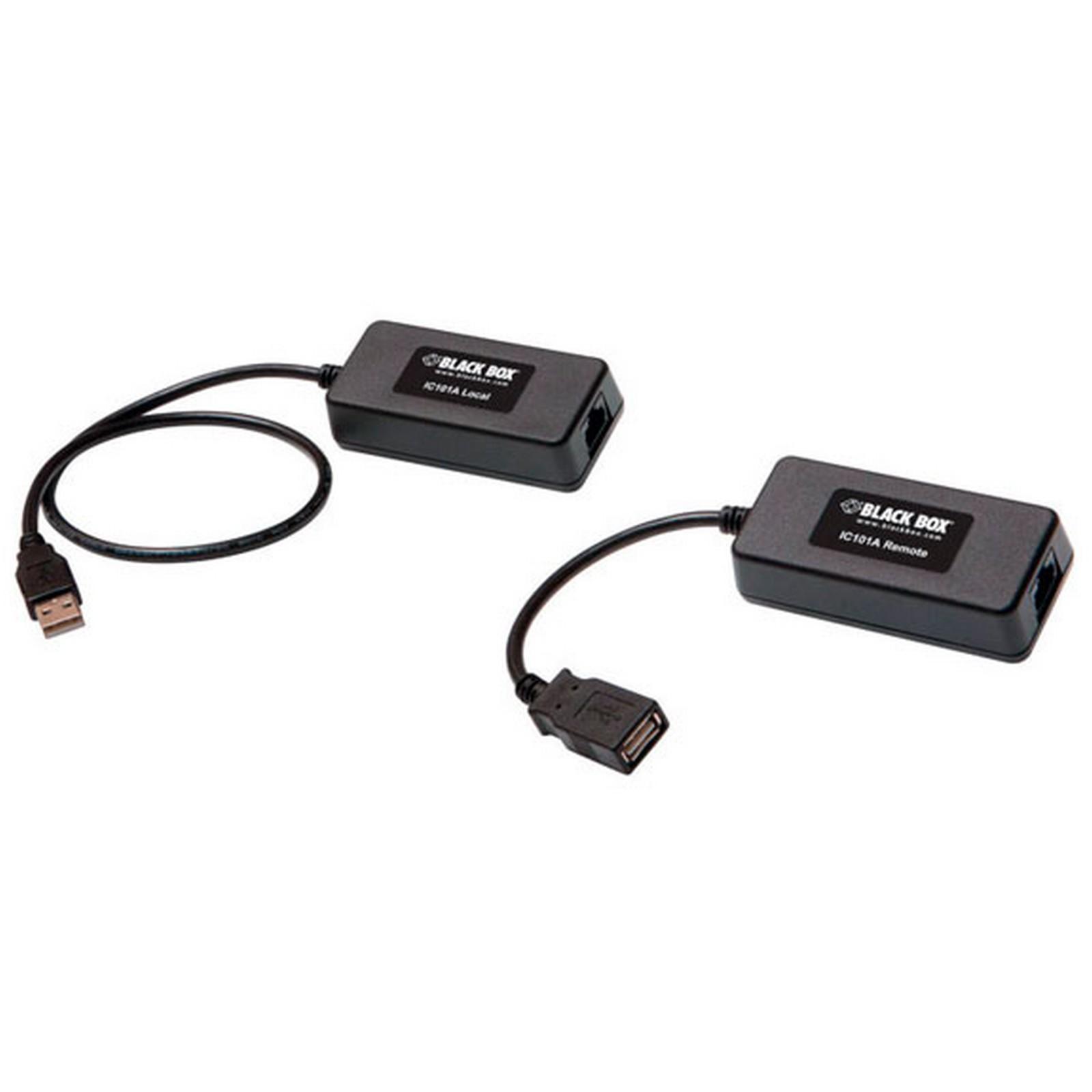

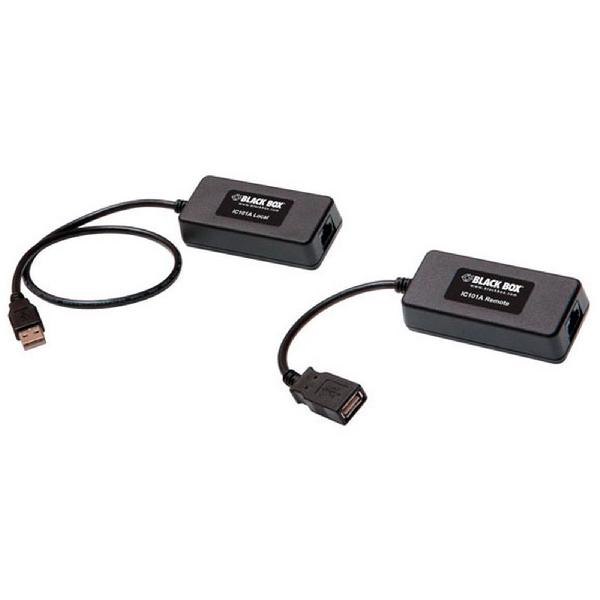

The IC101A extends USB 1.1 peripherals beyond the 16 ft (5 m) lImitation reaching distances of up to 131 ft (40 m) over CATx cables. The IC101A extender enables users to extend USB peripherals including keyboards, mice, interactive white boards, and game controllers up to 131 feet (40 meters), up to 278 feet (85 meters) may be achievable with low-speed HID devices such as keyboards and mice.

General
ComplianceEmissions: FCC (Class A), CE (Class A) Immunity: CE Criteria A Environmental: RoHS Safety: CPSIA, Flammability V-1
EnvironmentalOperating humidity: 0 to 94% relative, noncondensing
Power Available to USB Device at Remote Unit400mA max available to Remote Extender when Local Extender is supplied with 700mA
RangeFull-speed and low-speed: Up to 131 ft. (40 m); Low-speed: Up to 279 ft. (85 m)
USB ConnectorLocal: (1) USB Type A Plug; Remote: (1) USB Type A receptacle
Item Specifications
Connectors (Link)RJ-45
Dimensions (Per Unit)3.34"H x 1.57"W x .87"D (8.5 x 4 x 2.2 cm)
Length (Pig Tail)Local: 18" (45.7 cm); Remote: 6" (15.2 cm)
Weight (Each Unit)0.11 lb. (49.9 g)

Product Includes:

  • (1) Local unit with integrated USB cable
  • (2) Remote unit with integrated USB cable
  • Quick Start Guide
Name Type Version Release Date
CAT5e/6/7 USB 1.1 Single-Port Extender Manual 10 August 2021
