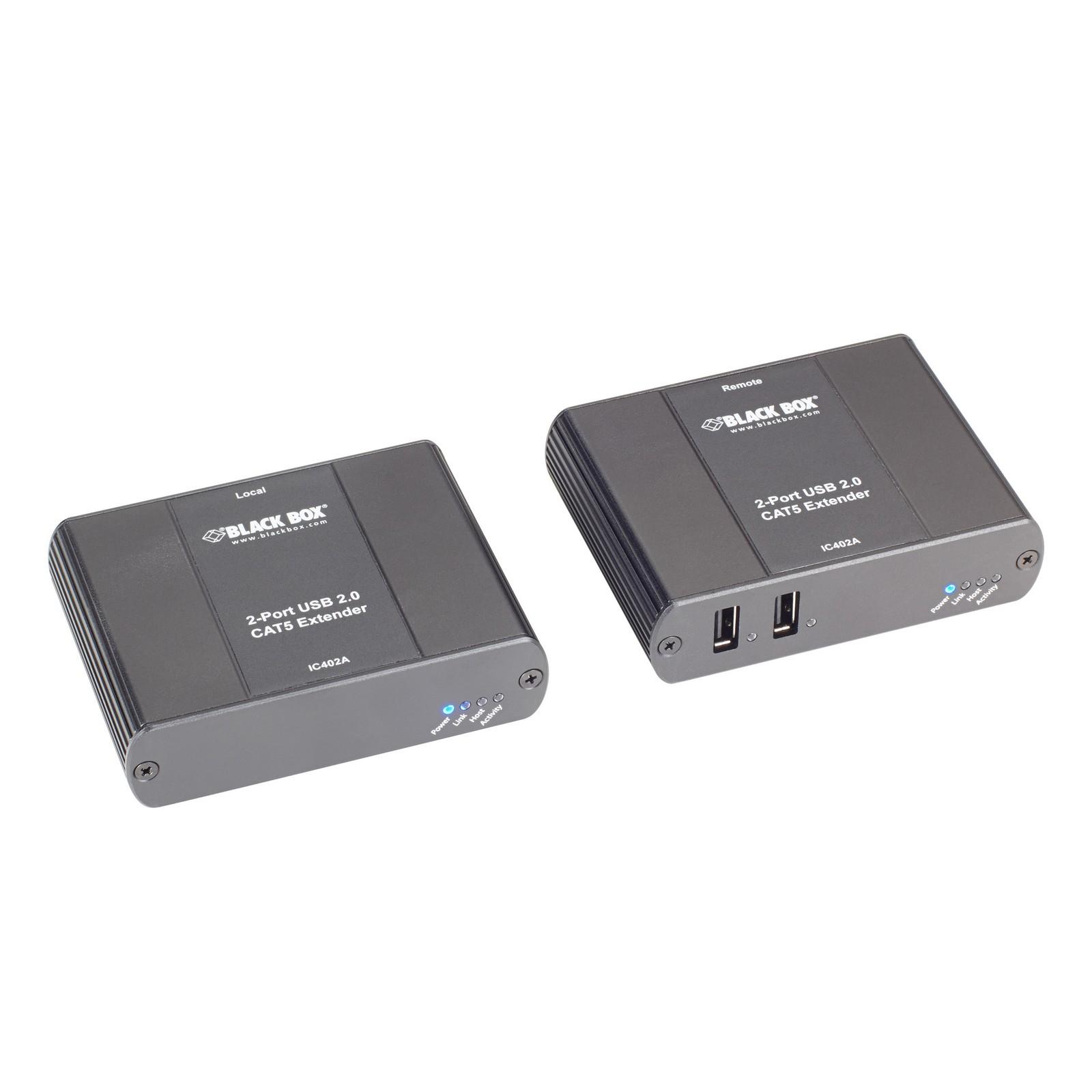

USB 2.0 Extender - CATx, 2-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extends USB 2.0 up to 100 meters over CATx UTP cable.

Product Feature

  • Extends both USB 20 and USB 11 up to 100 meters (328 ft) over standard CATx UTP cable
  • Delivers power to a remote hub over CAT5
  • Provides true plug-and-play capabilities, ready to operate right out of the box
  • Works with Windows, Mac, OS, and Linux operating systems No new driver installation is required
  • It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more!

Get USB connectivity anywhere.

  • Combine the 2-Port CATx USB Extender with Remote or Local Power
  • Simplified installation eliminates the need for AC power close to units.
  • Delivers power to hubs over CAT5 cable.
  • Combine with hubs to connect up to 30 devices.
  • Remote units provide 1A to USB port.

The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps.

It's ideal for a wide variety of USB devices, from printers, scanners, hard drives, audio devices, touch screens, and Web cams.

  • Supports all major operating systems including Windows, Mac OS, and Linux.
  • It's truly plug-and-play, ready to operate right out of the box.
  • No driver installation required.

Use it for any or all of the following applications:

  • Industrial control
  • KVM extension
  • Digital signage
  • Remote desktop USB connections
  • Security Web camera, access control
  • Medical device connectivity
  • USB Device Sharing: printing, scanning, storage
General
Connectivity30 USB devices
EnvironmentalOperating temperature range: 32 to 122° F (0 to 50° C);
Operating humidity: 20 to 80%, noncondensing;
Storage humidity: 10 to 90%, noncondensing
PowerLocal Unit: 24 VDC @ 1 amp;
Available to Remote Unit: Up to 1-Amp per USB Port, 1.5-Amps Total Shared
Range330 feet (100 meters) over CAT5e (or better) cable
RoHS2Yes
StandardsFCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air
Item Specifications
ConnectorsLocal unit: (1) USB type B, (1) RJ-45;
Remote unit: (2) USB Type A, (1) RJ-45
DimensionsLocal and remote units: 1"H x 3.4"W x 3.0"D (26 x 87 x 75mm)
Weight2.2 lbs (1.0 kg)

Product Includes:

  • Local extender module
  • Remote extender module
  • USB Cable (2-meter)
  • Power adapter
  • US power cord
Name Type Version Release Date
DataSheet Datasheet 10 August 2021
Manual Manual 10 August 2021
QuickStartGuide QIG 10 August 2021
