Get USB connectivity anywhere.

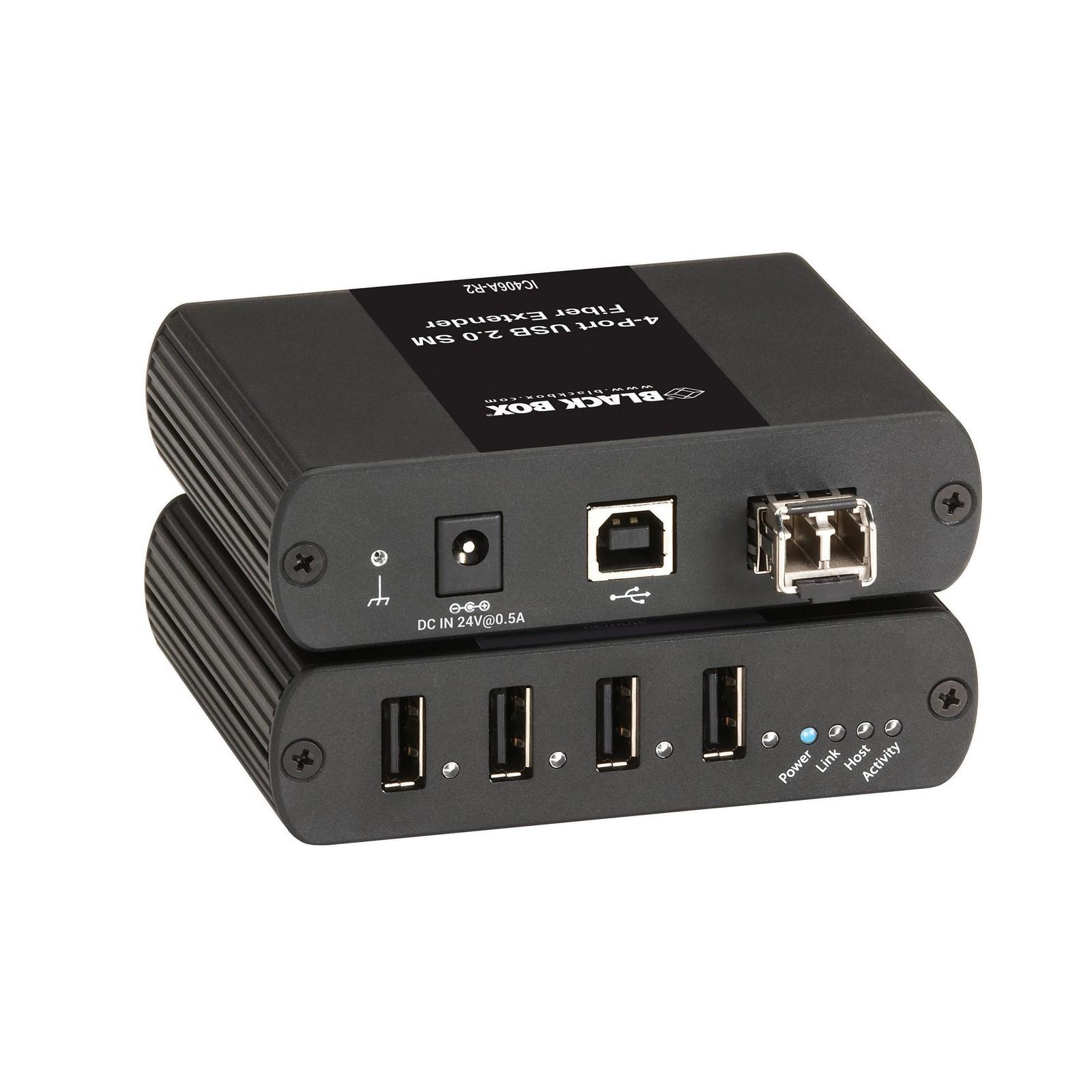

Install your USB devices anywhere! Combine the 4-port singlemode fiber USB extenderwith additional USB hubs to power up to 30 USB devices.
It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required.
The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps. It's ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touch screens, and Web cams.
An AC power adapter at the remote unit provides standard 1AS max to USB port.
Use it for any or all of the following applications:
| General | |
| Connectivity | 30 USB devices |
| Operating Humidity | 20 to 80%, noncondensing |
| Operating Temperature | 32 to 122° F (0 to 50°C) |
| Power | Local unit: not required for normal operation Available at remote unit: 24 VDC at 1A provides 4 x 600mA for devices |
| Range | 6.2 miles (10 kilometers) over single-mode fiber |
| RoHS2 | Yes |
| Standards | FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 8kV Contact, 16kV Air |
| Storage Humidity | 10 to 90%, noncondensing |
| Item Specifications | |
| Connectors | Local unit: (1) USB Type B, (1) pair of LC; Remote unit: (4) USB Type A, (1) pair of LC |
| Dimensions (Per Unit) | 1"H x 3.9"W x 3"D (2.5 x 10 x 7.6 cm) |
| Weight (Each Unit) | 3.1 lb (1.4 kg) |
Product Includes:
| Name | Type | Version | Release Date | |
| Manual | Manual | 17 August 2021 |
