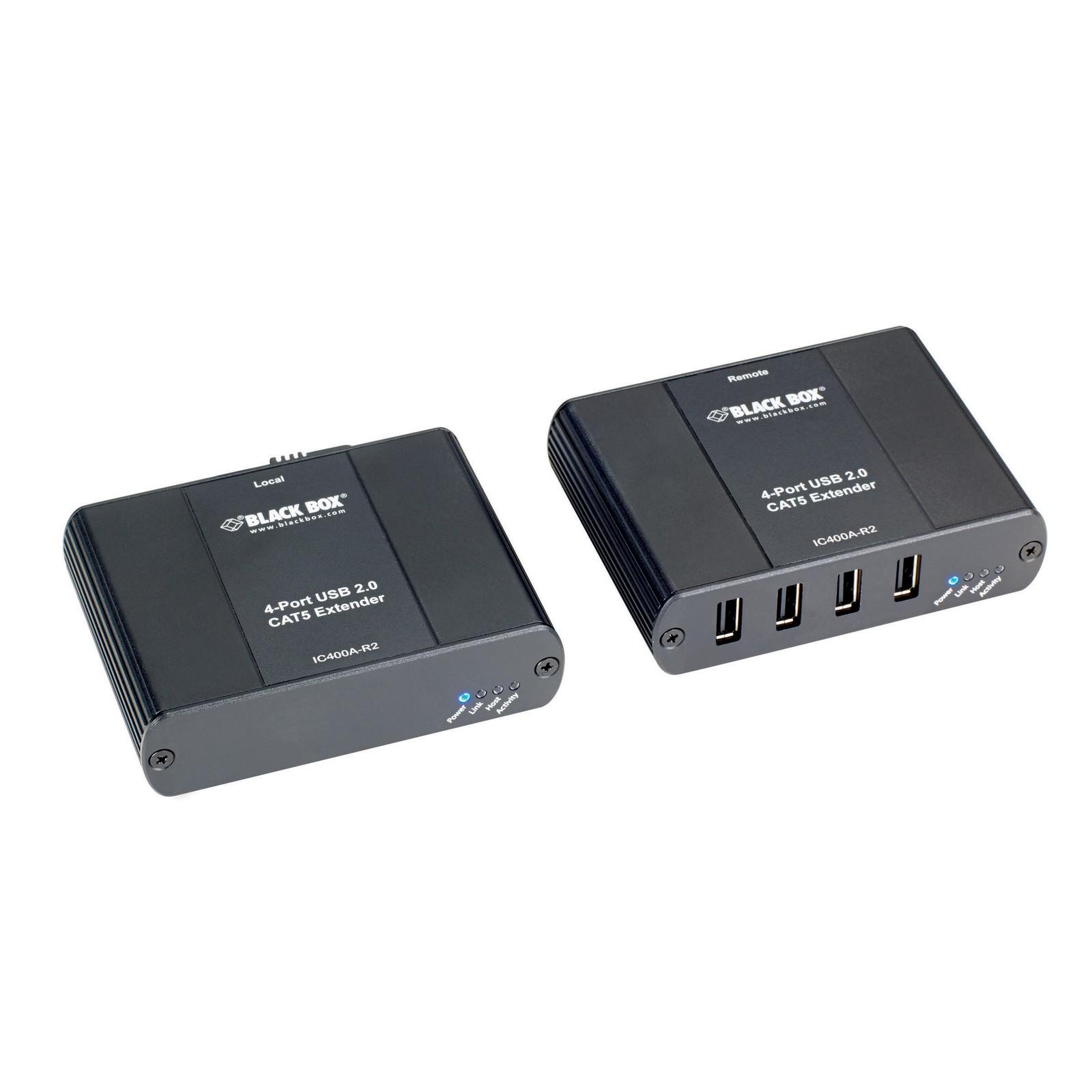

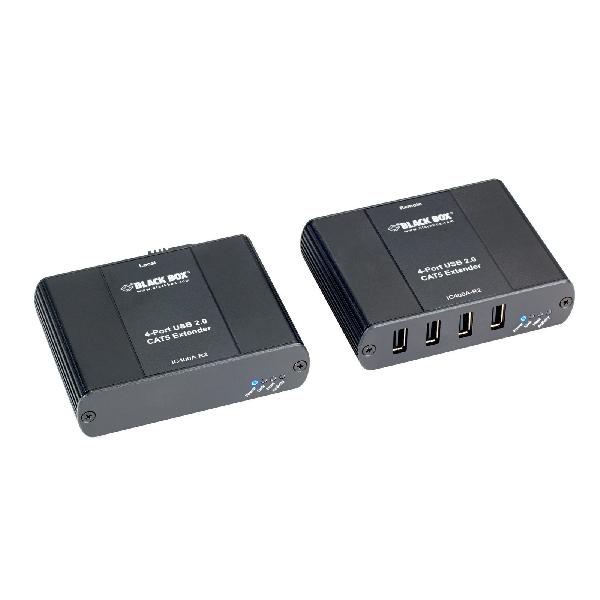

USB 2.0 Extender - CATx, 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx UTP cable to four USB peripherals.

Product Feature

  • Reliably extend USB 1.0 or 2.0 signaling over CATx cable to remote USB devices
  • Works with all USB device types
  • Control, interrupt, bulk, and isochronous at up to 480 Mbps.
  • Provides true plug-and-play capabilities, ready to operate right out of the box
  • Extends both USB 2.0 and USB 1.1 up to 100 meters (328 ft) over standard CATx UTP cable
  • True plug-and-play capabilities, ready to operate right out of the box
  • Works with Windows®, Mac®OS, and Linux® operating systems

Get USB connectivity anywhere.

Install your USB devices anywhere! Combine the 4-Port CATx USB Extender with additional USB hubs to connect up to 30 USB devices. An AC power adapter at the remote unit provides up to 1A max to the USB port.

Use it for any or all of the following applications:

  • Industrial control
  • KVM extension
  • Digital signage
  • Remote desktop USB connections
  • Security Web camera and access control
  • Medical Device connectivity
  • USB Web device sharing: printing, scanning, storage
General
Connectivity30 USB devices
EnvironmentalOperating temperature range: 32 to 122° F (0 to 50° C);
Operating humidity: 20 to 80%, noncondensing;
Storage humidity: 10 to 90%, noncondensing
PowerLocal Unit: not required for normal operation, USB-powered;
Available at remote unit: 24 VDC @ 1 amp provides 4 x 600 mA for devices
Range330 feet (100 meters) over CAT5e (or better) cable
RoHSYes
StandardsFCC (Class B), IC (Class B), CE (Class B);ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air
Item Specifications

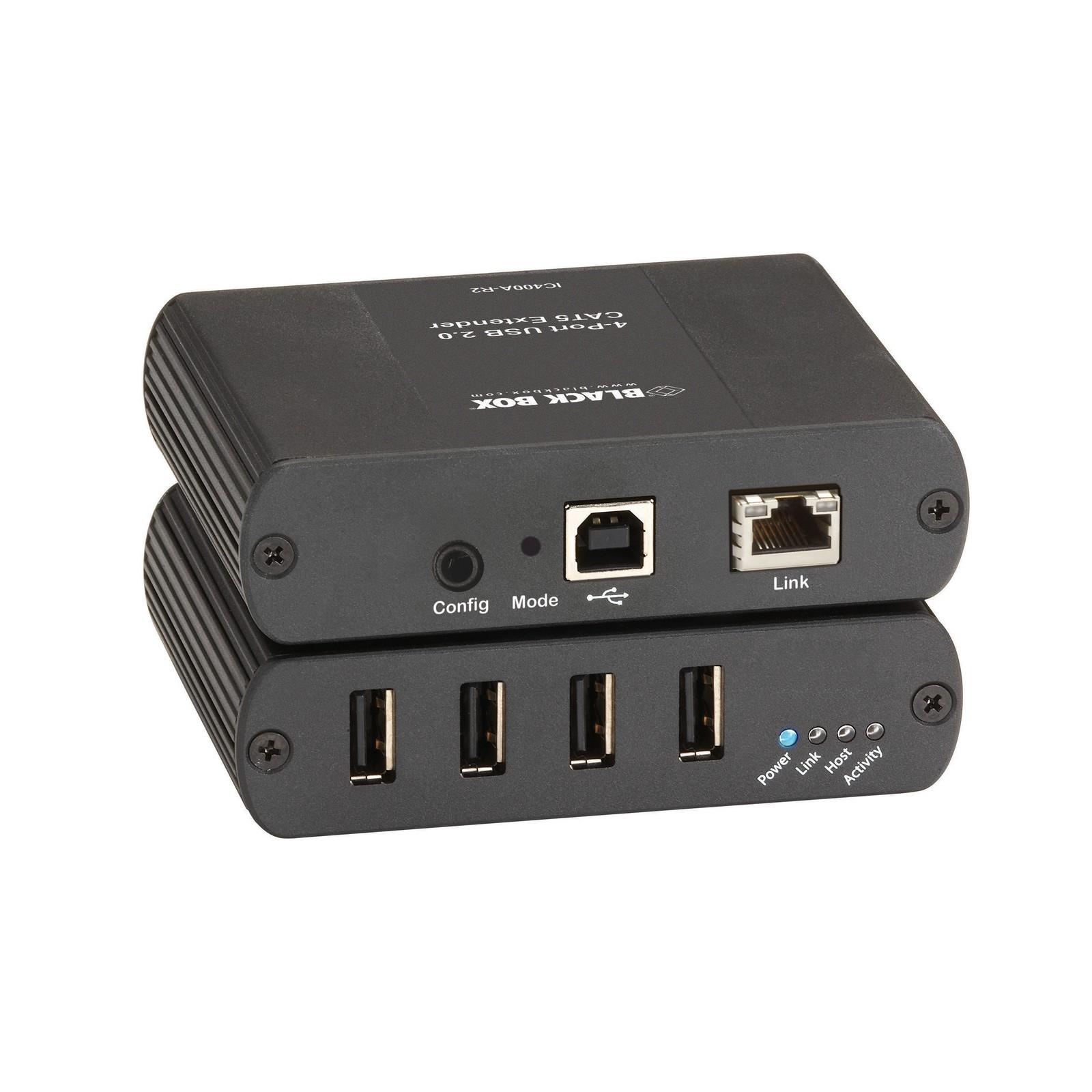

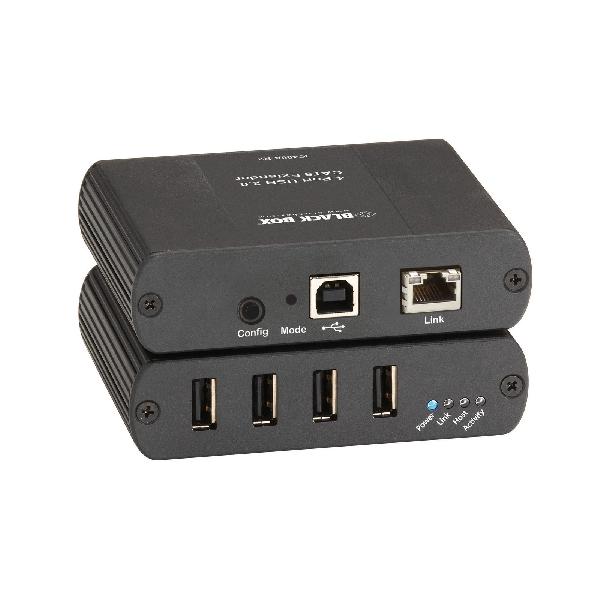

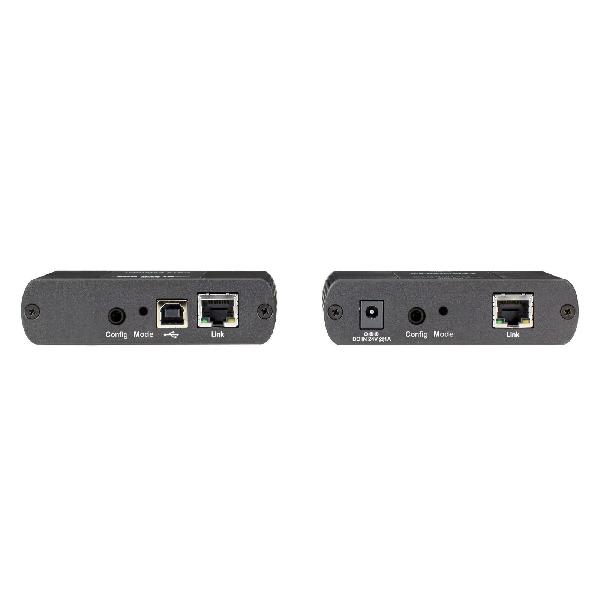

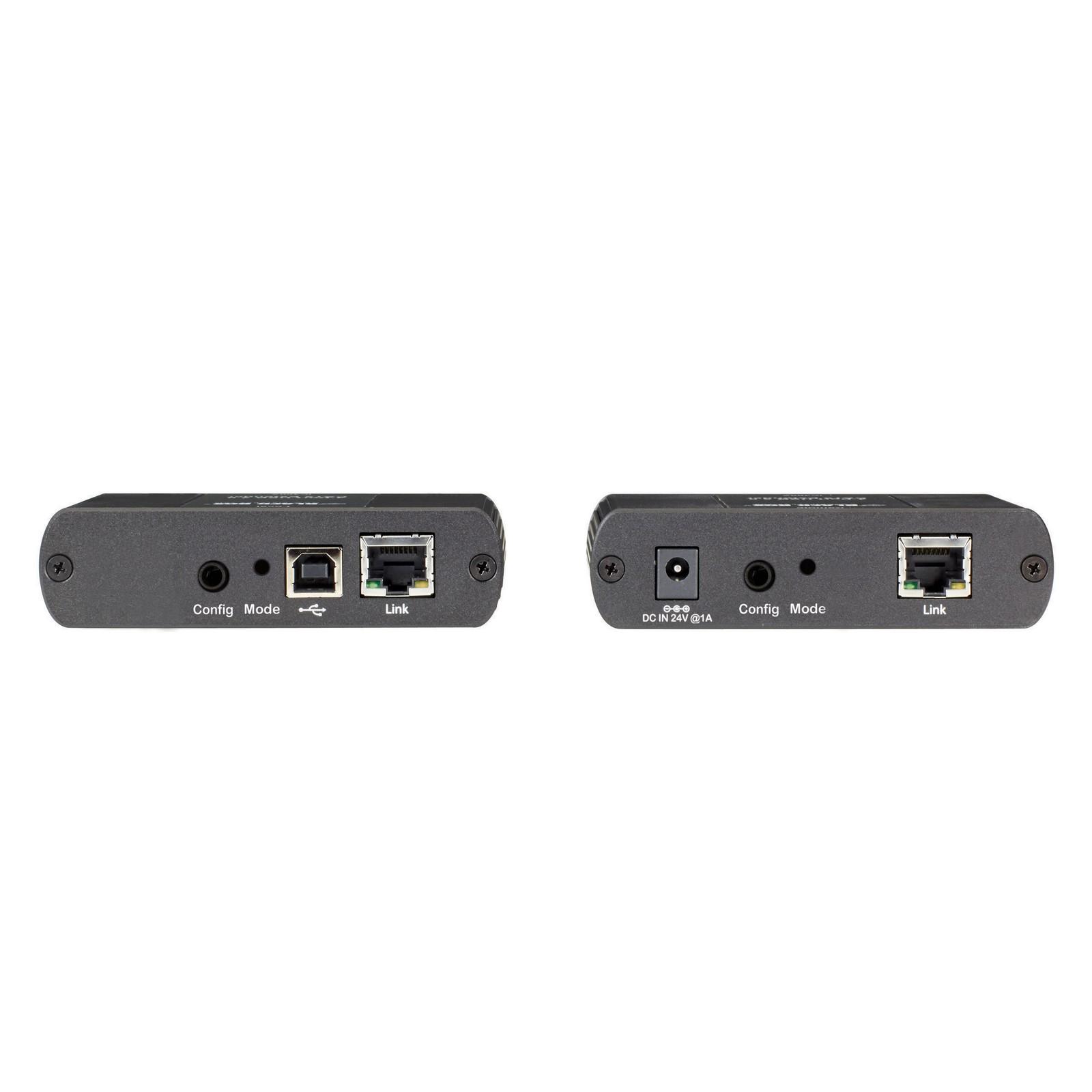

ConnectorsLocal unit: (1) USB type B, (1) RJ-45;
Remote unit: (4) USB Type A, (1) RJ-45
DimensionsLocal and remote units: 3.9"H x 3"W x 1"D (10 x 7.6 x 7.5 cm)
Weight2.2 lb. (1 kg)

Product Includes:

  • Local extender module
  • Remote extender module
  • USB Cable (2-meter)
  • Power adapter
  • USB power cord
Name Type Version Release Date
Manual Manual 18 August 2021
4-Port USB 2.0 CAT5e/6/7 Extender QSG QIG 18 August 2021
