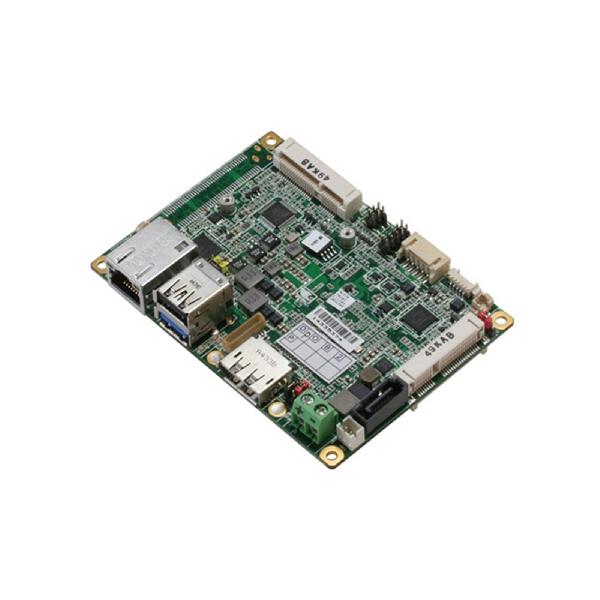

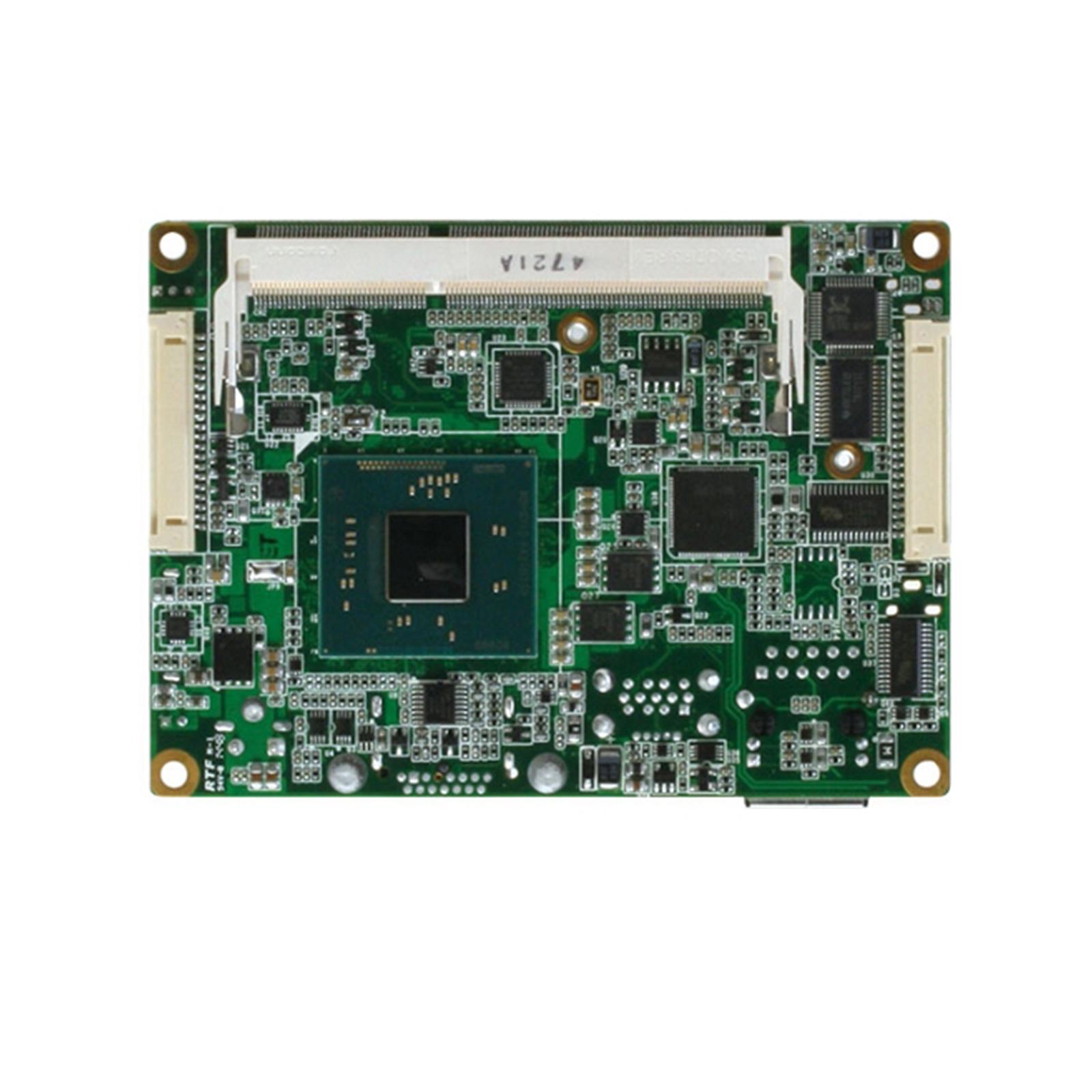

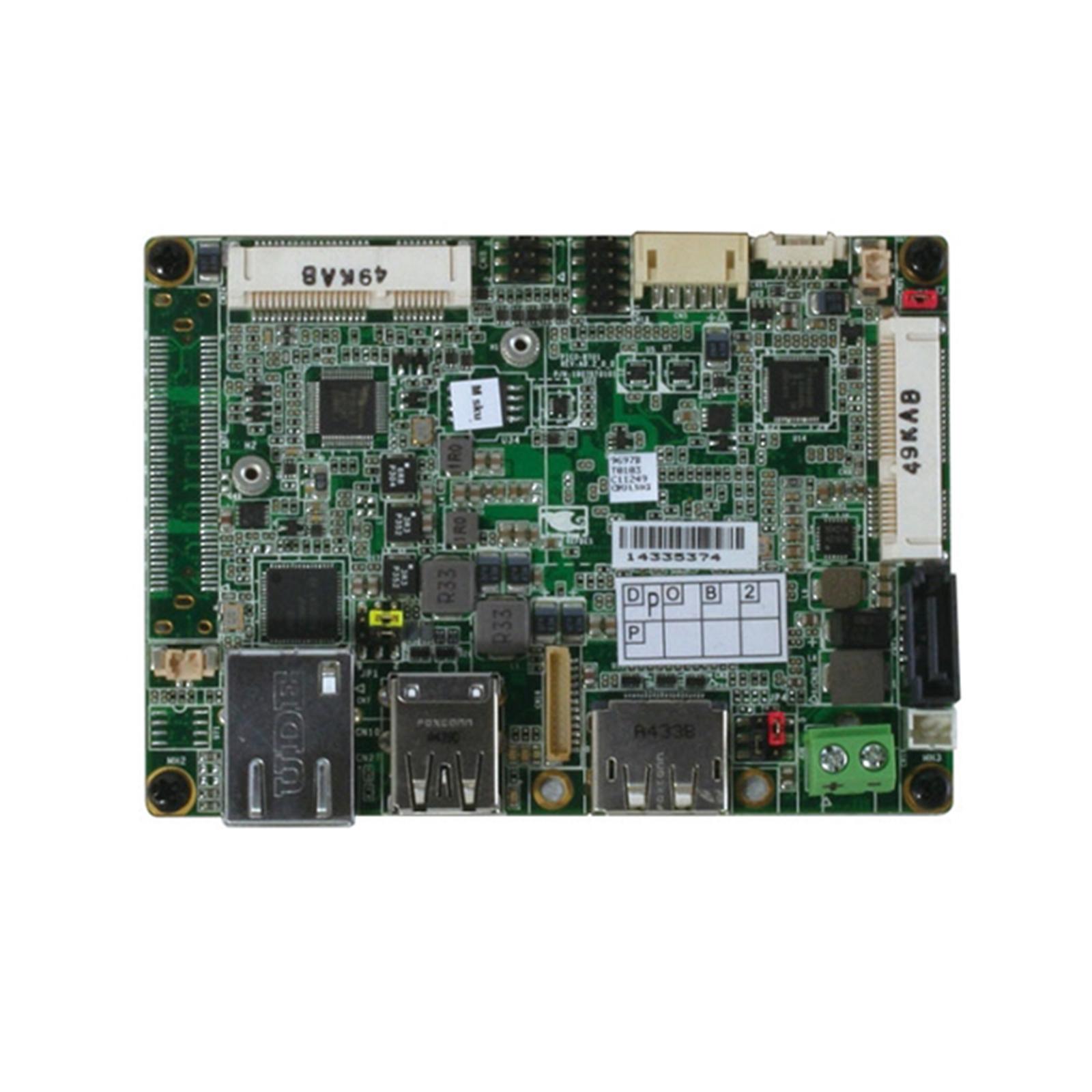

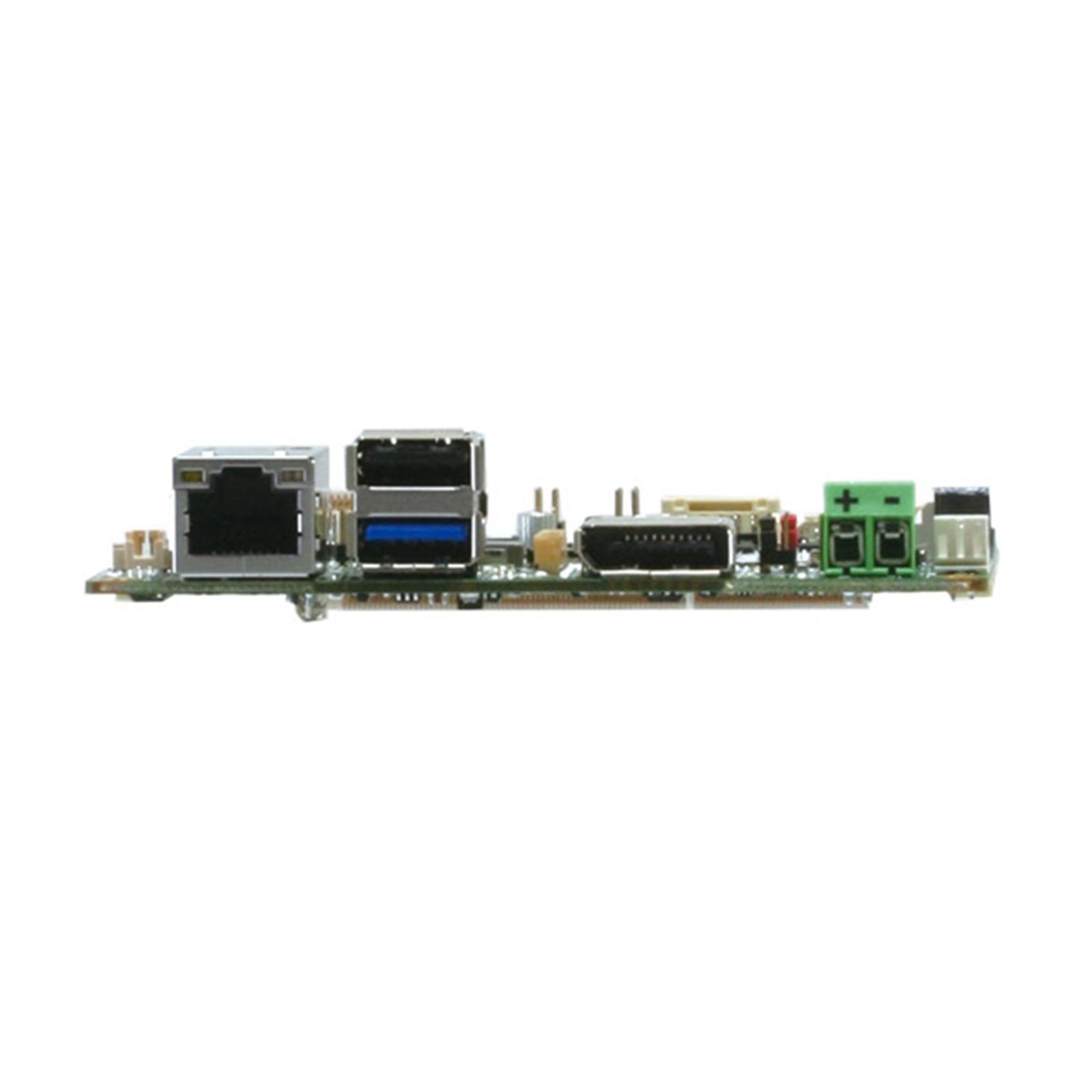

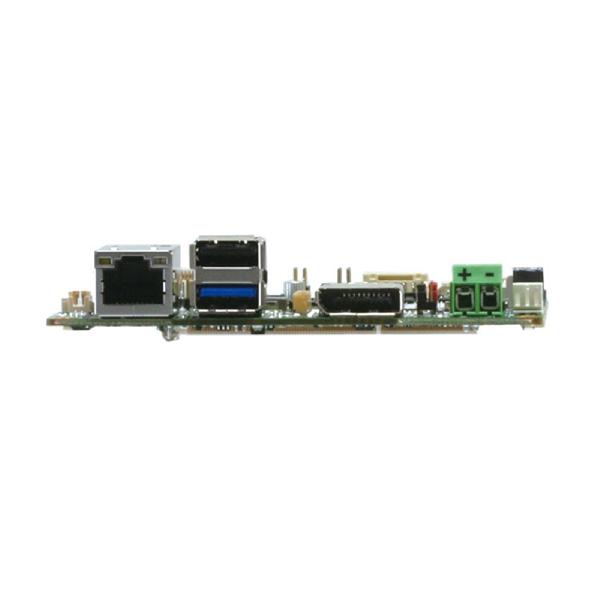

The PICO-BT01 is the embedded board with PICO-ITX form factor AAEON developed. It supports Intel®’s Atom™ E3845/E3825 SoC Up to 1.91 GHz. Moreover, the Intel® Atom™ E3845/E3825 SoC offers a high performance computing platform with low power consumption. This new product supports DDR3L SODIMM at speeds of 1066/1333 MHz, up to 8 GB.
One half size Mini-Card and one mSATA interfaces provide ample storages (mSATA can be changed to full size Mini-Card by BOM). With one Gigabit Ethernet, two COM ports, and both USB 3.2 Gen 1 and USB2.0 ports, the PICO-BT01 meets the requirements of today’s demanding applications.
Display requirements are met with an abundance of interfaces such as VGA, DP and LVDS. The PICO-BT01 supports 18/24-bit LVDS with PWM function.
With all of its integrated features, the PICO-BT01 strikes a balance of performance and price. This versatile product targets Industrial Automation, Entertainment, Networking, KIOSK/POS, Transportation, Banking, Healthcare and Digital Signage, applications that require high performance and high reliability.
The PICO-BT01 offers a unique
(board-to-board I/O) to connect a Daughter Board for additional I/O port expansion, allowing users to implement their desired features without investing heavily in R&D.
SYSTEM | |
| FORM FACTOR | Pico-ITX |
| CPU | Onboard Intel® Atom™ E3845/ Celeron® J1900/N2807 Processor SoC |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® E3845/J1900/N2807 |
| MEMORY TYPE | 204-pin DDR3L SODIMM x 1, DDR3L 1066/1333, Max. 8GB |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI/SPI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 levels |
| POWER REQUIREMENT | +12VDC |
| POWER SUPPLY TYPE | AT/ATX (default) optional lockable connector |
| POWER CONSUMPTION (TYPICAL) | Intel® Celeron® J1900 2.0GHz , DDR3L 1333 MHz 8 GB 1.14A@+12V |
| SYSTEM COOLING | Heat-spreader, heatsink or cooler optional |
| DIMENSION | 3.94" x 2.84" (100mm x 72mm) |
| GROSS WEIGHT | 0.88lb (0.4 kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (-40˚C ~ 85˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80,000 |
| CERTIFICATION | CE,FCC |
DISPLAY | |
| CHIPSET | Intel® E3845/J1900/N2807 |
| RESOLUTION | VGA up to 2048 x 1152 @60Hz or DP up to 2560 x 1400 @60Hz LVDS (18/24-bit) up to 1400 x 900 @60Hz |
| LCD INTERFACE | 18/24-bit Single LVDS |
I/O | |
| STORAGE/SSD | SATA 3.0Gb/s x 1, Mini-Card(Full-size)/mSATA(default) x 1 |
| ETHERNET | Intel Gigabit Ethernet, 10/100/1000Base-TX x 1 (Atom E series with I210IT, Celeron J/N series with I211AT) |
| USB PORT | USB 3.2 Gen 1 x 1 Rear IO, USB 2.0 x 1 Rear IO and x 1 Pin header |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 1 (Ring /+5V/+12V) |
| AUDIO | Line-out x 1 |
| DIO | 4-bit (2-in, 2-out) |
| EXPANSION SLOT | Mini-Card (Half-size) x 1, BIO x 1 |
| SIM | Option by BIO Board |
