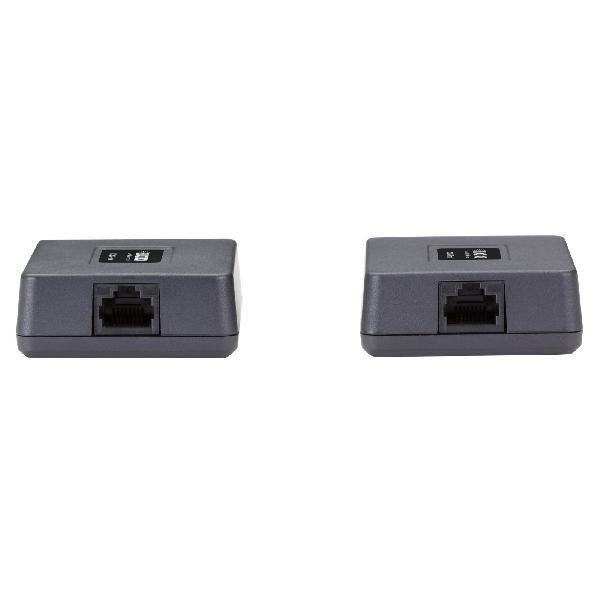

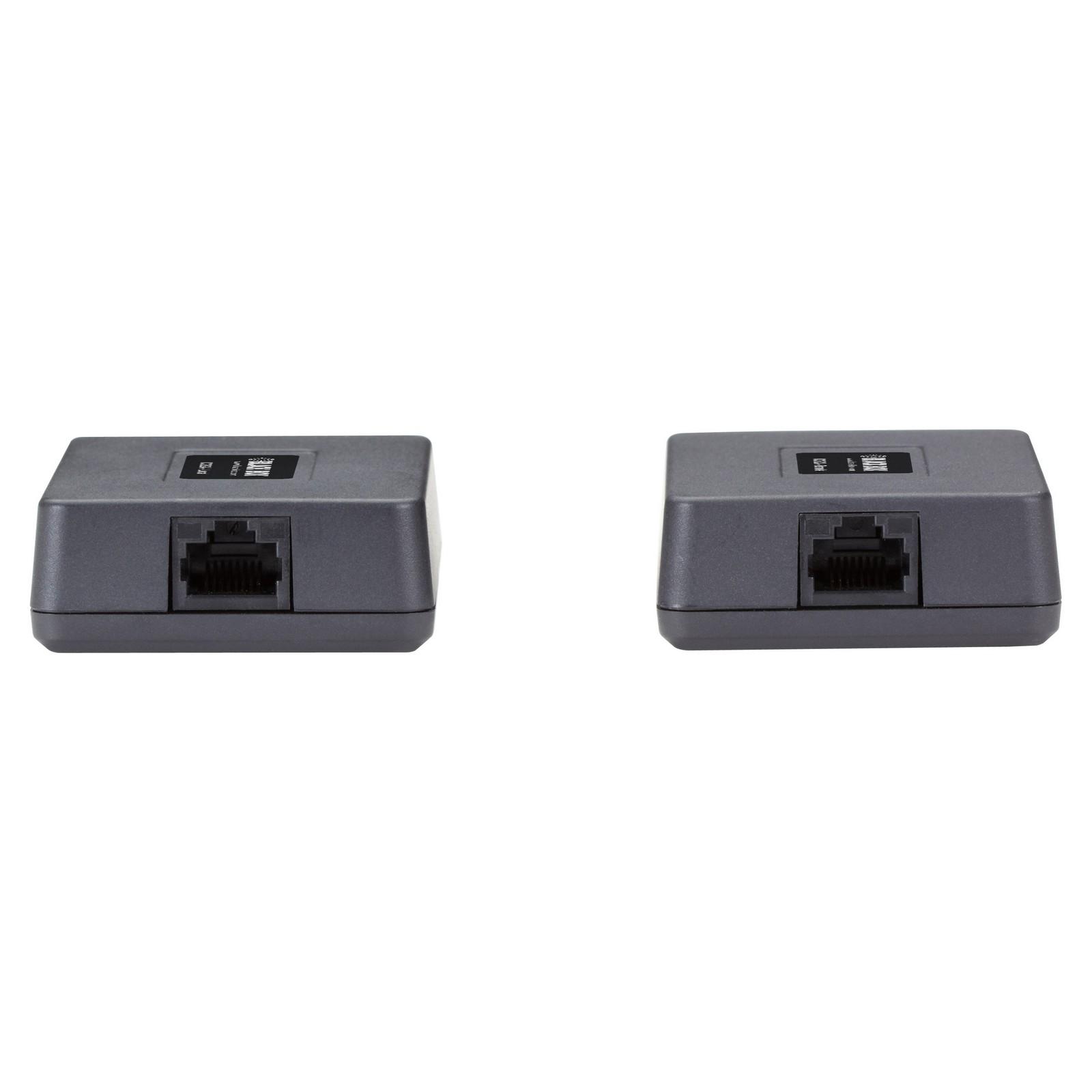

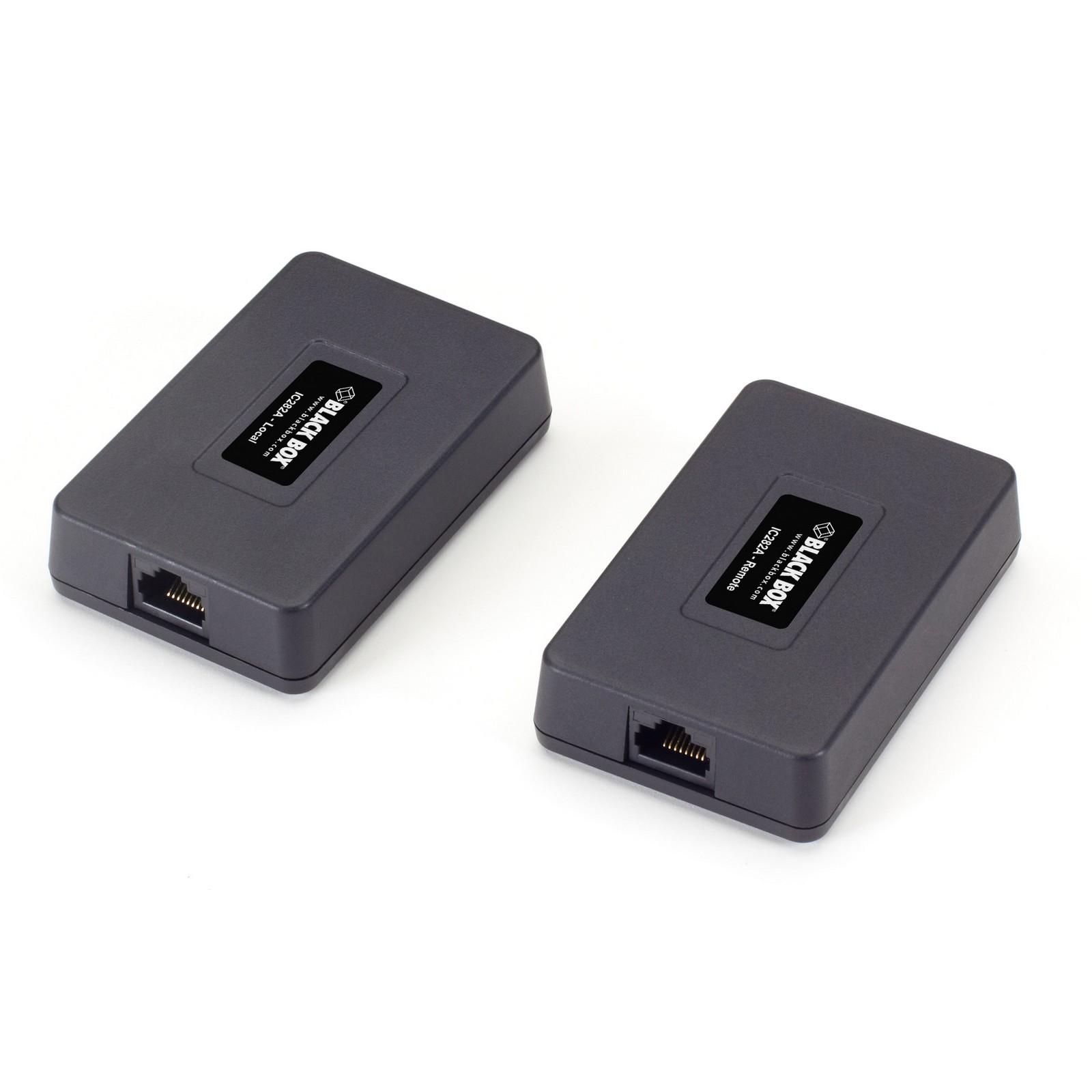

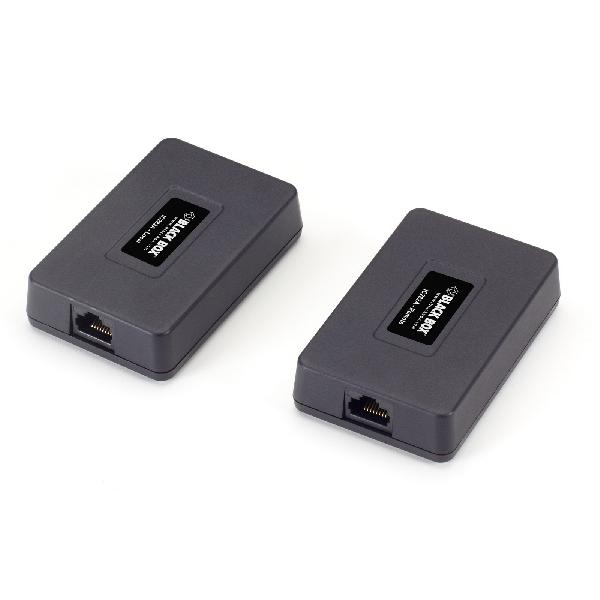

USB 1.1 Extender - CATx, 2-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend a USB 1.1 connection beyond the 16 ft (5 m) limitation, up to 130 feet over CATx, to two USB peripherals.

Product Feature

  • Reliably extend USB 1.1 signaling over CAT5 cable to remote USB devices
  • Bus powered with no external AC adapter needed at either end
  • Industrial rated for ESD immunity
  • Supports both Full-Speed (12-Mbps) and Low-Speed (1.5-Mbps) throughput
  • Works with all major operating systems (Windows®, Mac OS X®, and Linux®)

Extend two USB 1.1 peripherals beyond the 16-ft (5-m) limitation up to 328 ft (100 m) over CATx. Extend a USB connection beyond the desktop to two USB peripherals such as USB keyboards, mice, printers, webcams, interactive whiteboards, and other devices. The extender can be used in in industrial control, factory floor, classroom, or meeting room applications The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 devices.

General
ApprovalsCE, RoHS
DistanceFull-Speed and Low-Speed: 130 ft. (40 m) maximum; Low-Speed: 278 ft. (85 m) maximum
PowerTransmitter: From the host device's USB interface; Receiver: From the transmitter; Available power: 400 mA shared between USB ports when transmitter is supplied with 800 mA of bus power
USB Device SupportHigh-Speed devices (USB 2.0) at Full-Speed (USB 1.1) rates; Full-Speed devices (USB 2.0 and USB 1.1); Low-Speed devices (USB 2.0 and USB 1.1)
Item Specifications

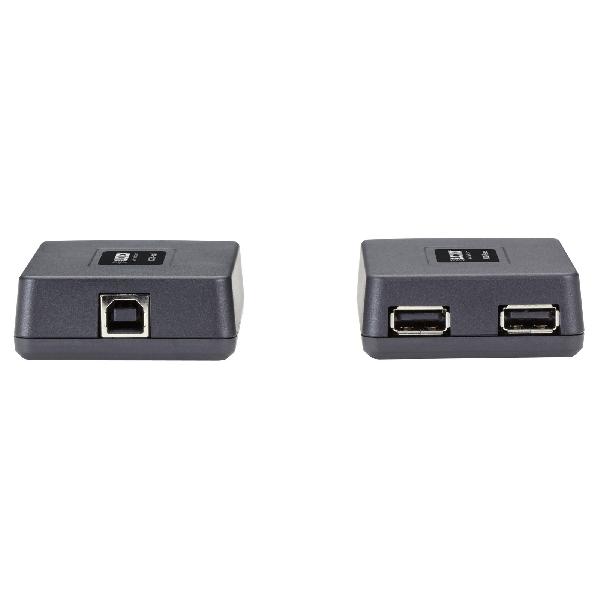

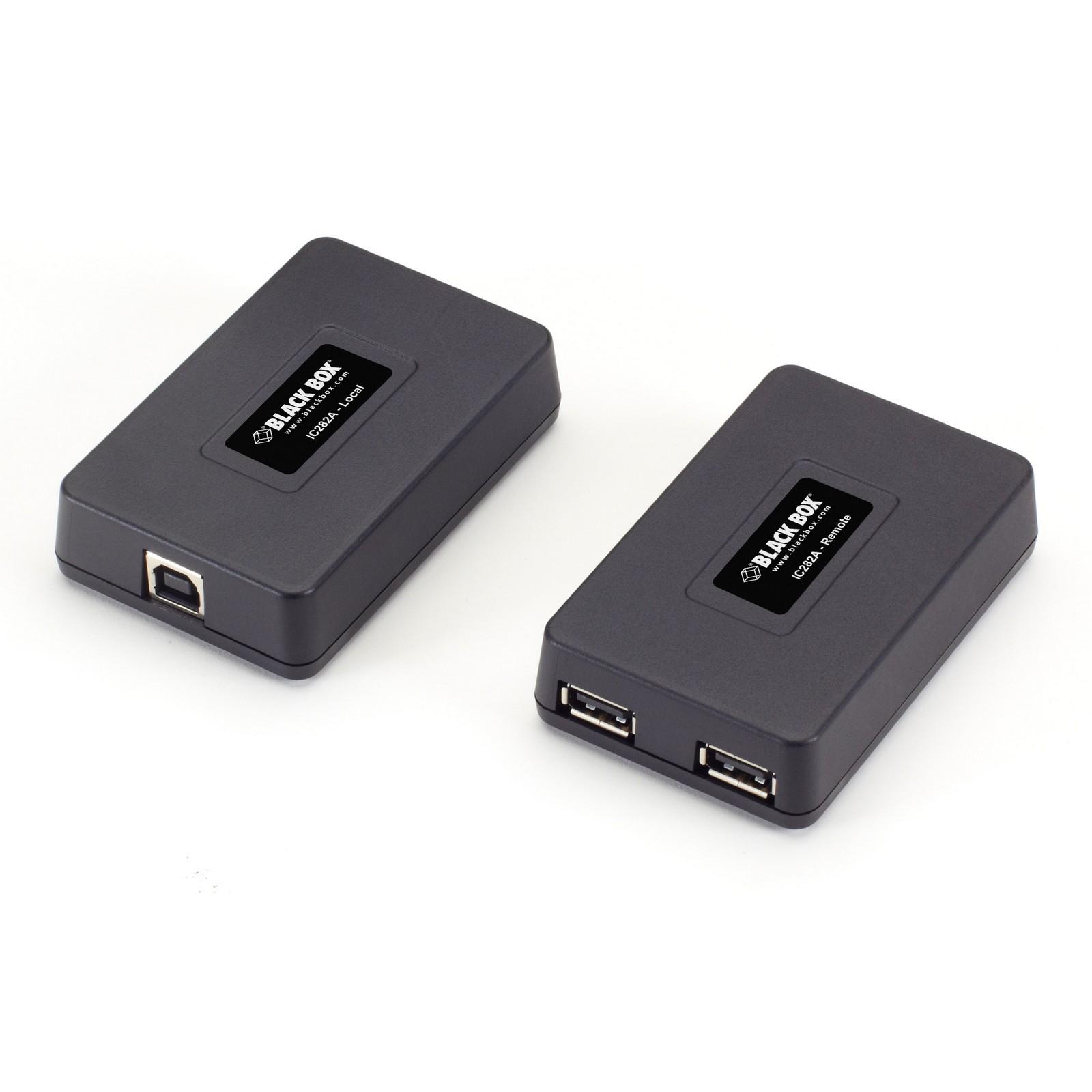

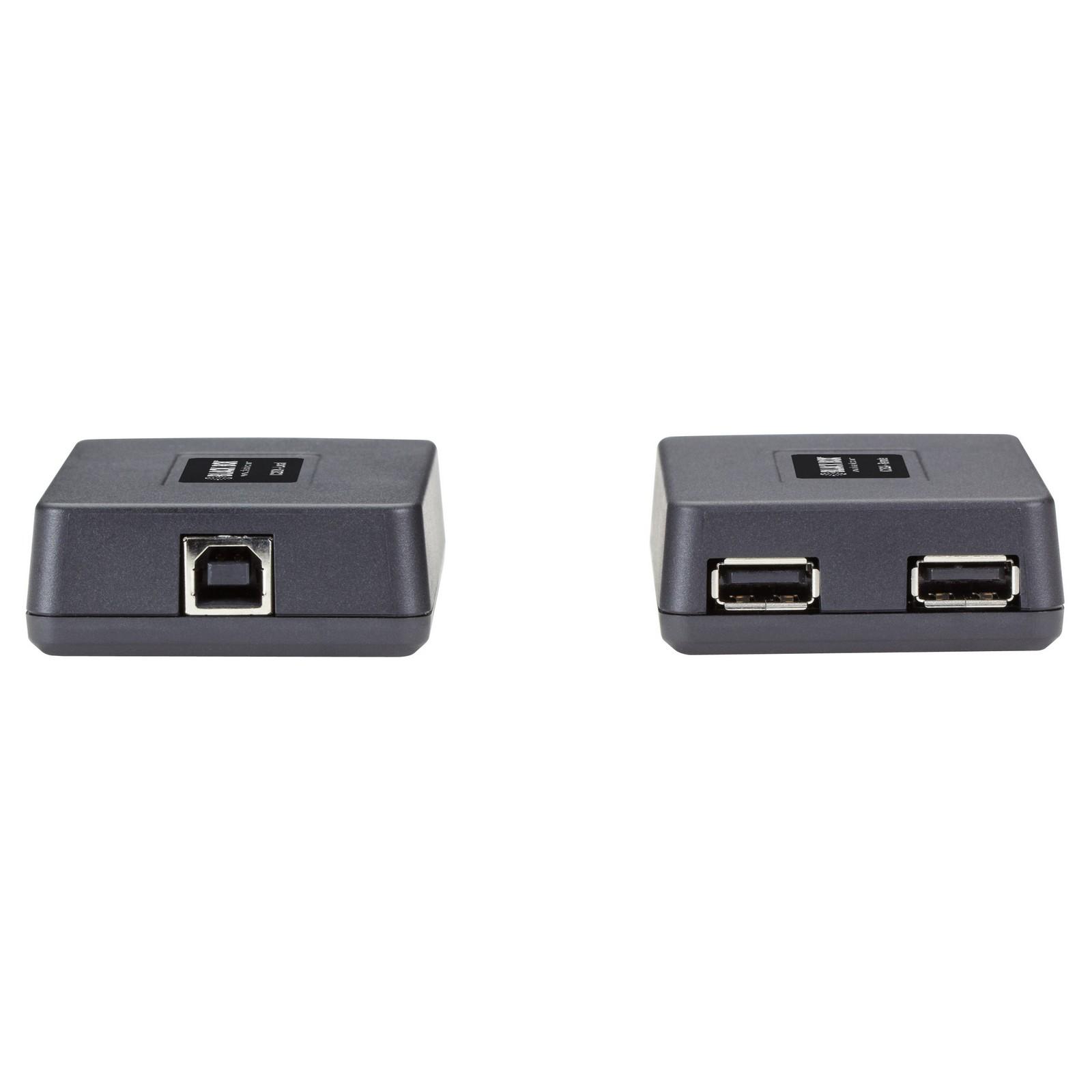

ConnectorsTransmitter: (1) USB Type B F; (1) RJ-45 (CAT5 interconnect); Receiver: (2) USB Type A F, (1) RJ-45 (CAT5 interconnect)
DimensionsEach unit: 0.9"H x 2.2"W x 3.3"D (2.3 x 5.6 x 8.4 cm) * NOTE: Device and host dependent.

Product Includes:

  • Transmitter Receiver
  • (1) USB 2.0 Cable
  • 1.8m (6-ft.)
  • Quick start guide
Name Type Version Release Date
2-Port USB 1.1 and 2.0 CAT5e/6/7 Extender Manual 18 August 2021
