USB 3.1 Extender over CATx - 4-Port

Home  >   Black Box  >   USB CONNECTIVITY  >
USB Extenders

Extend USB 3, 2 and 1 over CATx cable.

Product Feature

  • USB speeds 10x faster than any other USB 2 extender on the market
  • Extends up to 100 meters over CAT6A and CAT7
  • Four auto-negotiating USB 3, 2 & 1 ports at remote extender
  • Simply Plug and play wihtout drivers to load on a host computer
  • 100-/1000-Mbps Ethernet side channel and LAN pass through
  • Works with Windows®, macOS™, Linux® and Chrome OS™ operating systems

Industry-first USB 3, 2 and 1 extender
Extend all your USB devices. This USB Extender provides the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types and is backward compatible with USB 2.0 and 1.1. This unique solution is the only USB extender capable of CAT X 3.0 extension.

Great extension length
Get your USB connections where they need to go. This USB 3.1 Extender extends up to 100 meters over CAT6A/7 cable.

Faster than any other USB extender
Never worry about slow USB transfer speeds again. This USB 3.1 Extender provides USB speeds 10x faster than any other USB 2 extender on the market. This makes large file and multiple file transfers significantly faster, saving you valuable time.

Additionally, these hyper-fast USB transfer speeds mean superior support for USB 3 cameras.

Leverage your existing network infrastructureThe USB Extender features an Ethernet side channel that lets you use your existing network infrastructure without having to run additional dedicated cable. Also, it allows users to connect Ethernet capabilities of devices through the extender without running a separate cable, making it perfect for PTZ applications.


General
CompatibilityDevice: All device types & classes (control, interrupt, isochronous & bulk); Host: OHCI, UHCI, EHCI, xHCI
BandwidthUSB: up to 5-Gbps
Available CurrentRemote: 1.2A (6W) per USB port
Connected Devices (Maximum)30
Operating Humidity10-80%, non-condensing
Operating Temperature32° - 122°F (0° - 50°C)
RangeUp to 100m over CAT6A/7
SpeedUSB: SuperSpeed 5-Gbps, high-speed, full-speed, low-speed
Item Specifications

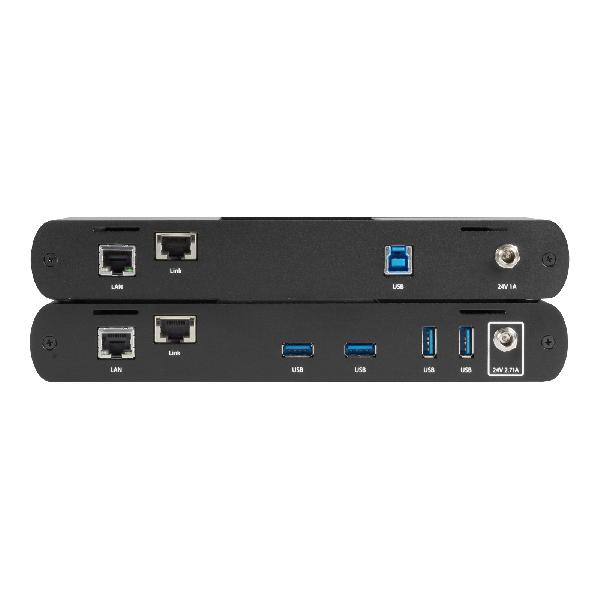

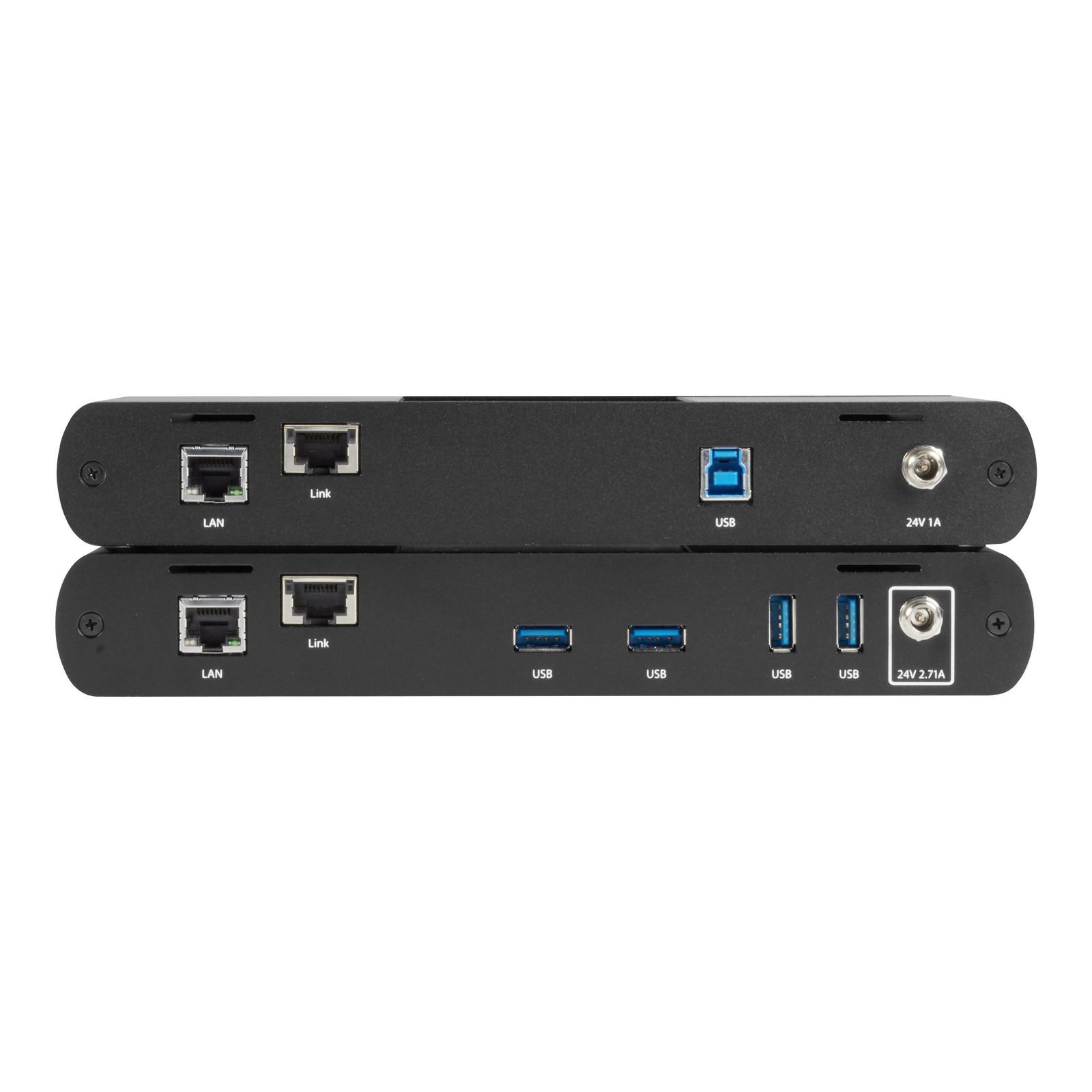

ConnectorsLocal: (1) USB 3.1 B receptacle, (1) RJ45 Ethernet 100/1000, (1) RJ45 Link, (1) 24V 1A DC locking jack;
Remote: (4) USB 3.1 A receptacle, (1) RJ45 Ethernet 100/1000, (1) RJ45 Link, (1) 24V 2.71A DC locking jack
Dimensions1.3"H x 9.1"W x 5.4"D (3.3 x 23.1 x 13.7 cm)
Weight (Each Unit)4.2 lb. (1.9 kg)

Product Includes:

  • (1) Local Extender
  • (1) Remote Extender
  • (1) USB 3.1 Cable
  • (2) International Locking AC Adapter
  • (2) Country-Specific Power Cord
  • (1) Quick Start Guide
Name Type Version Release Date
USB 3.1 CAT6A/7 Extender Manual 18 August 2021
