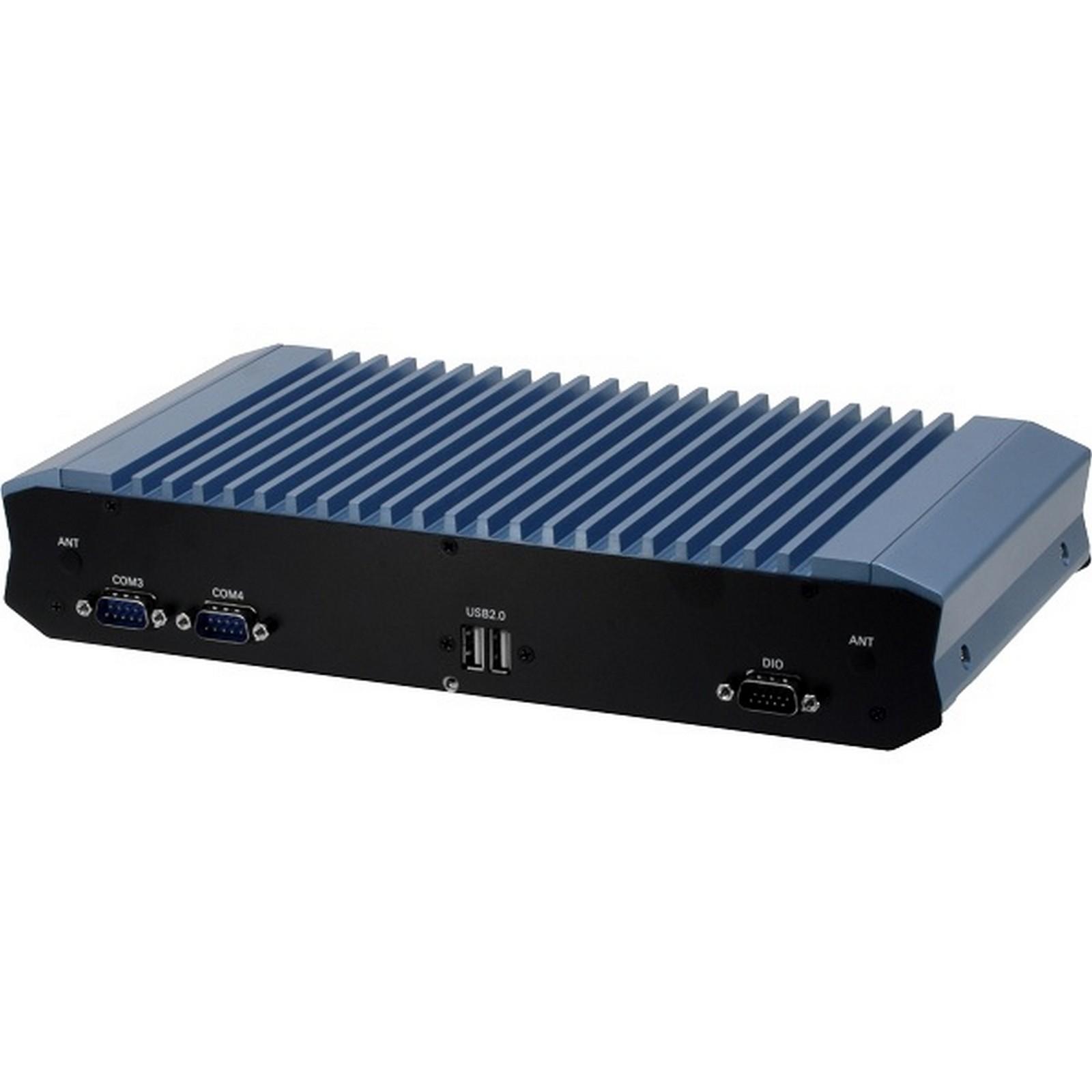

The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP). Utilizing a socket-type desktop chipset, the system can be easily scaled or upgraded to match the performance needs of any application. Additionally, its slim design, only 54mm thick, allows it to fit into almost any tight space, allowing it to be deployed right where it needs to be.
The BOXER-6642-CML features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also has an M.2 2230 (E-Key) slot to support Wi-Fi or Bluetooth connectivity. The BOXER-6642-CML is built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.
The BOXER-6642-CML features fanless design which keeps dust and other contaminants out, allowing reliable, long-lasting operation. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.
The BOXER-6642-CML offers a broad range of I/O features including four serial COM ports, four USB3.2 Gen 2 ports, and two Gigabit Ethernet ports, providing support for Intel® vPro and Intel® AMT. The BOXER-6642-CML also delivers storage flexibility with NVMe support, mSATA, and 2.5” SATA III (6.0 Gbps) storage devices. The BOXER-6642-CML can also easily connect with cellular networks thanks to onboard SIM card slot, allowing for even more communication flexibility.
| SYSTEM | |
| CPU | Intel® Core™ i9-10900TE Intel® Core™ i7-10700TE Intel® Core™ i5-10500TE Intel® Core™ i3-10100TE Intel® Celeron® G5900TE |
| CHIPSET | Intel® Q470E |
| SYSTEM MEMORY | DDR4 SO-DIMM x 2, up to 64GB |
| DISPLAY INTERFACE | HDMI 1.4 x 1 |
| STORAGE DEVICE | M.2 2280 slot x 1 (PCIex4), 2.5” SATA SSD/HDD bay x 1 |
| ETHERNET | Intel® i211-AT x 1, i219-LM x 1 |
| I/O | HDMI x 1 RJ-45 x 2 for GbE LAN (i211-AT x 1, i219-LM x 1) USB 3.2 Gen 2 x 4 USB 2.0 x 2 DB-9 x 4 for RS-232/422/485 DB15 x 1 for 8 channel DIO Line out x 1 3 pin 10~35V Power Input x 1 Power Button with LED x 1 |
| EXPANSION | M.2 2230 E Key x 1 M.2 2280 M Key x 1 Full-Size Mini Card x1 (mSATA/PCIe switch by BIOS, default PCIe) SIM x 1 |
| INDICATOR | Power LED |
| OS SUPPORT | Windows® 10 IoT Enterprise 64-bit Linux Ubuntu 20.04.2 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 10-35V DC-in with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 11.58" x 5.98" x 2.11" (292.4mm x 152mm x 53.5mm) |
| GROSS WEIGHT | 8.4lb (3.8kg) |
| NET WEIGHT | 6.2lb (2.8kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 113°F (0°C ~ 45°C) (35W CPU), according to IEC68-2-14 with 0.5 m/s AirFlow |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 2 Grms/5 ~ 500Hz/operation (with SSD) |
| ANTI-SHOCK | 50G peak acceleration (11msec) (with SSD) |
| CERTIFICATION | CE/FCC class A |
| Name | Type | Version | Release Date | |
| Datasheet, BOXER-6642-CML | Datasheet | V3.0 | 27 July 2021 |
