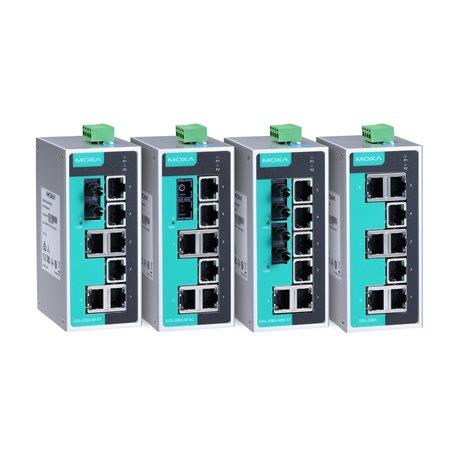

EDS-208A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Unmanaged Switches

8-port unmanaged Ethernet switches

Product Feature

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
  • Redundant dual 12/24/48 VDC power inputs
  • IP30 aluminum housing
  • Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/NK)
  • -40 to 75°C operating temperature range (-T models)

Introduction

The EDS-208A Series 8-port industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X auto-sensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

EDS-208A/208A-T: 8
EDS-208A-M-SC/M-ST/S-SC Series: 7
EDS-208A-MM-SC/MM-ST/SS-SC Series: 6

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode SC connector)

EDS-208A-M-SC Series: 1
EDS-208A-MM-SC Series: 2

100BaseFX Ports (multi-mode ST connector)

EDS-208A-M-ST Series: 1
EDS-208A-MM-ST Series: 2

100BaseFX Ports (single-mode SC connector)

EDS-208A-S-SC Series: 1
EDS-208A-SS-SC Series: 2

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

Optical Fiber

Read more

Switch Properties

MAC Table Size

2 K

Packet Buffer Size

768 kbits

Processing Type

Store and Forward

Power Parameters

Connection

1 removable 4-contact terminal block(s)

Input Current

EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC Series: 0.11 A @ 24 VDC
EDS-208A-MM-SC/MM-ST/SS-SC Series: 0.15 A @ 24 VDC

Input Voltage

12/24/48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

DIP Switch Configuration

Ethernet Interface

Broadcast storm protection

Physical Characteristics

Housing

Aluminum

IP Rating

IP30

Dimensions

50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)

Weight

275 g (0.61 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Hazardous Locations

ATEX, Class I Division 2

Maritime

ABS, DNV-GL, LR, NK

Railway

EN 50121-4

Safety

UL 508

Shock

IEC 60068-2-27

Traffic Control

NEMA TS2

Vibration

IEC 60068-2-6

Freefall

IEC 60068-2-31

MTBF

Time

2,701,531 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-208A Series Datasheet V1.1 22 May 2020

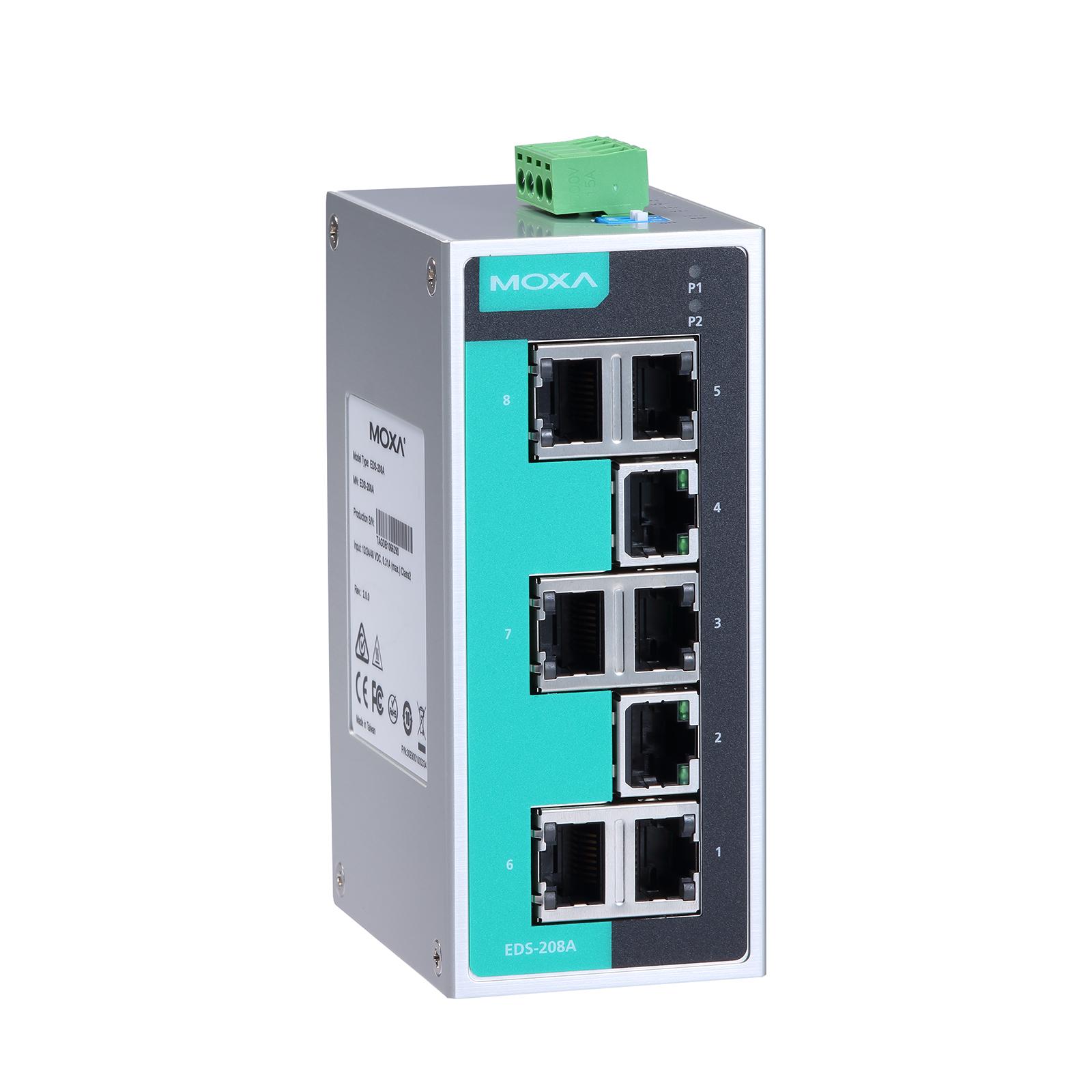

EDS-208A

10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-208A-T

10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-208A-S-SC

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -10 to 60°C

EDS-208A-S-SC-T

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -40 to 75°C

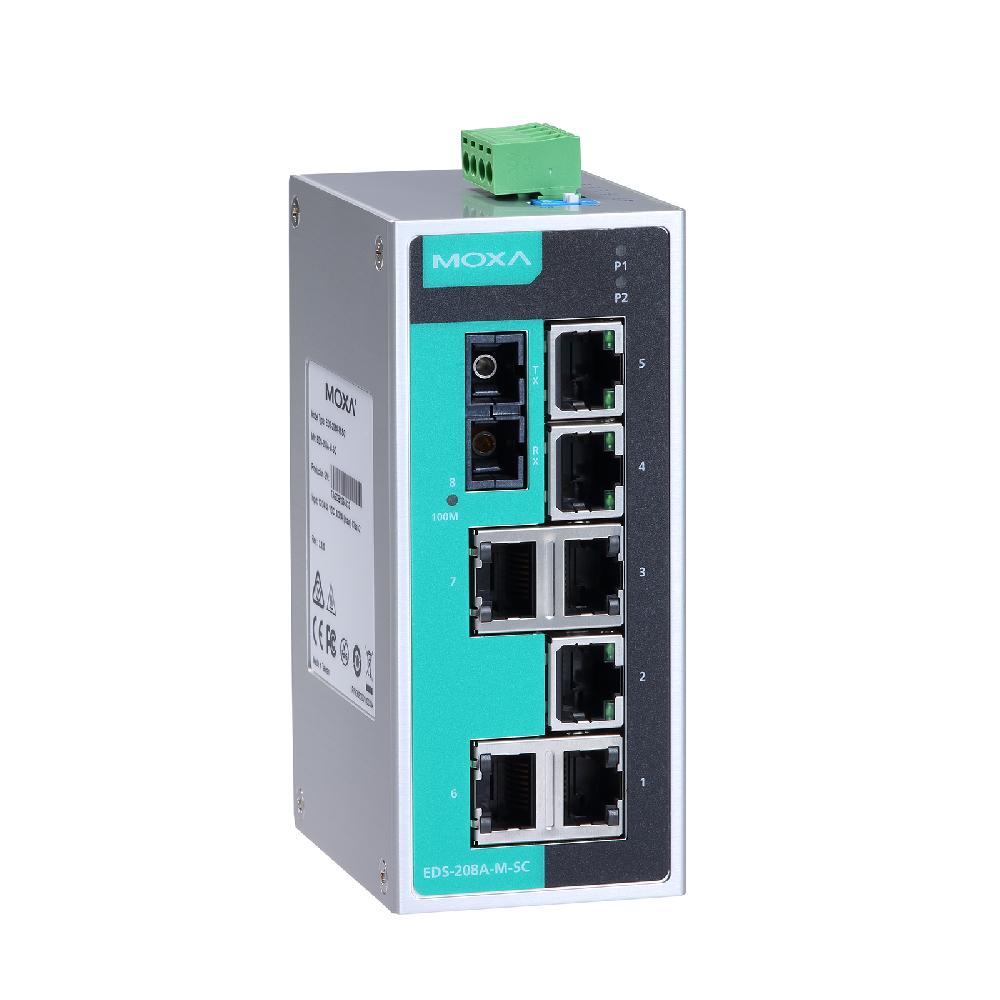

EDS-208A-M-SC

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-208A-M-SC-T

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

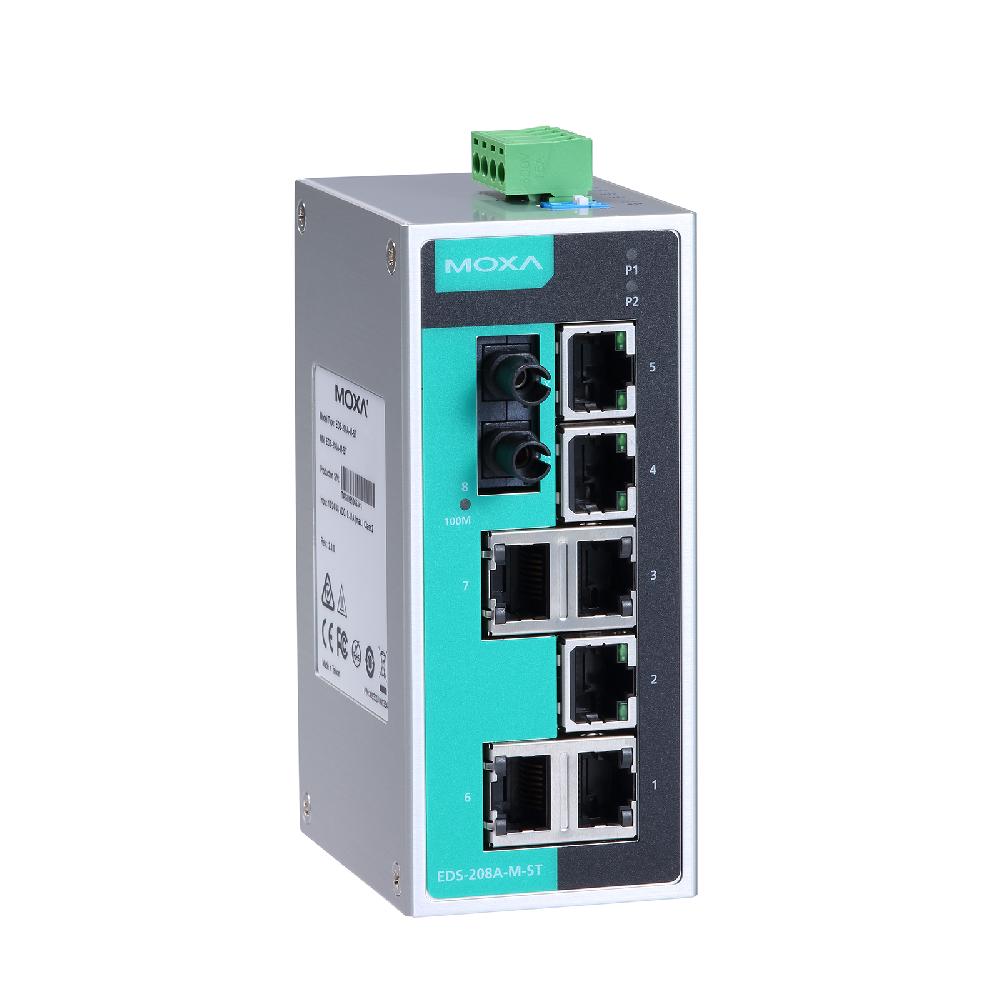

EDS-208A-M-ST

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 1
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-208A-M-ST-T

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 1
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

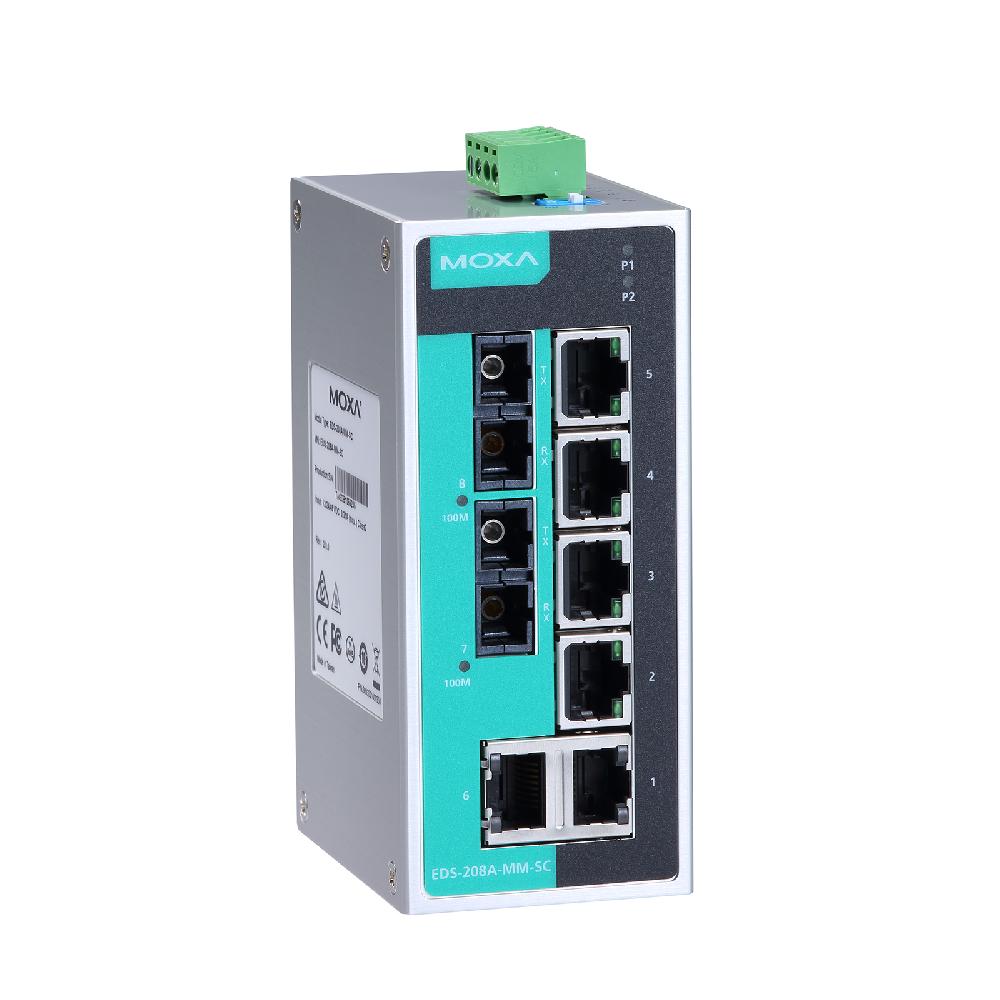

EDS-208A-MM-SC

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-208A-MM-SC-T

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

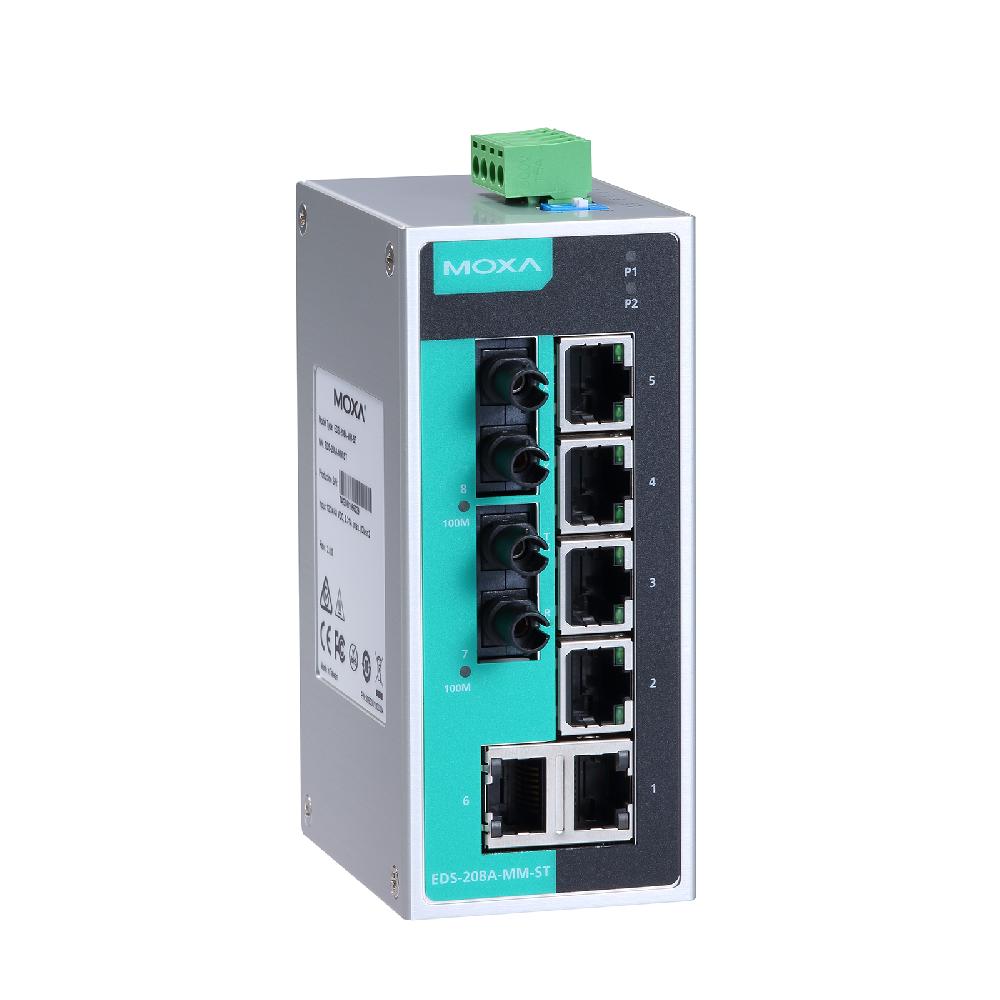

EDS-208A-MM-ST

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-208A-MM-ST-T

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-208A-SS-SC

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

EDS-208A-SS-SC-T

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -40 to 75°C
