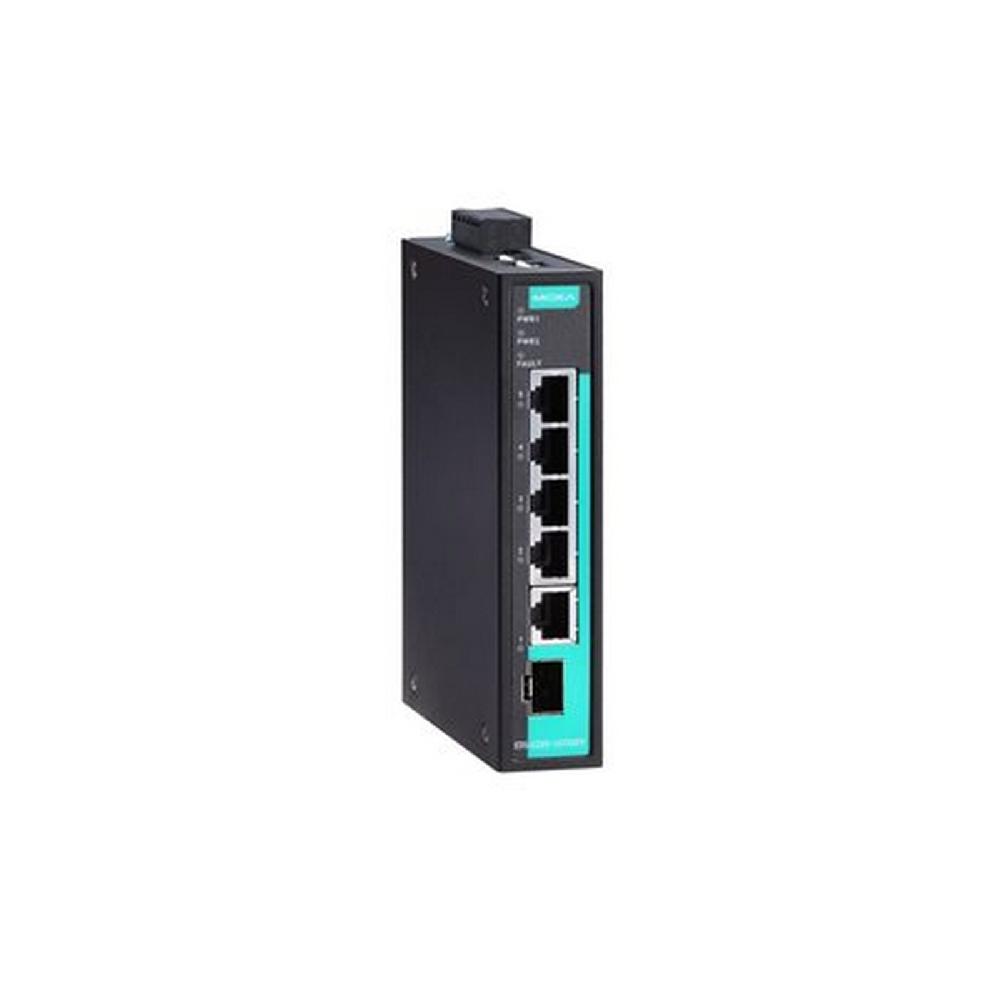

The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application.
A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Input/Output Interface | |
| Alarm Contact Channels | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
Ethernet Interface | |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 1 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet |
Switch Properties | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbits |
| Jumbo Frame Size | 10 KB |
| Processing Type | Store and Forward |
DIP Switch Configuration | |
| Ethernet Interface | Broadcast storm protection, Jumbo Frame, IEEE 802.3az energy saving, 100/1000 SFP speed switching, Port break alarm |
Power Parameters | |
| Connection | 1 removable 6-contact terminal block(s) |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Reverse Polarity Protection | Supported |
| Input Current | 0.14 A @ 24 VDC |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in) |
| Weight | 290 g (0.64 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | EDS-G205-1GTXSFP: -10 to 60°C (14 to 140°F) EDS-G205-1GTXSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Freefall | IEC 60068-2-32 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | ABS, DNV-GL, LR, NK |
| Railway | EN 50121-4 |
| Safety | EN 60950-1, UL 508, EN 60950-1 (LVD) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 2,823,446 hrs |
| Standard | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-G205 Series | Datasheet | V1.1 | 03 August 2019 |
| 10/100/1000BaseT(X) Ports RJ45 Connector | 4 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 1 |
| Operating Temp. | -40 to 75°C |
| 10/100/1000BaseT(X) Ports RJ45 Connector | 4 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 1 |
| Operating Temp. | -10 to 60°C |
