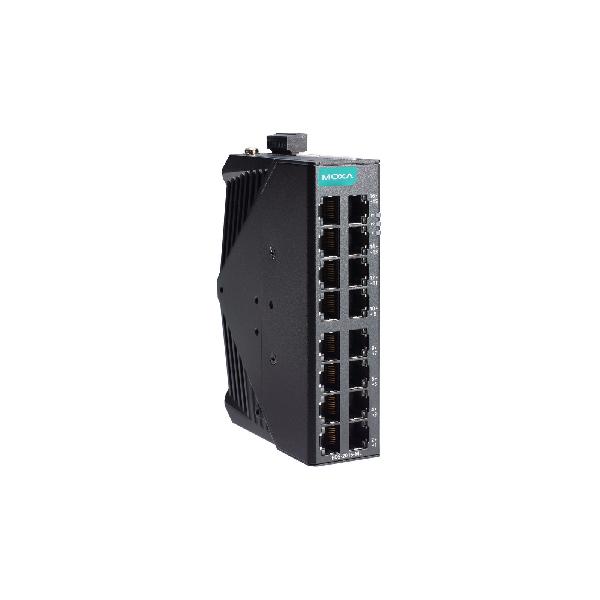

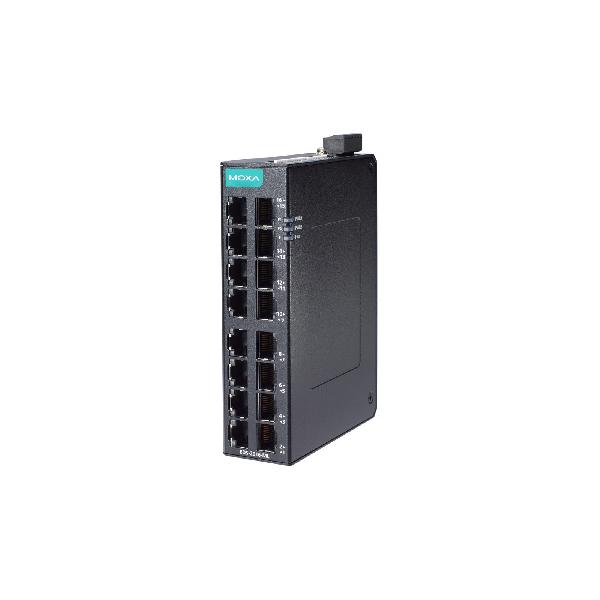

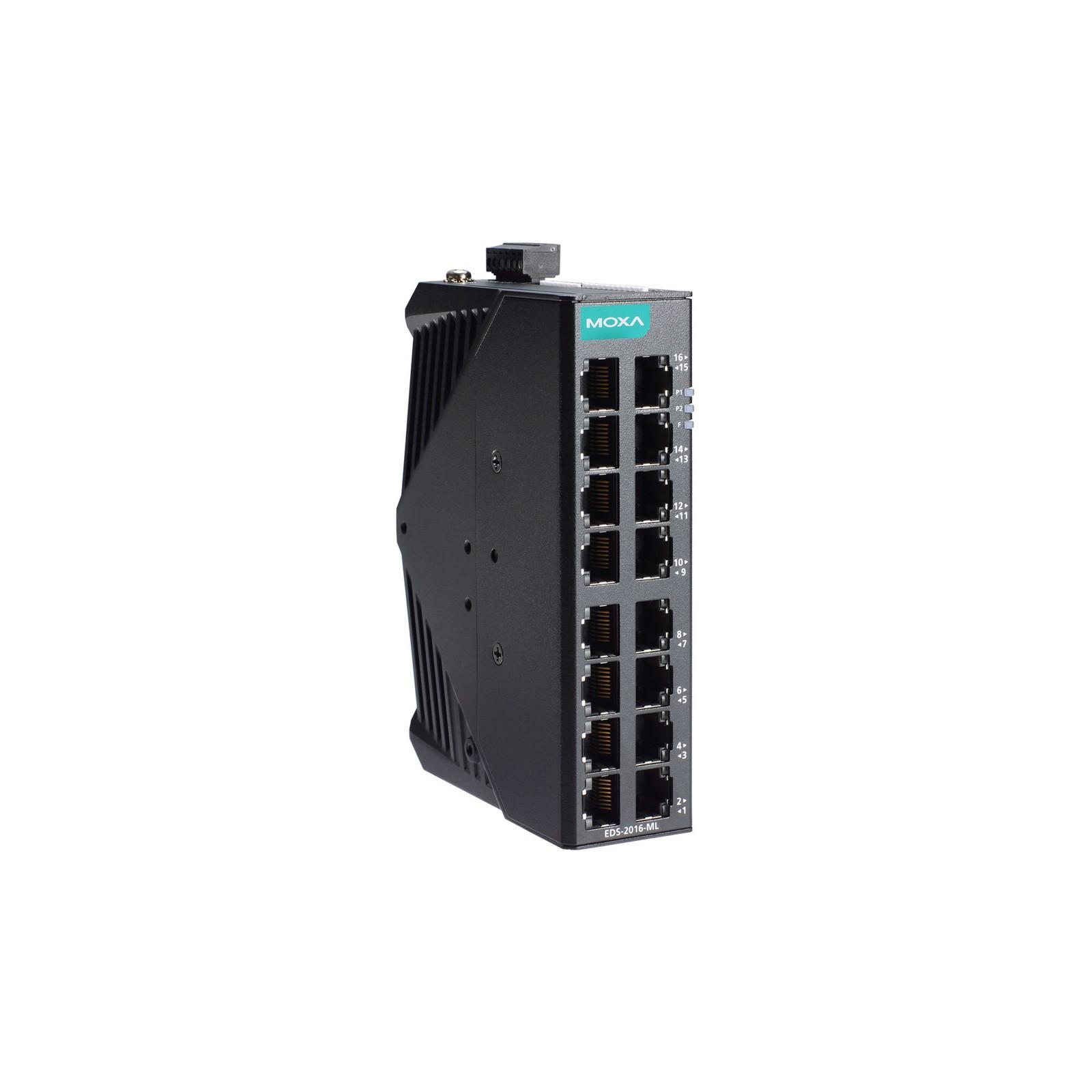

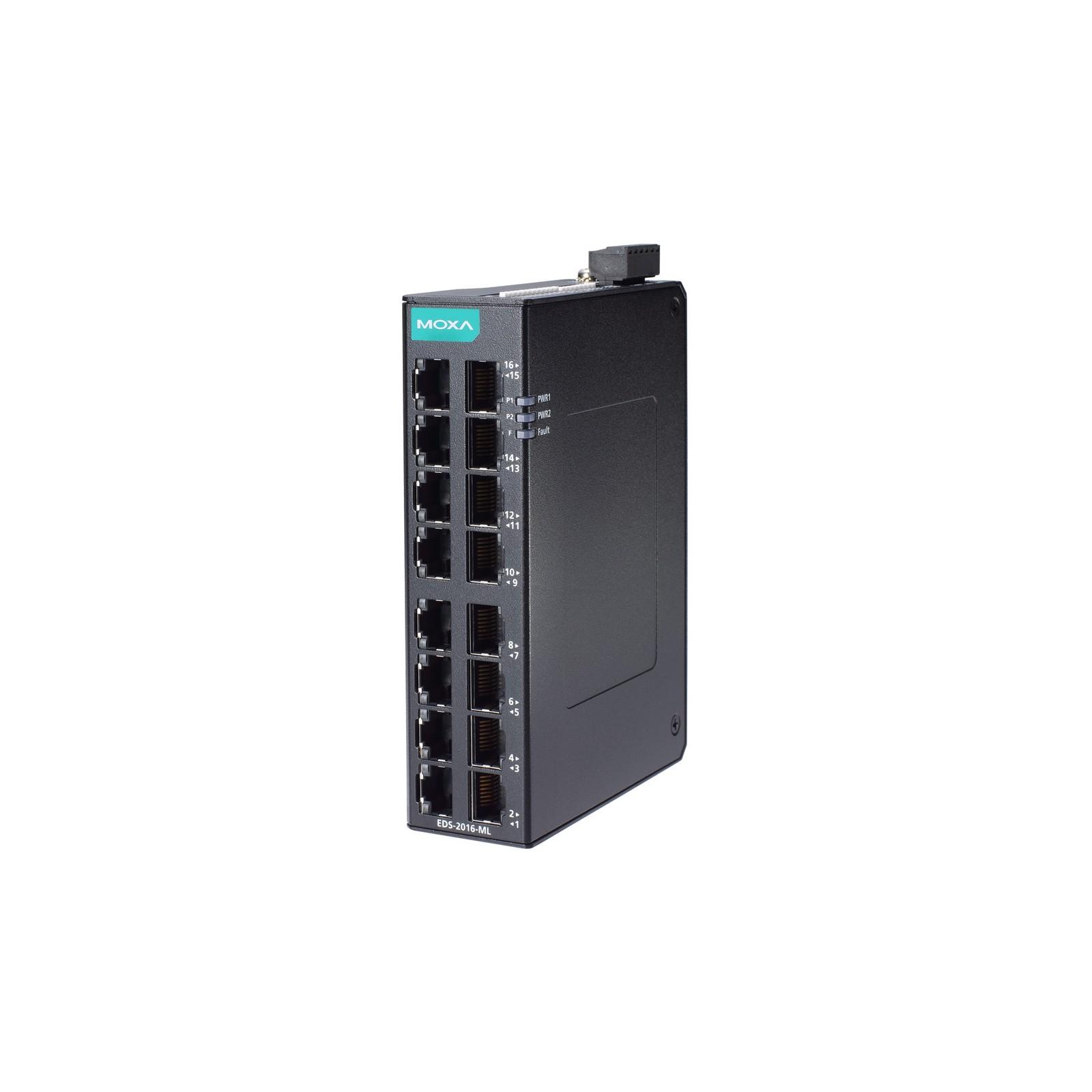

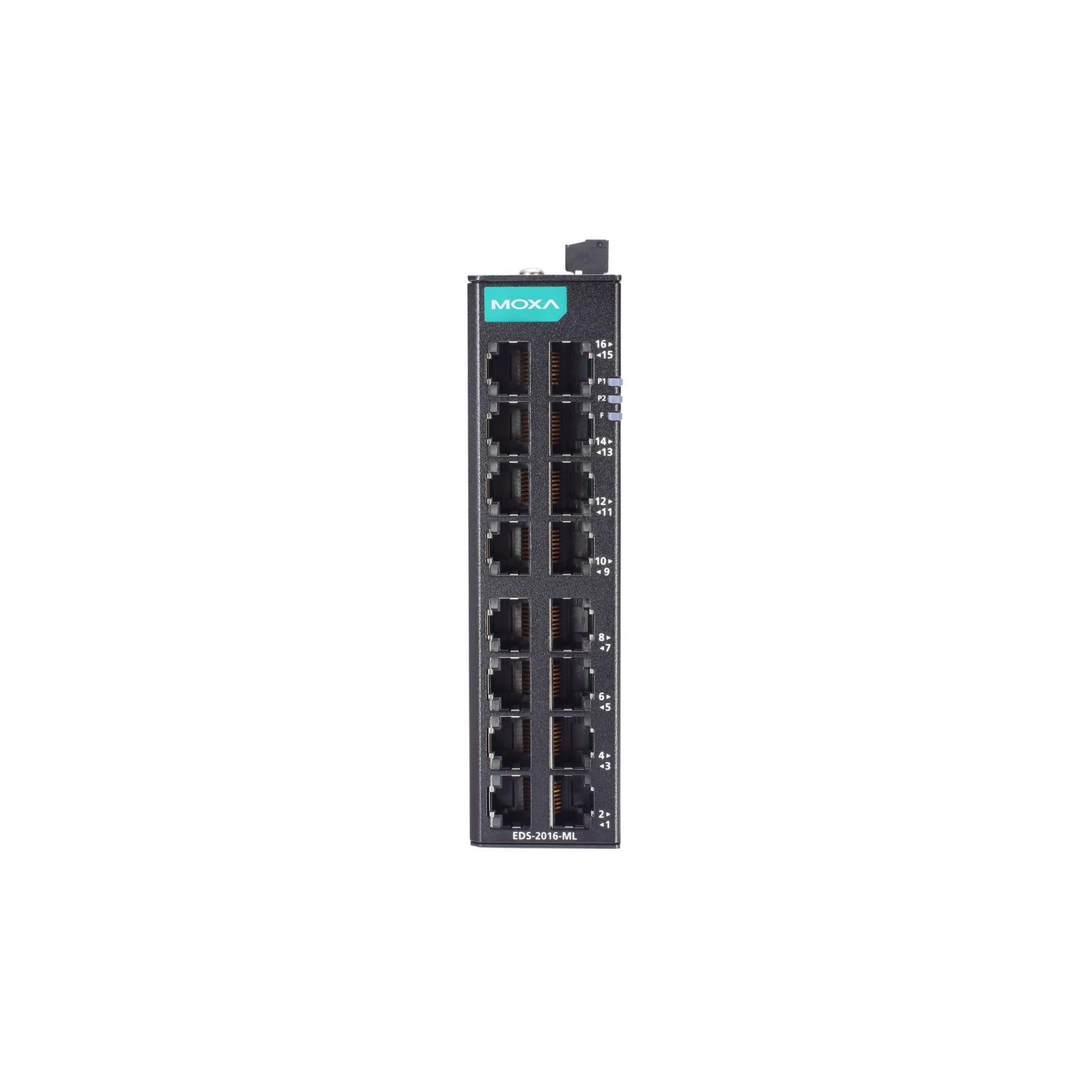

The EDS-2016-ML Series of industrial Ethernet switches have up to 16 10/100M copper ports and two optical fiber ports with SC/ST connector type options (fiber models will be available in the second half of 2020), which are ideal for applications that require flexible industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2016-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.
In addition to its compact size, the EDS-2016-ML Series features 12/24/48 VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -10 to 60°C with -40 to 75°C wide temperature models available. The EDS-2016-ML Series has also passed a 100% burn-in test to ensure it will function reliably in the field.
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-2016-ML: 16 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.1p for Class of Service |
DIP Switch Configuration | |
| Ethernet Interface | Quality of Service (QoS), Broadcast storm protection, Port break alarm |
Input/Output Interface | |
| Alarm Contact Channels | Relay output with current carrying capacity of 1 A @ 24 VDC |
Switch Properties | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 2 Mbits |
| Processing Type | Store and Forward |
Power Parameters | |
| Connection | 1 removable 6-contact terminal block(s) |
| Input Current | EDS-2016-ML: 0.108 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | EDS-2016-ML: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in) |
| Weight | EDS-2016-ML: 486 g (1.07 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Safety | UL 61010-2-201, EN 62368-1(LVD) |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
MTBF | |
| Time | 2,070,826 hrs |
| Standard | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-2016-ML Series | Datasheet | V1.1 | 18 Febuary 2020 |
| 10/100BaseT(X) Ports, RJ45 Connector | 16 |
| 100BaseFX Ports Multi-mode, SC Connector | - |
| 100BaseFX Ports Multi-mode, ST Connector | - |
| 100BaseFX Ports Single-mode, SC Connector | - |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports, RJ45 Connector | 16 |
| 100BaseFX Ports Multi-mode, SC Connector | - |
| 100BaseFX Ports Multi-mode, ST Connector | - |
| 100BaseFX Ports Single-mode, SC Connector | - |
| Operating Temp. | -40 to 75°C |
