EDS-308 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Unmanaged Switches

8-port unmanaged Ethernet switches

Product Feature

  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C operating temperature range (-T models)

Introduction

The EDS-308 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 8-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-308 switches can be installed easily on a DIN rail or in a distribution box.

Input/Output Interface

Alarm Contact Channels1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)EDS-308/308-T: 8
EDS-308-M-SC/308-M-SC-T/308-S-SC/308-S-SC-T/308-S-SC-80: 7
EDS-308-MM-SC/308-MM-SC-T/308-MM-ST/308-MM-ST-T/308-SS-SC/308-SS-SC-T/308-SS-SC-80: 6

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)EDS-308-M-SC: 1
EDS-308-M-SC-T: 1
EDS-308-MM-SC: 2
EDS-308-MM-SC-T: 2
100BaseFX Ports (multi-mode ST connector)EDS-308-MM-ST: 2
EDS-308-MM-ST-T: 2
100BaseFX Ports (single-mode SC connector)EDS-308-S-SC: 1
EDS-308-S-SC-T: 1
EDS-308-SS-SC: 2
EDS-308-SS-SC-T: 2
100BaseFX Ports (single-mode SC connector, 80 km)EDS-308-S-SC-80: 1
EDS-308-SS-SC-80: 2
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Optical FiberRead more

DIP Switch Configuration

Ethernet InterfacePort break alarm

Switch Properties

MAC Table Size2 kbits
Packet Buffer Size 768 K
Processing TypeStore and Forward

Power Parameters

Input CurrentEDS-308/308-T: 0.07 A @ 24 VDC
EDS-308-M-SC/S-SC Series, 308-S-SC-80: 0.12 A @ 24 VDC
EDS-308-MM-SC/MM-ST/SS-SC Series, 308-SS-SC-80: 0.15 A @ 24 VDC
Connection1 removable 6-contact terminal block(s)
Operating Voltage9.6 to 60 VDC
Input VoltageRedundant dual inputs, 12/24/48 VDC
Reverse Polarity ProtectionSupported
Overload Current ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight790 g (1.75 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

Hazardous LocationsATEX, Class I Division 2
EMICISPR 32, FCC Part 15B Class A
EMCEN 55032/24
VibrationIEC 60068-2-6
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
SafetyUL 508, UL 60950-1, CSA C22.2 No. 60950-1
ShockIEC 60068-2-27
FreefallIEC 60068-2-32

MTBF

Time255,528 hrs
StandardMIL-HDBK-217F

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-308 Series Datasheet V1.1 11 September 2019

EDS-308-S-SC

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -10 to 60°C

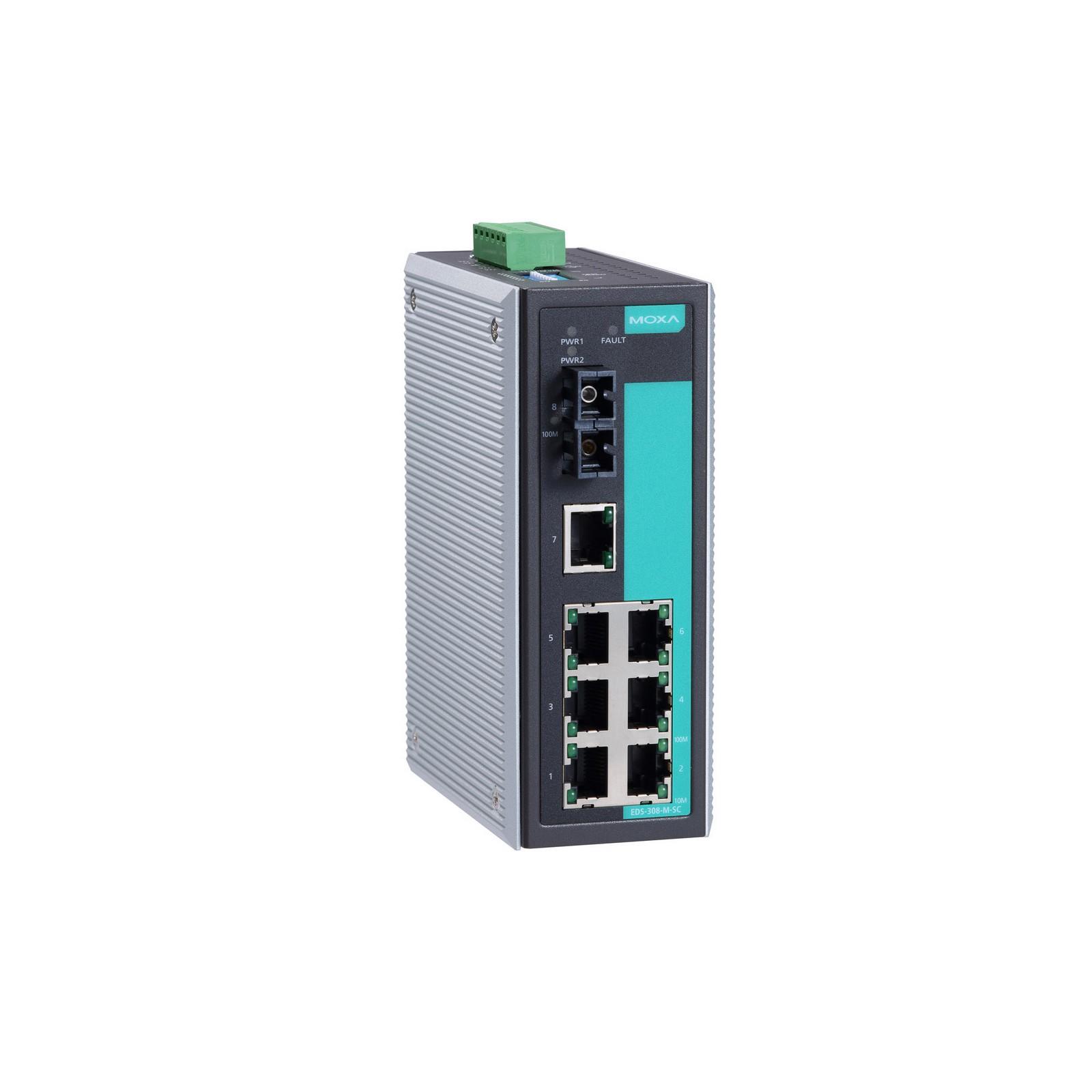

EDS-308-M-SC

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

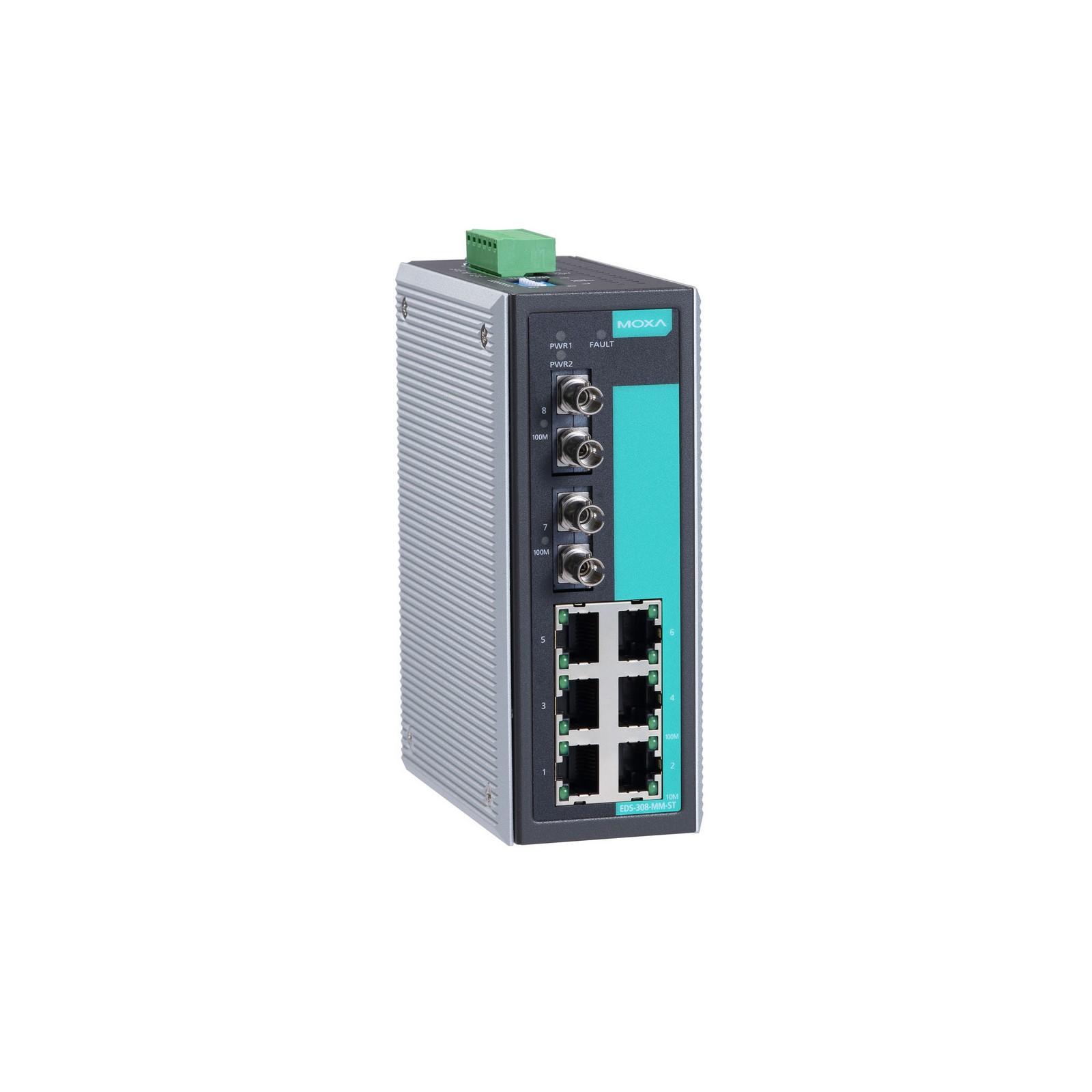

EDS-308-MM-ST

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

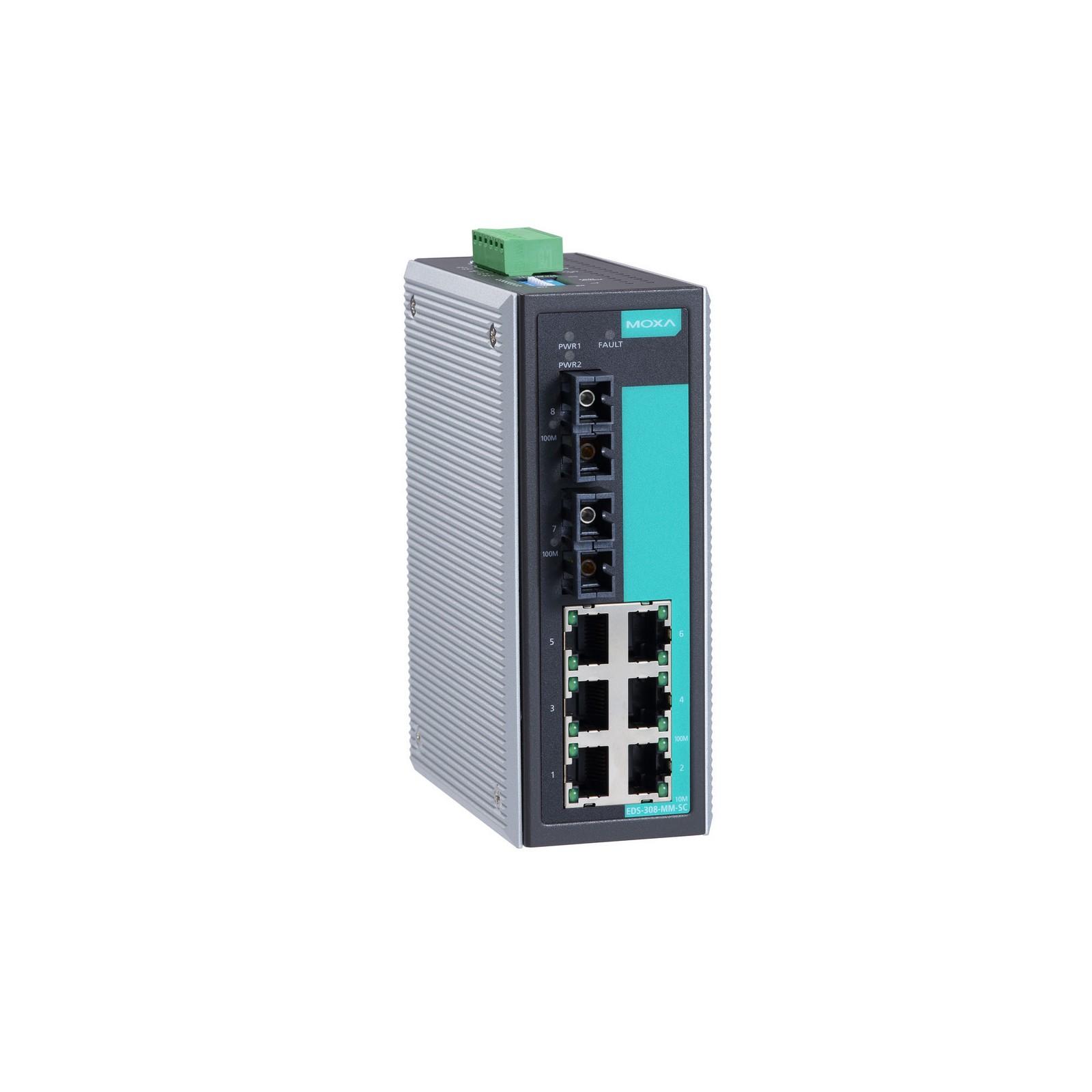

EDS-308-MM-SC

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

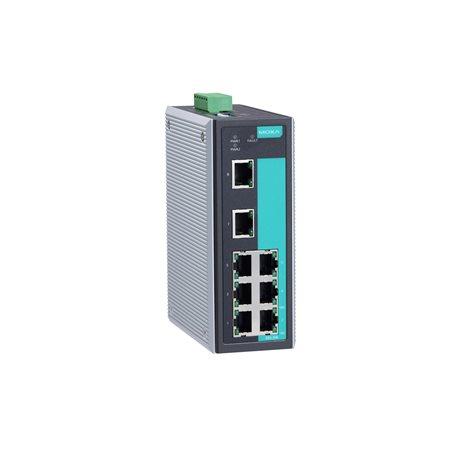

EDS-308

10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-308-SS-SC-T

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -40 to 75°C

EDS-308-S-SC-T

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -40 to 75°C

EDS-308-M-SC-T

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-308-MM-ST-T

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-308-MM-SC-T

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-308-SS-SC-80

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

EDS-308-SS-SC

10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

EDS-308-S-SC-80

10/100BaseT(X) Ports RJ45 Connector 7
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -10 to 60°C

EDS-308-T

10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C
