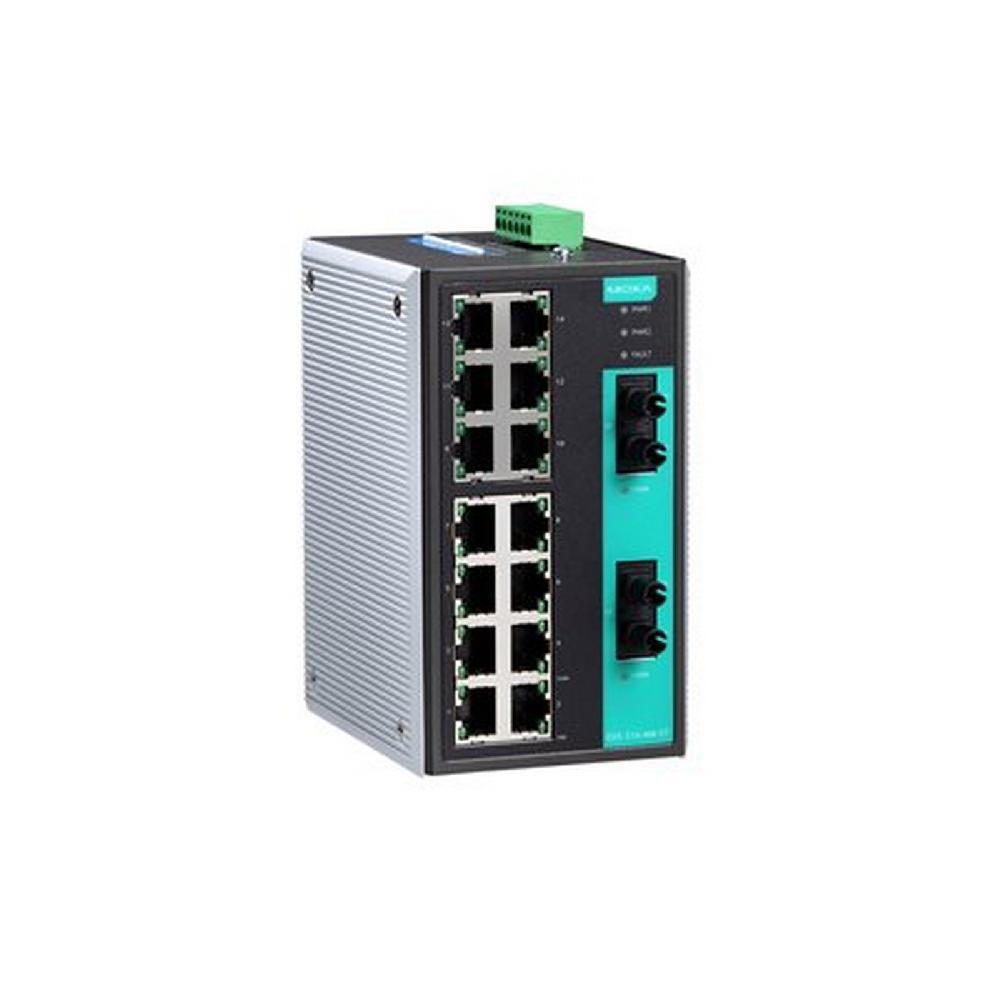

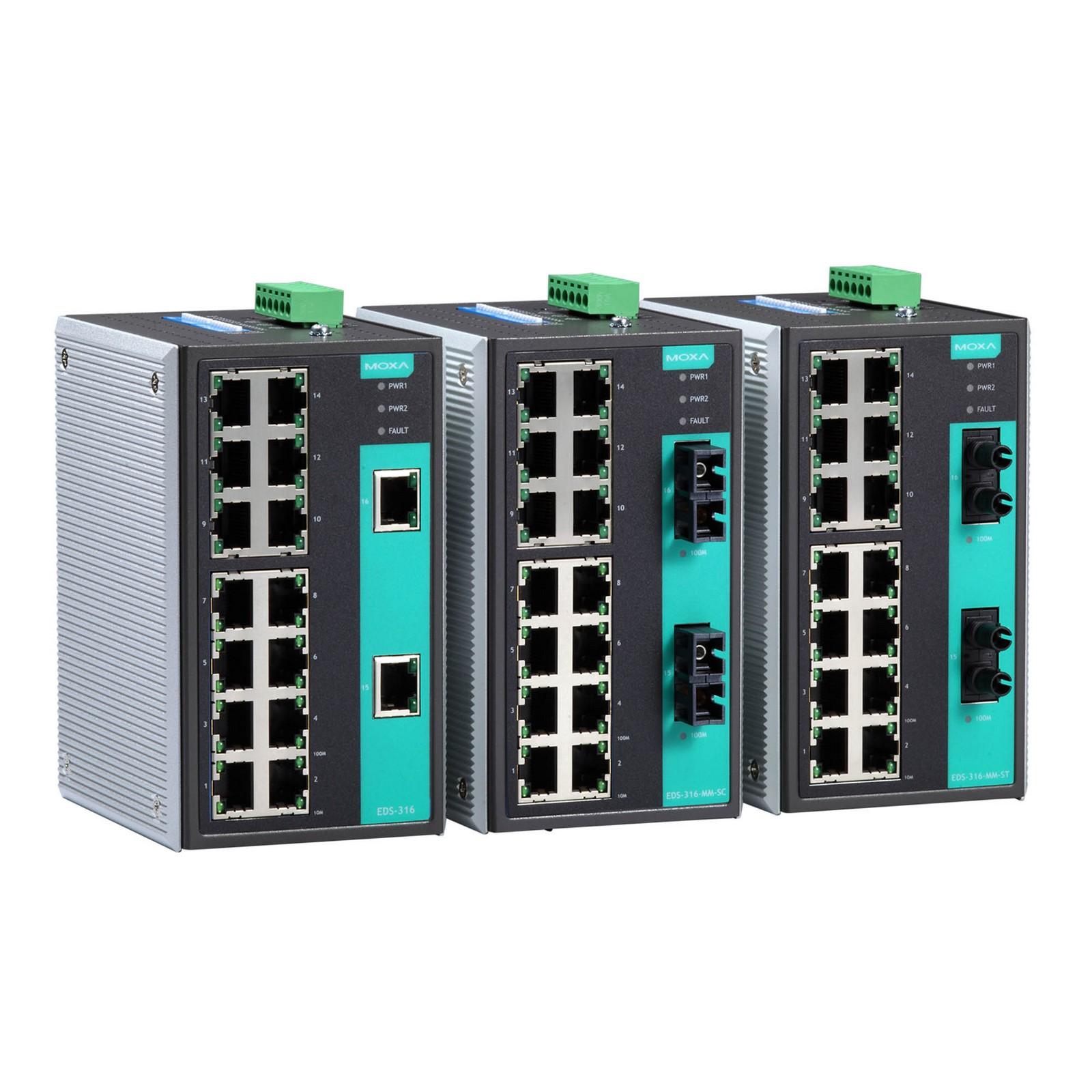

The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.

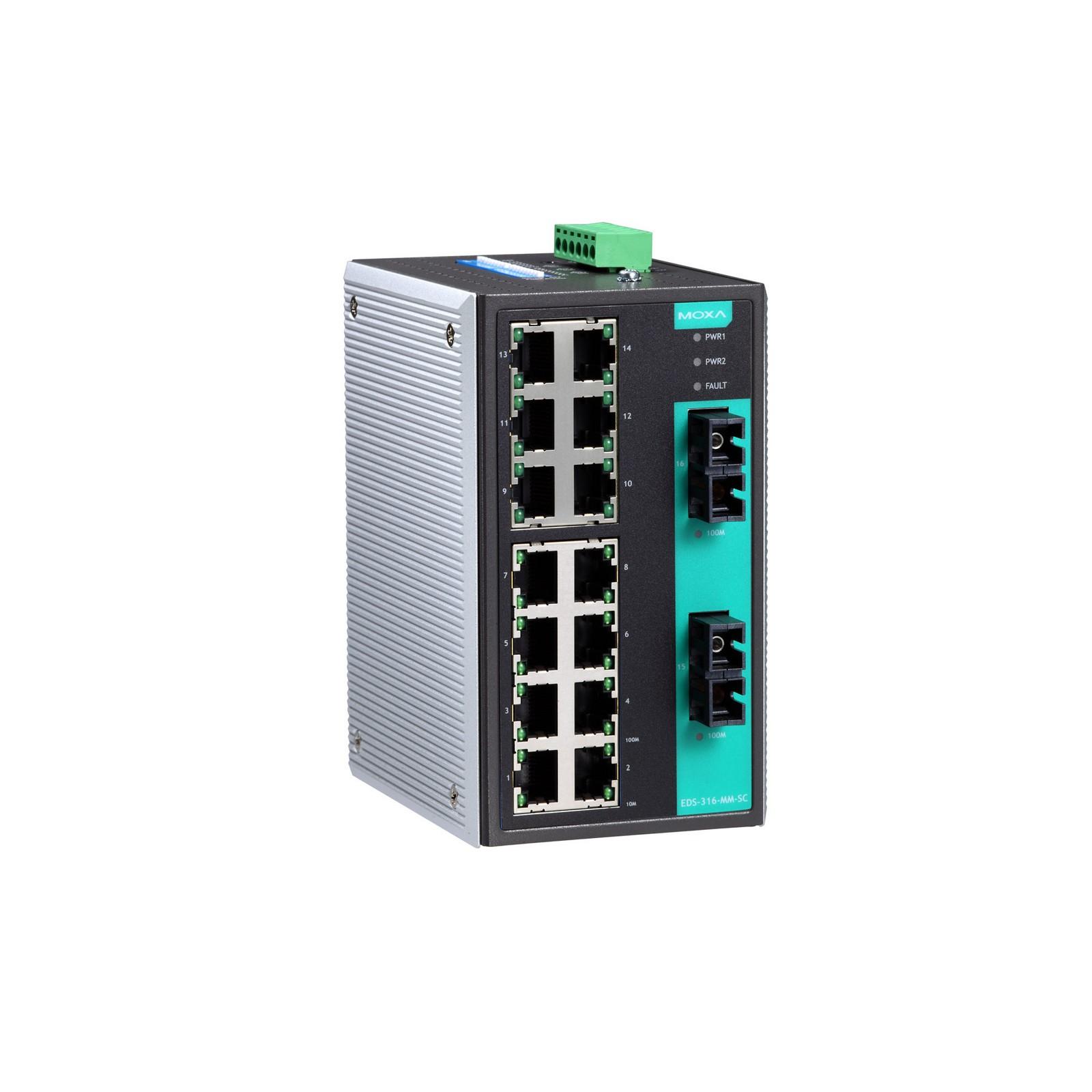

Input/Output Interface | |
| Alarm Contact Channels | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-316 Series: 16 EDS-316-MM-SC/MM-ST/MS-SC/SS-SC Series, EDS-316-SS-SC-80: 14 EDS-316-M-SC/M-ST/S-SC Series: 15 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-316-M-SC: 1 EDS-316-M-SC-T: 1 EDS-316-MM-SC: 2 EDS-316-MM-SC-T: 2 EDS-316-MS-SC: 1 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-316-M-ST Series: 1 EDS-316-MM-ST Series: 2 |
| 100BaseFX Ports (single-mode SC connector) | EDS-316-MS-SC, EDS-316-S-SC Series: 1 EDS-316-SS-SC Series: 2 |
| 100BaseFX Ports (single-mode SC connector, 80 km) | EDS-316-SS-SC-80: 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| Optical Fiber | Read more |
DIP Switch Configuration | |
| Ethernet Interface | Port break alarm |
Switch Properties | |
| MAC Table Size | 1.25 Mbits |
| Packet Buffer Size | 4 K |
| Processing Type | Store and Forward |
Power Parameters | |
| Input Current | Non-fiber models: 0.34 A @ 24 VDC Fiber models: 0.4 A @ 24 VDC |
| Connection | 1 removable 6-contact terminal block(s) |
| Operating Voltage | 9.6 to 60 VDC |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Reverse Polarity Protection | Supported |
| Overload Current Protection | Supported |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in) |
| Weight | 1140 g (2.52 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Hazardous Locations | ATEX, Class I Division 2 |
| EMI | CISPR 32, FCC Part 15B Class A |
| Maritime | DNV-GL |
| EMC | EN 55032/24 |
| Vibration | IEC 60068-2-6 |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | UL 508, UL 60950-1, CSA C22.2 No. 60950-1 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
MTBF | |
| Time | 257,516 hrs |
| Standard | MIL-HDBK-217F |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-316 Series | Datasheet | V1.1 | 11 September 2019 |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | 2 |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | 2 |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | 2 |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | 2 |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 15 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | 1 |
| Operating Temp. | -10 to 60°C |

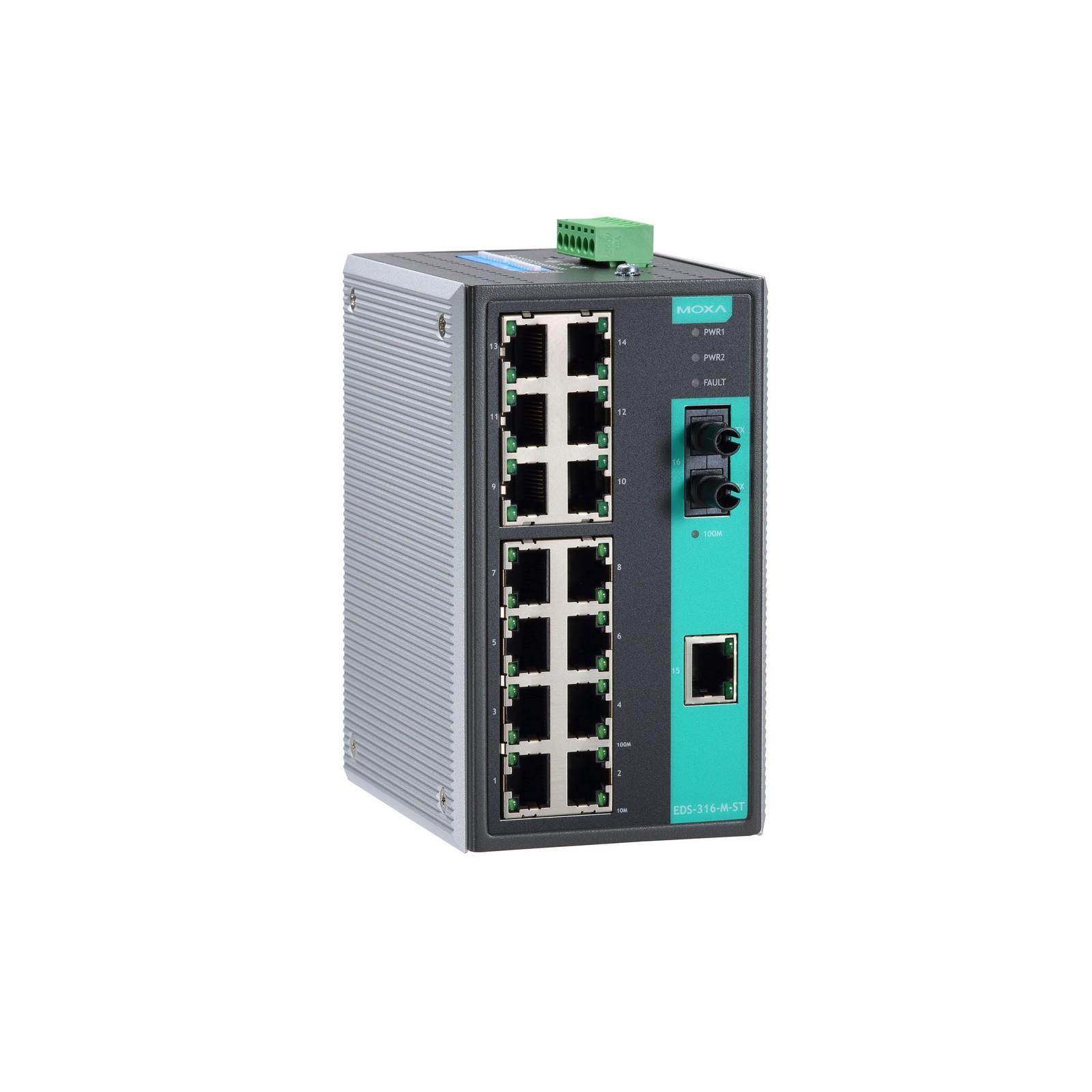

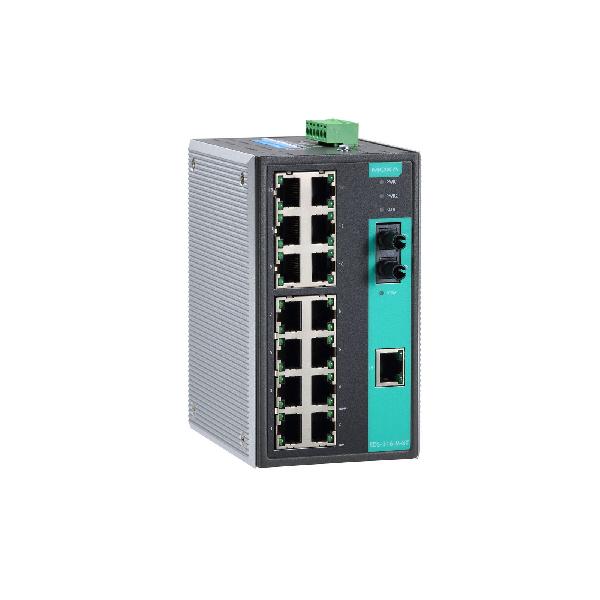

| 10/100BaseT(X) Ports RJ45 Connector | 15 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | 1 |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -10 to 60°C |

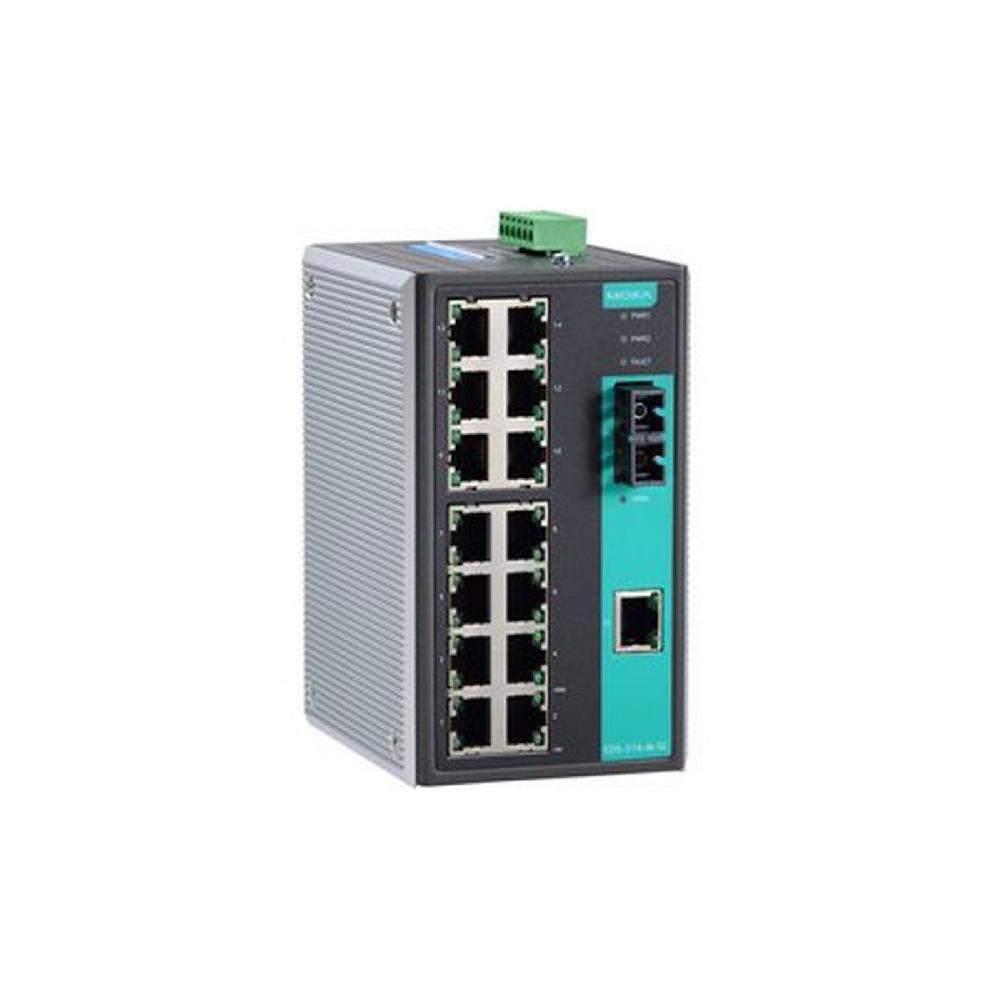

| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | 1 |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | 1 |
| Operating Temp. | -10 to 60°C |

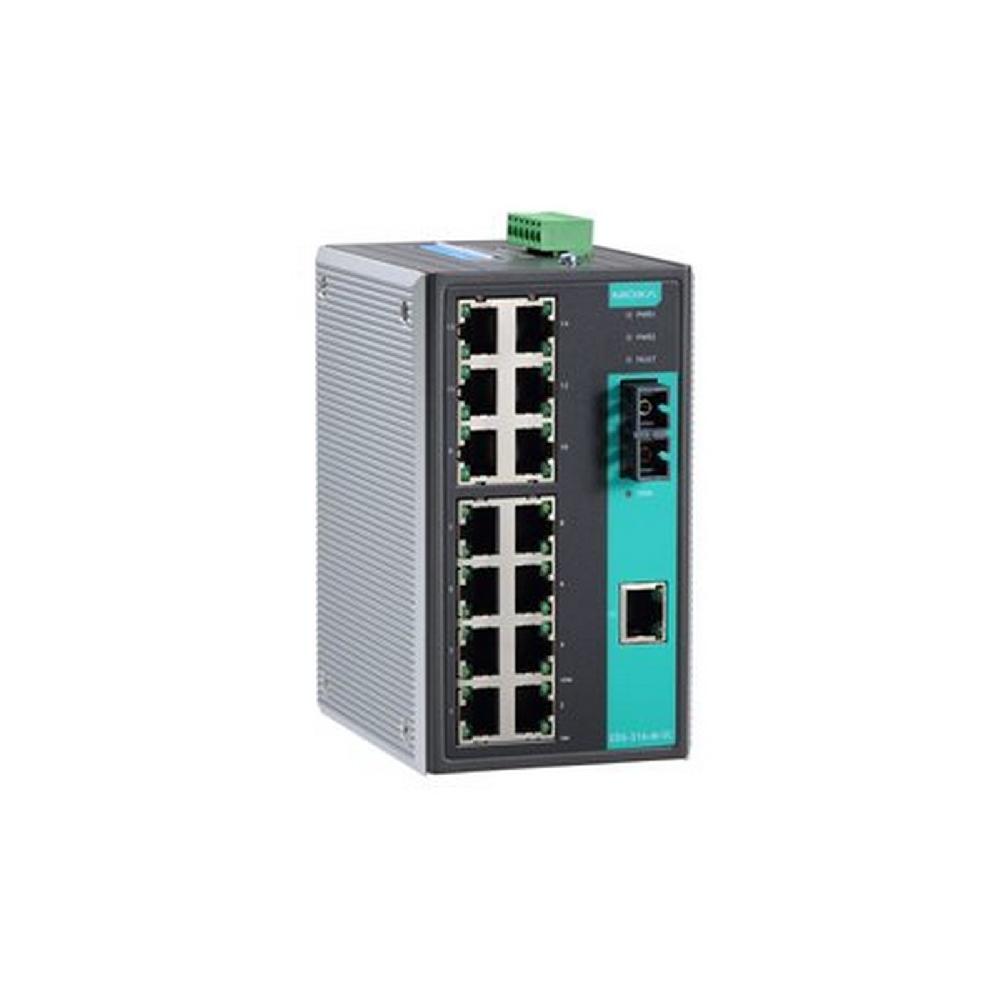

| 10/100BaseT(X) Ports RJ45 Connector | 15 |
| 100BaseFX Ports Multi-Mode, SC Connector | 1 |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | 2 |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | 2 |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -10 to 60°C |

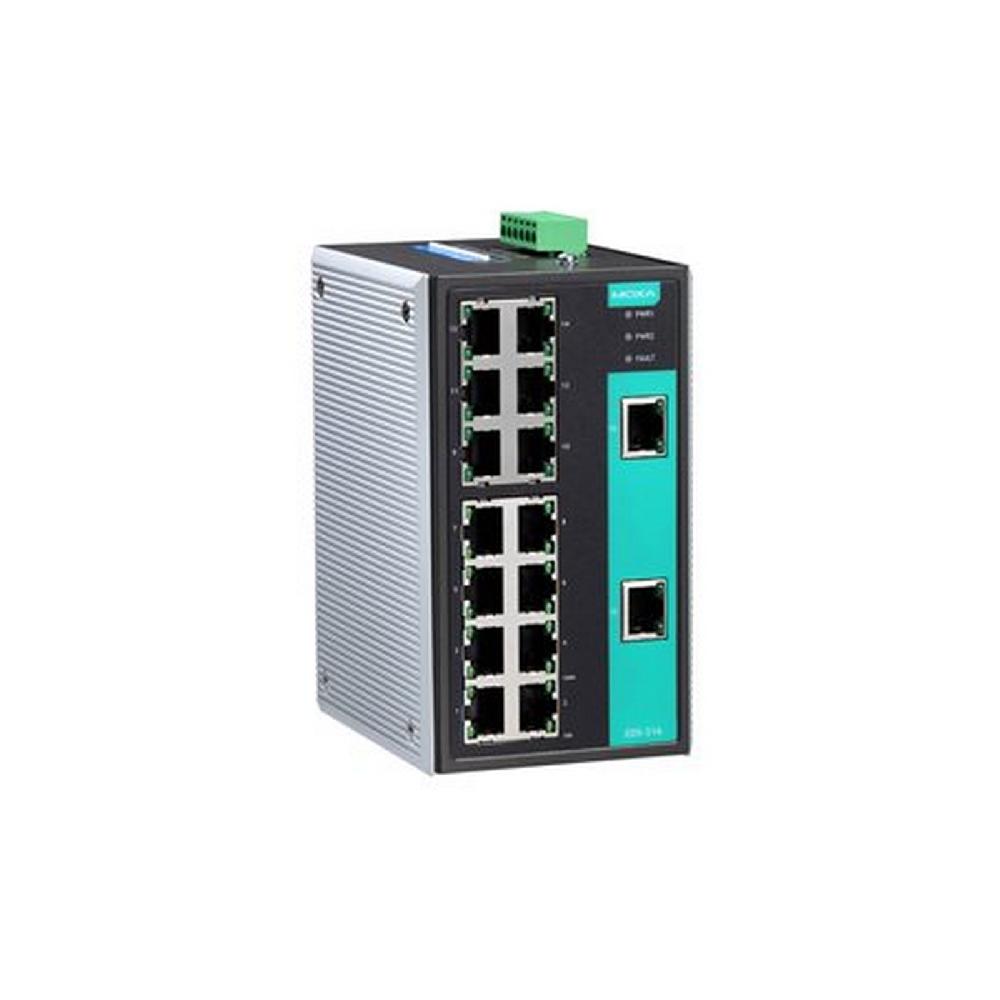

| 10/100BaseT(X) Ports RJ45 Connector | 16 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 16 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 14 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | 2 |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 15 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | 1 |
| Operating Temp. | -40 to 75°C |

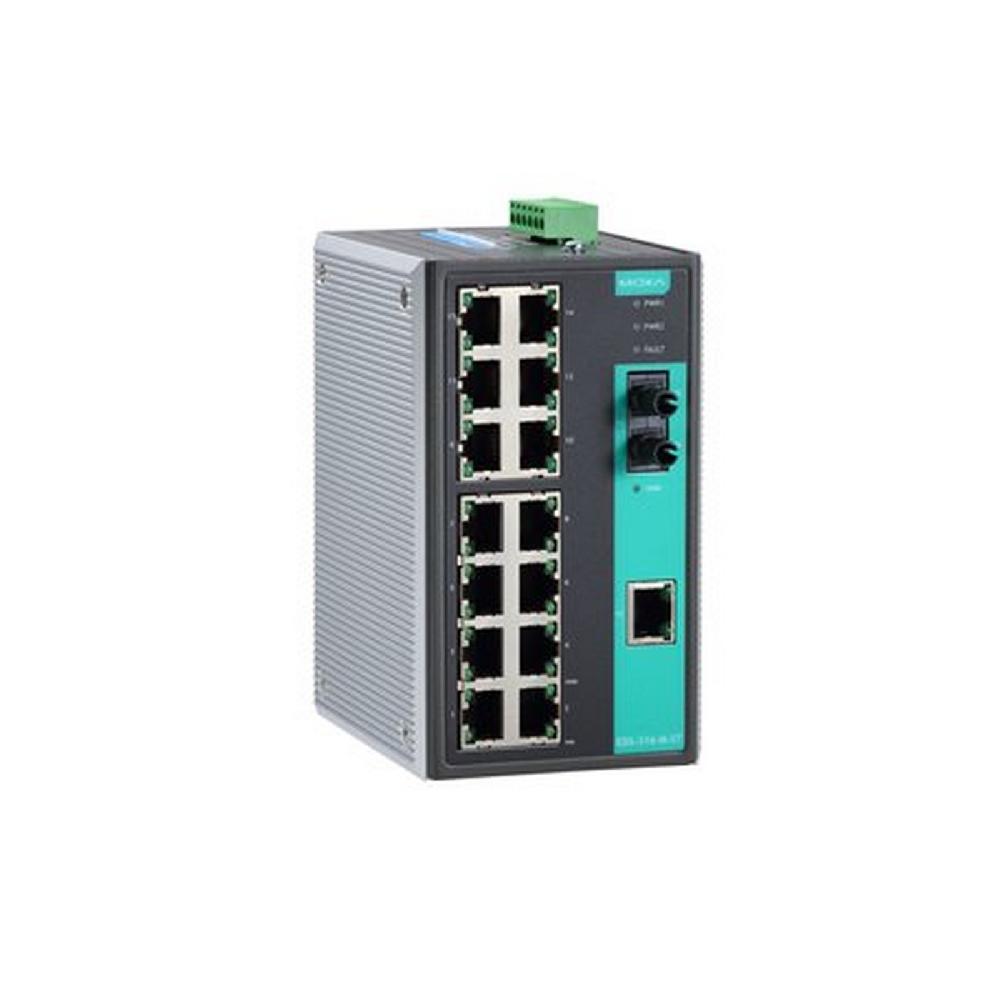

| 10/100BaseT(X) Ports RJ45 Connector | 15 |
| 100BaseFX Ports Multi-Mode, SC Connector | - |
| 100BaseFX Ports Multi-Mode, ST Connector | 1 |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 15 |
| 100BaseFX Ports Multi-Mode, SC Connector | 1 |
| 100BaseFX Ports Multi-Mode, ST Connector | - |
| 100BaseFX Ports Single-Mode, SC Connector | - |
| Operating Temp. | -40 to 75°C |
