TN-5308 Series

Introduction

The ToughNet TN-5308 Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. TN-5308 Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. TN-5308 Ethernet switches comply with those EN 50155 requirements that make products more suitable for rolling stock applications, including operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications. TN-5308 PoE Ethernet switches provide 4 or 8 IEEE 802.3af compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.

Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	TN-5308 Series non-PoE models: 8
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)	TN-5308-4PoE Series: 4 TN-5308-8PoE Series: 8
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control TN-5308 Series PoE models: IEEE 802.3af for PoE
Power Parameters
Input Current	TN-5308-LV Series: 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.05 A @ 48 VDC TN-5308-MV Series: 0.033 A @ 72 VDC, 0.024 A @ 96 VDC, 0.021 A @ 110 VDC TN-5308-4PoE Series: 1.6 A @ 48 VDC TN-5308-8PoE Series: 2.9 A @ 48 VDC
Input Voltage	TN-5308-LV Series: 12 to 48 VDC TN-5308-MV Series: 72 to 110 VDC PoE models: 48 VDC
Max. PoE Power Output per Port	TN-5308 Series PoE models: 15.4 W
No. of Power Inputs	1
Operating Voltage	TN-5308-LV Series: 8.4 to 60 VDC TN-5308-MV Series: 50.4 to 137.5 VDC TN-5308 Series PoE models: 46 to 50 VDC
Power Connector	TN-5308-LV Series and TN-5308 Series PoE models: M12 A-coded male connector TN-5308-MV Series: M23 connector
Physical Characteristics
Housing	Metal
IP Rating	IP40
Dimensions	TN-5308-LV Series: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in) TN-5308-MV Series: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in) TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in) TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in)
Weight	TN-5308-LV Series: 485 g (1.07 lb) TN-5308-MV Series: 685 g (1.51 lb) TN-5308-4PoE Series: 675 g (1.49 lb) TN-5308-8PoE Series: 970 g (2.14 lb)
Installation	DIN-rail mounting (with optional kit), Wall mounting
Protection	TN-5308 Series -CT models: PCB conformal coating
Environmental Limits
Operating Temperature	Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m
Standards and Certifications
Freefall	IEC 60068-2-32
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Environmental Testing	IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155
International Approval	RCM
Railway	EN 50121-4, EN 50155
Railway Fire Protection	EN 45545-2
Safety	EN 60950-1, UL 508
Salt Spray Test	IEC 60068-2-11, EN 50155
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
Declaration
Green Product	RoHS, CRoHS, WEEE
MTBF
Time	TN-5308-LV Series: 2,099,286 hrs TN-5308-MV Series: 2,590,858 hrs TN-5308-4PoE Series: 252,075 hrs TN-5308-8PoE Series: 308,392 hrs
Standard	Telcordia SR332
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for TN-5308 Series		Datasheet	V1.0	11 November 2018

TN-5308-LV-CT

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	12/24/36/48 VDC
Operating Temp.	-25 to 60°C
Conformal Coating	✓

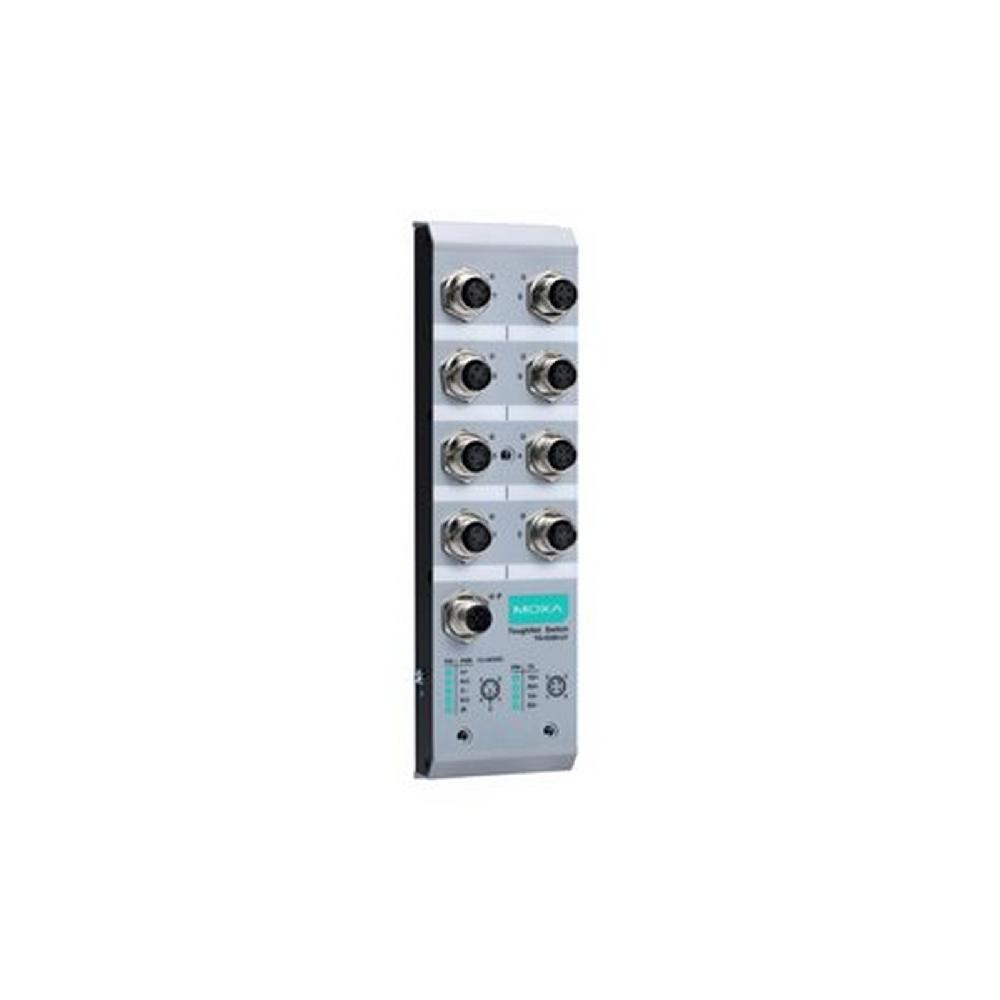

TN-5308-LV-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	12/24/36/48 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	-

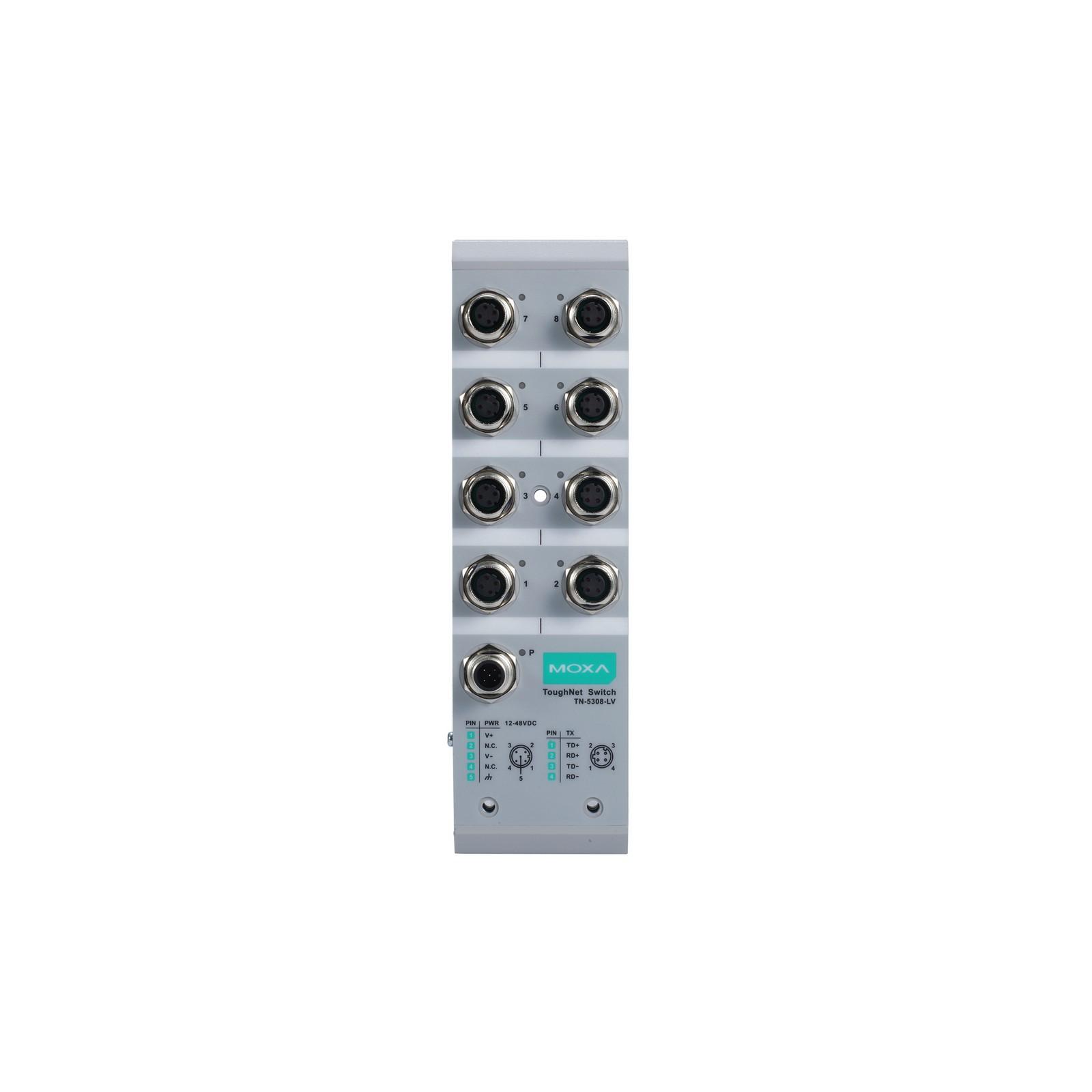

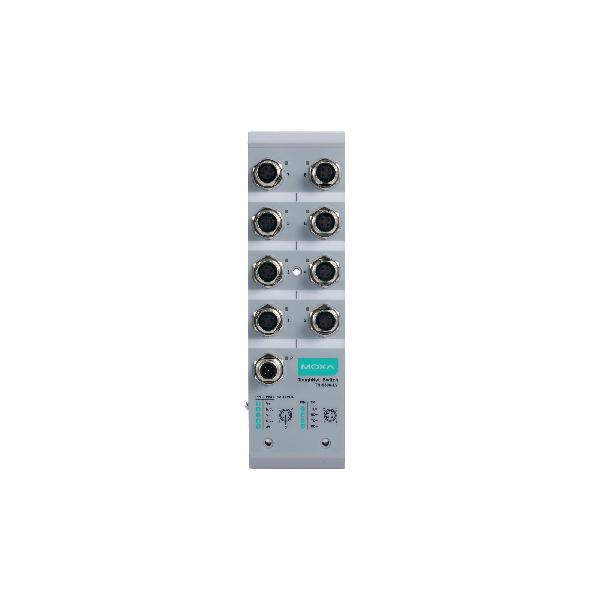

TN-5308-LV

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	12/24/36/48 VDC
Operating Temp.	-25 to 60°C
Conformal Coating	-

TN-5308-8PoE-48-CT-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
Power Input	Single input
Input Voltage	48 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	✓

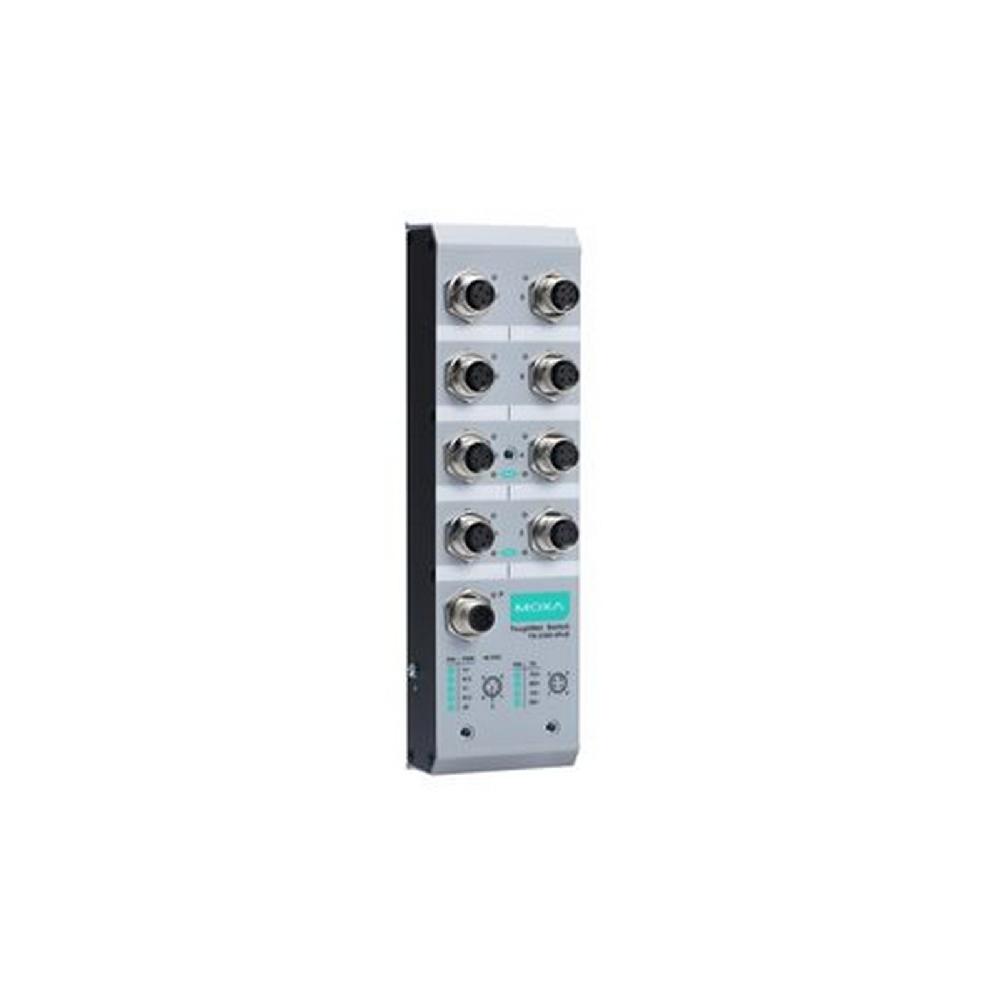

TN-5308-4PoE-48-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	4
10/100BaseT(X) Ports, M12 D-Coded Female Connector	4
Power Input	Single input
Input Voltage	48 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	-

TN-5308-4PoE-48

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	4
10/100BaseT(X) Ports, M12 D-Coded Female Connector	4
Power Input	Single input
Input Voltage	48 VDC
Operating Temp.	-25 to 60°C
Conformal Coating	-

TN-5308-MV-CT

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	72/96/110 VDC
Operating Temp.	-25 to 60°C
Conformal Coating	✓

TN-5308-MV-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	72/96/110 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	-

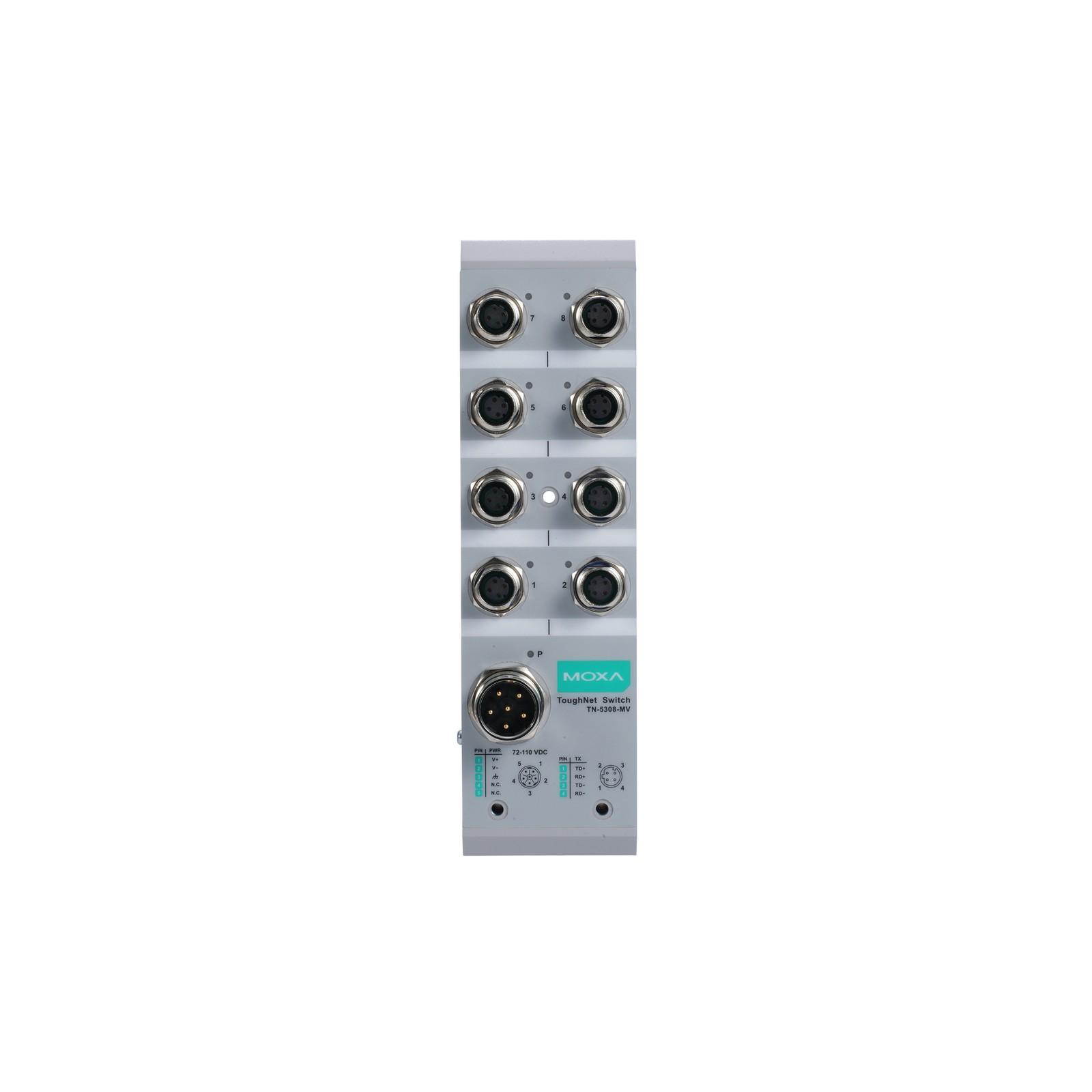

TN-5308-MV

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	72/96/110 VDC
Operating Temp.	-25 to 60°C
Conformal Coating	-

TN-5308-LV-CT-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	12/24/36/48 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	✓

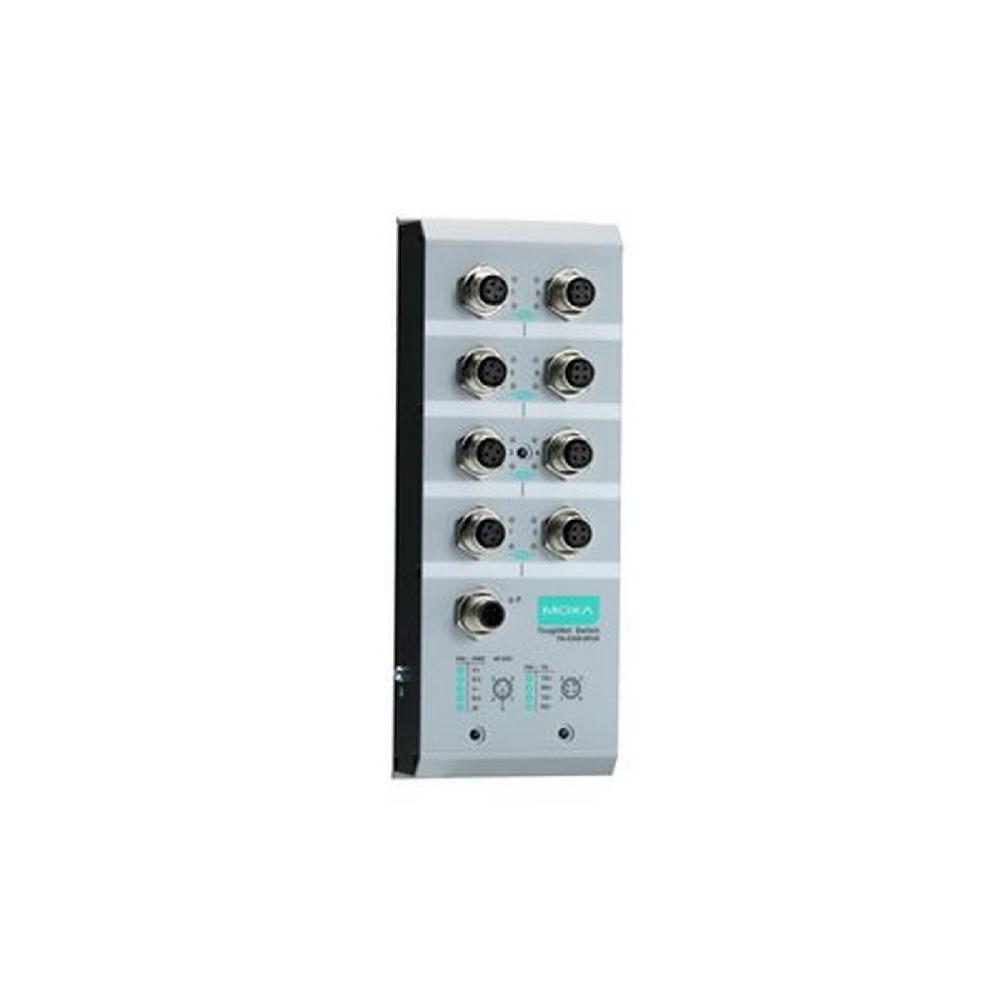

TN-5308-4PoE-48-CT-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	4
10/100BaseT(X) Ports, M12 D-Coded Female Connector	4
Power Input	Single input
Input Voltage	48 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	✓

TN-5308-8PoE-48-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
Power Input	Single input
Input Voltage	48 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	-

TN-5308-8PoE-48

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
Power Input	Single input
Input Voltage	48 VDC
Operating Temp.	-25 to 60°C
Conformal Coating	-

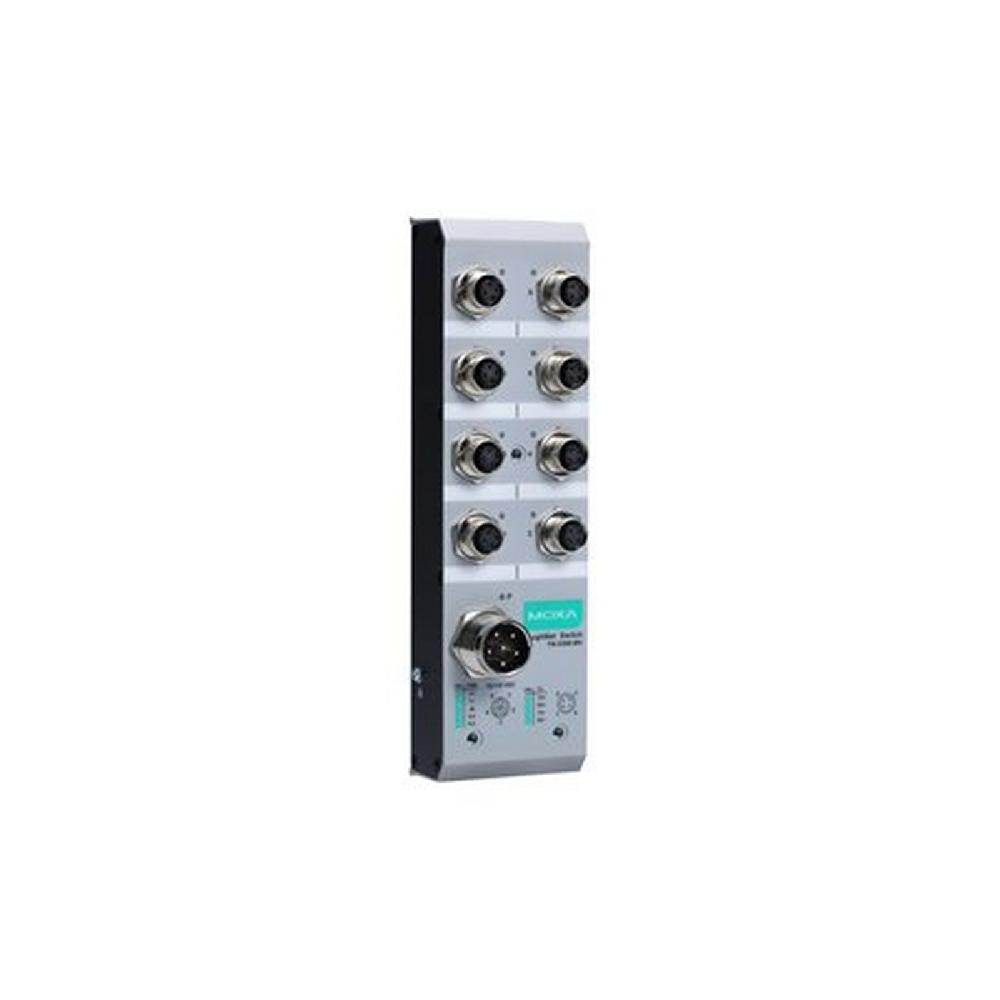

TN-5308-MV-CT-T

PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector	-
10/100BaseT(X) Ports, M12 D-Coded Female Connector	8
Power Input	Single input
Input Voltage	72/96/110 VDC
Operating Temp.	-40 to 75°C
Conformal Coating	✓
