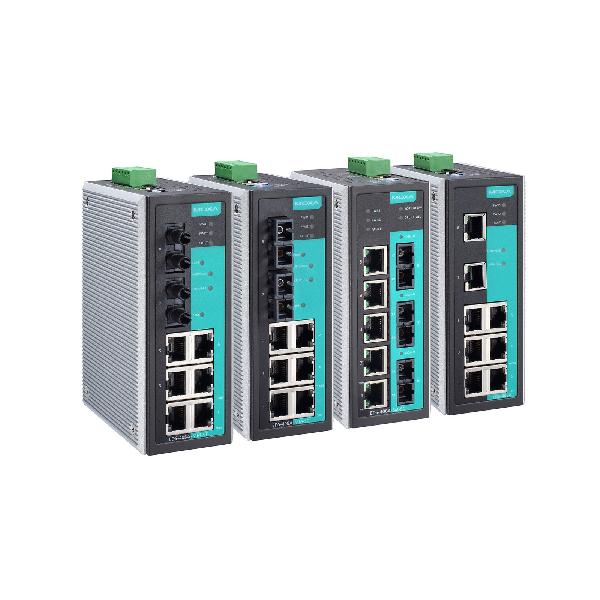

EDS-408A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

8-port entry-level managed Ethernet switches

Product Feature

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
  • IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • PROFINET or EtherNet/IP enabled by default (PN or EIP models)
  • Supports MXstudio for easy, visualized industrial network management

Introduction

The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.



Additional Features and Benefits

  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, Modbus TCP and PROFINET
  • EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
  • PROFINET GSDML file and SIMATIC STEP 7 device icons available
  • Port mirroring for online debugging
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
  • RMON for proactive and efficient network monitoring
  • SNMPv1/v2c/v3 for different levels of network management security
  • Bandwidth management to prevent unpredictable network status

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)EDS-408A/408A-T, EDS-408A-EIP/PN Series: 8
EDS-408A-MM-SC/MM-ST/SS-SC Series: 6
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 5

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)EDS-408A-MM-SC/2M1S-SC Series: 2
EDS-408A-3M-SC Series: 3
EDS-408A-1M2S-SC Series: 1
100BaseFX Ports (multi-mode ST connector)EDS-408A-MM-ST Series: 2
EDS-408A-3M-ST Series: 3
100BaseFX Ports (single-mode SC connector)EDS-408A-SS-SC/1M2S-SC Series: 2
EDS-408A-2M1S-SC Series: 1
EDS-408A-3S-SC/3S-SC-48 Series: 3
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
Optical FiberRead more

Ethernet Software Features

Filter802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial ProtocolsEtherNet/IP, Modbus TCP, EDS-408A-PN Series: PROFINET IO Device (Slave)
Management

Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP

Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON,

SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIBBridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy ProtocolsRSTP, STP, Turbo Chain, Turbo Ring v1/v2
Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups256
MAC Table Size8 K
Max. No. of VLANs64
Packet Buffer Size1 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

Serial Interface

Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact ChannelsRelay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters

Connection1 removable 6-contact terminal block(s)
Input VoltageAll models: Redundant dual inputs
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN Series: 12/24/48 VDC
EDS-408A-3S-SC-48/408A-3S-SC-48-T: ±24/±48 VDC
Operating VoltageEDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN Series: 9.6 to 60 VDC

EDS-408A-3S-SC-48 Series:
±19 to ±60 VDC
Input CurrentEDS-408A/408A-T, EDS-408A-EIP/PN Series: 0.18 A @ 24 VDC
EDS-408A-MM-SC/MM-ST/SS-SC Series: 0.30 A @ 24 VDC
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 0.35 A @ 24 VDC
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
WeightEDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC, EDS-408A-EIP/PN Series: 650 g (1.44 lb)
EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 890 g (1.97 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: -10 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyAll models: EN 60950-1, UL 508
EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC Series, EDS-EIP/PN Series: UL 60950-1
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous LocationsEDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC Series, EDS-408A-EIP/PN Series: ATEX, Class I Division 2
MaritimeEDS-408A/408A-T, EDS-408A-MM/SS Series: NK
EDS-408A/408A-T, EDS-408A-MM/SS Series, EDS-408A-EIP/PN Series: DNV-GL
RailwayEN 50121-4
Traffic ControlNEMA TS2
FreefallIEC 60068-2-31
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

TimeEDS-408A/408A-T, EDS-408A-EIP/PN Series: 1,339,439 hrs
EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC Series: 1,253,072 hrs
EDS-408A-3S-SC-48 Series: 989,940 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-408A Series Datasheet V1.1 27 August 2019

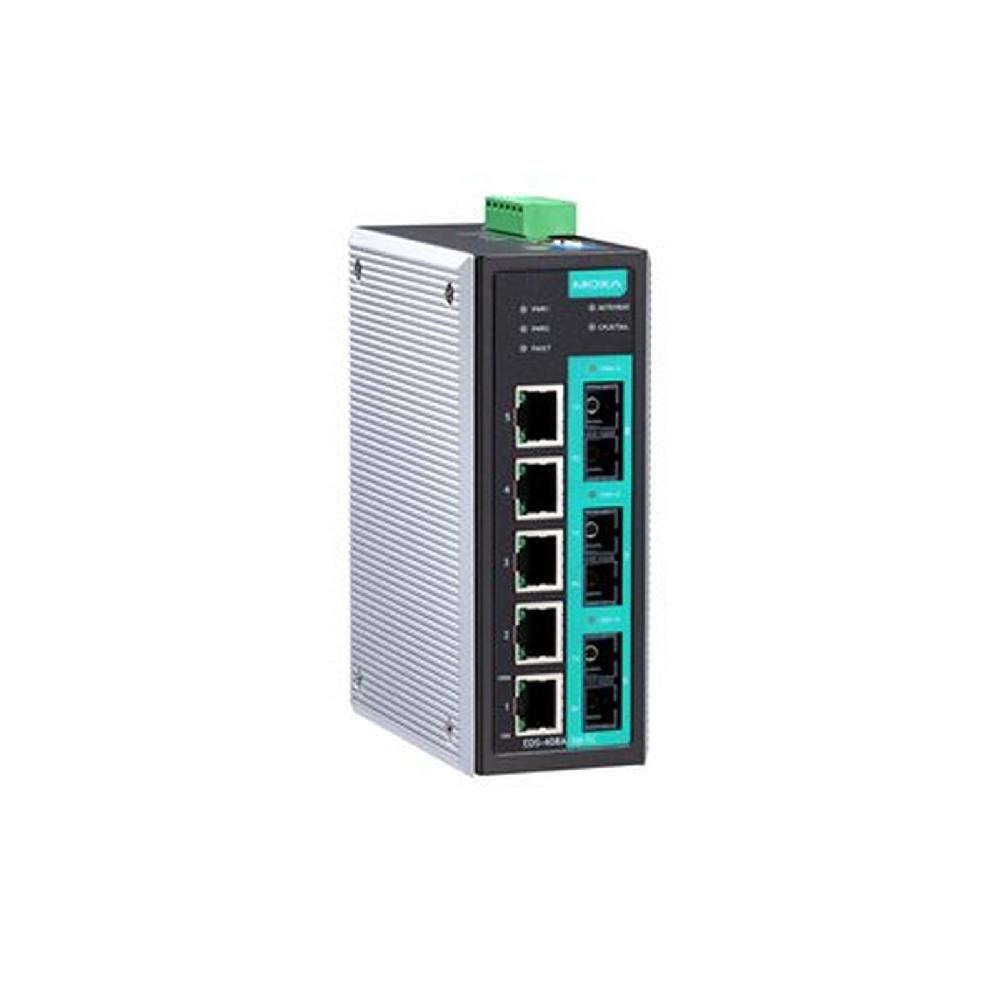

EDS-408A-3S-SC-48

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 3
Operating Temp. -10 to 60°C

EDS-408A-3S-SC

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 3
Operating Temp. -10 to 60°C

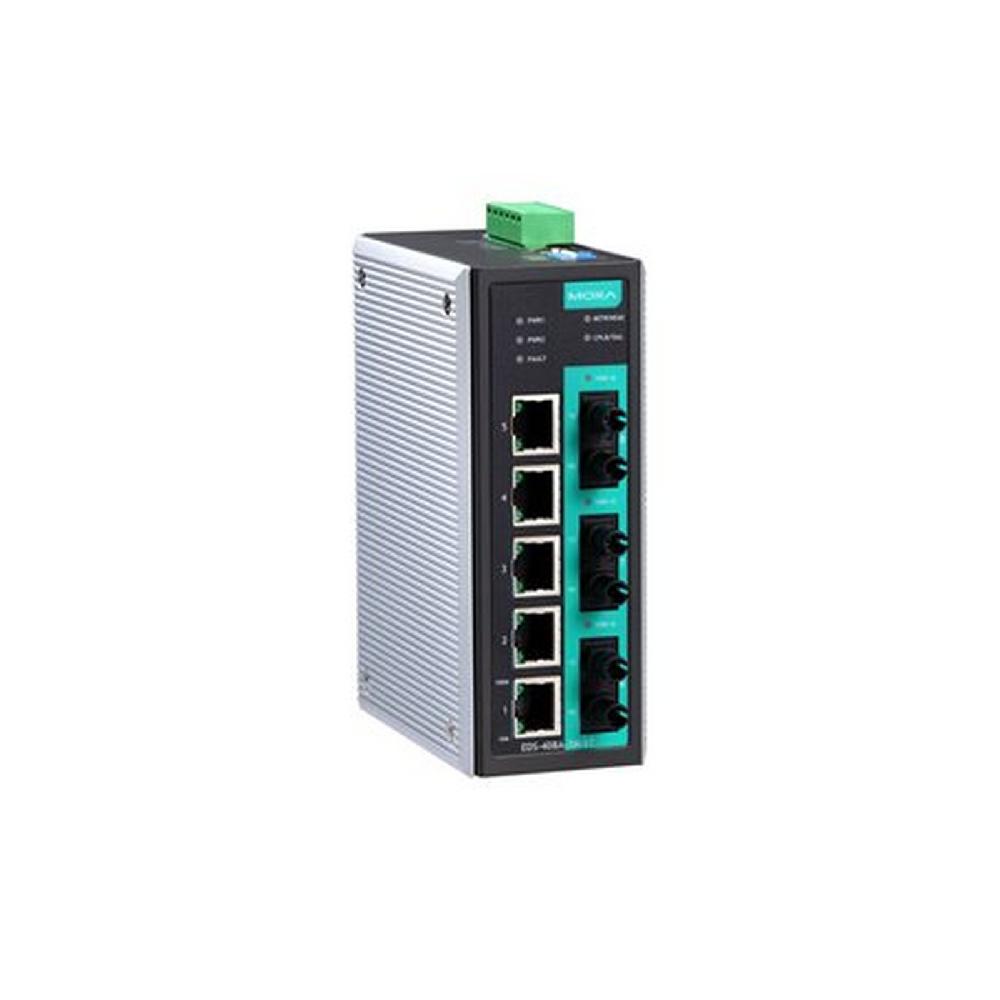

EDS-408A-3M-ST

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 3
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-408A-3M-SC

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector 3
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-408A-2M1S-SC

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -10 to 60°C

EDS-408A-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-408A-SS-SC-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -40 to 75°C

EDS-408A-PN-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-408A-MM-ST-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-408A-1M2S-SC

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

EDS-408A-EIP-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

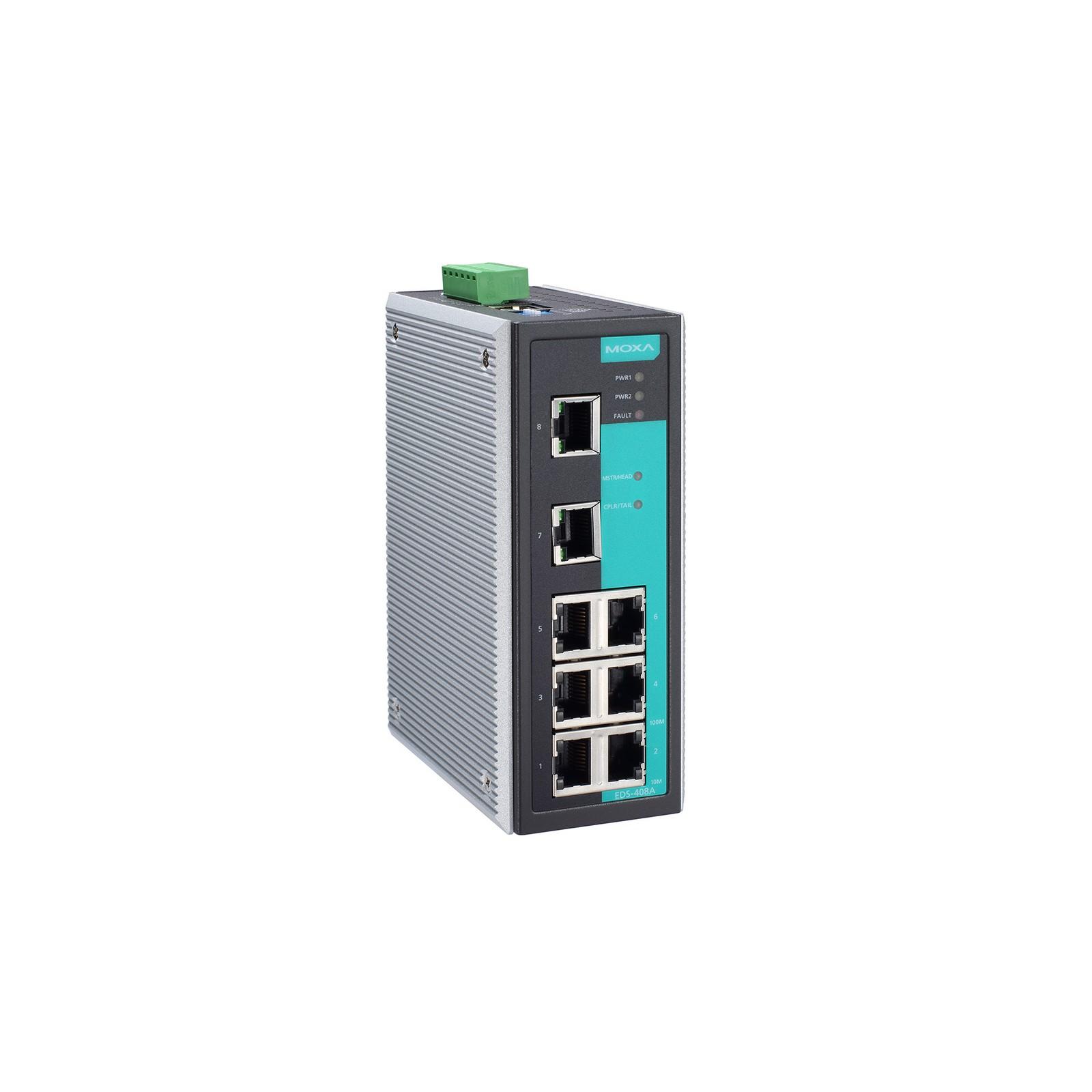

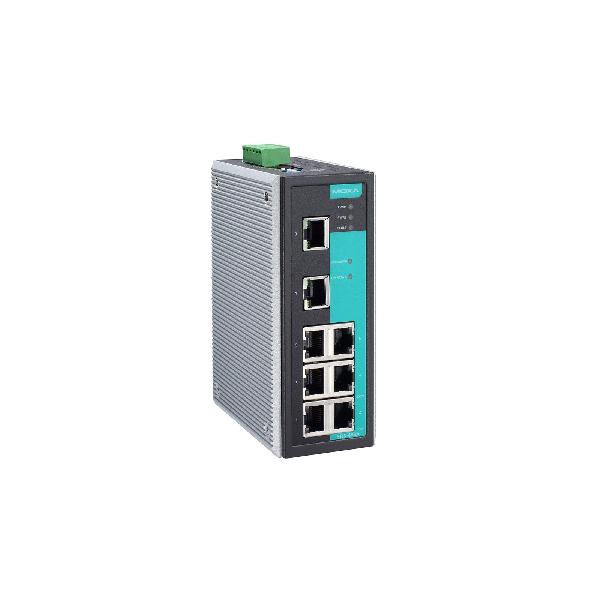

EDS-408A

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-408A-MM-SC-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-408A-SS-SC

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

EDS-408A-PN

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

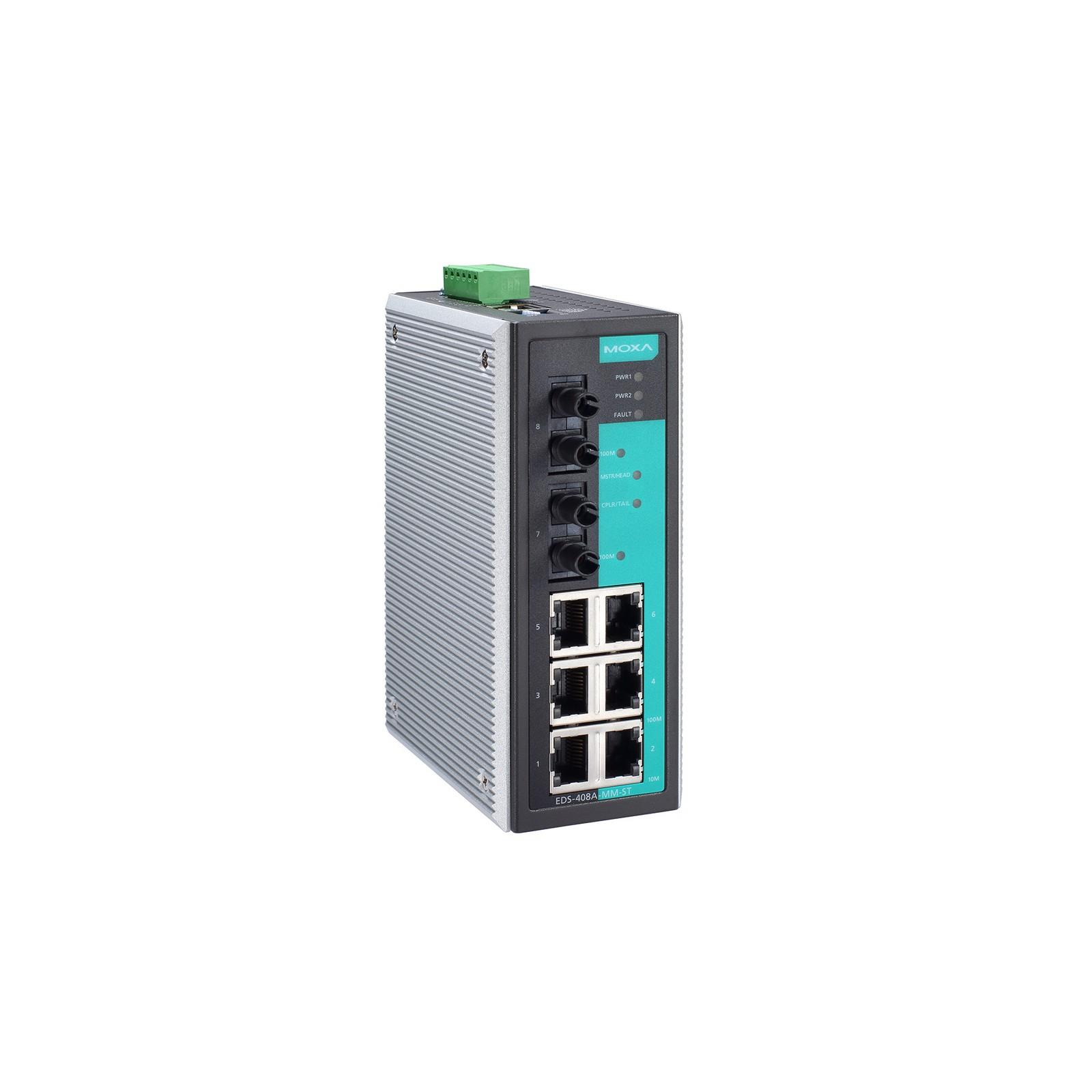

EDS-408A-MM-ST

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

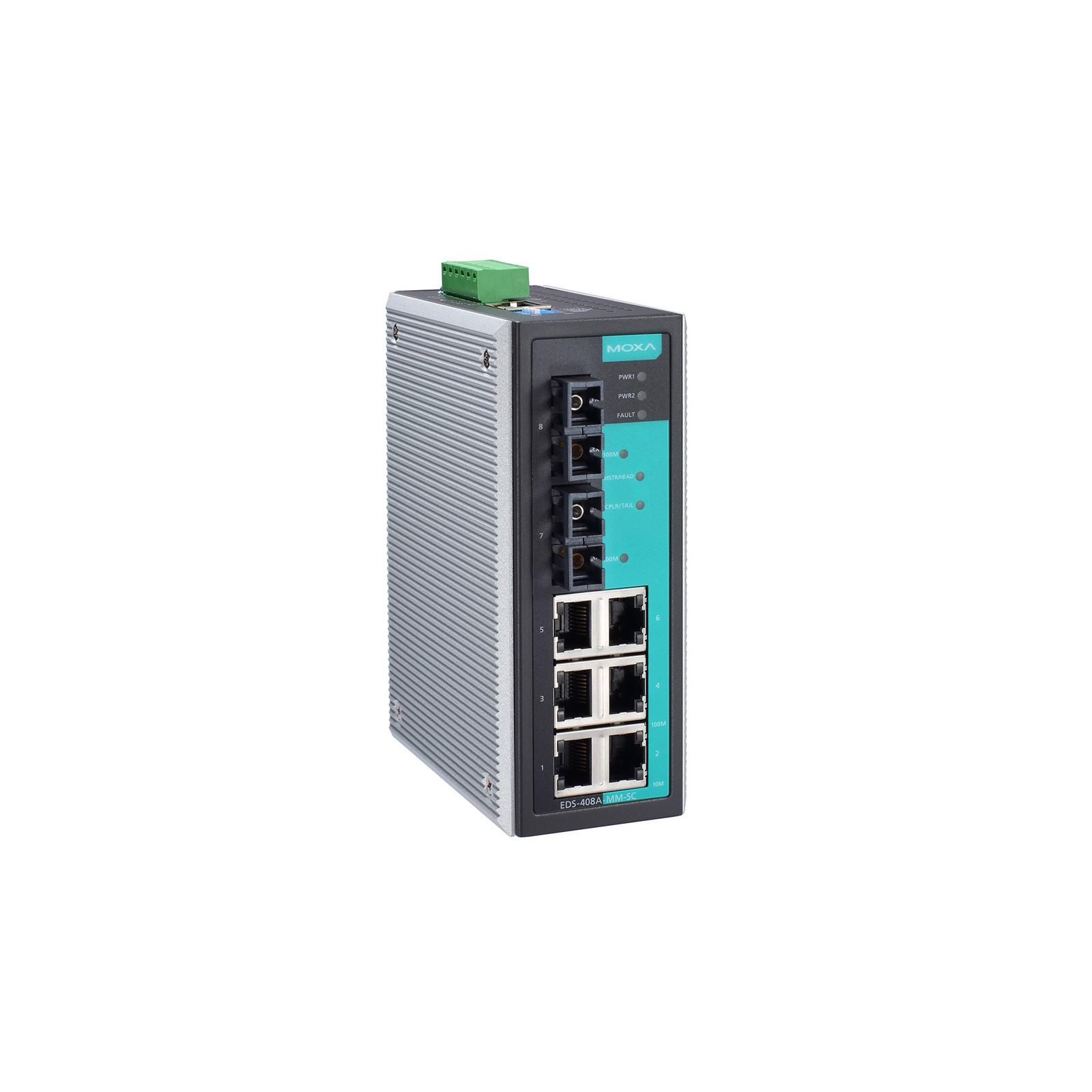

EDS-408A-MM-SC

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 6
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-408A-EIP

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 8
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-408A-3S-SC-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 3
Operating Temp. -40 to 75°C

EDS-408A-3S-SC-48-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 3
Operating Temp. -40 to 75°C

EDS-408A-3M-ST-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 3
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-408A-3M-SC-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector 3
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-408A-2M1S-SC-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 1
Operating Temp. -40 to 75°C

EDS-408A-1M2S-SC-T

Layer 2
Total No. of Ports 8
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector 1
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -40 to 75°C

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/productview.php on line 633

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/productview.php on line 633


Notice: Undefined variable: title_ap in /opt/lampp/htdocs/productview.php on line 638


Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/productview.php on line 639

บริษัท พีที ออโตเมชั่น (ไทยแลนด์) จำกัด

  • เลขที่ 9 อาคารภคินท์ ชั้น 9 ห้องเลขที่ 901 ถนนรัชดาภิเษก แขวงดินแดง เขตดินแดง กรุงเทพฯ 10400
  • โทรและแฟกซ์ : +66(0)-2020-3000
  • อีเมล์ : product@pt-automations.com
  • Facebook : facebook.com/ptautomations

จันทร์ ถึง ศุกร์ เวลา 9.00 น. – 18.00 น.

พนักงานขาย (SALES)

EN
TH
