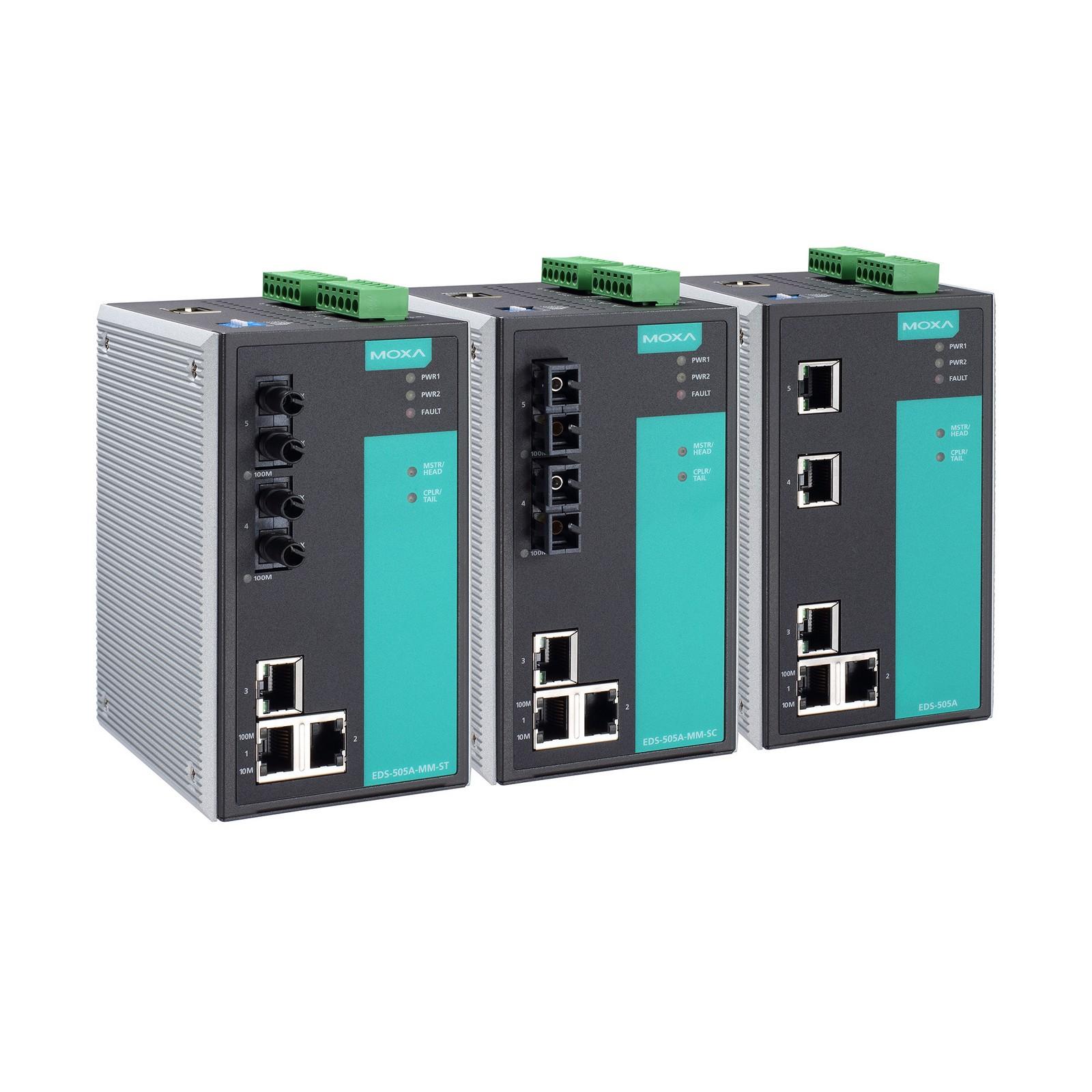

EDS-505A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

5-port managed Ethernet switches

Product Feature

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management

Introduction

The EDS-505A standalone 5-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-505A switches suitable for any harsh industrial environment.



Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
  • Compatible with PROFINET protocol for transparent data transmission
  • Lock port function for blocking unauthorized access based on MAC address
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • RMON for proactive and efficient network monitoring
  • SNMPv1/v2c/v3 for different levels of network management
  • Bandwidth management to prevent unpredictable network status
  • Automatic warning by exception through email and relay output

Input/Output Interface

Alarm Contact Channels2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels2
Digital Inputs+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
ButtonsReset button

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)EDS-505A/505A-T: 5
EDS-505A-MM-SC/MM-ST/SS-SC Series: 3

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)EDS-505A-MM-SC Series: 2
100BaseFX Ports (multi-mode ST connector)EDS-505A-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector)EDS-505A-SS-SC Series: 2
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
Optical FiberRead more

Ethernet Software Features

Filter802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial ProtocolsEtherNet/IP, Modbus TCP
Management

IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control,

BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check,

Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP

MIB

MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,

RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy ProtocolsSTP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
SecurityHTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm protection
Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups256
MAC Table Size8 K
Max. No. of VLANs64
Packet Buffer Size1 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

LED Interface

LED IndicatorsPWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Power Parameters

Connection2 removable 6-contact terminal block(s)
Input Voltage12/24/48 VDC, Redundant dual inputs
Operating Voltage9.6 to 60 VDC
Input CurrentEDS-505A/EDS-505A-T: 0.21 A @ 24 VDC
EDS-505A-MM-SC/MM-ST/SS-SC Series: 0.29 A @ 24 VDC
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight1040 g (2.3 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508
Hazardous LocationsATEX, Class I Division 2
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
ShockIEC 60068-2-27
FreefallIEC 60068-2-31
VibrationIEC 60068-2-6

MTBF

Time1,090,077 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-505A Series Datasheet V1.4 11 September 2019

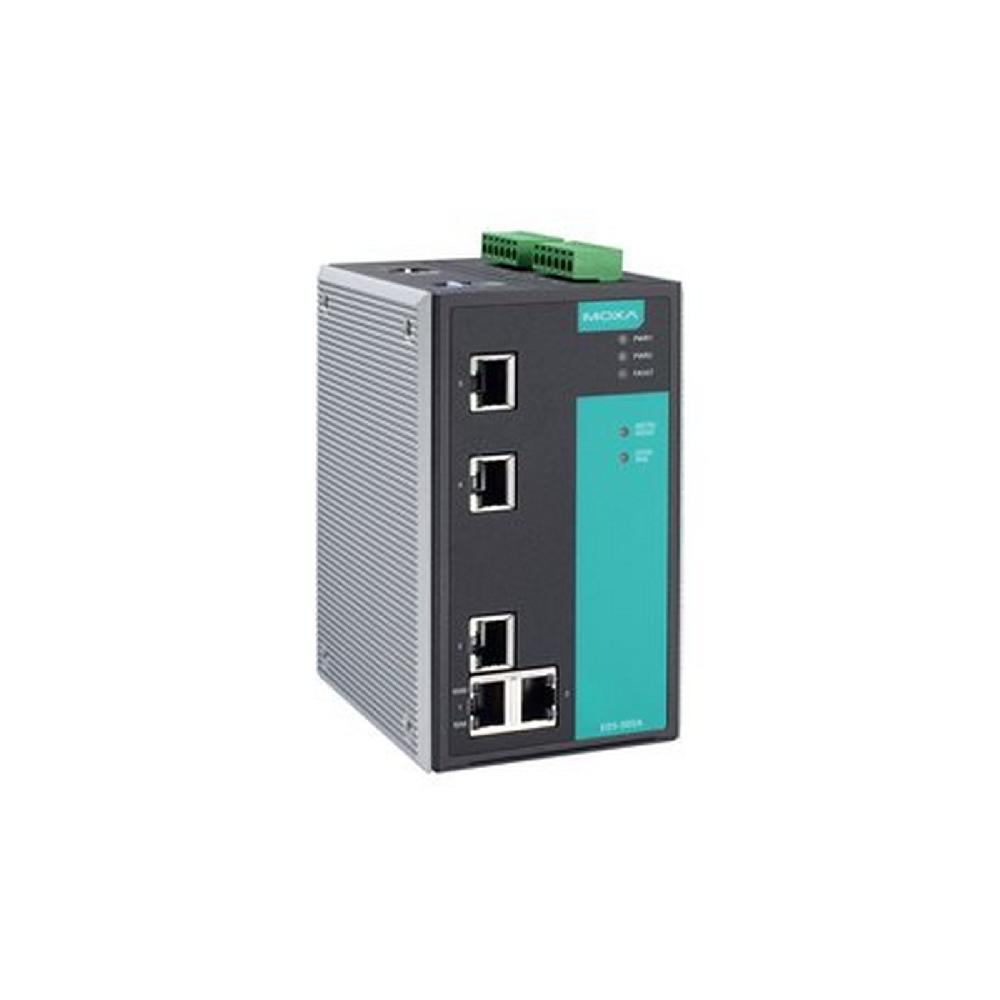

EDS-505A-T

10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

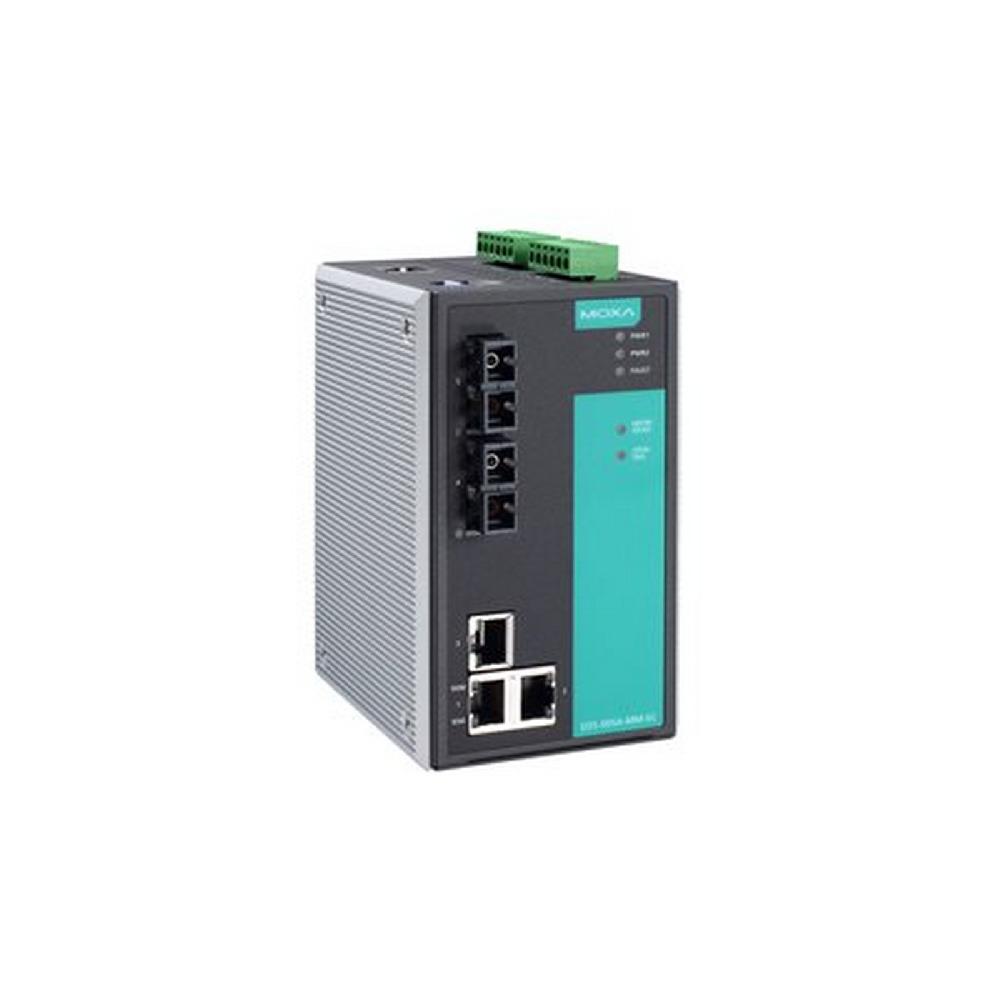

EDS-505A-SS-SC-T

10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -40 to 75°C

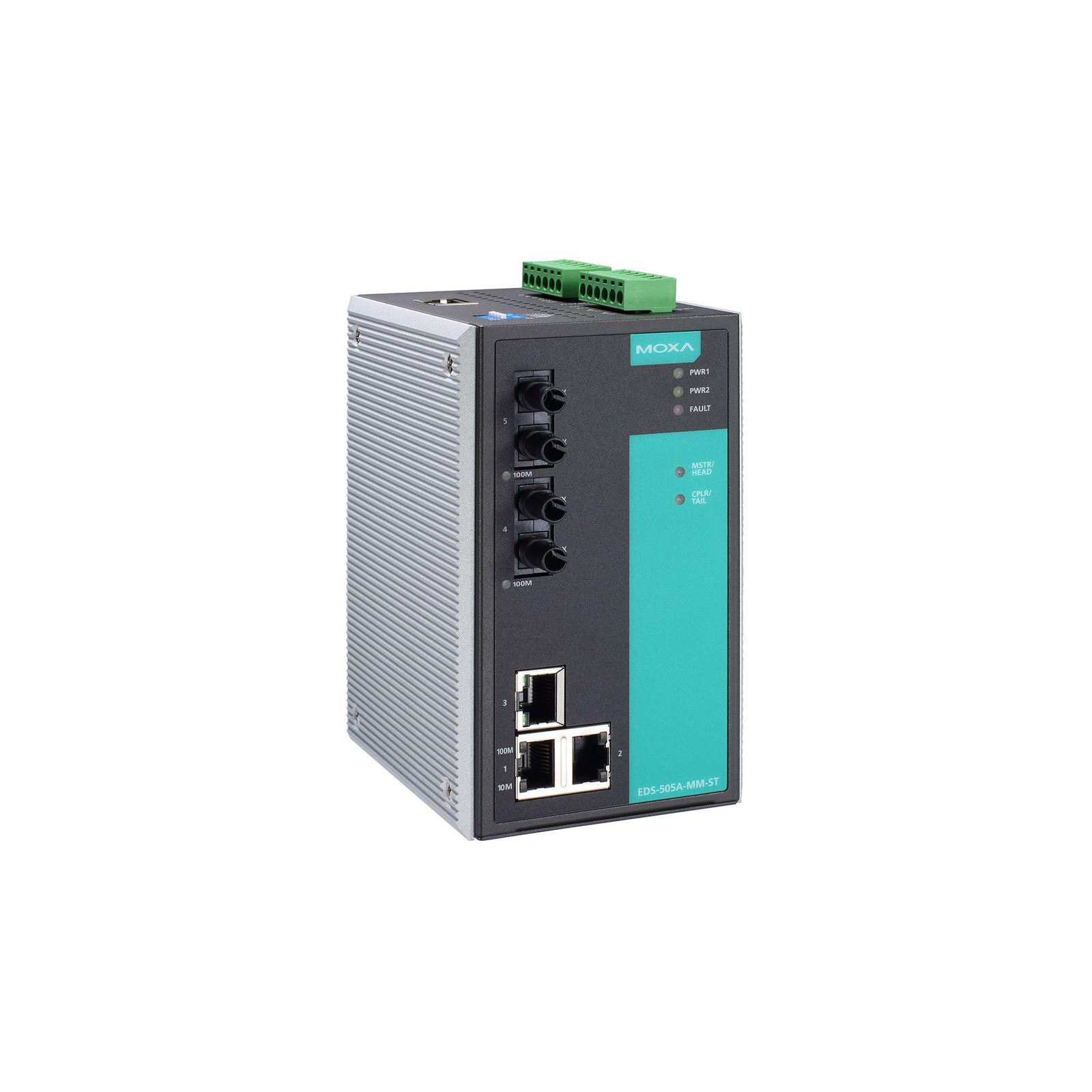

EDS-505A-MM-ST-T

10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-505A-MM-SC-T

10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -40 to 75°C

EDS-505A-SS-SC

10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector 2
Operating Temp. -10 to 60°C

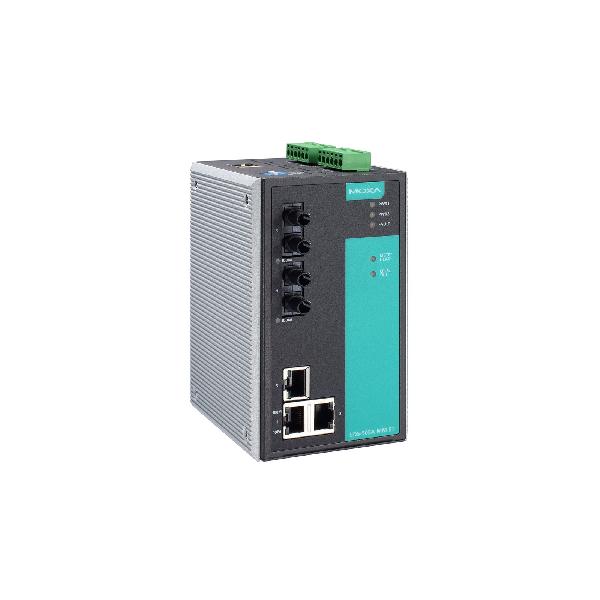

EDS-505A-MM-ST

10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector 2
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

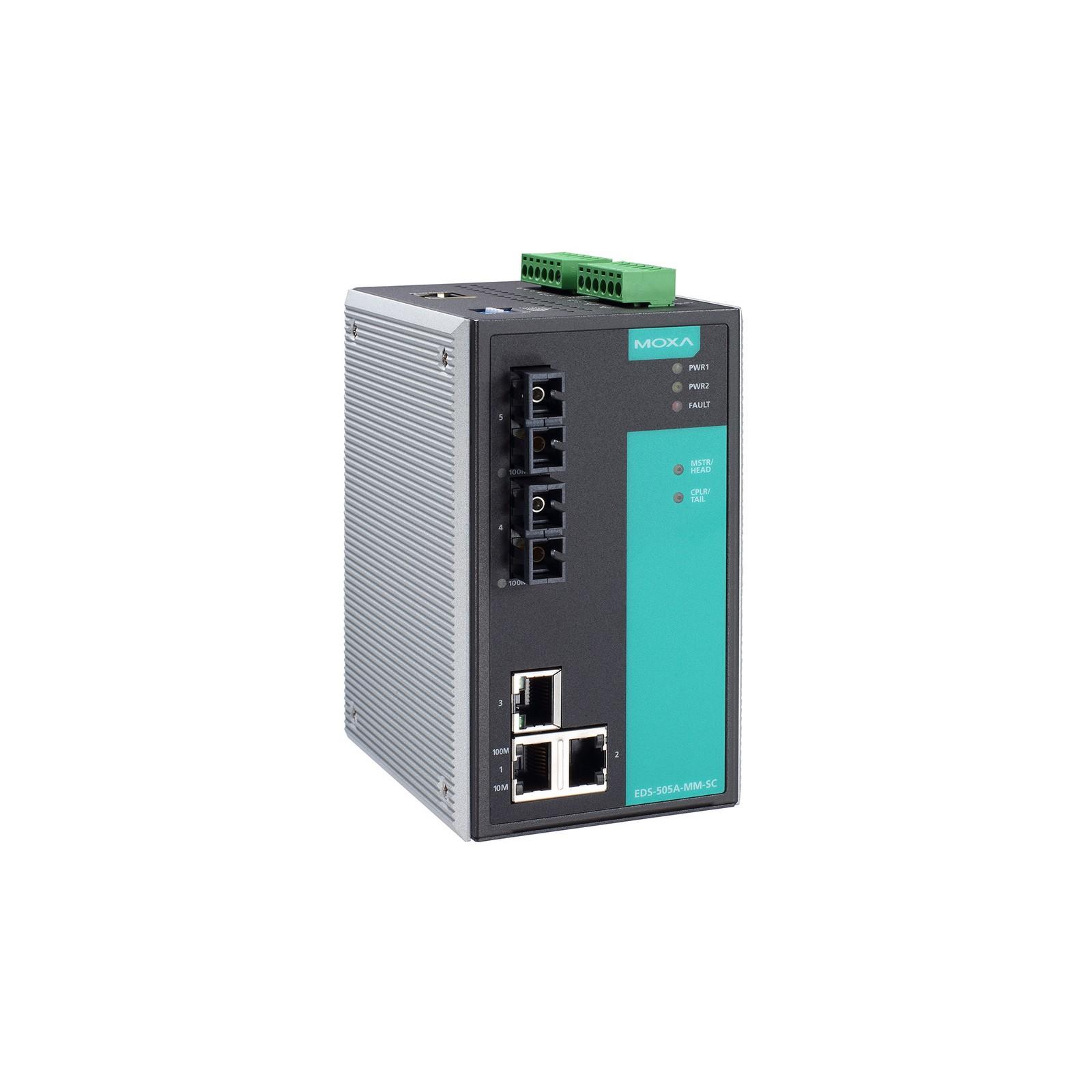

EDS-505A-MM-SC

10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode, SC Connector 2
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C

EDS-505A

10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode, SC Connector -
100BaseFX Ports Multi-Mode, ST Connector -
100BaseFX Ports Single-Mode, SC Connector -
Operating Temp. -10 to 60°C
