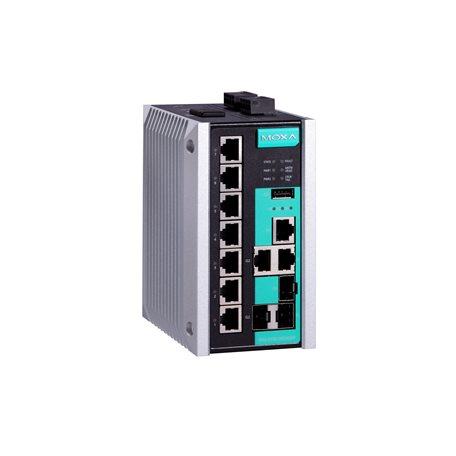

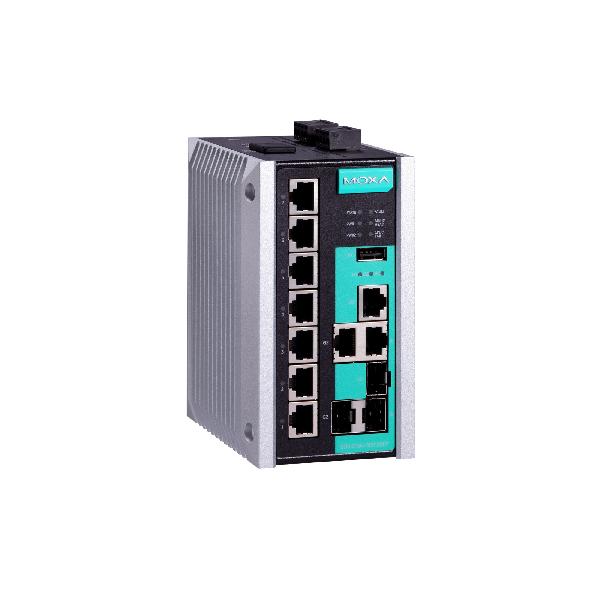

The EDS-510E Gigabit managed Ethernet switches are designed to meet rigorous mission-critical applications, such as factory automation, ITS, and process control. The 3 Gigabit Ethernet ports allow great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switches have USB interfaces for switch configuration, system file backup, and firmware upgrade, making them easier to manage.
Input/Output Interface | |
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 7 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 3 |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
Ethernet Software Features | |
| Filter | 802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave) |
| Management | LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, SMTP with TLS |
| Time Management | NTP Server/Client, SNTP |
Switch Properties | |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
USB Interface | |
| Storage Port | USB Type A |
LED Interface | |
| LED Indicators | PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL |
Serial Interface | |
| Console Port | USB-serial console (Type B connector) |
DIP Switch Configuration | |
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
Power Parameters | |
| Connection | 2 removable 4-contact terminal block(s) |
| Input Current | 0.58 A @ 24 VDC |
| Input Voltage | 12/24/48/-48 VDC, Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in) |
| Weight | 1690 g (3.73 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | EDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F) EDS-510E-3GTXSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | DNV-GL, LR, ABS, NK |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 725,532 hrs |
| Standard | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-510E Series | Datasheet | V1.3 | 27 August 2019 |
| 10/100BaseT(X) Ports RJ45 Connector | 7 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 3 |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 7 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 3 |
| Operating Temp. | -10 to 60°C |
