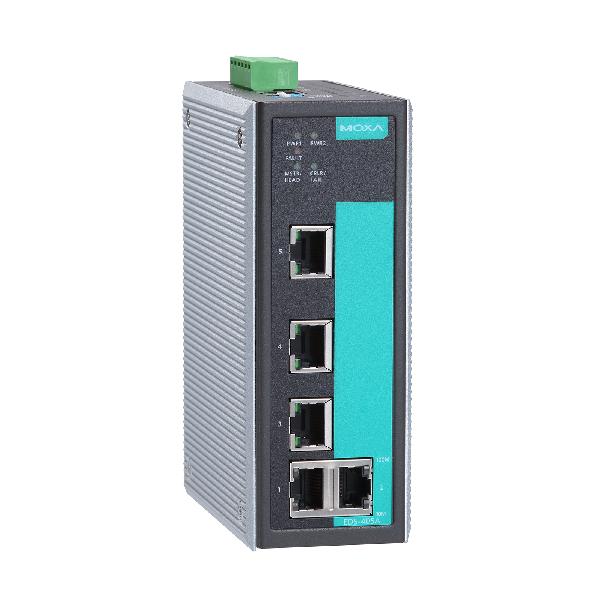

EDS-405A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

5-port entry-level managed Ethernet switches

Product Feature

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
  • IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • PROFINET or EtherNet/IP enabled by default (PN or EIP models)
  • Supports MXstudio for easy, visualized industrial network management

Introduction

The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.



Additional Features and Benefits

  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, Modbus TCP and PROFINET EDS-405A-PN Series only protocols for device management and monitoring
  • EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
  • PROFINET GSDML file and SIMATIC STEP 7 device icons available EDS-405A-PN Series only
  • Port mirroring for online debugging
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
  • RMON for proactive and efficient network monitoring
  • SNMPv1/v2c/v3 for different levels of network management security
  • Bandwidth management to prevent unpredictable network status

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

EDS-405A, 405A-EIP/PN/PTP Series: 5
EDS-405A-MM-SC/MM-ST/SS-SC Series: 3

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode SC connector)

EDS-405A-MM-SC Series: 2

100BaseFX Ports (multi-mode ST connector)

EDS-405A-MM-ST Series: 2

100BaseFX Ports (single-mode SC connector)

EDS-405A-SS-SC Series: 2

Optical Fiber

Read more

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features

Filter

802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Industrial Protocols

EtherNet/IP EDS-405A-EIP Series: EtherNet/IP protocol enabled by default. , Modbus TCP
EDS-405A-PN Series: PROFINET IO Device (Slave)

Management

Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols

RSTP, STP, Turbo Chain, Turbo Ring v1/v2

Time Management

All models: NTP Server/Client, SNTP
EDS-405A-PTP Series: IEEE 1588v2 PTP (hardware-based)

Switch Properties

IGMP Groups

256

MAC Table Size

EDS-405A Series, EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC Series: 2 K
EDS-405A-PTP Series: 8 K

Max. No. of VLANs

64

Packet Buffer Size

1 Mbits

Priority Queues

4

VLAN ID Range

VID 1 to 4094

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters

Input Voltage

12/24/48 VDC, Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

EDS-405A/405A-T, EDS-405A-EIP/PN Series: 0.21 A @ 24 VDC
Fiber models: 0.26 A @ 24 VDC
PTP models: 0.23 A @ 24 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Connection

1 removable 6-contact terminal block(s)

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC Series: 650 g (1.44 lb)
EDS-405A-PTP Series: 820 g (1.81 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

All models: UL 508
non-PTP models: UL 60950-1

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

Non-PTP models:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8

PTP models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8

Hazardous Locations

Non-PTP models: ATEX, Class I Division 2

Maritime

Non-PTP models: DNV-GL

Traffic Control

Non-PTP models: NEMA TS2

Freefall

IEC 60068-2-31

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

MTBF

Time

EDS-405A/405A-T, EDS-405A-EIP/PN Series: 1,547,941 hrs
EDS-405A-MM-SC/MM-ST/SS-SC Series: 1,429,327 hrs
EDS-405A-PTP Series: 1,316,464 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-405A Series Datasheet V1.1 27 August 2019

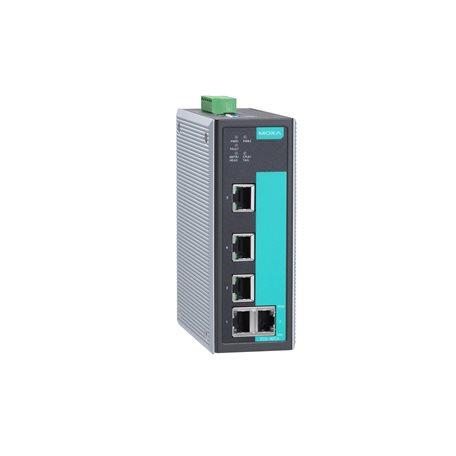

EDS-405A

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode SC Connector -
100BaseFX Ports Multi-Mode ST Connector -
100BaseFX Ports Single-Mode SC Connector -
Operating Temp. -10 to 60°C

EDS-405A-T

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 5
100BaseFX Ports Multi-Mode SC Connector -
100BaseFX Ports Multi-Mode ST Connector -
100BaseFX Ports Single-Mode SC Connector -
Operating Temp. -40 to 75°C

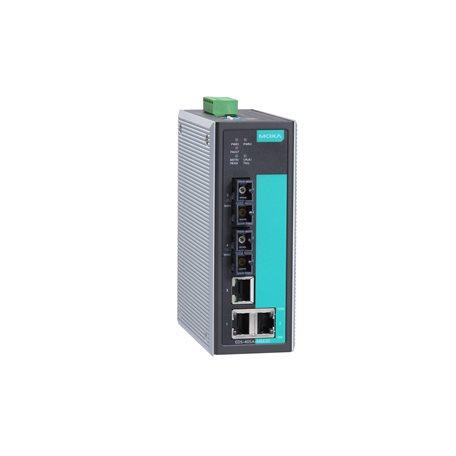

EDS-405A-SS-SC

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode SC Connector -
100BaseFX Ports Multi-Mode ST Connector -
100BaseFX Ports Single-Mode SC Connector 2
Operating Temp. -10 to 60°C

EDS-405A-SS-SC-T

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode SC Connector -
100BaseFX Ports Multi-Mode ST Connector -
100BaseFX Ports Single-Mode SC Connector 2
Operating Temp. -40 to 75°C

EDS-405A-MM-SC

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode SC Connector 2
100BaseFX Ports Multi-Mode ST Connector -
100BaseFX Ports Single-Mode SC Connector -
Operating Temp. -10 to 60°C

EDS-405A-MM-SC-T

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode SC Connector 2
100BaseFX Ports Multi-Mode ST Connector -
100BaseFX Ports Single-Mode SC Connector -
Operating Temp. -40 to 75°C

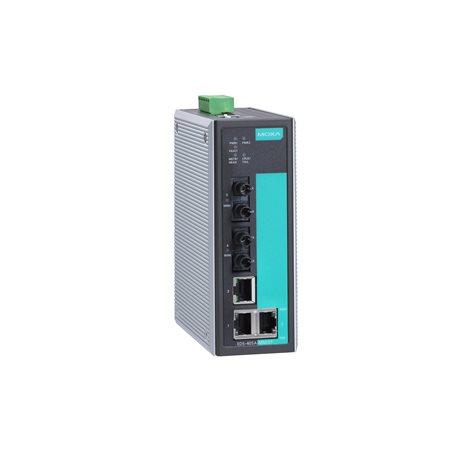

EDS-405A-MM-ST

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode SC Connector -
100BaseFX Ports Multi-Mode ST Connector 2
100BaseFX Ports Single-Mode SC Connector -
Operating Temp. -10 to 60°C

EDS-405A-MM-ST-T

Layer 2
Total No. of Ports 5
10/100BaseT(X) Ports RJ45 Connector 3
100BaseFX Ports Multi-Mode SC Connector -
100BaseFX Ports Multi-Mode ST Connector 2
100BaseFX Ports Single-Mode SC Connector -
Operating Temp. -40 to 75°C
