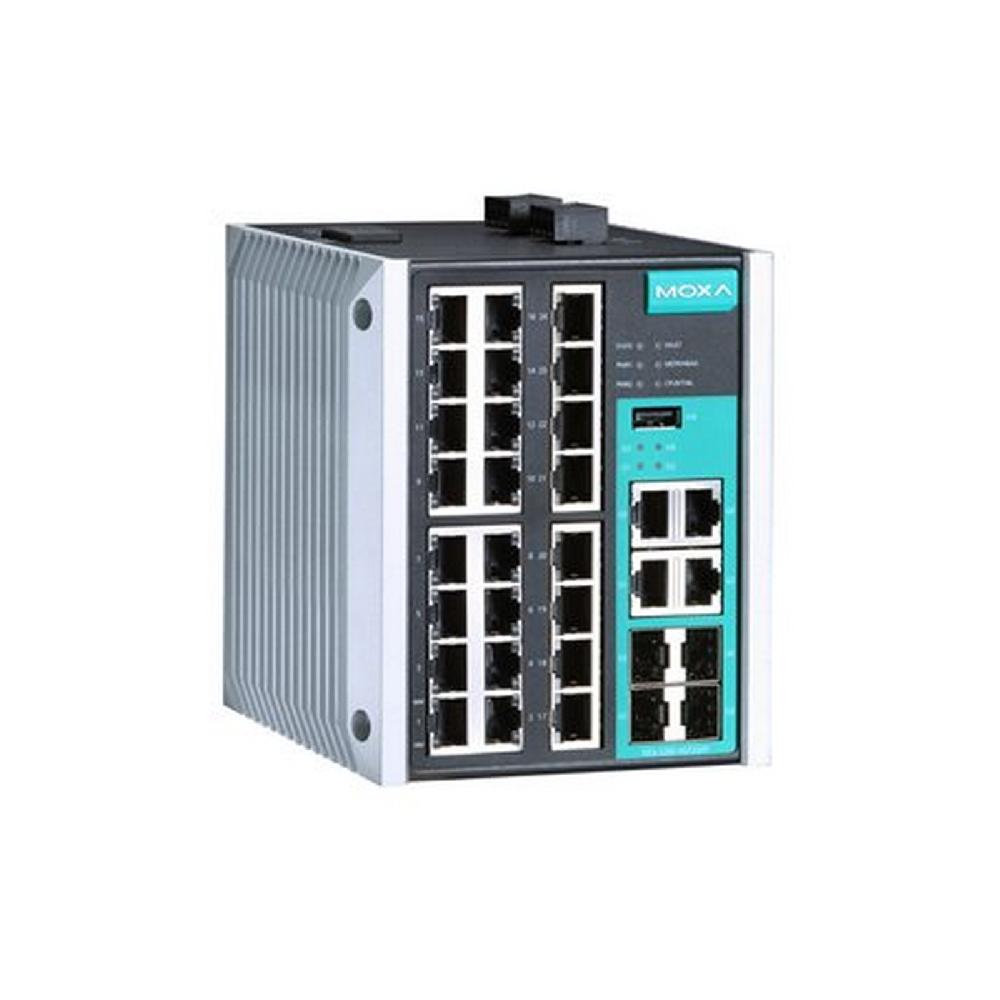

The EDS-528E standalone, compact 28-port managed Ethernet switches have 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber-optic communication. The 24 fast Ethernet ports have a variety of copper and fiber port combinations that give the EDS-528E Series greater flexibility for designing your network and application. The Ethernet redundancy technologies, Turbo Ring, Turbo Chain, RSTP/STP, and MSTP, increase the system reliability and availability of your network backbone. The EDS-528E also supports advanced management and security features.
In addition, the EDS-528E Series is designed specifically for harsh industrial environments with limited installation space and high protection level requirements, such as maritime, rail wayside, oil and gas, factory automation, and process automation.
Input/Output Interface | |
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 24 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 4 |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
Ethernet Software Features | |
| Filter | 802.1Q VLAN, GVRP, IGMP v1/v2/v3, GMRP, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave) |
| Management | LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS |
| Time Management | NTP Server/Client, SNTP |
Switch Properties | |
| IGMP Groups | 2048 |
| MAC Table Size | 16 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
USB Interface | |
| Storage Port | USB Type A |
LED Interface | |
| LED Indicators | PWR1, PWR2 (LV model), STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL |
Serial Interface | |
| Console Port | USB-serial console (Type B connector) |
DIP Switch Configuration | |
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
Power Parameters | |
| Connection | EDS-528E-4GTXSFP-HV Series: 1 removable 4-contact and 1 removable 5-contact terminal block EDS-528E-4GTXSFP-LV Series: 2 removable 4-contact terminal block(s) |
| Input Current | EDS-528E-4GTXSFP-LV Series: 0.47 A @ 24 VDC EDS-528E-4GTXSFP-HV Series: 0.11/0.055 A @ 110/220 VDC, 0.21/0.13 A @ 110/220 VAC |
| Input Voltage | EDS-528E-4GTXSFP-LV Series: 12/24/48/-48 VDC, Redundant dual inputs EDS-528E-4GTXSFP-HV Series: 110/220 VDC/VAC, Single input |
| Operating Voltage | EDS-528E-4GTXSFP-LV Series: 9.6 to 60 VDC EDS-528E-4GTXSFP-HV Series: 88 to 300 VDC, 85 to 264 VAC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 115.4 x 135 x 137 mm (4.54 x 5.31 x 5.39 in) |
| Weight | 1850 g (4.08 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | EDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F) EDS-510E-3GTXSFP-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Safety | UL 61010-2-201, EN 60950-1 (LVD) |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Railway | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 774,634 hrs |
| Standard | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-528E Series | Datasheet | V1.1 | 27 August 2019 |
| 10/100BaseT(X) Ports RJ45 Connector | 24 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ | 4 |
| 12/24/48/-48 VDC | - |
| 110/220 VDC/VAC | 1 |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 24 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ | 4 |
| 12/24/48/-48 VDC | 2 |
| 110/220 VDC/VAC | - |
| Operating Temp. | -10 to 60°C |
| 10/100BaseT(X) Ports RJ45 Connector | 24 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ | 4 |
| 12/24/48/-48 VDC | - |
| 110/220 VDC/VAC | 1 |
| Operating Temp. | -40 to 75°C |
| 10/100BaseT(X) Ports RJ45 Connector | 24 |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ | 4 |
| 12/24/48/-48 VDC | 2 |
| 110/220 VDC/VAC | - |
| Operating Temp. | -40 to 75°C |
