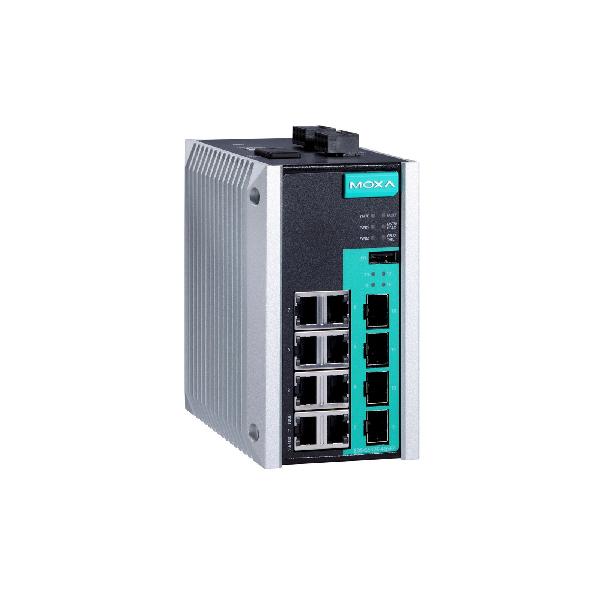

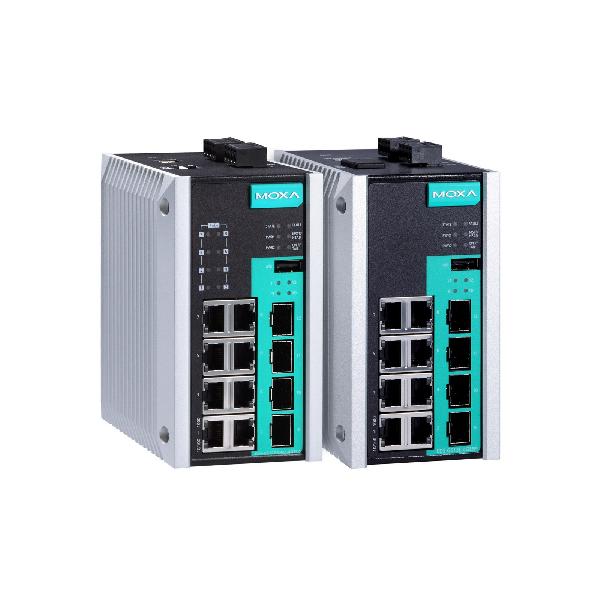

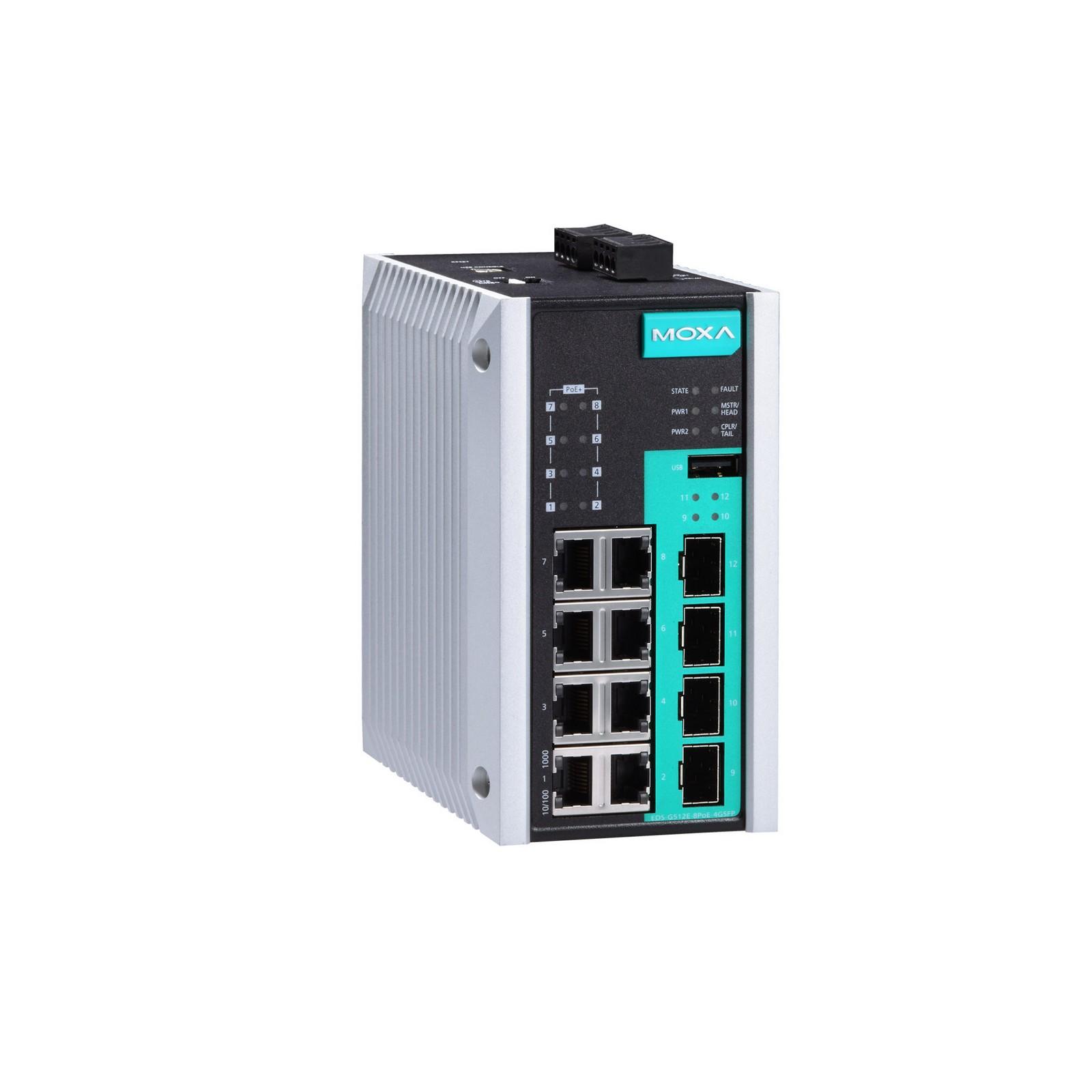

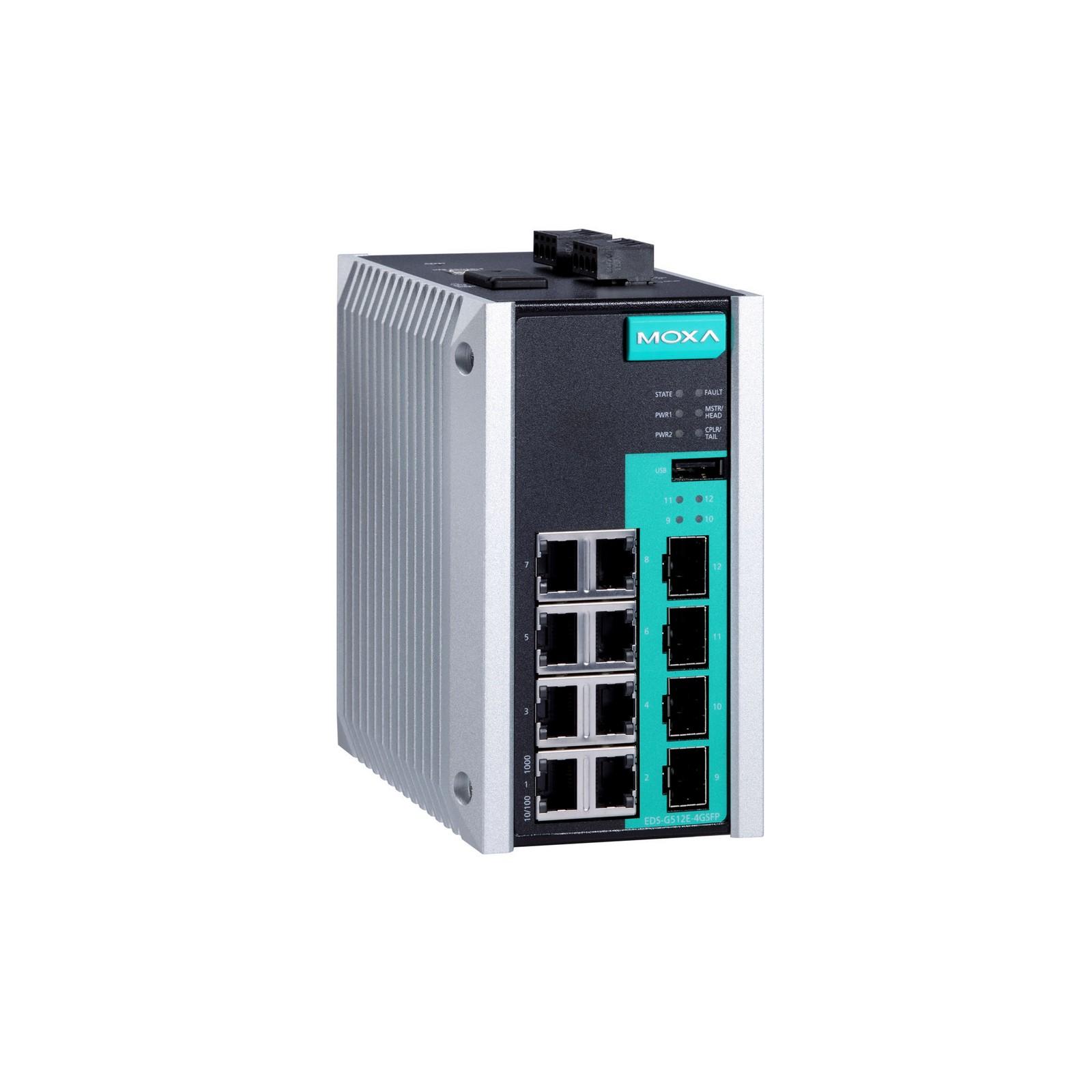

EDS-G512E Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

12G-port (with 8 PoE+ ports option) full Gigabit managed Ethernet switches

Product Feature

  • 8 IEEE 802.3af and IEEE 802.3at PoE+ standard ports
  • 36-watt output per PoE+ port in high-power mode
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
  • Security features based on IEC 62443
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Introduction

The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.



Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
  • Port mirroring for online debugging
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through email and relay output

Input/Output Interface

Alarm Contact Channels1, Relay output with current carrying capacity of 1 A @ 24 VDC
ButtonsReset button
Digital Input Channels1
Digital Inputs+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)EDS-G512E-4GSFP: 8
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
PoE Ports (10/100/1000BaseT(X), RJ45 connector)EDS-G512E-8PoE-4GSFP: 8
100/1000BaseSFP Slots4
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP

Ethernet Software Features

Filter802.1Q VLAN, Port-based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Industrial ProtocolsEtherNet/IP, Modbus TCP, PROFINET IO Device
Management

LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option

66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP,

RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,

RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy ProtocolsLink Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Security

Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB

authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock,

RADIUS, SSH, SMTP with TLS

Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups2048
Jumbo Frame Size9.6 KB
MAC Table Size8 K
Max. No. of VLANs256
Packet Buffer Size4 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

USB Interface

Storage PortUSB Type A

LED Interface

LED Indicators

PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port),

100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL, smart PoE LED (EDS-

G512E-8PoE-4GSFP Series only)

Serial Interface

Console PortUSB-serial console (Type B connector)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Power Parameters

Connection2 removable 4-contact terminal block(s)
Input CurrentEDS-G512E-4GSFP Series: 0.34 A @ 24 VDC
EDS-G512E-8PoE-4GSFP Series: 5.30 A @ 48 VDC
Input VoltageEDS-G512E-4GSFP Series: 12/24/48/-48 VDC
EDS-G512E-8PoE-4GSFP Series: 48 VDC
(Both series have redundant dual input)
Operating VoltageEDS-G512E-4GSFP Series: 9.6 to 60 VDC
EDS-G512E-8PoE-4GSFP Series: 44 to 57 VDC (> 50 VDC for PoE+ output
recommended)
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
WeightEDS-G512E-4GSFP: 1,440 g (3.18 lb)
EDS-G512E-8PoE-4GSFP: 1,540 g (3.40 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureEDS-G508E: -10 to 60°C (14 to 140°F)
EDS-G508E-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEDS-G512E-4GSFP/EDS-G512E-8PoE-4GSFP Series: UL 508
EDS-G512E-8PoE-4GSFP Series: EN 60950-1 (LVD)
EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSEDS-G512E-4GSFP: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
EDS-G512E-4GSFP: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
EDS-G512E-8PoE-4GSFP: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
EDS-G512E-4GSFP: IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
EDS-G512E-8PoE-4GSFP: IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
EDS-G512E-4GSFP: IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
EDS-G512E-8PoE-4GSFP: IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous LocationsEDS-G512E-4GSFP Series: ATEX, Class I Division 2
MaritimeEDS-G512E-4GSFP: DNV-GL, EDS-G512E-4GSFP: LR, EDS-G512E-
4GSFP: ABS, EDS-G512E-4GSFP: NK
Power SubstationIEC 61850-3, IEEE 1613
RailwayEN 50121-4
Traffic ControlEDS-G512E-4GSFP: NEMA TS2
ShockIEC 60068-2-27
FreefallIEC 60068-2-32
VibrationIEC 60068-2-6

MTBF

TimeEDS-G512E-4GSFP Series: 816,823 hrs
EDS-G512E-8PoE-4GSFP Series: 361,368 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-G512E Series Datasheet V1.4 27 December 2019

EDS-G512E-4GSFP

10/100/1000BaseT(X) Ports, RJ45 Connector 8
PoE Ports, 10/100/1000BaseT(X), RJ45 Connector -
IEEE 802.3af/at for PoE/PoE+ Output -
100/1000Base SFP Slots 4
Operating Temp. -10 to 60°C

EDS-G512E-4GSFP-T

10/100/1000BaseT(X) Ports, RJ45 Connector 8
PoE Ports, 10/100/1000BaseT(X), RJ45 Connector -
IEEE 802.3af/at for PoE/PoE+ Output -
100/1000Base SFP Slots 4
Operating Temp. -40 to 75°C

EDS-G512E-8PoE-4GSFP

10/100/1000BaseT(X) Ports, RJ45 Connector -
PoE Ports, 10/100/1000BaseT(X), RJ45 Connector 8
IEEE 802.3af/at for PoE/PoE+ Output ✓
100/1000Base SFP Slots 4
Operating Temp. -10 to 60°C

EDS-G512E-8PoE-4GSFP-T

10/100/1000BaseT(X) Ports, RJ45 Connector -
PoE Ports, 10/100/1000BaseT(X), RJ45 Connector 8
IEEE 802.3af/at for PoE/PoE+ Output ✓
100/1000Base SFP Slots 4
Operating Temp. -40 to 75°C
