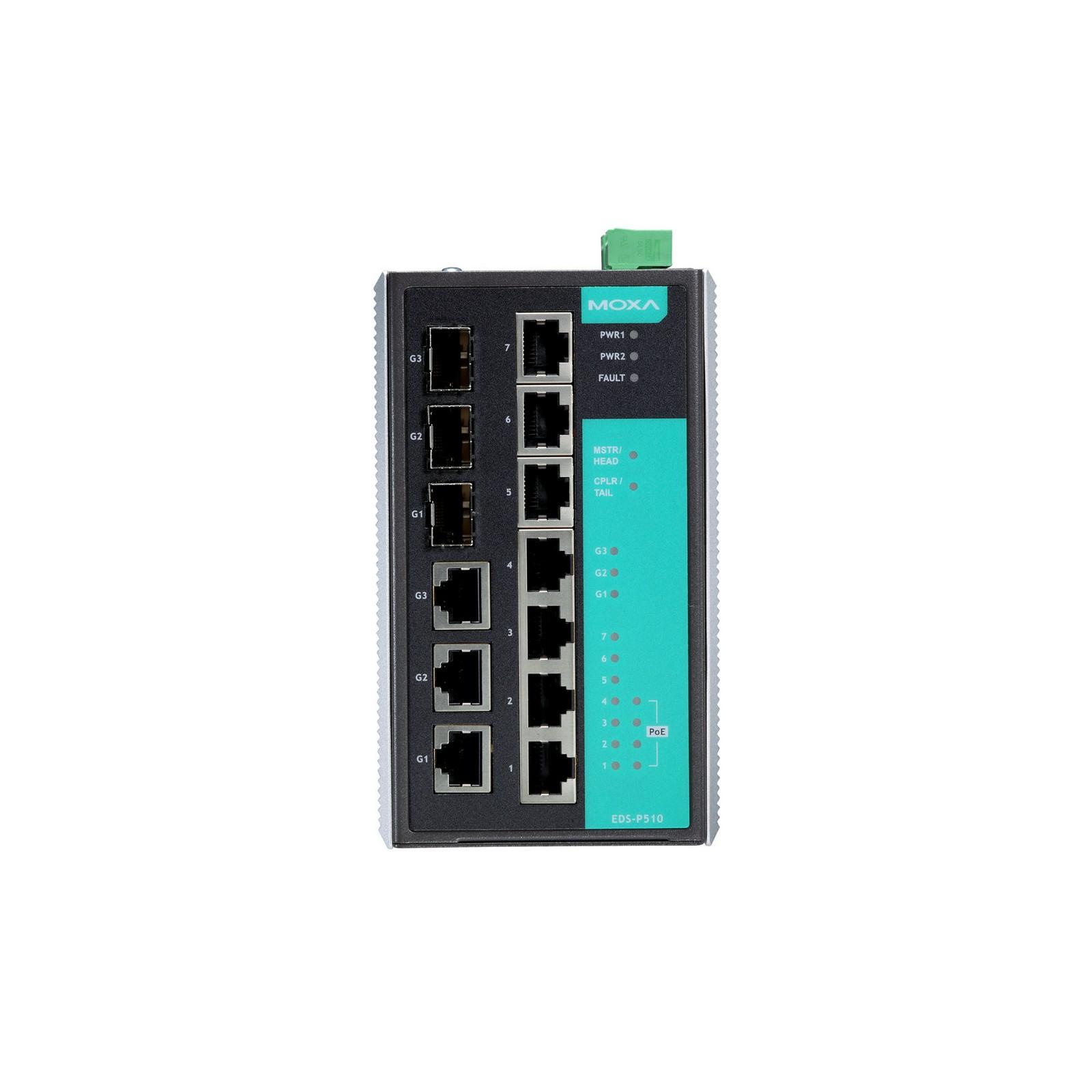

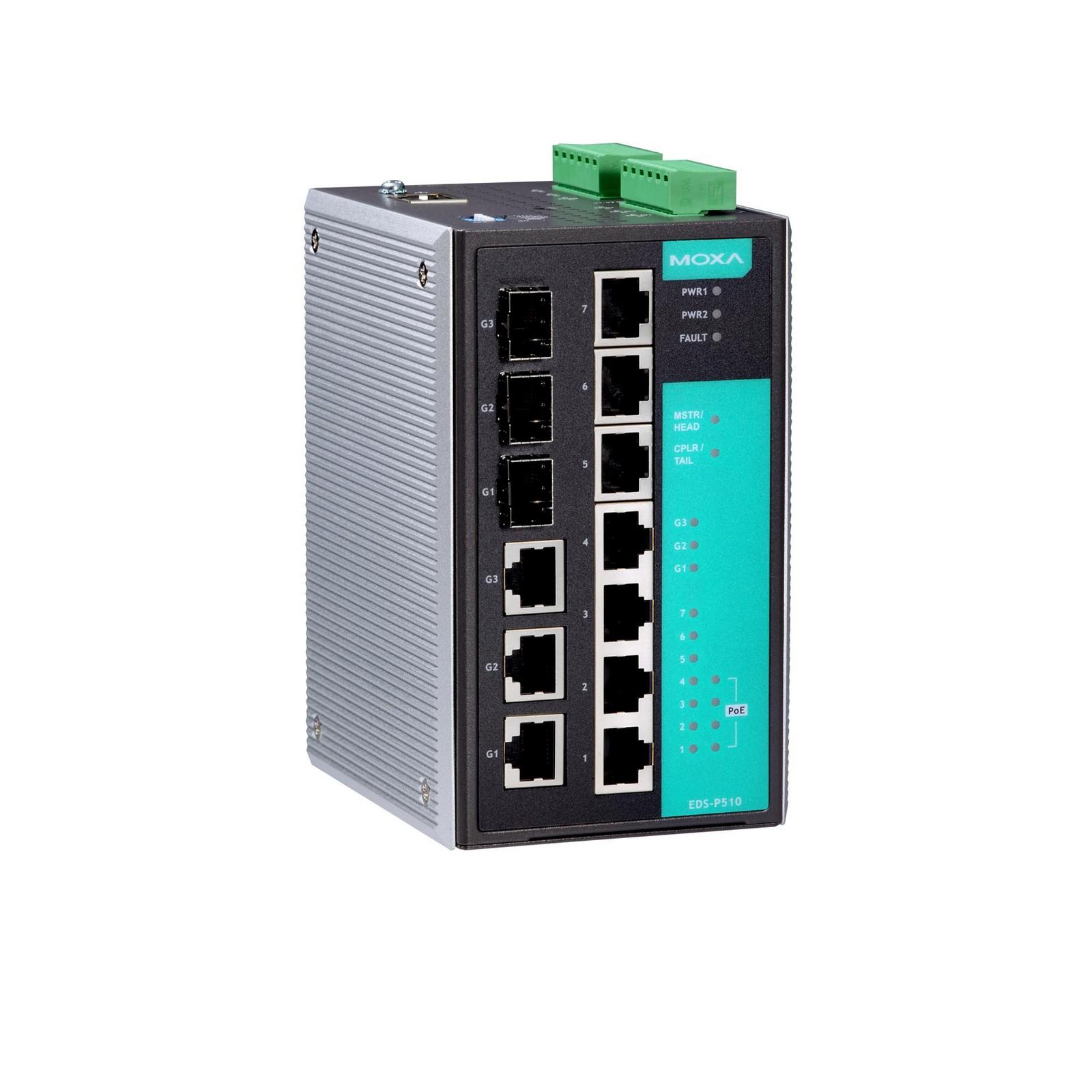

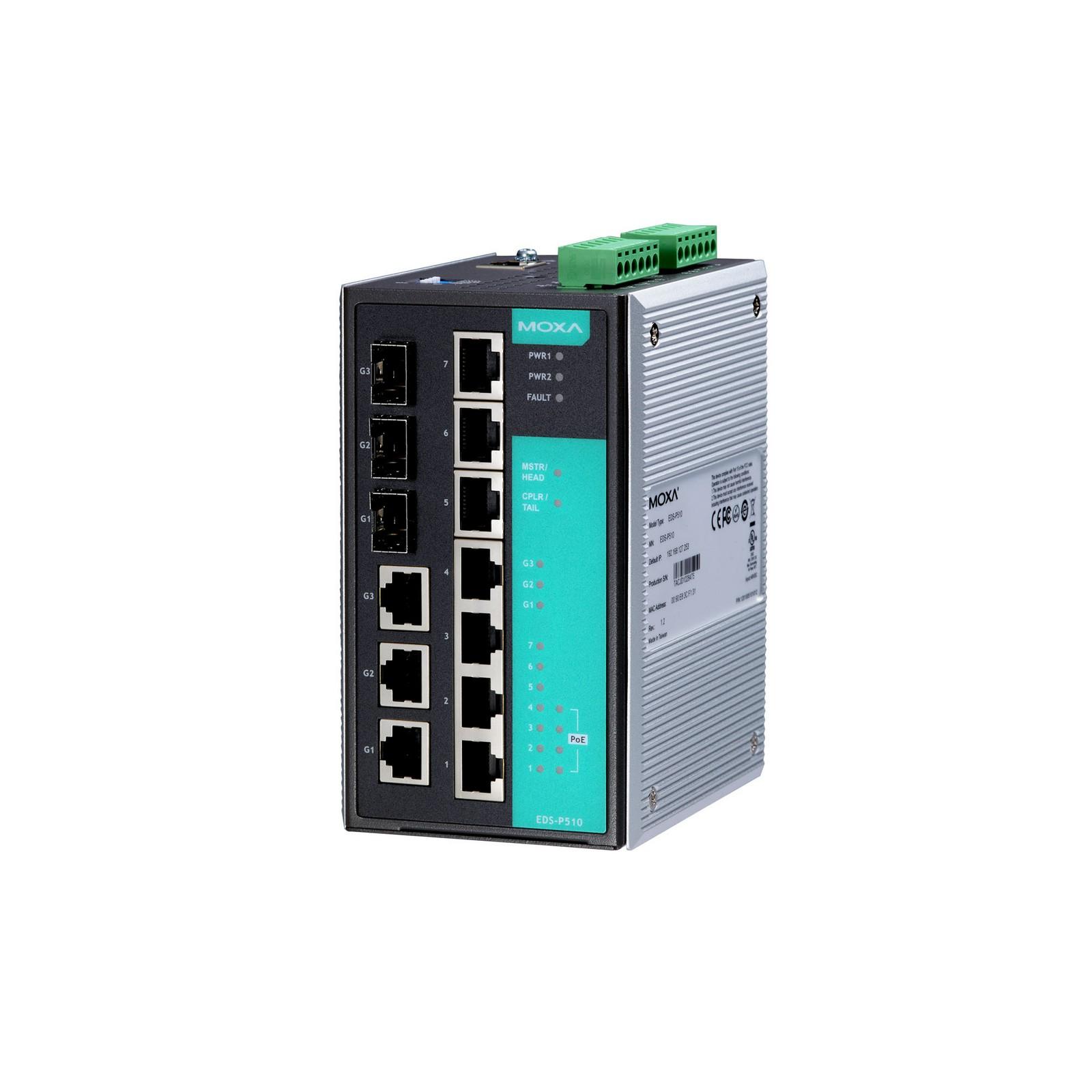

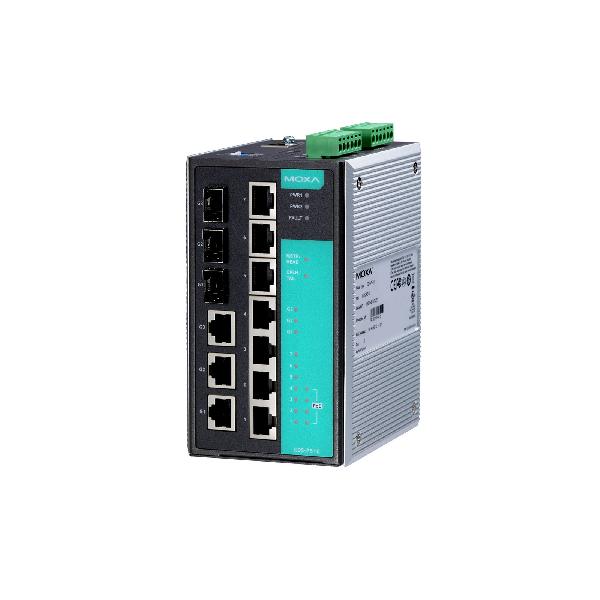

EDS-P510 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

7+3G-port Gigabit PoE managed Ethernet switches with 4 IEEE 802.3af PoE ports

Product Feature

  • 4 IEEE 802.3af-compliant PoE and Ethernet combo ports
  • Provides up to 15.4 watts at 48 VDC per PoE port
  • Intelligent power consumption detection, PD failure check, and PoE scheduling function
  • 3 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports; 2 ports for redundant ring and 1 port for uplink
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Introduction

The EDS-P510 Series Gigabit managed redundant Ethernet switches have 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P510 switches are highly versatile, and their SFP fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P510 Series is designed especially for security automation applications such as IP surveillance and entry system gates, which can benefit from a scalable backbone construction and PoE.



Additional Features and Benefits

  • Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
  • Command Line Interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
  • Lock port function for blocking unauthorized access based on MAC address
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for efficient network monitoring and proactive capability
  • Bandwidth management to prevent unpredictable network status
  • Port mirroring for online debugging
  • Automatic warning by exception through e-mail, relay output

Ethernet Interface

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)3
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
10/100BaseT(X) Ports (RJ45 connector)3
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
PoE Ports (10/100BaseT(X), RJ45 connector)4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
Standards
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3af for PoE

Ethernet Software Features

FilterGMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial ProtocolsEtherNet/IP, Modbus TCP
Management

Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP

Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON,

SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

MIB

Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB,

RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy ProtocolsLACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
SecurityTACACS+, HTTPS/SSL, Port Lock, RADIUS, SSH
Time ManagementNTP Server/Client, SNTP

Input/Output Interface

Alarm Contact Channels2, Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels2
Digital Inputs-30 to +3 V for state 0
+13 to +30 V for state 1
Max. input current: 8 mA

Switch Properties

IGMP Groups1024
MAC Table Size8 K
Max. No. of VLANs64
Packet Buffer Size 1 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Power Parameters

Connection2 removable 6-contact terminal block(s)
Input Current1.5 A @ 48 VDC
Input Voltage48 VDC, Redundant dual inputs
Operating Voltage44 to 57 VDC
Overload Current ProtectionSupported
Power BudgetMax. 15.4 W for each PoE port
Max. 61.6 W for total PD consumption
Power Consumption (Max.)Max. 14.24 W full loading without PDs’ consumption
Reverse Polarity ProtectionSupported

Physical Characteristics

Dimensions80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
HousingMetal
InstallationDIN-rail mounting, Wall mounting (with optional kit)
IP RatingIP30
Weight1,170 g (2.58 lb)

Environmental Limits

Ambient Relative Humidity5 to 95% (non-condensing)
Operating TemperatureEDS-P510: 0 to 60°C (32 to 140°F)
EDS-P510-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)

Standards and Certifications

SafetyUL 508
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
MaritimeABS, DNV-GL, LR, NK
FreefallIEC 60068-2-31
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

Time205,384 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-P510 Series Datasheet V1.3 31 October 2019

EDS-P510

Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP 3
PoE Ports 10/100BaseT(X) 4
non-PoE Ports 10/100BaseT(X) 3
Operating Temp. -10 to 60°C

EDS-P510-T

Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP 3
PoE Ports 10/100BaseT(X) 4
non-PoE Ports 10/100BaseT(X) 3
Operating Temp. -40 to 75°C
