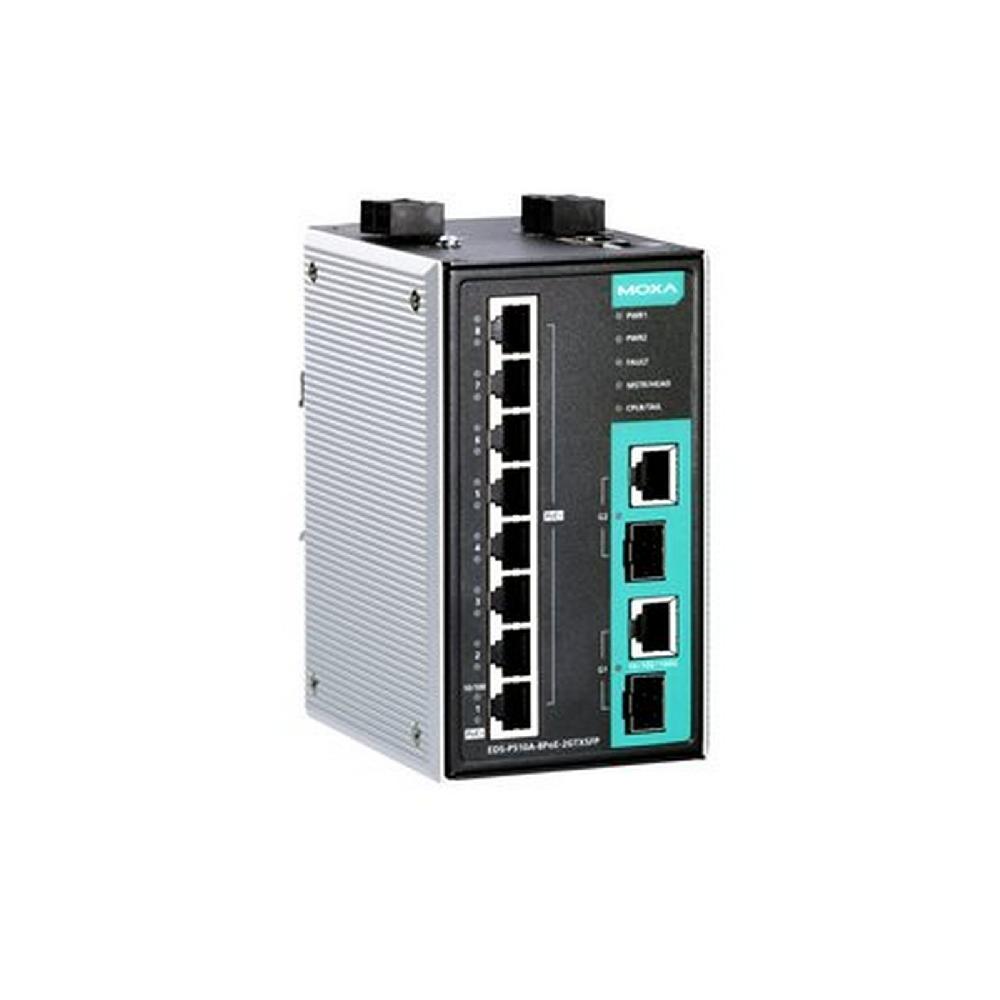

EDS-P510A Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Layer 2 Managed Switches

8+2G-port Gigabit PoE+ managed Ethernet switches with 8 IEEE 802.3af/at PoE+ ports

Product Feature

  • 8 built-in PoE+ ports compliant with IEEE 802.3af/at
  • Up to 36 W output per PoE+ port
  • 3 kV LAN surge protection for extreme outdoor environments
  • PoE diagnostics for powered-device mode analysis
  • 2 Gigabit combo ports for high-bandwidth and long-distance communication
  • Operates with 240 watts full PoE+ loading at -40 to 75°C
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Introduction

Moxa’s EDS-P510A Series has 8 10/100BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit Ethernet ports. The EDS-P510A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode and allow high-power output of up to 36 watts for industrial heavy-duty PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The EDS-P510A Ethernet Series is highly versatile, and the SFP fiber ports can transmit data up to 120 km from the device to the control center with high EMI immunity.

The Ethernet switches support a variety of management functions, as well as STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The EDS-P510A Series is designed with 3 kV surge protection for harsh outdoor applications to increase the reliability of PoE systems.



Additional Features and Benefits

  • Supports different PoE output settings (High-power 36 W, Force and Legacy modes) to maximize powered device compatibility
  • Supports Smart PoE functions (PoE diagnosis, PD failure check, PoE scheduling, PoE Event Warning) to enhance PoE operational efficiency
  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),RSTP/STP, and MSTP for network redundancy
    Compatible with PROFINET protocol for transparent data transmission
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
  • Lock port function for blocking unauthorized access based on MAC address
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output

Ethernet Interface

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)2
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
PoE Ports (10/100BaseT(X), RJ45 connector)8
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed
StandardsIEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

FilterGMRP, GVRP, IGMP v1/v2, Port-based VLAN
Industrial ProtocolsEtherNet/IP, Modbus TCP
ManagementBack Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP
Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON,
SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
MIBBridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB,
RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy ProtocolsLACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
SecurityHTTPS/SSL, Port Lock, RADIUS, TACACS+, SSH
Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups1024
MAC Table Size8 K
Max. No. of VLANs64
Packet Buffer Size 1 Mbits
Priority Queues4
VLAN ID RangeVID 1 to 4094

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)

DIP Switch Configuration

Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels1, Relay output with current carrying capacity of 0.5 A @ 48 VDC
Digital Input Channels1
Digital InputsMax. input current: 8 mA
+13 to +30 V for state 1
-30 to +3 V for state 0

Power Parameters

Input Voltage48 VDC, Redundant dual inputs
Operating Voltage44 to 57 VDC
Input Current5.36 A @ 48 VDC
Power Consumption (Max.)Max. 17.28 W full loading without PDs’ consumption
Power BudgetMax. 240 W for total PD consumption
Max. 36 W for each PoE port
Connection2 removable 2-contact terminal block(s)
Overload Current ProtectionSupported
Reverse Polarity ProtectionSupported

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
Weight1030 g (2.28 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureEDS-P510A-8PoE-2GTXSFP: -10 to 60°C (14 to 140°F)
EDS-P510A-8PoE-2GTXSFP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyUL 508
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Hazardous LocationsClass I Division 2
RailwayEN 50121-4
Traffic ControlNEMA TS2
FreefallIEC 60068-2-31
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

Time708,972 hrs
StandardTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for EDS-P510A Series Datasheet V1.1 27 August 2019

EDS-P510A-8PoE-2GTXSFP

Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ 2
PoE Ports 10/100BaseT(X), RJ45 Connector 8
Operating Temp. -10 to 60°C

EDS-P510A-8PoE-2GTXSFP-T

Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP+ 2
PoE Ports 10/100BaseT(X), RJ45 Connector 8
Operating Temp. -40 to 75°C
