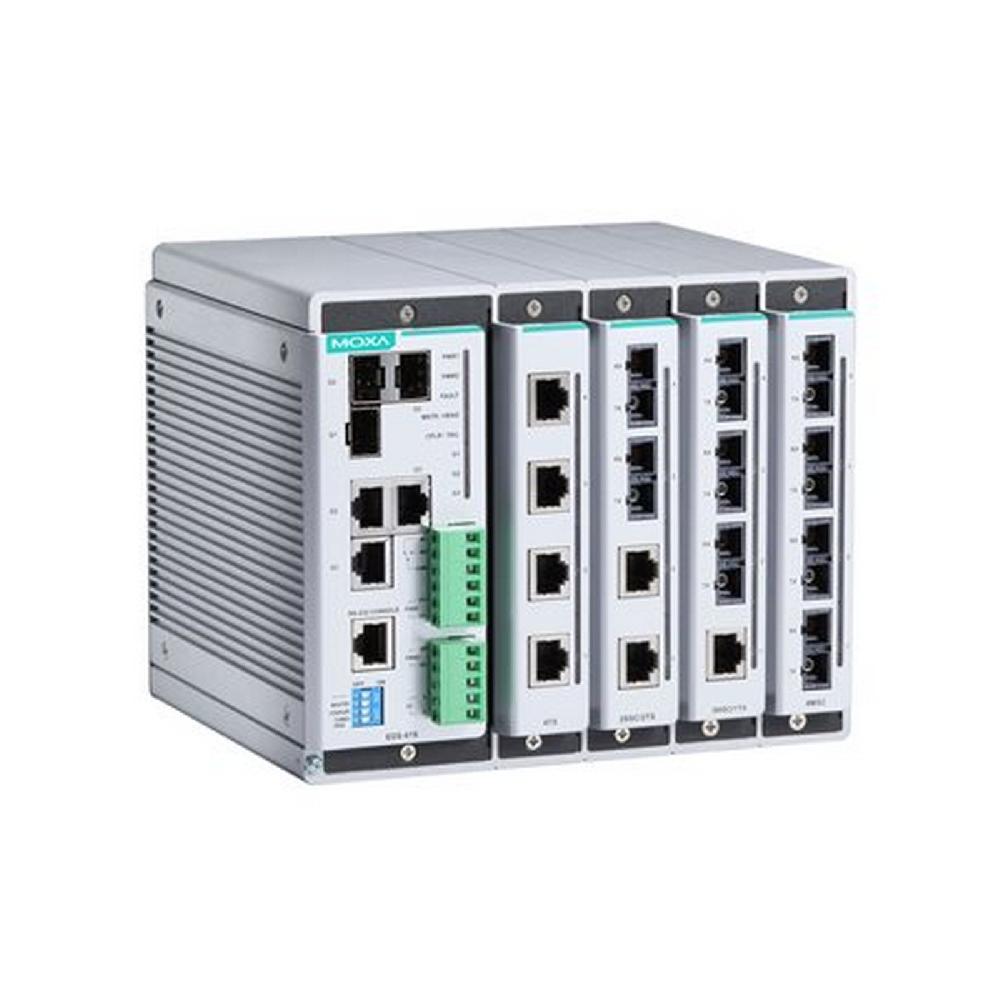

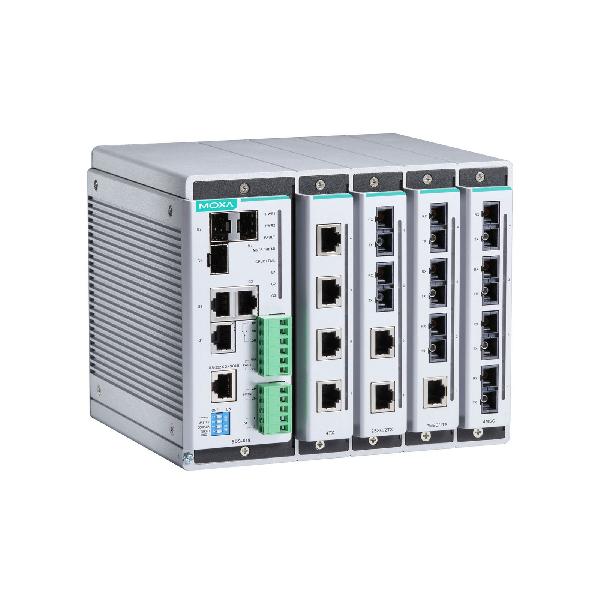

The versatile modular design of the compact EDS-619 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-619’s modular design lets you install up to 3 Gigabit Ethernet ports and 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.
Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-619 Series supports several reliable and intelligent functions, including IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.
Input/Output Interface | |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| Alarm Contact Channels | Relay output with current carrying capacity of 1 A @ 24 VDC |
Ethernet Interface | |
| Module | 4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX |
| Standards | IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
Ethernet Software Features | |
| Filter | GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Management | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Security | Broadcast storm protection, HTTPS/SSL, Port Lock, RADIUS, SSH, TACACS+ |
| Time Management | NTP Server/Client, SNTP |
Switch Properties | |
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 1 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
LED Interface | |
| LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1/G2/G3 |
Serial Interface | |
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
DIP Switch Configuration | |
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
Power Parameters | |
| Connection | 1 removable 6-contact terminal block(s) |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics | |
| IP Rating | IP30 |
| Dimensions | 185 x 151 x 157.2 mm (7.28 x 5.95 x 6.19 in) |
| Weight | 2950 g (6.51 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
| Operating Temperature | EDS-608: 0 to 60°C (32 to 140°F) EDS-608-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| Freefall | IEC 60068-2-32 |
| EMC | EN 55032/24, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Maritime | ABS, DNV-GL, LR, NK |
| Railway | EN 50121-4 |
| Safety | EN 60950-1, UL 508, UL 60950-1 |
| Shock | IEC 60068-2-27 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 475,816 hrs |
| Standard | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for EDS-619 Series | Datasheet | V1.1 | 26 August 2019 |
| Layer | 2 |
| Total No. of Ports | 19 |
| Module 10/100BaseT(X) and/or 100BaseFX | 4 slots for up to 16 10/100BaseT(X) and/or 100BaseFX ports |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 3 |
| Operating Temp. | 0 to 60°C |
| Layer | 2 |
| Total No. of Ports | 19 |
| Module 10/100BaseT(X) and/or 100BaseFX | 4 slots for up to 16 10/100BaseT(X) and/or 100BaseFX ports |
| Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP | 3 |
| Operating Temp. | -40 to 75°C |
