R3010

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

Industrial Cellular IoT Gateway. Designed for elevator monitoring and provides fast, reliable and stable Internet connectivity.

Product Feature

  • 2G/3G/4G cellular network Support
  • Support always online and connect according to needs
  • Various interfaces: RS232/CAN/RS485/Console/USB/Ethernet/FXS
  • RS485 serial port supports BACnet protocol
  • Support voice communication
  • Support IPSec, OpenVPN, PPTP, L2TP, GRE, DMVPN
  • Support Modbus RTU/ASCII converts to TCP
  • Built-in real time clock, software watchdog
  • Support message, telephone and reboot at regular time
  • Support e-mail and message event alert
  • RobustOS + SDK + App
  • Equipped with third party management platform, to realize real-time processing and analysis, fault real-time warning
  • Management via SMS/Web/CLI/SNMP/RobustLink Cloud
  • Robust industrial design (9 to 26V DC, desktop, wall or DIN rail mounting)

INTRODUCTION

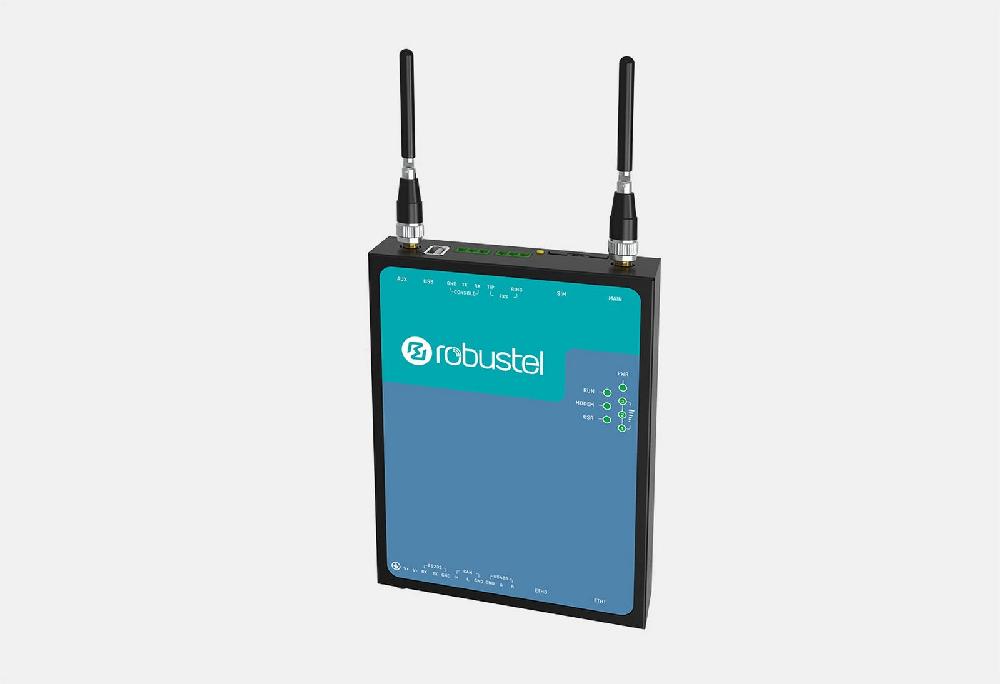

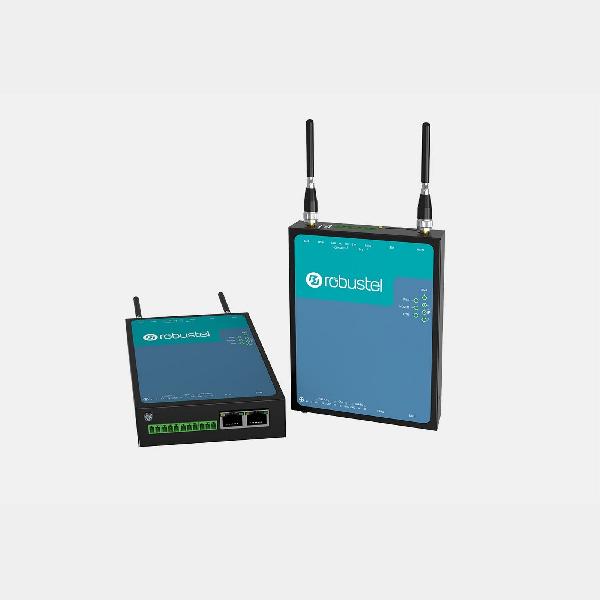

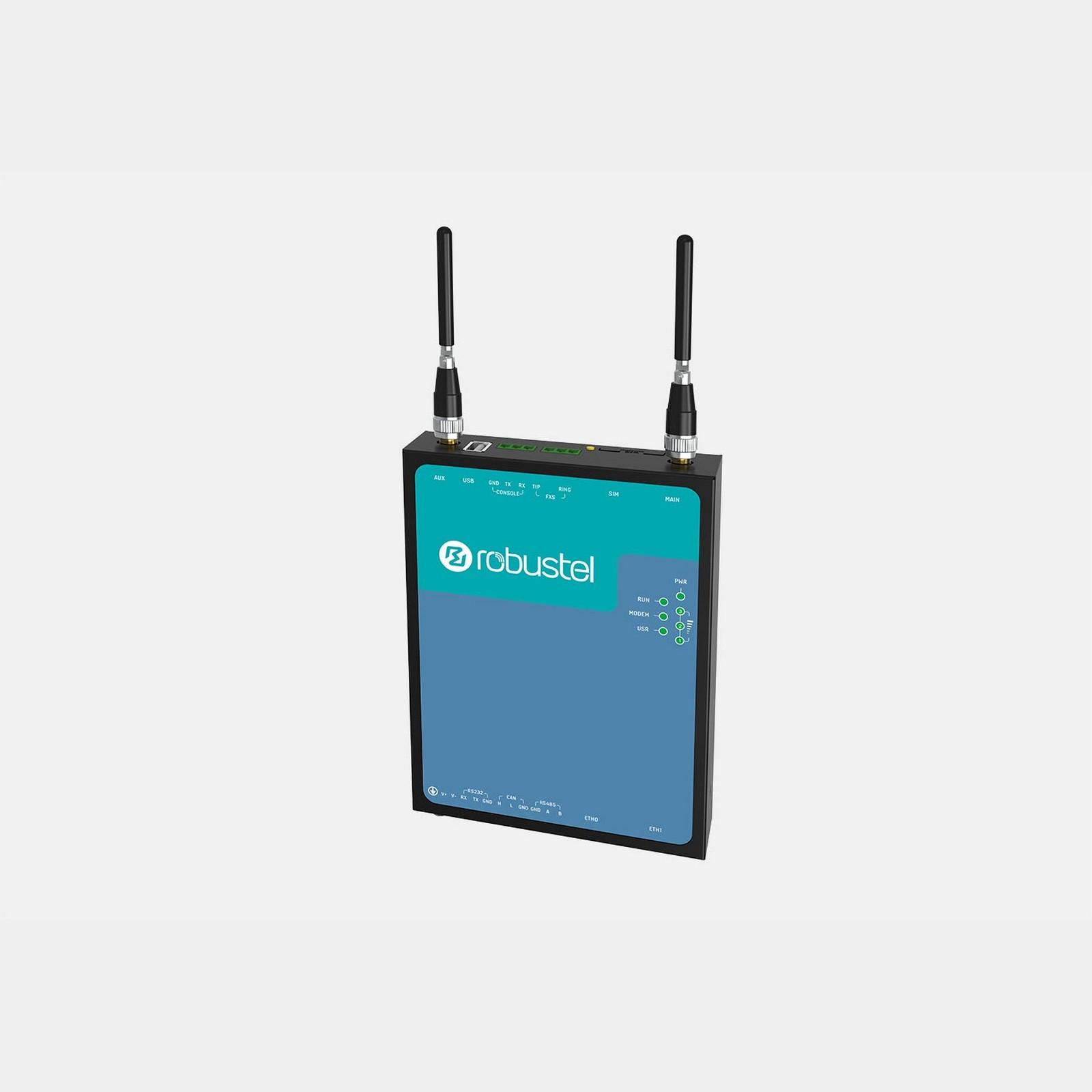

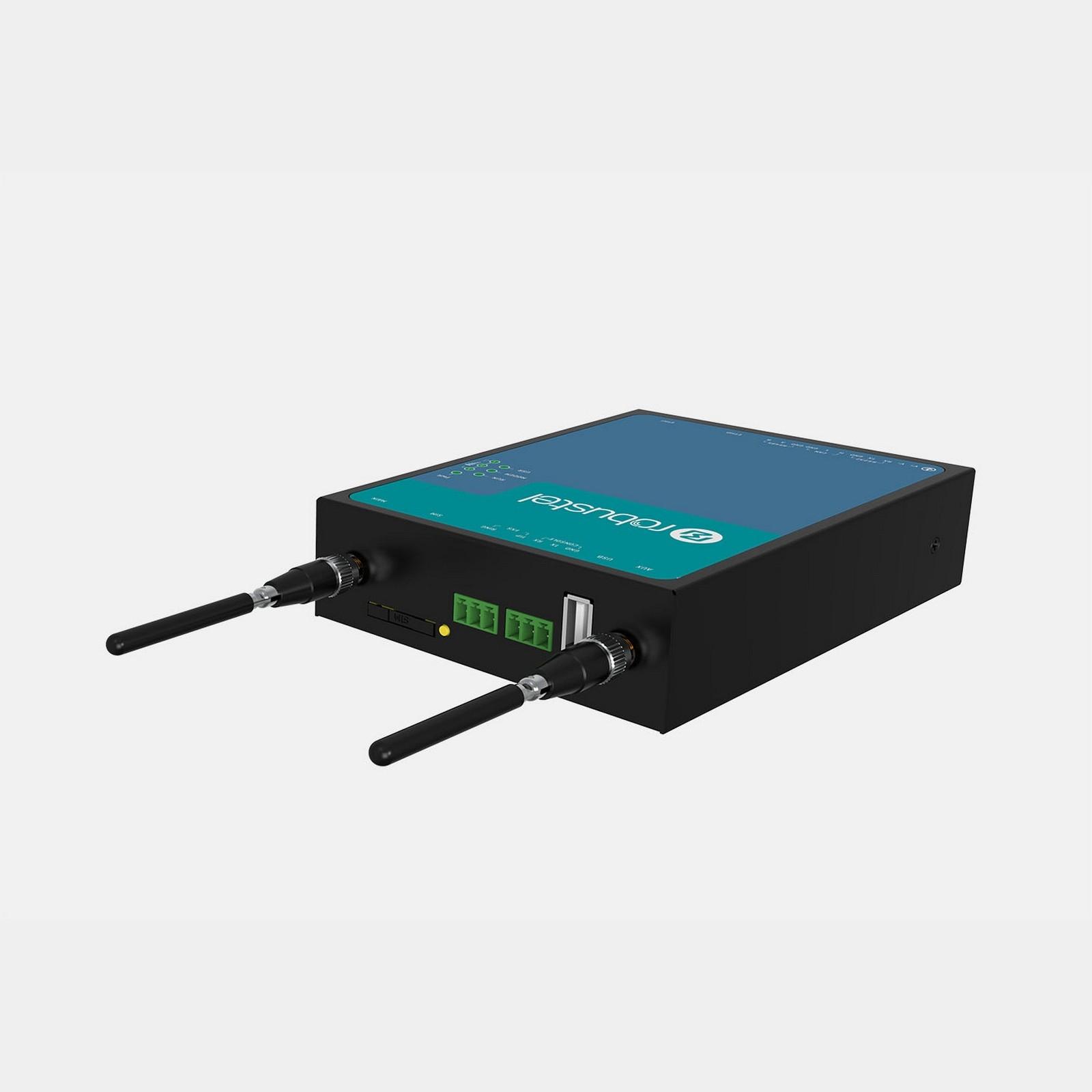

Robustel R3010 is an industrial gateway designed for elevator

monitoring and provides fast, reliable and stable Internet

connectivity.

R3010 is a powerful gateway developed from RobustOS, a Robustel

self-developed and Linux-based operating system which is designed

to be used in Robustel hardware routers. The RobustOS includes

basic networking features and protocols providing customers with a

very good user experience. Meanwhile, Robustel offers a Software

Development Kit (SDK) for partners and customers to allow

additional customization by using C, Python or Java. It also provides

rich APPs to meet fragmented IoT market demands.

Robustel is a leading global industrial IoT/M2M hardware and

solution provider. Since its establishment in 2010 in Guangzhou,

China, Robustel has been focusing on designing and manufacturing

industrial cellular routers, gateways, modems, cloud platforms and

E2E solutions. In order to support global business in more than

100+ countries and regions, Robustel has set up local offices in

Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.

Cellular Interface

Number of Antenna2 (MAIN + AUX)
Type of PortsSMA-K
SIM slot Number1 (3.0 V/1.8 V)
StandardsGSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD
LTE/TDD LTE

Device Management

ManagementWeb, CLI, SNMP v1/v2/v3, SMS
RobustLink device management cloud platform
RobustVPN VPN cloud platform

LED Indicators

LED Indicators

RUN, MODEM, USR, RSSI(1-3), PWR

Network port indicator

Voice Interface

Physical Connector3-pin 3.81mm connector
Interface type1xFXS
Interface StandardITU Q.512 (SLIC), ITU K.20 (overcurrent and overvoltage protection)
Subscriber line interface circuit (SLIC)
Ring voltage40~90 Vpk configurable
Ring frequency20~25 Hz
Ring waveformsinusoidal
Maximum ringer load5 ringer equivalence numbers (RENs)
On-hook voltage (tip/ring)-46~-56V
Off-hook current18~20 mA
Terminating impedanceconfigurable

Others

Number of Ports1x RS-232, 1 x CAN, 1 x RS-485 serial port, 1 x Console, 1 x SIM port
RS-232Tx, Rx, GND
CANH, L, GND
RS-485A (Data+), B (Data-), GND
ConsoleTx, Rx, GND
Interface3-pin 3.81mm connector
Type of Ports2 x SMA female antenna port (MAIN +AUX)
Ethernet Port2 x 10/100 Mbps (ETH0 + ETH1)
Expansion1 x USB 2.0 host up to 480 Mbps

Software(Basic features of RobustOS)

Network protocolsPPP、PPPoE、TCP、UDP、DHCP、ICMP、NAT、HTTP、HTTPs、DNS、ARP、RIP、OSPF、NTP、
SMTP、Telnet、VLAN、SSH2、IP Pass-through, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, TCP Client/Server, UDP,
Modbus RTU Gateway, BACnet

App Center

AppsL2TP、PPTP、DMVPN、RobustVPN、DDNS、VRRP、QoS、Captive Portal、WLAN Multi AP、SNMP、
Language、RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Power supply interface2-pin 3.81mm connector
Input voltage9 to 26 VDC
Power consumption900 mA (MAX) @ 9 V, 600 mA (MAX) @ 12 V, 400 mA (MAX) @ 26 V

Physical Characteristics

Industry Protection LevelIP30
Housing & WeightMetal, 300g
Dimension134mm x 98mm x 32mm
InstallationDesktop or wall mounting or 35 mm DIN railmounting
Operation Temperature-40~75°C
Storing Temperature-40~85°C
Humidity5~95%RH
Approvals
RegulatoryCE, FCC, IC, PTCRB, Telec
CarrierAT&T
EnvironmentalRoHS2.0, WEEE
Name Type Version Release Date
R3010 Datasheet Datasheet V1.0.8 23 July 2020

R3010-4L

Antenna Number 2
Air Interface GSM/GPRS/EDGE/ HSDPA/HSUPA/HSPA+/FDD LTE
Frequency Bands
4G* EMEA: B1/B3/B5/B7/B8/B20; B38/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28; B40 NA: B2/B4/B5/B17 JP: B1/B3/B8/B18/B19/B26; B41
3G EMEA: B1/B5/B8 AU:B1/B2/B5/B8 NA: B2/B5 JP: B1/B6/B8/B19
2G EMEA: B3/B8 AU: B2/B3/B5/B8
Operating Temperature -40 to +75°C
Storage Temperature -40 to +85°C
Relative Humidity 5 to 95% RH
