R3000 Quad

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

Industrial Cellular VPN Router with 4 Ethernet Ports. Offering state-of-the-art mobile connectivity for M2M applications.

Product Feature

  • The feature Link Manager supporting WWAN1, WWAN2, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • The option Backup Mode supporting cold, warm and load balancing
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SNMP/RCMS
  • Robust industrial design (9 to 60V DC, 18~75VDC(optional),desktop or wall mounting or DIN rail mounting)

INTRODUCTION

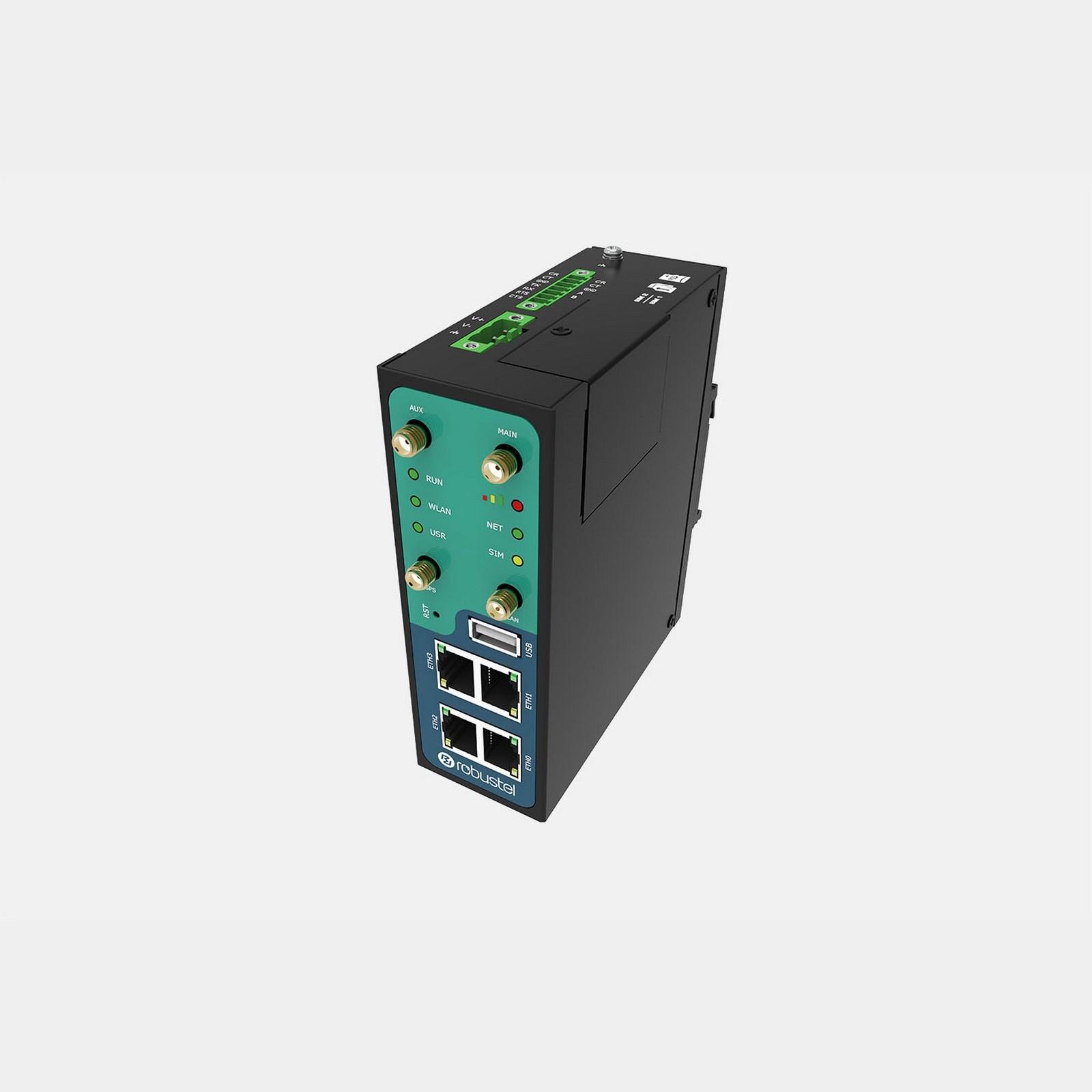

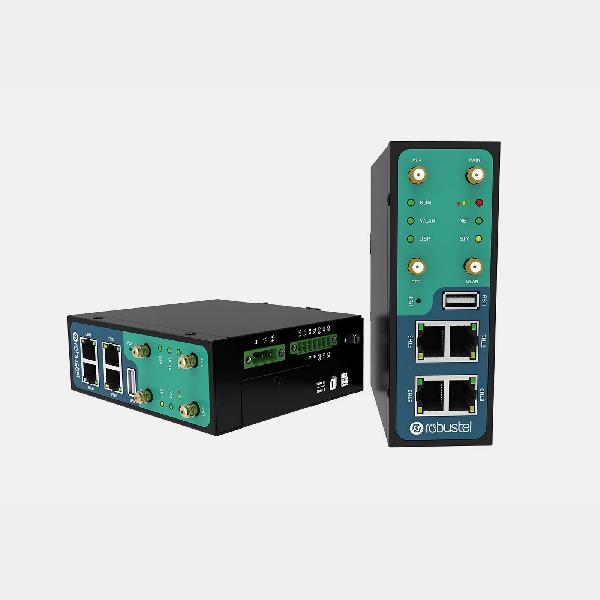

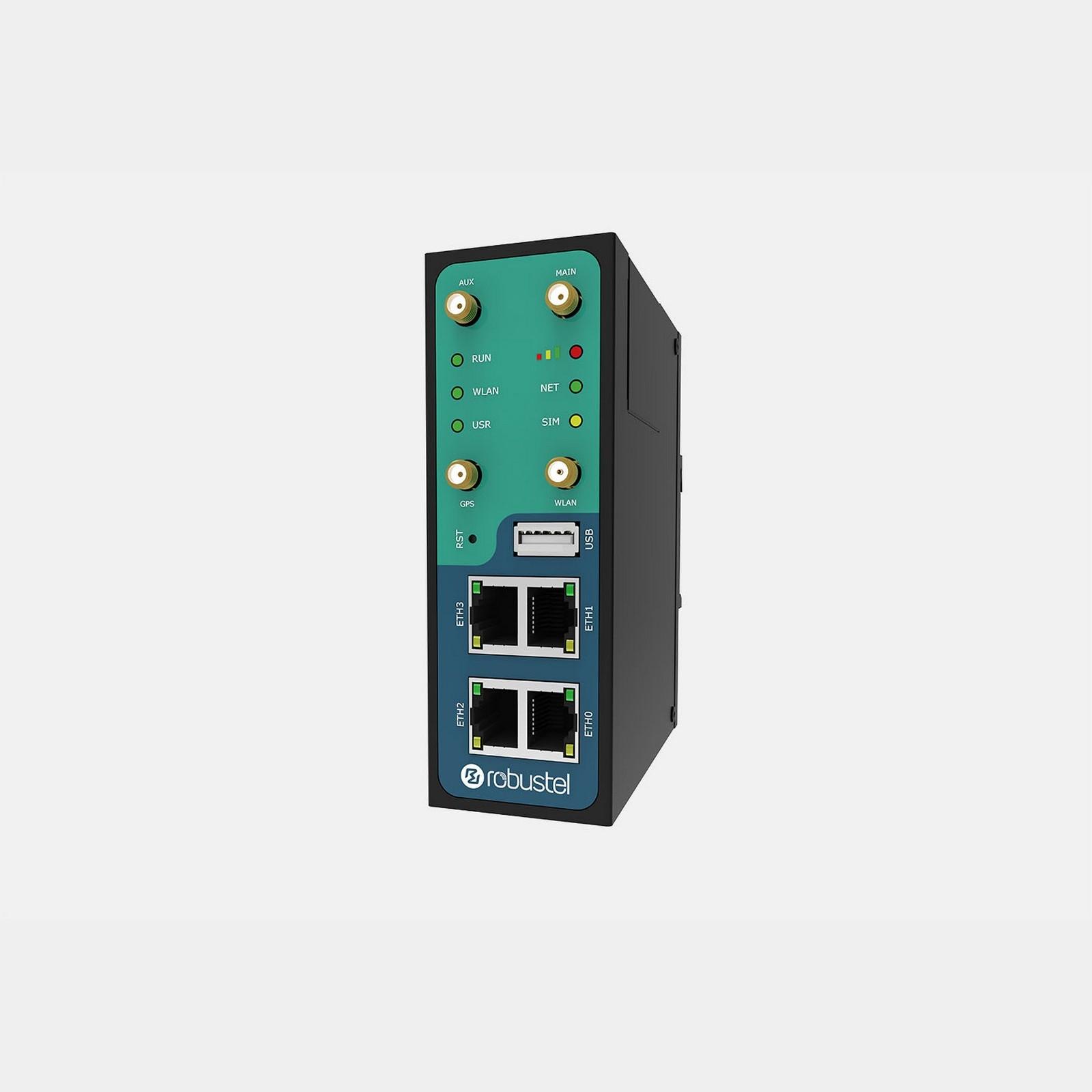

The Robustel Industrial Cellular VPN Router with 4 Ethernet Ports (R3000 Quad) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.

R3000 Quad is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.

Cellular Interface

Number of ports2 (MAIN + AUX)
ConnectorSMA-K
SIM2 (3 V & 1.8 V)

Ethernet Interface

Number of ports4 x 10/100 Mbps, 4 x LAN or 3 x LAN + 1 x WAN
Magnet isolation protection1.5 KV

Wi-Fi Interface (Optional)

Number of antennas1
ConnectorRP-SMA-K
Standards802.11a/b/g/n, supporting AP and Client mode
Frequency bands2.4 GHz
5 GHz
SecurityOpen, WPA, WEP
EncryptionAES, TKIP, WEP64
Data speedUp to 150 Mbps

GPS/GLONASS Interface (Optional)

Number of antennas1
ConnectorSMA female with 50 ohms impedance
Acquisition sensitivity

GPS: greater than -148 dBm

GLONASS: greater than -145 dBm

Horizontal positionGPS: 2.5 m
accuracyGLONASS: 2.6 m
ProtocolNMEA-0183 v4.10

Serial Interfaces

Number of ports1 x RS-232 or 1 x RS-485
Connector7-pin 3.5 mm female socket with lock
Baud rate300bps to 230400bps
Isolation2.5KV (optional)

Others

Reset button1 x RST
SD1 x Micro SD interface
Expansion1 x USB 2.0 host up to 480 Mbps
CLI1 x CLI interface
LED indicators1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM
Built-inRTC, Watchdog, Timer

Software(Basic features of RobustOS)

Network protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP,

HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN,

SSH2, DDNS, etc.

VPN tunnelIPsec, OpenVPN, GRE
Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/

MAC address), Port Mapping, Access Control

ManagementWeb, CLI, SMS
Serial port

Transparent, TCP Client/Server, UDP, Modbus

RTU Gateway

App Center

AppsL2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS,
SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Connector3-pin 5 mm female socket with lock
Input voltage9 to 60V DC, 18~75VDC, support reverse polarity protection (optional)
Power consumption

Idle: 100 mA@12 V, 55 mA@24V,30 mA@48V

Data link (peak): 400 mA@12 V, 215 mA@24V,115 mA@48V

Physical Characteristics

Ingress protectionIP30
Housing & WeightMetal, 570 g
Dimension125 x 104 x 43.5 mm
Installation

Desktop or wall mounting and 35 mm DIN rail

mounting

Approvals
RegulatoryRCM, CE, EAC, ICASA
ApplicationIEC 60945 (Maritime Navigation and Radiocommunication Equipment and Systems)
EnvironmentalRoHS 2.0, WEEE
EMIEN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS

IEC 61000-4-2 (ESD)connect Level2; Air Level 3

IEC 61000-4-3 (RS) Level 2

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

Name Type Version Release Date
R3000 Quad Datasheet Datasheet V2.1 23 July 2020

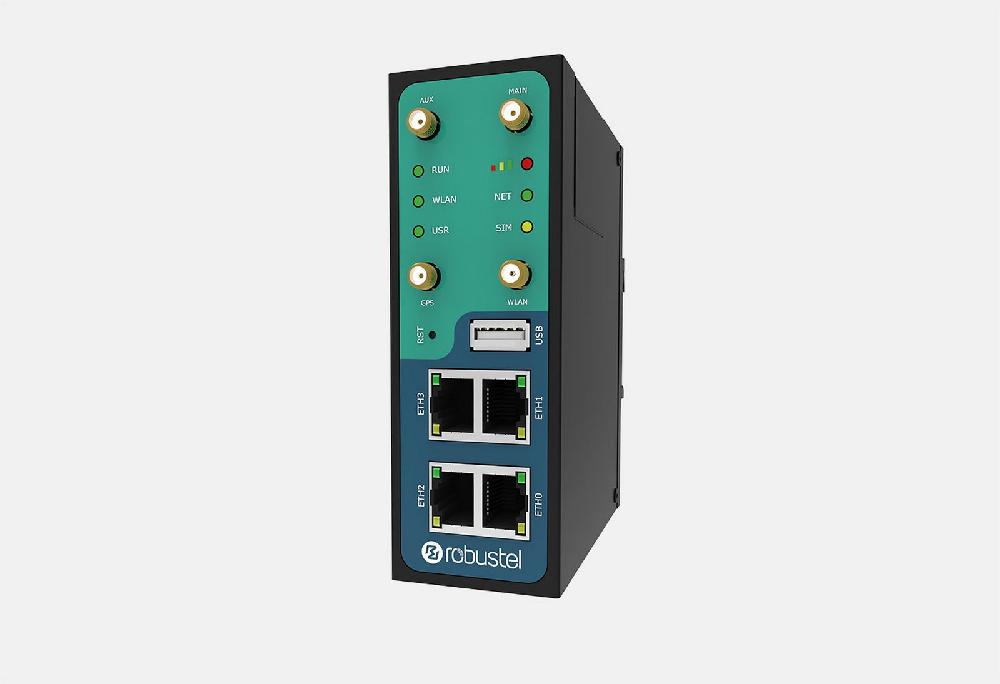

R3000-Q3PB

Router Type HSPA+ Router
Air Interface GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA+
Frequency Bands
4G* -
3G B1/B2/B4(AWS)/B5/B8/B19
2G B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-Q4LB

Router Type LTE Router
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/ HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G* EMEA:B1/B3/B5/B7/B8/B20; B38/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28; B40
3G EMEA:B1/B5/B8 AU: B1/B2/B5/B8
2G EMEA: B3/B8 AU: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH

R3000-QLB

Router Type Wireline Router
Air Interface -
Frequency Bands -
4G* -
3G -
2G -
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH
