R1500

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

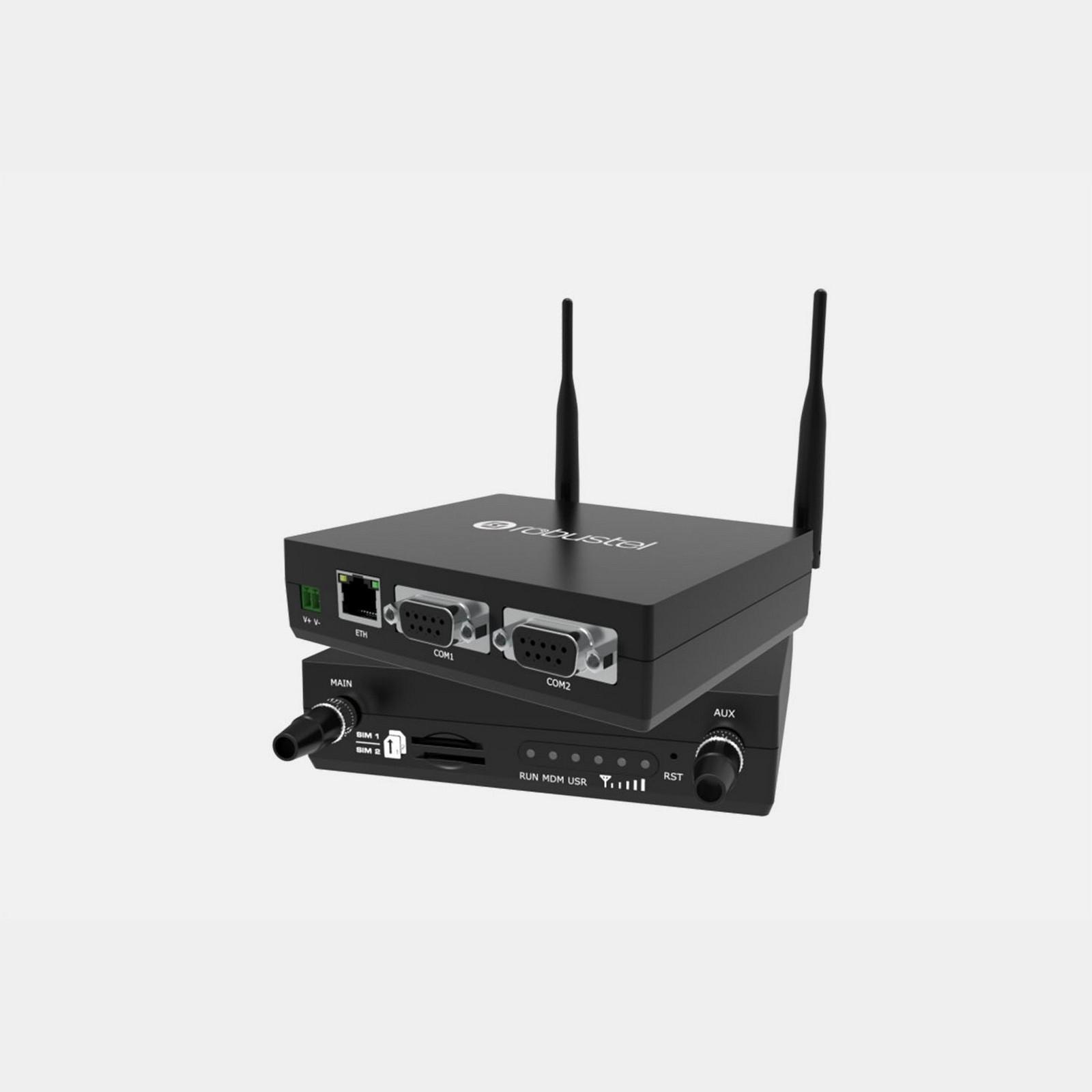

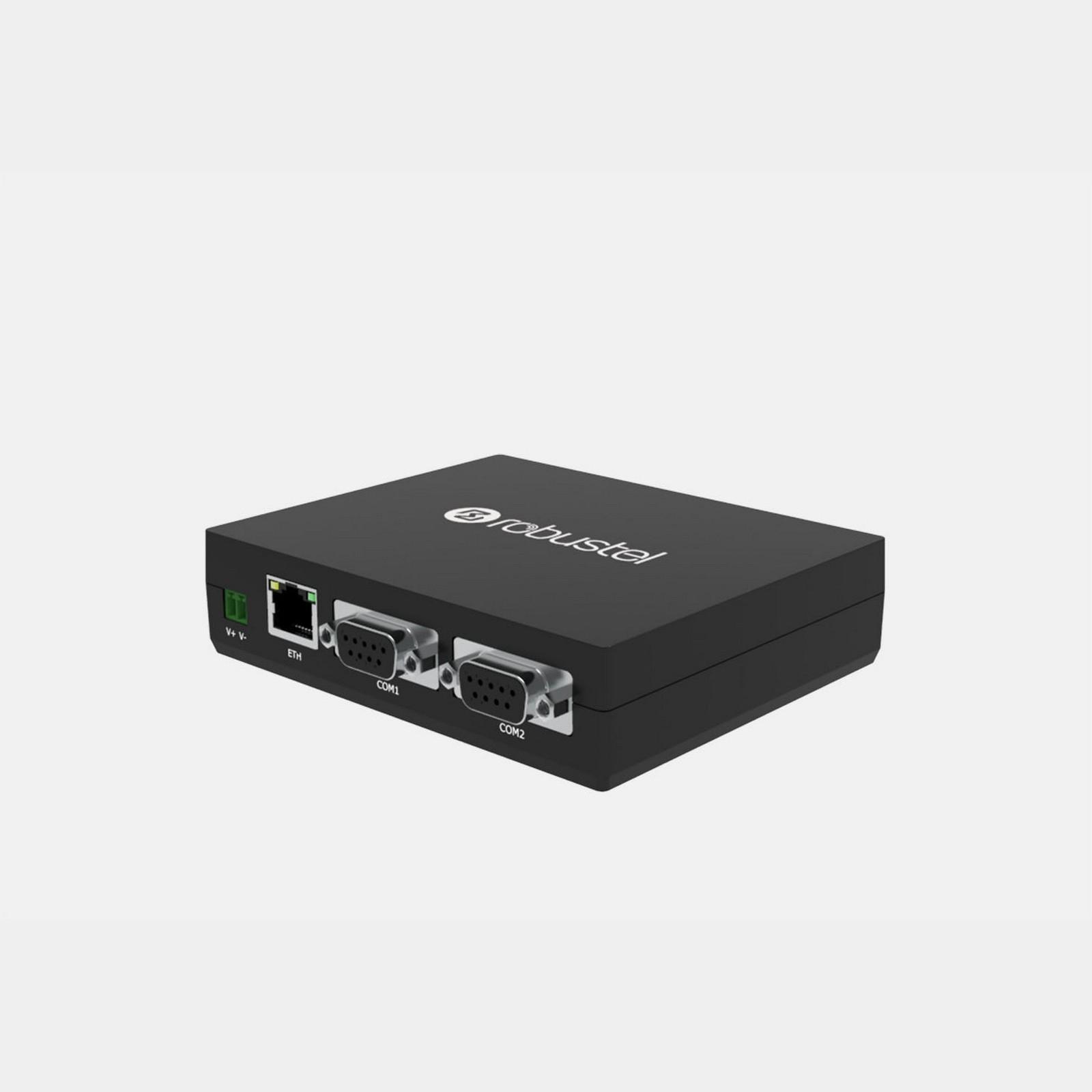

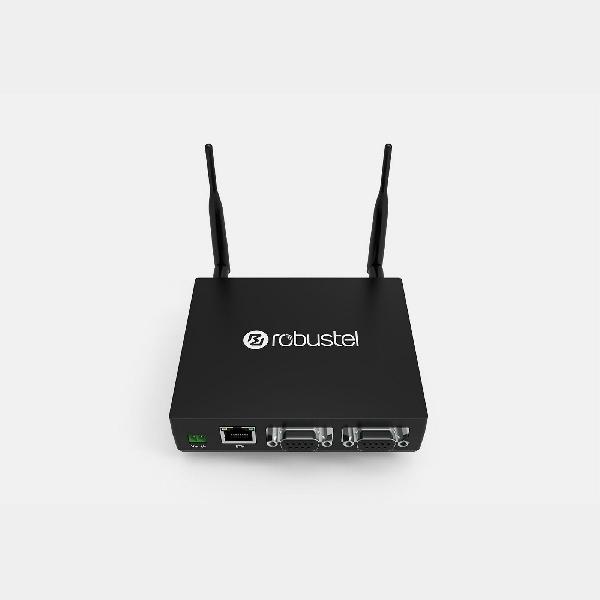

Industrial Cellular IoT Gateway R1500 industrial cellular IoT gateway provides high speed wireless network bandwidth for device by wireless connection and with dual-SIM backup to ensure the stable connection of wireless network.

Product Feature

  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN and various VPNs
  • Supporting double cards link backup and ICMP detection
  • Supporting SMS, Email, SNMP Trap and RobustLink
  • Event alarms
  • Supporting Modbus RTU to TCP、Modbus Master
  • Supporting TCP client/server, UDP and virtual serial ports
  • Supporting IP Pass-through
  • DHCP server
  • Supporting RobustVPN cloud platform, providing easy and safe remote access for PLC and other industrial devices
  • Supporting RobustLink M2M centralized management platform, real time monitoring device network status and counting device flow
  • Supporting Web、CLI、USB、SMS and RobustLink to upgrade firmware
  • Powerful industrial design (9~36V DC input voltage, supporting desktop placement, wall mount or rail mount)

INTRODUCTION
R1500 industrial cellular IoT gateway supports
GSM/GPRS/EDGE 2G network, WCDMA and other 3G
networks, HSPA+ 3.5 G and LTE 4G network. It
provides high speed wireless network bandwidth for
device by wireless connection, and with dual-SIM
backup to ensure the stable connection of wireless
network

R1500 is a powerful gateway developed from
RobustOS, a Robustel self-developed and Linux-based
operating system which is designed to be used in
Robustel devices. The RobustOS includes basic
networking features and protocols providing
customers with a very good user experience.
Meanwhile, Robustel offers a Software Development
Kit (SDK) for partners and customers to allow
additional customization by using C, Python or Java. It
also provides rich Apps to meet fragmented IoTmarket demands.

Cellular Interface

Number of antennas2 (MAIN + AUX)
ConnectorSMA-K
SIM2 (3 V & 1.8 V)
StandardsGSM/WCDMA/FDD LTE/TDD LTE

Ethernet Interface

Number of ports1 x 10/100 Mbps

Serial Interfaces

Number of ports2 x RS-232
ConnectorDB9
SignalTxD, RxD, GND, CTS, RTS, DSR, DTR
Baud rate300bps to 115200bps

Others

LED indicators1 x RUN,1 x MDM,1 x USR,3 x RSSI
Network indicator (link + rate)
Built-inRTC, Watchdog, Timer
App Center(Available Apps for RobustOS)
Apps*Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Software(Basic features of RobustOS)

Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
ManagementWeb, CLI, SMS
Serial portTransparent, TCP Client/Server, UDP,
Modbus RTU Gateway

Power Supply and Consumption

Connector2-pin 3.5 mm
Input voltage9 to 36V DC
Power consumptionIdle: 80 mA@12 V
 Data link: 450 mA (peak) @12 V

Physical Characteristics

Ingress protectionIP30
Housing & WeightPlastic, 300 g
Dimension118 x 97.5 x 28.5 mm
InstallationDesktop, wall mounting and DIN rail mounting
Approvals
RegulatoryCE, Telec, RCM
EnvironmentalRoHS 2.0, WEEE
Name Type Version Release Date
R1500 Datasheet Datasheet V1.0.3 24 July 2020

R1500-4L

Type LTE Gateway
Air Interface GSM/WCDMA/FDD LTE/TDD LTE
Frequency Bands
4G* EMEA: B1/B3/B5/B7/B8/B20/B28A; B38/B40/B41 AU: B1/B2/B3/B4/B5/B7/B8/B28; B40
3G EMEA: B1/B5/B8 AU: B1/B2/B5/B8
2G EMEA: B3/B8 AU: B2/B3/B5/B8
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH
