R1510

Home  >   Robustel  >   INDUSTRIAL CELLULAR ROUTERS  >

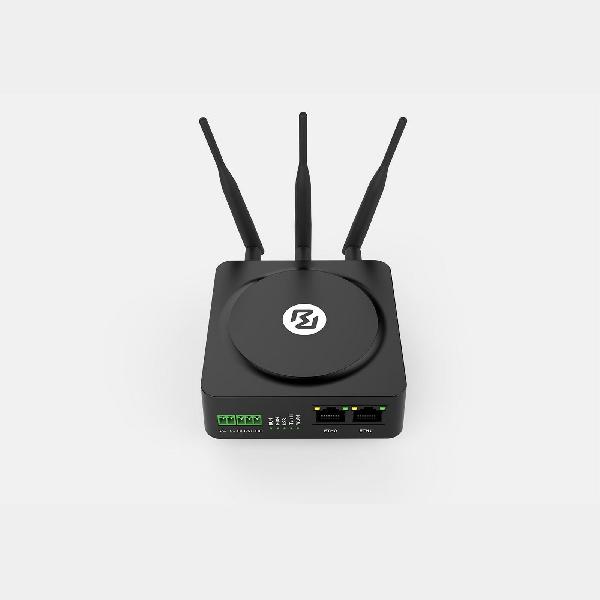

Industrial Cellular VPN Router R1510 industrial cellular IoT gateway provides high speed wireless network bandwidth for device by wireless connection and with Ethernet, Wifi and 4G internet connection options with auto-failover to ensure the stable connection of wireless network.

Product Feature

  • Highly stable 2G/3G/4G cellular connections
  • Ethernet, Wifi and 4G internet connection options with auto-failover
  • Free cloud management platform –RCMS
  • Fully programmable Linux environment with excellent SDK Documentation
  • ‘Smart Reboot’for enhanced roaming SIM management
  • RobustVPN provides fixed IP address on ANY SIM card
  • Full SMS control for diagnosis and recovery from data network problems
  • Very small footprint for space-constrained applications
  • Wall-mount and DIN-rail mounting options available

INTRODUCTION

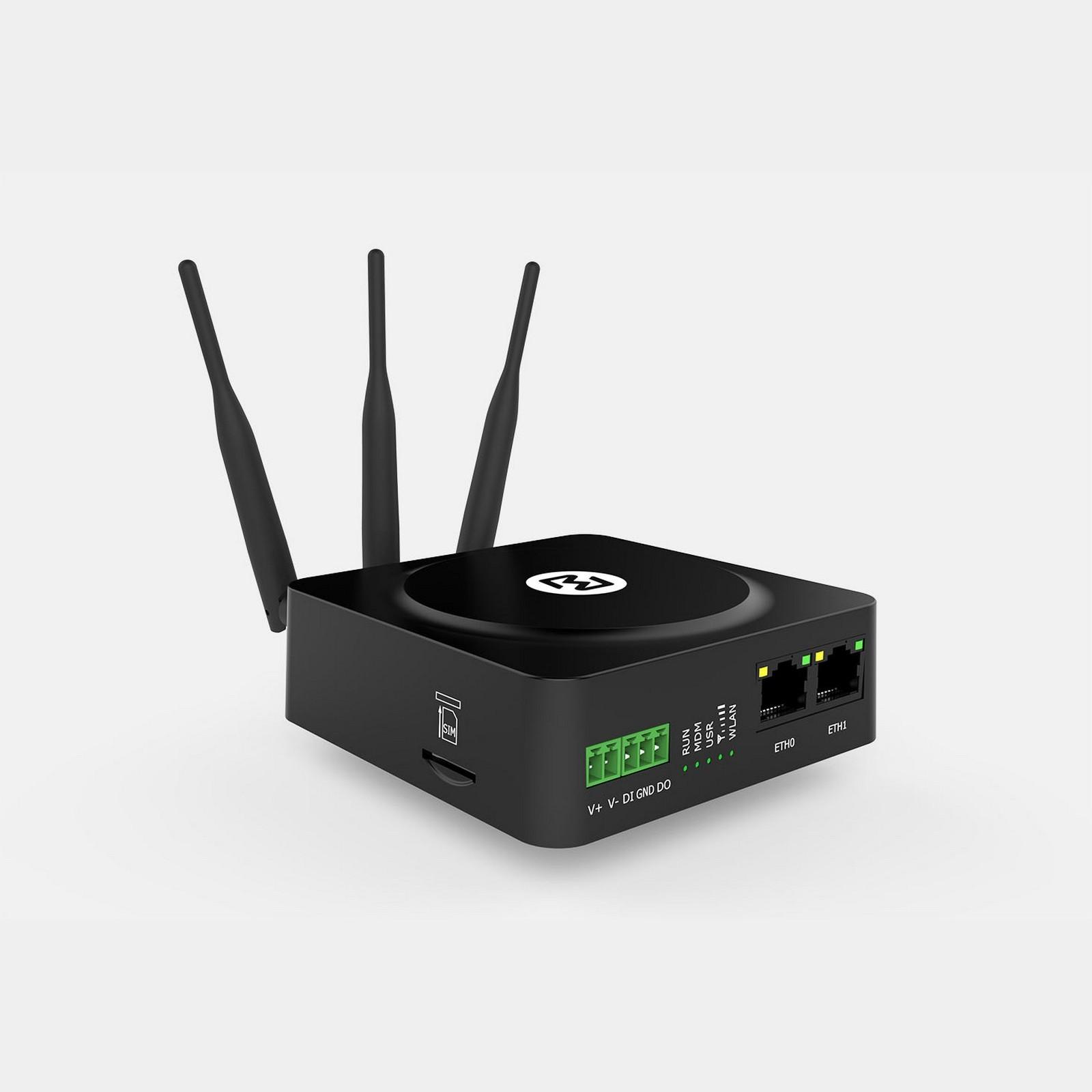

Robustel’s R1510 router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point.

At the heart of all of Robustel’s routers is the “RobustOS” operating System. With 5 years of maturity and innovative features, RobustOS offers customers a very professional product with an easy to navigate Graphical User Interface and the connection stability required by critical IoT applications. The router occupies a very small footprint which is useful for space-constrained applications such as bus signs, ticketing machines, vending machines, covert surveillance & digital signage applications.

The R1510 has many unique software innovations including, but not limited to:

RobustVPN – innovative use of Open VPN tunneling to provide a fixed IP address on ANY SIM Card.

RCMS – Robustel’s Cloud management platform – essential for managing an estate of routers – Basic version FREE.

Data Guard – critical ‘failsafe’ that stops unexpected data overusage within seconds of a threshold being breached.

Smart Reboot – essential backup solution for when your roaming SIM card doesn’t roam!

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since inception in 2010, Robustel has focussed on manufacturing and design of industrial cellular routers, gateways, modems, cloud platforms and end to end solutions. Robustel has set up local offices in Germany, Australia, the Netherlands, UK, Japan and Hong Kong and has a global distribution network providing a service in over 100 countries.

Cellular Interface

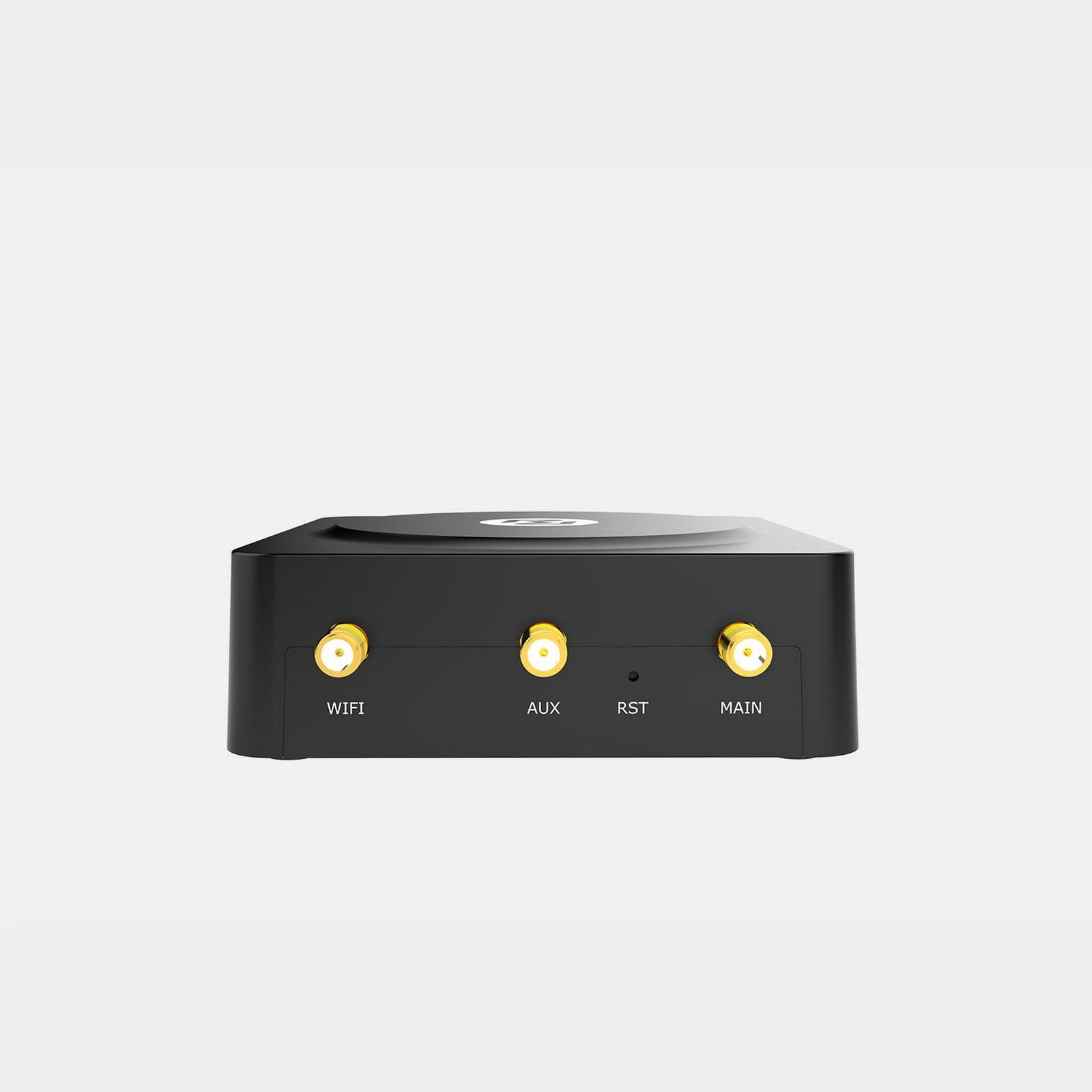

Number of antennas2 external antenna (MAIN + AUX)
ConnectorSMA-K
SIM1 (3 V & 1.8 V) Standard SIM or eSIM

Ethernet Interface

Number of ports2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Magnet isolation protection1.5 KV

Wi-Fi Interface (Optional)

Number of antennas1 external antenna
ConnectorRP-SMA-K (external antenna)
Standards802.11b/g/n, supports AP and Client modes
Frequency bands2.4 GHz
SecurityWEP, WPA, WPA2
Encryption64/128 AES, TKIP
Data speed2*2 MIMO, 300 Mbps
RF output power (+/-1 dBm)802.11b                 19 dBm
802.11g                 19 dBm
802.11n (20 MHz)     18 dBm
802.11n (40 MHz)     17 dBm
Receiving sensitivity (+/-1 dBm)802.11b                 -93 dBm
802.11g                 -90 dBm
802.11n (20 MHz)     -88 dBm
802.11n (40 MHz)     -85 dBm

DI/DO

Type1 x DI (wet contact) + 1 x DO (wet contact)
Connector3-pin 3.5 mm female socket
Absolute maximum VDC30V DC (DI/DO)
Absolute maximum ADC20mA

Others

Reset button1 x RST
LED indicators1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi
Built-inWatchdog, Timer

Software(Basic features of RobustOS)

Network protocolsPPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS

App Center (Available Apps for RobustOS)

Apps*L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Connector2-pin 3.5 mm female socket
Input voltage9 to 36V DC
Power consumptionIdle: 100 mA@12 V
Data link: 500 mA (peak) @12 V

Physical Characteristics

Ingress protectionIP30
Housing & WeightPlastic, 150 g
Dimension91.5 x 91.5 x 30.8mm
InstallationDesktop, wall mounting and 35 mm DIN rail mounting
Approvals
RegulatoryCE, Telec, RCM
EnvironmentalRoHS 2.0, WEEE
EMIEN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS

IEC 61000-4-2 (ESD) Contact Level 2;
IEC 61000-4-3 (RS) Level 2
IEC 61000-4-4 (EFT) Level 2
IEC 61000-4-5 (Surge) Level 2
IEC 61000-4-6 (CS) Level 2

(* :In progress)

Name Type Version Release Date
R1510 Datasheet Datasheet V1.0.3 24 July 2020

R1510-4L

Router Type LTE Router
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE/
Frequency Bands
4G* EU: B1/B3/B7/B8/B20/B28 AU+LATAM: B1/B3/B5/B7/B8/B28, B40 CN+IN: B1/B3/B5/B8, B34/B38/B39/B40/B41
3G WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+: B1/B2/B5/B8 TD-SCDMA: B34/B39 CDMA (CDMA 1X/EVDO):BC0
2G B3/B8
Operating Temperature -25 to +70 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95% RH
