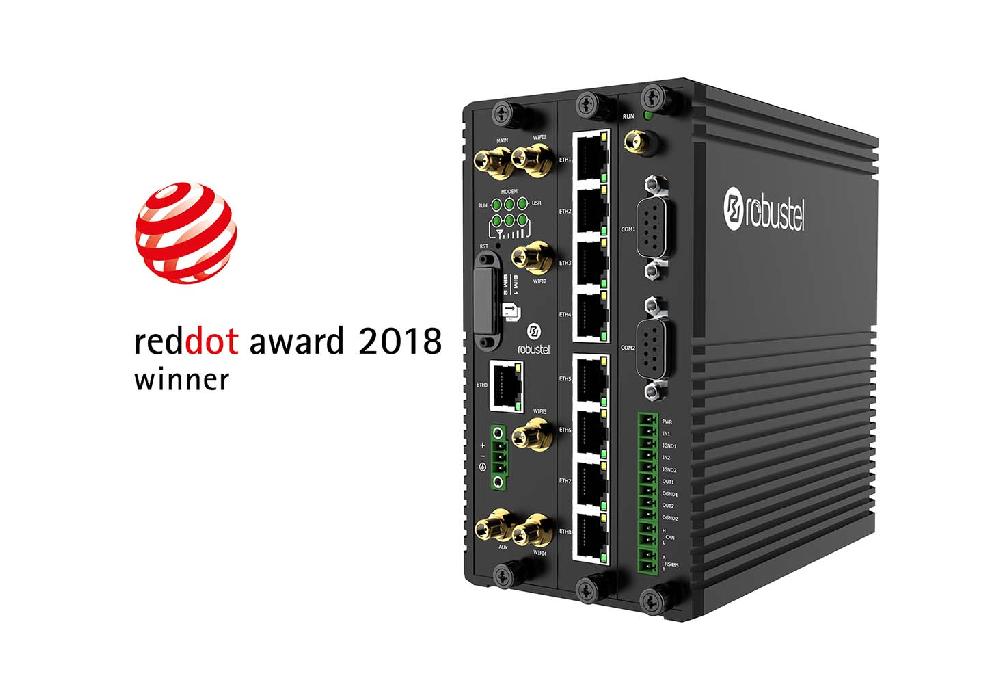

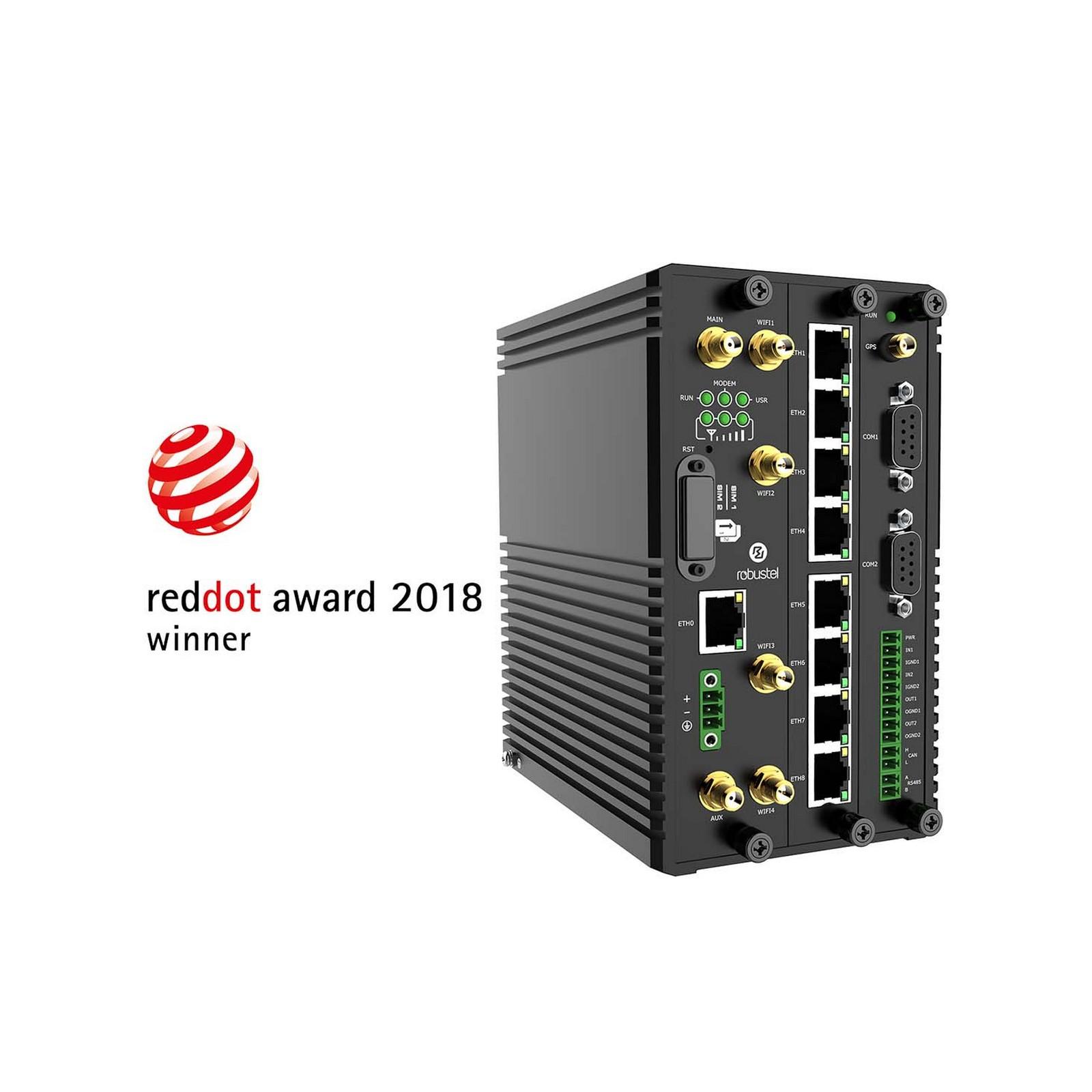

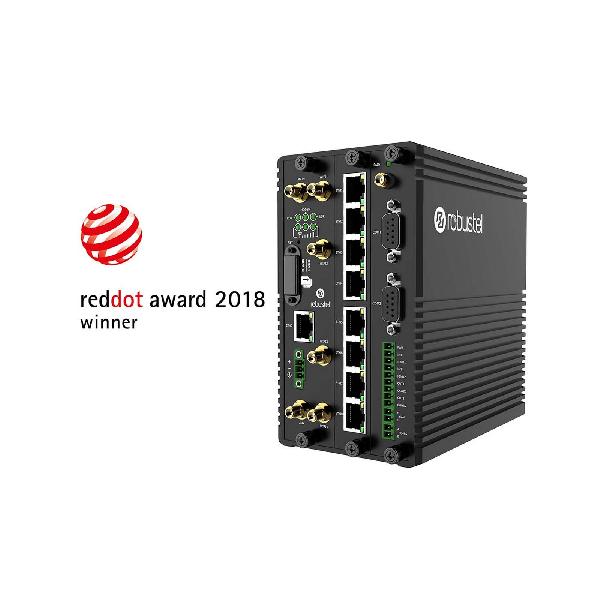

MEG5000

Home  >   Robustel  >     >

Modular Edge Gateway for IoT. As most configurable and manageable, it allows data processing in real time at the network edge for high performance IoT deployments.

Product Feature

  • Flexible interfaces supporting numerous industrial applications
  • High performance, high reliability and high throughput for data processing
  • Quick customization meeting rapid market promotion
  • Integrated Linux programming environment for edge computing
  • Embedded mSATA SSD providing data logging
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • The option Backup Mode supporting cold, warm and load balancing
  • Event/Alarm management with notification (SMS, e-mail, DI/DO, SNMP trap or RobustLink)
  • Robust industrial design (9 to 60V DC,desktop or wall mounting or DIN rail mounting)

INTRODUCTION

MEG5000, Robustel Modular Edge Gateway for Internet of Things (IoT), is a most configurable and manageable cellular gateway. The MEG5000 features three scalable cards supporting various interfaces to meet changing demands for industrial IoT applications. It is developed to provide application of calculation, and performs real-time data analysis and intelligent processing at the edge of sensor, which is more effective and secure. With quick-to-deploy and easy-to-customize, the MEG5000 gateway can be tailored to your industrial needs.

MEG5000 is a powerful gateway developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.

Robustel is a leading global industrial IoT/M2M hardware and solution provider. Since its establishment in 2010 in Guangzhou, China, Robustel has been focusing on designing and manufacturing industrial cellular routers, gateways, modems, cloud platforms and E2E solutions. In order to support global business in more than 100+ countries and regions, Robustel has set up local offices in Germany, Australia, the Netherlands, the UK, Japan and Hong Kong.

Cellular Interface

Number of antennas2 (MAIN + AUX)
ConnectorSMA, female
SIM2 (3 V & 1.8 V)
StandardsGSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/
HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE

Ethernet Interface

Number of ports1 x 10/100/1000 Mbps WAN (ETH0) +
8 x 10/100 Mbps LAN (ETH1~ETH8)
Magnet isolation protection1.5 KV

WiFi Interface

Number of antennasSupport up to 4 antennas (WiFi1 + WiFi2 + WiFi3 + WiFi4)
ConnectorRP-SMA, male
Standards802.11a/b/g/n/ac, supporting AP and Client modes
Frequency bands2.412 – 2.472 GHz (2.4 GHz ISM band)
5.180 – 5.825 GHz (5 GHz ISM band)
SecurityOpen, WPA, WPA2, WEP
EncryptionAES, TKIP, WEP64, WEP128
Data speedUp to 1300 Mbps

Device Interface

GPS/GLONASS1 x GPS/GLONASS, SMA, female(Optional)
Serial port2 x RS-232 + 1 x RS-485 + 1 x CAN
DI/DO2 x Digital Input + 2 x Digital Output

Others

GPS/GLONASS1 x GPS/GLONASS, SMA, female (Optional)
LED indicators

1 x RUN (Main control card), 1 x RUN (Expansion Card 2), 1 x MODEM, 1 x USR, 3 x RSSI

1 x Link indicator + 1 x Speed indicator for each Ethernet port

Software(Basic features of RobustOS)

Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/
MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center

AppsL2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.

Power Supply and Consumption

Power supply interface3.5 mm terminal block with lock
Input voltage12 to 60V DC
Input current12V@3A, 24V@1.5A

Physical Characteristics

Ingress protectionIP30
Housing & WeightMetal, 1600 g
Dimension157 x 145 x 89 mm
InstallationDesktop or wall mounting or 35 mm DIN railmounting
Approvals
CE
RoHS, WEEE
Name Type Version Release Date
MEG5000 Datasheet Datasheet V1.0.6 24 July 2020

MEG5000-4L

Gateway Type LTE gateway
Antenna Number 2
Air Interface GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/ TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G AU: B1/B2/B3/B4/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41
3G WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+: B1/B2/B5/B6/B8/B9/B19 TD-SCDMA: B34/B39 CDMA (CDMA 1X/EVDO): R0/A BC0/BC1/BC10
2G 850/900/1800/1900 MHz
Operating Environment -40 to +65 °C/-10 to +65 °C(with Wifi)/5 to 95% RH

MEG5000-NU

Gateway Type -
Antenna Number 2
Air Interface -
Frequency Bands
4G -
3G -
2G -
Operating Environment -40 to +65 °C/-10 to +65 °C(with Wifi)/5 to 95% RH
